Aqua PRO 63043 Bedienungsanleitung

OWNER’S MANUAL

CONVERTIBLE JET PUMP WITH 6 U.S. GALLON TANK

Questions, problems, missing parts? Before returning to the store call AQUAPRO

Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday

1-844-242-2475

Model 63043

PERFORMANCE

Model HP

GPH of Water @ Total Discharge Pressure of

40psi

Max. Pressure shutoff

5’ 10’ 20’ 30’ 40’ 50’ 60’ 70’

63043 1/2 450 396 330 300 282 228 210 132 66PSI

SAFETY INSTRUCTIONS

1. Do not pump flammable or explosive liquids such as oil, gasoline, kerosene, ethanol, etc. Do not use in the presence of

flammable or explosive vapors. Using this pump with or near flammable liquids can cause an explosion or fire, resulting

in property damage, serious personal injury, and/or death.

2. ALWAYS disconnect the power to the pump before servicing.

3. Do not touch the motor housing during operation. The motor is designed to operate at high temperatures. Do not

disassemble the motor housing.

4. Do not handle the pump or pump motor with wet hands or when standing on a wet or damp surface, or in water.

5. Wear safety goggles at all times when working with pumps.

6. This is a dual voltage 115/230 V pump.VOLTAGE SELECTOR INSIDE PRESET TO 230V.For 115V selection, please

open the terminal cover and set the switch to the proper voltage. All wiring should be performed by a qualified

electrician.

7. Protect the electrical cord from sharp objects, hot surfaces, oil, and chemicals. Avoid kinking the cord. Do not use

damaged or worn cords.

8. Ensure the electrical power source is adequate for the requirements of the pump.

9. Failure to comply with the instruction and designed operation of this unit may void the warranty. ATTEMPTING TO USE

A DAMAGED PUMP can result in property damage, serious personal injury, and/or death.

10. The pump should be connected to a 230V/115V GFCI outlet protected with a 10 amp(230V)/20 amp(115V) fuse or

circuit breaker.

11. Know the pump and its applications, limitations, and potential hazards.

12. Secure the pump to a solid base.

13. Periodically inspect the pump and system components. Disconnect the pump from the power supply before inspecting.

14. Follow all local electrical and safety codes, along with the National Electrical Code (NEC). In addition, all Occupational

Safety and Health Administration (OSHA) guidelines must be followed.

15. The motor of this pump has a thermal protector that will trip if the motor becomes too hot. The protector will reset itself

once the motor cools down and an acceptable temperature has been reached. The pump may start unexpectedly if it is

plugged in.

16. This pump is made of high-strength, corrosion-resistant materials. It will provide trouble-free service for a long time

when properly installed, maintained, and used. However, inadequate electrical power to the pump, dirt, or debris may

cause the pump to fail. Please carefully read the manual and follow the instructions regarding common pump problems

and remedies.

PRE-INSTALLATION

APPLICATION

This unit is a convertible jet pump designed for pumping water where the water is located less than 70 feet. If the water level

to the pump is deeper than 70 feet, a deep well submersible pump should be selected. A pressure switch pre-set at 30 psi

“on”/50 psi “off” has been installed on the pump. The pressure switch can automatically turn on and off the pump based on

the system pressure.

TOOLS REQUIRED

SPECIFICATIONS

POWER SUPPLY 115V/230V,60HZ,20/10Amp circuit

LIQUID TEMP. RANGE

32°F to 77°F (0°- 25°C)

DISCHARGE 1in. FNPT

SUCTION

1 1/4FNPT

SHALLOW WELL WATER LEVEL 25 ft.

DEEP WELL WATER LEVEL 70 ft.

Phillips

Screwdriver

Flathead

Screwdriver

Thread Tape

Tape Measure

Safety goggles

Pipe wrench Hacksaw

PVC glue

PACKAGE CONTENTS

Part Description Quantity Part Description Quantity

Pump

Pressure regulator

Tank

Pressure tube

Discharge tee

Pressure gauge

Stainless steel

braided hose

1 K Flat washer 4

Rubber Washer

Bolt

F Venturitube (#11) 1 M Spring washer 2

G Nozzle (#01) 1 N Nut 2

PRE-INSTALLATION

Determine the depth of your well

Tiea small but heavy weight such as a fishing weight to the end of a piece of cotton string. Lower the weight into the well until

it reaches the bottom of the well. Make a mark on the string at ground level. Pull the weight out of the well and measure from

the bottom of the weight to the ground level mark. This is the depth of your well. Subtract five feet from the depth of your well.

If this number is less than 25 feet, shallow well installation should be taken. If this number is more than 25 feet and less than

70 feet, deep well installation should be taken. If this number is more than 70 feet, a deep well submersible pump should be

selected.Measure the ground level mark to the mark where the cotton string is wetted. This number is your well’s water level.

Lower the pipe into the well until the strainer is five feet above the bottom of the well. It should also be at least 10 feet below

the well’s water level while the pump is running in order to prevent the pump from sucking air due to water level drawdown.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and

hardware contents above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer

service for replacement parts.

LOCATION OF THE PUMP

Decide on the area for the pump installation. Select a pump location with adequate space for future pump maintenance. It

can be located inthe basement or utility room of the house, at the well, or between the house and the well. If installed outside

of the house, it should be protected by a pump house with auxiliary heat to prevent possible freezing. Protect the pump

against flooding and excess moisture. The well also should be protected for sanitary reasons. Mount the pump as close to

the well as possible.

TANK - PRE-CHARGED STORAGE

The 6 gallons pre-charged storage tank has a flexible bladder that acts as a barrier between the compressed air and water.

This barrier prevents the air from being absorbed into the water and allows the water to be acted on by compressed air at

initially higher than atmospheric pressures. The pressure was pre-set as 28 psi in the factory. If the air pressure less than 28

psi, you may need to pump air into the tank before you start the pump.

For wells 25 feet or less in depth, shallow well installations should be adapted. The shallow well

installations have only one single pipe between the pump and well water.

SHALLOW WELL INSTALLATION

MATERIALS REQUIRED (NOT INCLUDED)

One can PVC cement & primer (read instructions carefully) One well seal with vent plug

One can thread compound (read instructions carefully) Foot valve

Teflon tape Discharge tee/Priming tee and plug

Rigid pipe Relief valve

Check valve Adaptor

Flexible plastic pipe/clamps Tank(for AUTO series tank is included）

Tank tee

WARNING: All joints and connections must be AIRTIGHT. Asingle leak will prevent the proper operation of the pump. Wrap

thread tape clockwise on all threaded connections. For all non-threaded connections, you must use PVC Purple Primer and

PVC Cement to ensure airtight seals. Measure all pipe lengths before attaching.

NOTE: Afoot valve is a check valve that is used to keep the water from running back into the well from the pump and

maintain hydraulic pressure when the pump is not running. If the foot valve does not hold the water the pump will lose it’s

prime and will not pump water. If the foot valve open pressure is too high (the spring is too stiff), or the flow area is too small,

the pump suction head and flow rate will significantly drop.

NOTE: The suction pipe size should not be less than 1-1/4 in. The suction size of this pump is 1-1/4 in. FNPT.

CAUTION: To avoid skin burns, unplug the pump and allow time for it to cool after periods of extended use.

PRE-INSTALLATION FOR TANK

1. Wrap discharge tee (C) with thread tape (sold separately) and thread it on pump (A) outlet.

2. Wrap thread of stainless steel braided hose (D) with thread tape and thread into the level outlet on the discharge tee (C).

3. Thread flat washer (K) onto bolt (L) and attach pump to tank. Secure bolt (L) with another flat washer (K), spring washer

(M), and nut (N) Repeat this on the other side of the pump.

4. Insert rubber washer (E) into open end of the stainless steel braided hose (D). Thread hose (D) onto front of tank (B).

Hand tighten, and then tighten with wrench 1/2 turn.

Cased Well Installation, 2” or Larger Casing

1. Install the pressure gauge in the pump body.

2. Mount the pump as close to the well as possible.

3. Assemble the foot valve, strainer, and well pipe. Make

sure that the foot valve works freely.

4. Lower the pipe into the well until the strainer is five feet

above the bottom of the well. It should also be at least 10

feet below the well’s water level while the pump is running

in order to prevent the pump from sucking air. Install a

sanitary well seal.

5. Install a priming tee, priming plug, and suction pipe to

the drop pipe.

If the distance from the well to the pump is substantial,

add a priming tee at the pump. Connect the pipe from the

well to the pump suction port, using the fewest possible

fittings – especially elbows – as fittings increase friction in

the pipe. The suction pipe should be at least as large as

the suction port on the pump. Support the pipe so that there are no dips or sags in the pipe, so it doesn’t strain the pump

body, and so that it slopes slightly upward from the well to the pump (high spots cancause air pockets which can air lock

the pump). Seal the suction pipe joints with PTFE pipe thread sealant tape or a PTFE-based pipe joint compound. Joints

must be air- and water-tight. If the suction pipe can suck air, the pump cannot pull water from the well.

You have just completed the suction piping for your new shallow well jet pump. Please go discharge pipe and tank

connections.

Discharge Pipe Connection

1. Install a tee in the pump discharge port.

2.Connect the tee to your water system in the house.

You have just completedconnection for your jet pump. Please goto electrical hookup.

Priming

CAUTION: Risk of burns. Never run pump dry. Running pump without water may cause pump to overheat, damaging seal

and possibly causing burns to persons handling pump. Fill pump with water before starting.

WARNING: Risk of explosion and scalding. Never run pump against closed discharge. To do so can boil water inside

pump, causing hazardous pressure in unit, risk of explosion and possibly scalding persons handling pump.

1. Fill the pump through the pump outlet, fill all piping between the pump and the well, and make sure that all piping in the

well is full. If you have also installed a priming tee in the suction piping, remove the plug from the tee and fill the suction

piping.

2. Replace all fill plugs.

Electrical

WARNING: It is recommended all electrical work be performed

by a licensed electrician.

WARNING: Before wiring the pressure switch, turn off the power

source to which you are connecting to avoid potentially life

threatening electrical shock.

WARNING: When wiring from the power source to the pressure

switch, it is recommended that you use either a 14-gauge or

12-gauge cord.To complete the installation, you must connect

the power source to the pressure switch. A 30/50 psi pressure

switch has been installed on the pump. The pressure switch allows for automatic operation; the pump starts when pressure

drops to the “cut-in” setting (30 psi pre-set).

To wire the pressure switch:

Remove the pressure switch cover on the pump to expose the wiring terminals.

Connect the green ground wire of the power supply to the switch ground terminal.

Connect the power supply wires to the two outside terminals marked “LINE” and replace the switch cover.

CAUTION:Do NOT use a pressure switch set at a pressure greater than 50 psi. The pump will not create pressures

greater than 50 psi, if so the pump will never shut off, resulting in damage to the pump and voiding the warranty.

Voltage Setting

This pump is pre-wired at 230 volts.

If the power source is 115 volts, remove the electrical housing

cover.

Flip the switch to 115 volts. Replace the cover.

NOTE: All electrical work should be performed by a licensed

electrician.

Start the Pump

1. Power on! Start the pump. The pump should pump water in two or three minutes.

2. If you don’t have water after 2 or 3 minutes, stop the pump and remove the fill plugs. Refill the pump and piping. You may

have to repeat this two or three times in order to get all the trapped air out of the piping.

The control valve remains open throughout this procedure.

3. After the pump has built up pressure in the system and shut off, check the pressure switch operation by opening a faucet

or two and running enough water out to bleed off pressure until the pump starts. The pump should start when pressure drops

to 30 PSI and stop when pressure reaches 50 PSI. Run the pump through one or two complete cycles to verify correct

operation. This will also help clean the system of dirt and scale dislodged during installation.

Congratulations on a successful installation.

If you were unsuccessful, please refer to Troubleshooting or call ourcustomer service technical staff.

DEEP WELL INSTALLATION INSTRUCTIONS

MATERIALS REQUIRED (NOT INCLUDED)

One can PVC cement & primer (read instructions

carefully)

One well seal with vent plug

One can thread compound (read instructions

carefully)

Foot valve

Teflon tape Discharge tee/Priming tee and plug

Rigid pipe Relief valve

Check valve Adaptor

Flexible plastic pipe/clamps Tank

Elbow Tank tee

Nipple

WARNING: All joints and connections must be AIRTIGHT. A single leak will prevent the proper operation of the pump. Wrap

thread tape clockwise on all threaded connections. For all non-threaded connections, you must use PVC Purple Primer and

PVC Cement to ensure airtight seals. Measure all pipe lengths before attaching.

NOTE: A foot valve is a check valve that is used to keep the water from running back into the well from the pump and

maintain hydraulic pressure when the pump is not running. If the foot valve does not hold the water the pump will lose it's

prime and will not pump water. If the foot valve open pressure is too high (the spring is too stiff), or the flow area is too small,

the pump suction head and flow rate will significantly drop.

CAUTION: To avoid skin burns, unplug the pump and allow time for it to cool after periods of extended use.

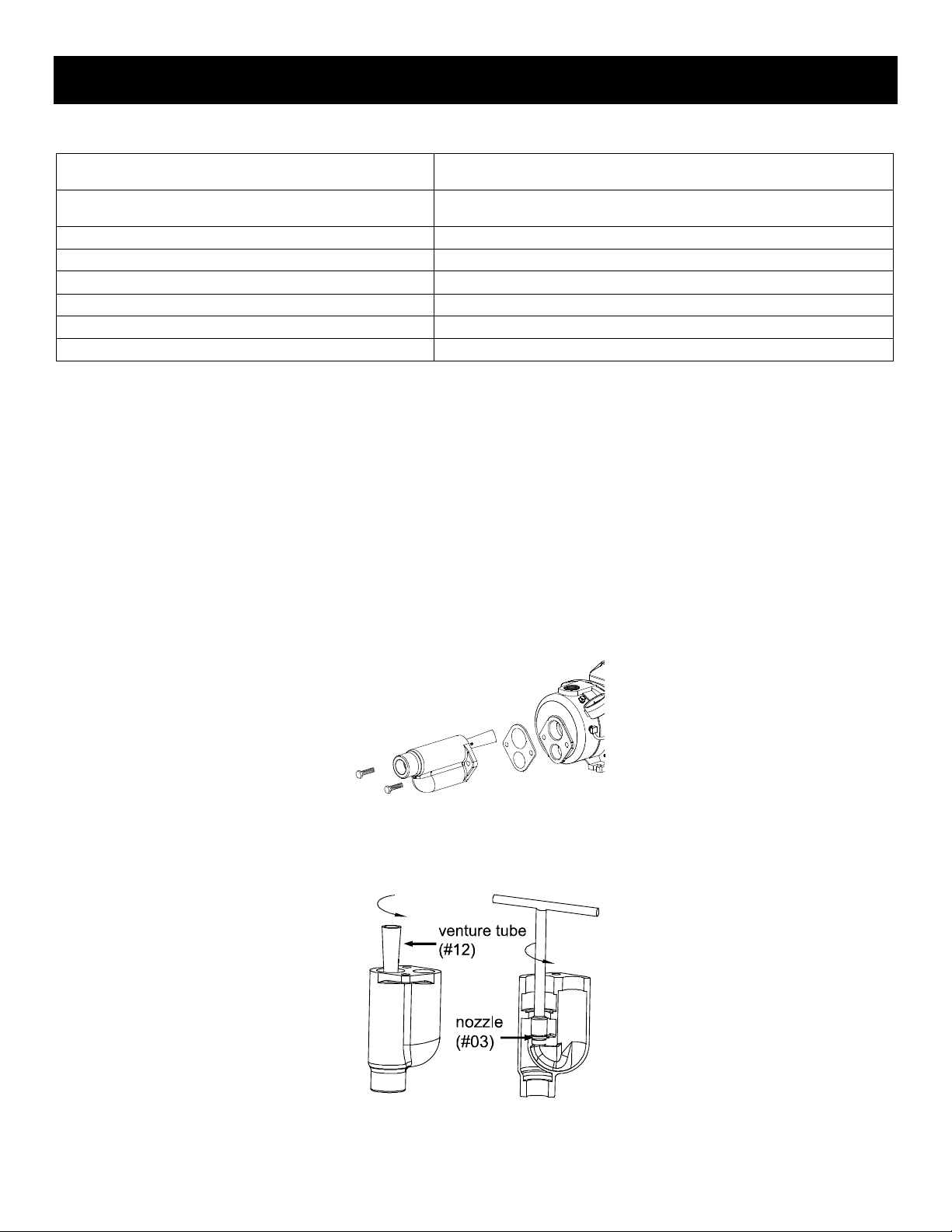

1. Remove the bolts from the pump body and take out the ejector from the pump.

2.Remove the venturi tube (#12), and then use a 5/8 inch socket to unscrew the nozzle (#03) counter clockwise.

Inhaltsverzeichnis

Sprachen:

Andere Aqua PRO Wasserpumpe Handbücher

Aqua PRO

Aqua PRO 62041 Bedienungsanleitung

Aqua PRO

Aqua PRO 60013 Bedienungsanleitung

Aqua PRO

Aqua PRO DV FLO Bedienungsanleitung

Aqua PRO

Aqua PRO AS10000DF Bedienungsanleitung

Aqua PRO

Aqua PRO AP400s Bedienungsanleitung

Aqua PRO

Aqua PRO SU250AC Bedienungsanleitung

Aqua PRO

Aqua PRO TSC130 PRO Bedienungsanleitung

Aqua PRO

Aqua PRO ALL IN ONE Series Bedienungsanleitung

Aqua PRO

Aqua PRO AP3100DW Bedienungsanleitung

Aqua PRO

Aqua PRO AP1000F Bedienungsanleitung

Aqua PRO

Aqua PRO AP3000DW Bedienungsanleitung

Aqua PRO

Aqua PRO AP4800 Bedienungsanleitung

Aqua PRO

Aqua PRO VIP50PRO Handbuch

Aqua PRO

Aqua PRO GPH550PRO Handbuch

Aqua PRO

Aqua PRO AP200LV Bedienungsanleitung

Aqua PRO

Aqua PRO AP1050 Bedienungsanleitung

Aqua PRO

Aqua PRO 53011-0 Bedienungsanleitung

Aqua PRO

Aqua PRO 35034-5 Bedienungsanleitung

Aqua PRO

Aqua PRO SU125C Bedienungsanleitung

Aqua PRO

Aqua PRO 70013 Bedienungsanleitung

Aqua PRO

Aqua PRO AP1050 Bedienungsanleitung

Aqua PRO

Aqua PRO AP550 Bedienungsanleitung

Aqua PRO

Aqua PRO AP7510 Bedienungsanleitung

Aqua PRO

Aqua PRO 63013 Bedienungsanleitung

Beliebte Wasserpumpe Handbücher anderer Marken

Neptun

Neptun NPHW 5500 Bedienungsanleitung

Sensidyne

Sensidyne Gilian BDX-II Montage- und Bedienungsanleitung

Draper

Draper 47808 Bedienungsanleitung

Trolla

Trolla 12820 Bedienungsanleitung

Sunfab

Sunfab SVH Series Bedienungsanleitung

WilTec

WilTec 50740 Bedienungsanleitung

Fieldmann

Fieldmann FVC 5015 EK Bedienungsanleitung

Everbilt

Everbilt EFSUB5-122HD Bedienungsanleitung

Graco

Graco Husky 3300e Bedienungsanleitung

esotec

esotec 101018 Bedienungsanleitung

moyno

moyno 2000 CC Bedienungsanleitung

Becker

Becker BASIC VASF 2.80/1-0.AC230 Bedienungsanleitung

Sykes AmeriPumps

Sykes AmeriPumps GP100M Fehlerbehebungshandbuch

DUROMAX

DUROMAX XP WX Series Bedienungsanleitung

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Bedienungsanleitung

Franklin Electric

Franklin Electric IPS Bedienungsanleitung

Xylem

Xylem e-1532 Series Bedienungsanleitung

Milton Roy

Milton Roy PRIMEROYAL Bedienungsanleitung
