ARESCOM AresGate 2560 Bedienungsanleitung

ARESCOM, INC.

3541 Gateway Blvd.

Fremont, CA 94538

USA

http://www.arescom.com

AresGate 2560/2561

AresGate 2560/2561AresGate 2560/2561

AresGate 2560/2561

802.11b ADSL Wireless LAN Router

802.11b ADSL Wireless LAN Router802.11b ADSL Wireless LAN Router

802.11b ADSL Wireless LAN Router

Software User’s Guide

Software User’s GuideSoftware User’s Guide

Software User’s Guide

Version 2.0

June 2002

Microsoft and Windows 95/98/2000/NT/Me are registered trademarks of Microsoft Corporation. Pentium is a registered trade-

mark of Intel Corporation. All other trademarks and registered trademarks belong to their respective companies.

ARESCOM, Inc. has the right to make revisions and to change the contents of this document without any obligation to provide

prior notice of such revisions and changes.

ARESCOM has the right to make improvements or changes in the product(s) and/or software(s) described in this documenta-

tion. All specifications are subject to changes without notice.

No part of this documentation or software may be reproduced or distributed in any form without prior written permission from

ARESCOM, INC.

AG2500Series Software User’s Guide June 2002 iii

Table of Contents

CHAPTER 1 OVERVIEW

1.1 Introduction .........................................................................................................................1

1.2 Features ...............................................................................................................................1

1.3 Package Includes .................................................................................................................1

1.4 Minimum System Requirements ........................................................................................1

1.5 Management Interface Options ...........................................................................................2

1.5.1 HTML Interface (Web-based) ............................................................................. 2

1.5.2 SNMP (Simple Network Management Protocol) ................................................ 2

1.6 Network Scenario ...............................................................................................................3

CHAPTER 2 HARDWARE INSTALLATION

2.1 Front Panel Information ......................................................................................................5

2.2 Back Panel Information ......................................................................................................6

2.3 Location & Placement ........................................................................................................6

2.4 Setup Instructions ...............................................................................................................7

CHAPTER 3 BEFORE YOU START

CHAPTER 4 SOFTWARE CONFIGURATION

4.1 Open Your Browser ..........................................................................................................11

4.2 Basic - SETUP ..................................................................................................................12

4.3 Basic - WIRELESS ...........................................................................................................14

4.4 Basic - AUTHENTICATION ...........................................................................................16

4.5 Basic - DHCP ....................................................................................................................18

4.5.1 Reserved IP Table ............................................................................................. 19

4.6 Basic - USER STATUS ....................................................................................................20

4.6.1 Current Log-on User Status ............................................................................. 20

4.7 Basic - STATUS ...............................................................................................................21

4.8 Advanced - ADMINISTRATION ....................................................................................23

4.8.1 Administration .................................................................................................. 23

4.9 Advanced - IP ROUTING ................................................................................................25

4.9.1 Current IP Routing Table ................................................................................. 25

4.9.2 Add Route ......................................................................................................... 25

4.9.3 Delete Route ..................................................................................................... 25

4.10 Advanced - SNMP ............................................................................................................26

4.10.1 Current SNMP Table ........................................................................................ 26

4.10.2 Add SNMP Entry .............................................................................................. 27

4.10.3 Delete SNMP Entry .......................................................................................... 27

4.11 Advanced - UPGRADE ....................................................................................................28

iv AG2500Series Software User’s Guide

Table of Contents

CHAPTER 5 TROUBLESHOOTING

5.1 FAQ ..................................................................................................................................29

APPENDIX A TECHNICAL SPECIFICATIONS

A.1 Hardware Specifications ...................................................................................................31

A.2 Software Features .............................................................................................................33

APPENDIX B SNMP SPECIFICATIONS

B.1 Standard Bridge MIB ........................................................................................................37

B.2 Private MIB Implememtation ...........................................................................................38

B.2.1 Terminalogy ...................................................................................................... 38

B.2.2 MIB Description ............................................................................................... 39

APPENDIX C CABLE AND CONNECTORS

C.1 Connector Specifications ..................................................................................................45

C.1.1 10/100 Ports ..................................................................................................... 45

C.2 Cable Specification ...........................................................................................................45

C.2.1 RJ-45 ................................................................................................................. 45

APPENDIX D GLOSSARY

AG2500Series Software User’s Guide June, 2002 1

CHAPTER 1: OVERVIEW

1.1 Introduction

The AresGate 2500 Series (AG2560/AG2561) Wireless ADSL Router is the perfect

networking solution to address the specific needs of enterprise wireless application

environments, such as airports, hotels, libraries, class rooms, cafés and other semi-

public areas. With the built-in ADSL WAN interface, AresGate offers shared high-

speed Internet connection rates of up to 8Mbps downstream and up to 800Kbps

upstream to your entire LAN network. Through an IEEE 802.11b wireless module,

AresGate delivers robust enterprise-level, secure wireless network access, which uti-

lizes IEEE 802.1x protocol to perform user-based access control. Furthermore, to

simplify installation and reduce the total cost of ownership, AresGate 2500 Series

support inline power over Ethernet, thus eliminating the need for all power supply

cabling once and for all.

1.2 Features

• IEEE 802.1X Port-based Network Access Control.

• MAC and EAP/MD5 authentication.

• RADIUS server for accounting and user authentication purposes.

• ADSL standard compliance: T1.413, G.DMT and G.Lite.

• RIP 1, RIP2, NAT/PAT.

• ATM: AAL5, multiple protocol over AAL5, ATM Forum UNI3.1/4.0 PVC, up to 8

AAL5 PVC.

• PPP, PPP over AAL5 and PPPoE.

• DHCP server, DHCP client and DHCP relay.

• High performance 11Mbps data transfer rate.

• Interoperability with all IEEE 802.11b- compliant equipment.

• Up to 128-bit WEP (Wired Equivalent Privacy) encryption.

• Configurable web page for new user's registration.

• Inline power feature through RJ-45 Ethernet LAN port (optional).

1.3 Package Includes

• ARESCOM AresGate 2560/2561 Wireless Gateway (x 1).

• Power adapter and cord set (x 1).

• RJ-45 to RJ-45 straight-through Ethernet cable (x 1).

• RJ-11 to RJ-11 telephone cable (x 1).

• External wireless LAN antenna (x 1).

• ARESCOM Software CD (x 1).

• AresGate 2560/2561 Quick Setup (x 1).

1.4 Minimum System Requirements

• ADSL line.

• Microsoft Windows 98 or later version.

• 166 MHz Pentium or equivalent processor.

• 16 MB RAM or more.

• 170 MB available free hard disk space before installation.

• Available 10BaseT Ethernet on the main computer

• CD-ROM Drive

Management Interface Options

2 June, 2002 AG2500Series Software User’s Guide

1.5 Management Interface Options

Access the AresGate management system through two simple management interface options:

1.5.1 HTML Interface (Web-based)

Through the built-in web-based GUI (Graphic User Interface), you can change the AresGate's settings,

upgrade its firmware, and monitor other wireless clients on the network. To use this management sys-

tem, please follow the steps below:

Step 1. Open your web browser.

Step 2. Enter the AresGate's IP address (default: 192.168.10.1) in the browser Location field (Netscape Navi-

gator) or Address field (Internet Explorer).

Step 3. Press Enter to connect.

1.5.2 SNMP (Simple Network Management Protocol)

You can also use a SNMP management application to monitor and configure AresGate. The unit sup-

ports the following MIBs (Management Information Base) and protocols:

MIBs

• Standard MIB II (RFC 1213)

• Wireless LAN MIB (IEEE 802dot11)

•PrivateMIB

Protocols

• SNMP V1

• SNMP V2

NOTE: Please refer to Appendix B for more detailed SNMP information.

AG2500Series Software User’s Guide June, 2002 3

Network Scenario

1.6 Network Scenario

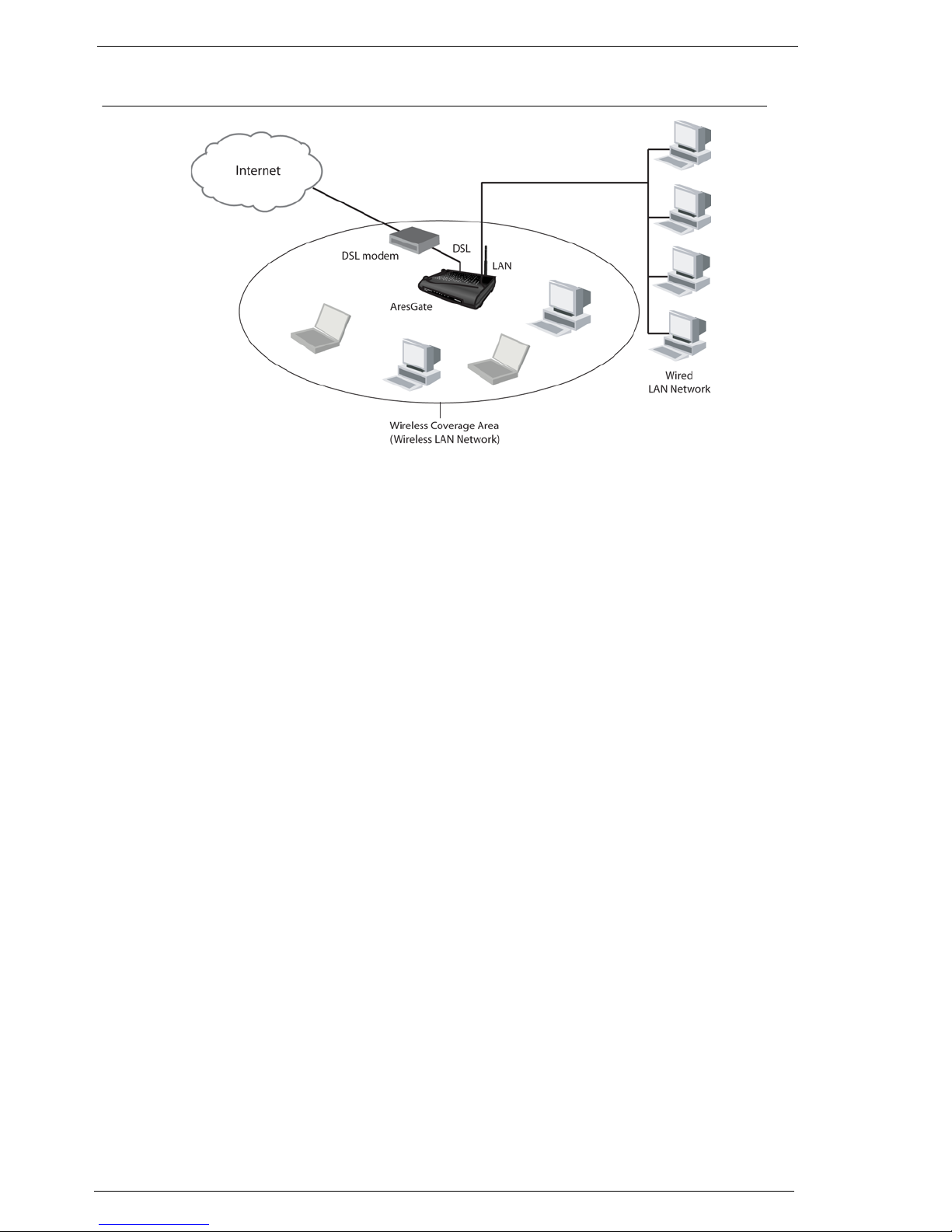

Figure 1.1 Single AresGate Device Network Scenario

AresGate provides a connection point to the wireless clients and the wired LAN (Figure 1.1). The

WAN port indicates an ADSL interface connection to the DSLAM (Digital Subscriber Line Access

Multiplier) in a central office over an existing phone line. The LAN port indicates an Ethernet interface

connection to a Local Area Network.

Authentication Processing

AresGate authenticates all the clients who are associated with it. Wireless users who wish to pass the

authentication must provide the correct username and password or a valid MAC address stored in a

Remote Authentication Dial-In User Service (RADIUS) server to access the Internet. Wireless users

who failed the authentication process are still permitted to access a pre-configured web page in the

access point for new user registration. Wired users on the LAN network are allowed to access the Inter-

net directly without the authentication process.

Accounting Processing

AresGate sends an accounting message to a RADIUS server periodically during the session, and termi-

nates the user if the session_time limit is reached. The session_time is configurable at the RADIUS

server, and AresGate receives the session_time value when authentication succeeds. User can config-

ure idle_time timers, re-authentication option through RADIUS as well. When the session is termi-

nated, AresGate sends the statistics to the RADIUS server, including session_time, packets, bytes, etc.

Network Scenario

4 June, 2002 AG2500Series Software User’s Guide

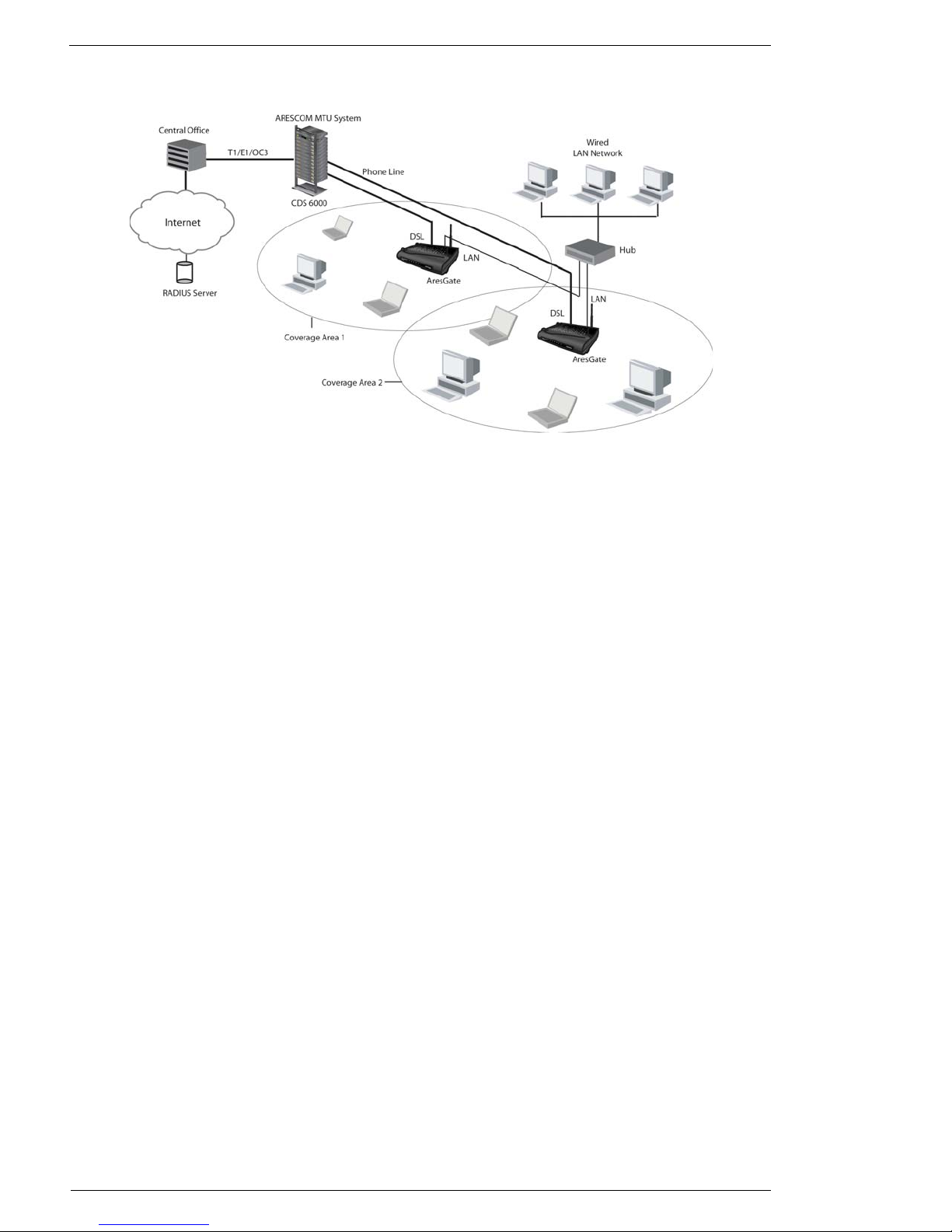

Figure 1.2 illustrates AresGate wireless application in a semi-public area in conjunction with ARES-

COM’s MTU DSL broadband platform, the ARESCOM CDS 6000 DSL Service System.

Figure 1.2 Multiple AresGate Devices Network Scenario

Roaming

When a wireless client moves from one coverage area to another, AresGate automatically performs cli-

ent roaming within the same subnet and the service provided to the client is continuous and seamless.

AG2500Series Software User’s Guide June, 2002 5

CHAPTER 2: HARDWARE INSTALLATION

This chapter describes the front/back panel layout and installation procedure for Ares-

Gate.

2.1 Front Panel Information

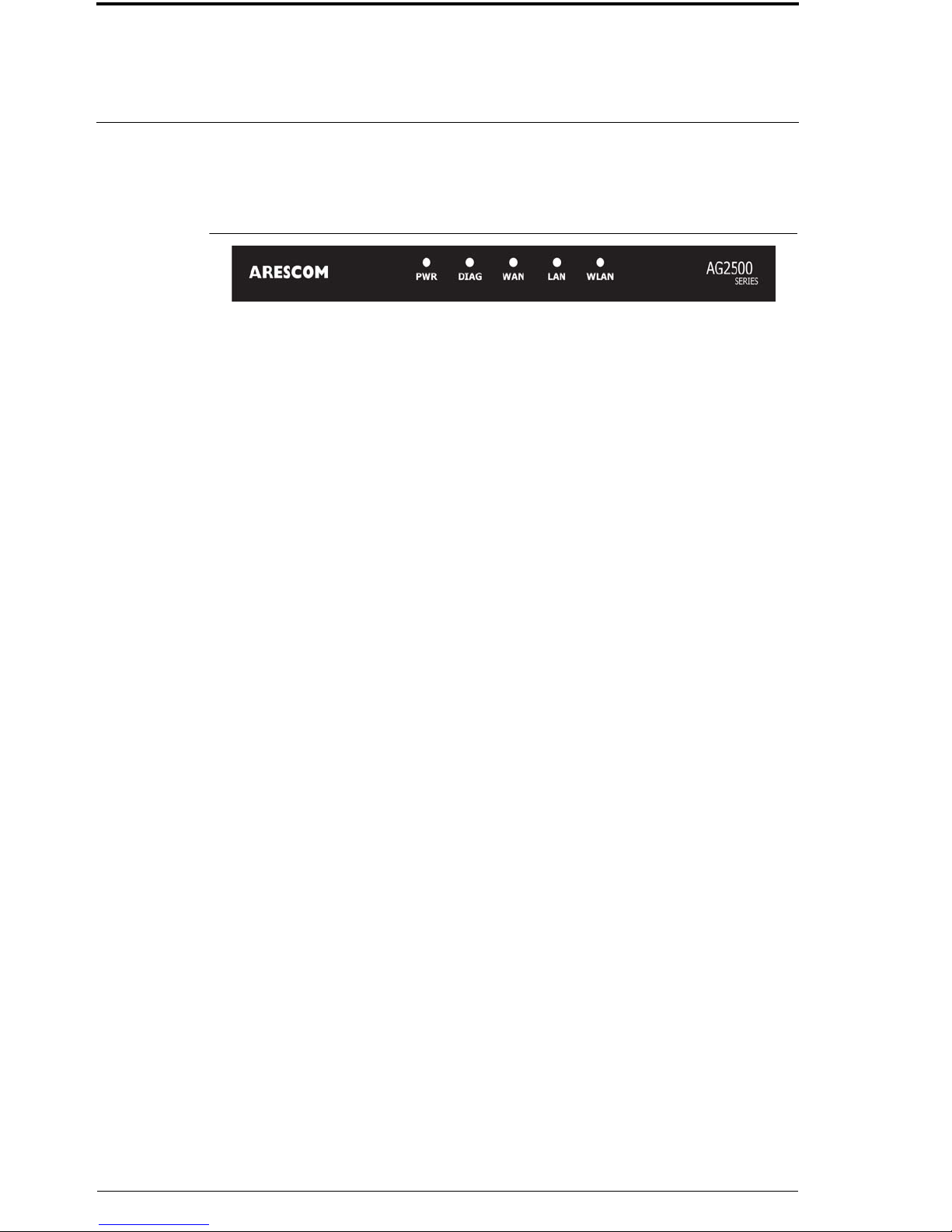

Figure 2.1 AG2500 Front Panel

PWR (Power)

A PWR LED is ON when power is supplied to the AresGate.

DIAG (Diagnostic)

The DIAG LED indicates the AresGate is in a self-diagnostic mode during boot-up.

Once the AresGate boots up successfully, the LED will turn off. If there is a software

malfunction or a problem with the device, the LED will remain on.

WAN

The WAN LED displays the 10BaseT DSL LINE port connection status between the

AG2000 and a DSL line. The WAN LED flashes during the initialization of the DSL

line. When DSL synchronization is achieved, it remains solid on.

LAN

The LAN LED displays the 10BaseT Ethernet connection between the AG2000 and

an Ethernet network. The LAN LED is solid on when a valid Ethernet link is estab-

lished. The LED flashes when data is flowing from/to this Ethernet port.

WLAN

The WLAN LED flashes very slow when there is no activity on this wireless port.

The LED flashes quickly when data is flowing from/to this port.

Back Panel Information

6 June, 2002 AG2500Series Software User’s Guide

2.2 Back Panel Information

Figure 2.2 AG2500 Back Panel

PHONE

The PHONE port allows you to connect to an external telephone set.

DSL LINE

The DSL port is where you connect the AresGate to a telephone outlet.

POWER (13.5V AC/1A)

The POWER port is where you connect the 13.5V AC power adapter.

RESET

Push this reset button to power-cycle the AresGate device.

LAN

The LAN port connects the AresGate to a PC, hub or switch on your wired LAN network.

Antenna Connector

The included external antenna needs to be securely attached to the antenna connector located on the far

right side of the back panel.

2.3 Location & Placement

• For maximum wireless coverage, locate an installation spot where there is a minimum number of

walls, ceilings or other objects that will block the radio transmission between the AresGate and the

wireless clients.

• Choose an installation location that is away from direct sunlight.

• It is important to place the AresGate device in the center of all the wireless clients.

• Place AresGate on a predetermined surface, so you can see the back panel for convenient cable con-

nection.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ARESCOM Netzwerk-Router Handbücher

ARESCOM

ARESCOM NetDSL 1700 Series Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
