Aritech FP2000 Bedienerhandbuch
FP2000 SERIES
ANALOGUE ADDRESSABLE FIRE PANEL
Version 3.1: May 1997
USER INSTRUCTION MANUAL
FP2000 SERIES ANALOGUE ADDRESSABLE FIRE PANEL: USER INSTRUCTIONS Version 3.1
TABLE OF CONTENTS
1. INTRODUCTION 1
2. PANEL OPERATION 2
2.1 LED INDICATIONS AND CONTROLS 3
2.2 GENERAL INDICATORS 4
2.3 CONTROLS 6
2.4 SOUNDERS 7
2.5 FIRE BRIGADE 8
2.6 OTHER 9
2.7 ZONE INDICATORS 10
2.8 LCD AND KEYPAD 10
3. NORMAL OPERATION 12
4. IN CASE OF FIRE 13
5. IN CASE OF PRE-WARNING 15
6. IN CASE OF FAULT 16
7. ROUTINE MAINTENANCE 17
7.1 DAILY 17
7.2 QUARTERLY 17
7.3 YEARLY 18
APPENDIX A A-1
APPENDIX B B-1
May 1997 Product Code: LKFP2403 Document No: 970528/205/M Page i
1. INTRODUCTION
The FP2000 User Instruction Manual is intended as a guide to users (operators) of the
Aritech FP2000 Series Analogue Addressable Fire Alarm Panel. Users are defined as
those responsible for the routine day-to-day operation of the panel, including the handling
of fire and fault conditions identified by the control panel.
The manual is written assuming no technical knowledge on the part of the user. The
following manuals cover more detailed information on the FP2000 Series products:
Product Code
1. 950 Series Installation Guide LKFP2103
2. 2000 Series Sensors Installation Guide LKFP2203
3. FP2000 Reference Guide LKFP2503
4. FP2000 Series Network Configuration Guide LKFP2303
5. FP2000 Installation and Commissioning Manual LKFP2003
FP2000 SERIES ANALOGUE ADDRESSABLE FIRE PANEL: USER INSTRUCTIONS Version 3.1
May 1997 Product Code: LKFP2403 Document No: 970528/205/M Page 1
FP2000 SERIES ANALOGUE ADDRESSABLE FIRE PANEL: USER INSTRUCTIONS Version 3.1
In order to describe the operation of a FP2000 series fire panel, the front panel has
been divided into two sections, these being:
• LED indicators and controls
• LCD and keypad
2.1 LED INDICATIONS AND CONTROLS
The LED indications and controls can further be broken down into:
• General indicators
• Controls
• Sounders
• Fire Brigade
• Enable/Disable keyswitch
• Zone indicators

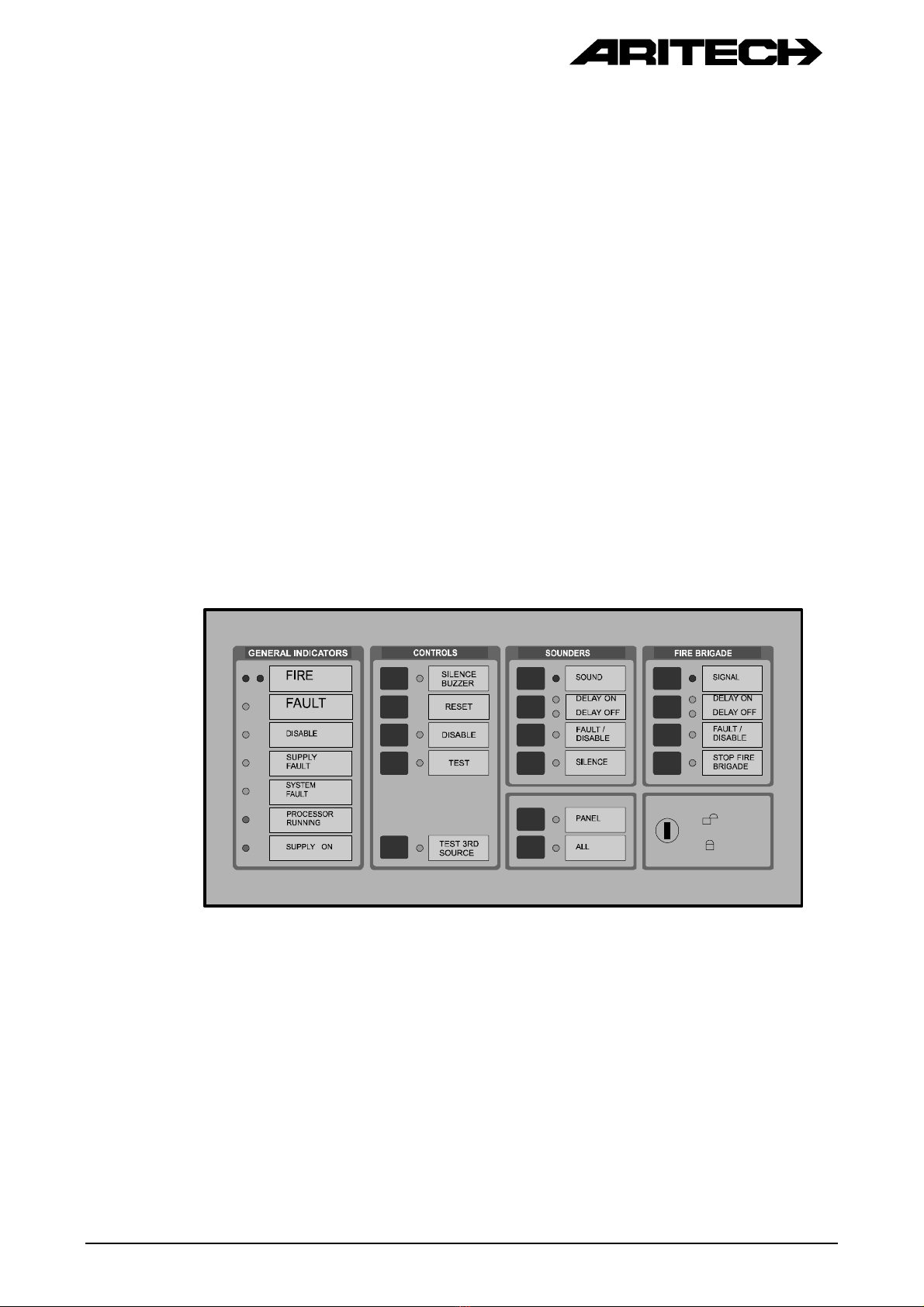

Figure 2: General Indications and Controls
May 1997 Product Code: LKFP2403 Document No: 970528/205/M Page 3
FP2000 SERIES ANALOGUE ADDRESSABLE FIRE PANEL: USER INSTRUCTIONS Version 3.1
2.2 GENERAL INDICATORS
COMMON FIRE
Two red LED's indicate that a fire has been detected.
COMMON FAULT
A common fault may be caused by one or more of the following:
• Device fault
• Zone fault
• Supply fault
• Processor fault
• Bell fault
• Fire Brigade fault
• Any test mode
• Any disable mode
COMMON DISABLE
A yellow LED indicates that one or more of the following have been disabled:
• Devices on the loop
• Zone
• Sounders
• Fire Brigade
• Any delays ON
SUPPLY FAULT
A yellow LED will illuminate for:
• Mains failure
• Battery disconnect or not charging
Page 4 May 1997 Product Code: LKFP2403 Document No: 970528/205/M
FP2000 SERIES ANALOGUE ADDRESSABLE FIRE PANEL: USER INSTRUCTIONS Version 3.1
SYSTEM FAULT
A yellow LED indicates that a system fault has occurred. A system failure can be
one or more of:
• Internal memory failure
• Clock failure
• Watchdog time out
• Tamper switch
• Service switch
• Logic error
• Memory lock
• No checksums calculated
• Hardware test fault
• Fireman’s' panel down
• Repeater down
• Panel down
• Global repeater down
• Input fault
• Output fault
• Configuration fault
• Checksum fault
• Protected memory overwritten
• Time date wrong
• Access fault
• FEP fault
• Watchdog time-out
PROCESSOR RUNNING
A flashing green LED indicates normal operation.
SUPPLY ON
A green LED indicates that the system is receiving 24V power.
May 1997 Product Code: LKFP2403 Document No: 970528/205/M Page 5
FP2000 SERIES ANALOGUE ADDRESSABLE FIRE PANEL: USER INSTRUCTIONS Version 3.1
2.3 CONTROLS
SILENCE BUZZER (Keyswitch or )
The internal panel buzzer is activated for any new condition. The buzzer will be
continuous for a fire alarm condition, intermittent for a fault warning and slow
intermittent for a condition warning.
The buzzer is silenced by pressing the Silence Buzzer Key. The yellow silence
buzzer LED will illuminate to indicate that the buzzer has been silenced.
RESET (Keyswitch )
This push-button will reset the fire panel.
DISABLE (Keyswitch )
This push-button calls up the Disable Menu. The Common Disable LED will indicate
if anything is disabled.
TEST (Keyswitch )
This push-button calls up the Test Menu. The yellow LED will illuminate if the panel
is put into a test mode.
Page 6 May 1997 Product Code: LKFP2403 Document No: 970528/205/M
