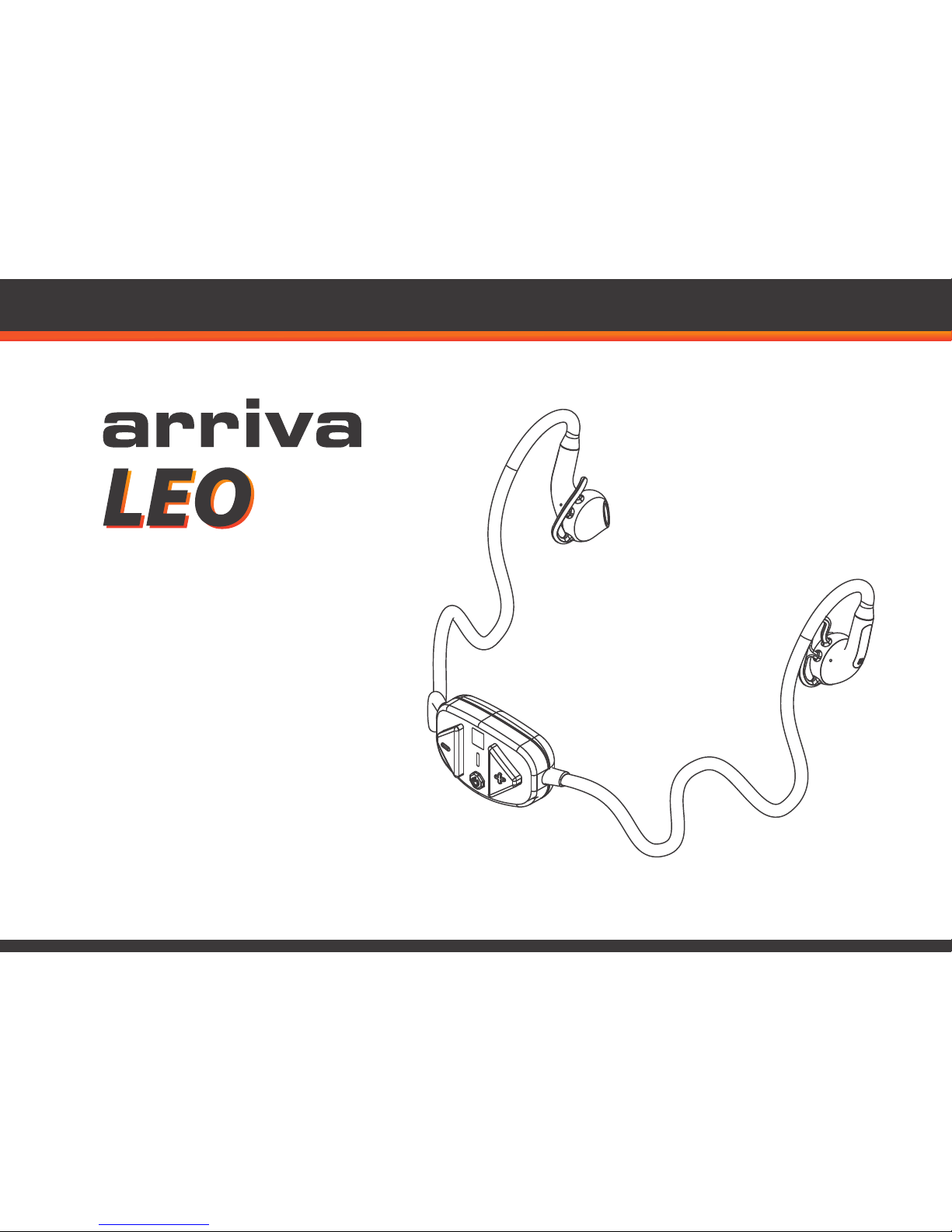

Arriva LEO Bedienungsanleitung
Manual
Buyer Version.
Part
Vol Up
Logo
Vol Down
& Next Track
& Previous Track
EARPHONE
Molding
MICROPHONE
Power Key
LED Lamp
USB Micro 5pin
QUICK-START GUIDE TO USING YOUR ARRIVA, PAIRING FOR THE FIRST TIME
·Your ARRIVA must be off with no blinking light.
·Press and hold Power button during 7 seconds for Pairing. Red light will be on.
·Turn your cell phone or music player’s Bluetooth feature on, then press ‘Pair’.
·Your ARRIVA will quickly ‘Pair’ with your device, and its blue light charge from continuous to blinking. The pairing ID is 0000.
·Then click ‘Link’ (or on some phones ‘Connect’ ) on your device, and the device and your ARRIVA are paired, linked,
and ready to provide voice and music to your ARRIVA.
·All music play functions are controlled by your cell/smartphone and music player.
The volume controls on your ARRIVA may or may not control the volume set on your cell/smartphone, or music player.
ANSWER & END CALL
·When the phone’s ringing, press Power button 1 time.
·If you will hang up, Press Power button 1 time again.
·Making call and Redialing will be activated on pressing Power button for 1 second.
·Press power button for 1 second if you want to transfer talking between BT heaedset
and phone.
User Guide
MUSIC PLAY
·Press power button for music play and pause. If you want to stop music, press power button for 1 second.
·Next and previous music can be activated by pressing ‘+’ or ‘-’ buttony for 1 second.
VOLUME CONTROL
·Press ‘+’ button for volume up and ‘-’ button for volume down.
BATTERY
·Charge fully before using. The ARRIVA must be turned off before charging.
Charging time is about 100minutes. Your fully charged ARRIVA will deliver about 4.5 hours of talk,
about 5 hours of music play, and about 10 days on standby.
SPECIFICATION
·Bluetooth 2.1 @ EDR
·HSP, HFP, A2DP, AVRCP Profile
·Charging time : 100 min
·Talk time : 4.5 hours
·Play time : 5 hours
·Stand by time : 240 hours
User Guide
Function Condition Key Action Beep Action Remark
Auto Pairing if Power Off Power key Press and hold for 3 seconds Initial Power On- directly into the auto pairing mode
Power on if Power Off Power key Press and hold for 3 seconds Do~Mi~Sol~ Not initial power-on
Pairing if Power Off Power key Press and hold for 7 seconds Not initial power-on, re-pairing mode
Power off if Power On Power key Press and hold for 5seconds Sol~Mi~Do~
Stand-by if connection - -
Re connecting if not connecting - - Automatically
Answer call Ringing Power key Press Mi~
End call talking Power key Press Do~
Redialing stand-by Power key Press and hold for 1 second Mi~
Reject call Ringing Power key Press and hold for 1 second
transfer talking Power key Press and hold for 1 second Do~Do~ BT headset to phone
transfer talking Power key Press and hold for 1 second Mi~Mi~ phone to BT headset
Music Play Stand-by Power key Press
Music Pause Power key Press Mi~ same Led term
Music Stop Power key Press and hold for 1 second Mi~Do~
Next Vol+ Press and hold for 1 second Sol~
Previous Vol- Press and hold for 1 second Sol~Sol~
Volume Up "+" key press If Max then Sol~Sol~Sol~
Volume Down "-" key press If Min then Do~Do~Do~
Charging
Charging complete
Low battery Cut off Pa Pa Pa Pa Pa As LED flash
Volume Talking or Music
playing
total 8 Step and default level is level 5.
Charging
Power & Pairing Action
Answer / End call
Music Play Music playing
Function
Vol+Vol-
Power Key
FCC ID: QJ8ARRIVA
IMPORTANT REGULATORY INFORMATION
This device complies with Part 15 of the FCC Rules: Operation is subject to the
following two conditions:
1. This device may not cause harmful interference
and
2. This device must accept any interference that is received, including
any interference that may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
