ARTHUR HOLM AH17D3 RHDGA TALK Bedienungsanleitung

User manual

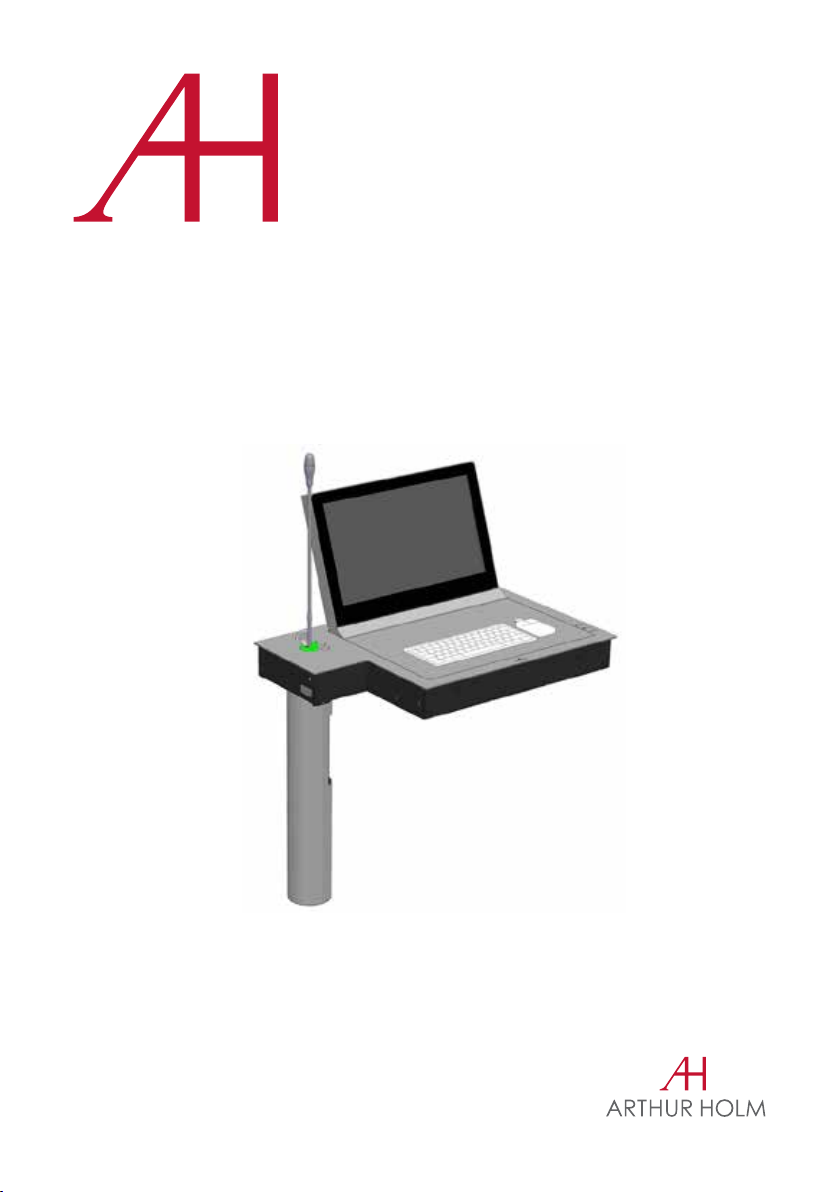

AH17D3 RHDGA TALK

AH19D3 RHDGA TALK

Electrically motorised monitor for furniture integration, with

DynamicTalk. Horizontal and vertical working positions

Table of contents

EC REGULATIONS & SECURITY 4

SAFETY INSTRUCTIONS 5

APPLICATIONS 6

BOX CONTENTS 6

FEATURES 7

PREPARATION FOR INSTALLATION 8

CONTROLS 10

MONITOR OSD MENU 13

INPUT CONNECTORS 16

DYNAMICTALK HANDLING 21

MONITOR AHnet PROTOCOL 22

DYNAMICTALK AHnet PROTOCOL 24

INPUT SIGNALS 29

PRODUCT WARRANTY 31

Welcome

Thank you for purchasing an ARTHUR HOLM product.

Our product range has been designed to create the perfect meeting room,

where the screens are a part of the interior design as well as essential

communication tools.

Please, read this installation and operating instructions carefully and keep

them in a safe place for future reference.

We remain at your entire disposal if you have any suggestions that would

help us improve our products.

Henrik Holm

General Manager

EC Regulations and Security

ATTENTION: Do not disassemble or modify the device in any way.

This symbol warns of the presence of dangerous un-insulated voltages

inside some of the components, of sufﬁcient magnitude to expose people

to risk of electronic shock.

This symbol draws attention to important use and maintenance instructions

in the manual that accompanies the unit.

This symbol indicates that the equipment conforms to the norms

established by the European Community.

This symbol indicates that the equipment has some potential entrapment

hazard parts.

Safety instructions

PLUGS

– Do not dismantle any part of the monitor power connector

– Disconnect the power plug from the AC outlet when the monitor is not

going to be used for an indeﬁnite period of time

POWER AND EXTENSIONS CORDS

– Use the appropriate power cord with the correct plug type

– Do not overload wall outlets or power cords

– Make sure the total ampere passed through a extension cord does not

exceed the maximum allowed by the cable used

– Do not place anything on the power cord

– Do not locate this product where a person may walk or trip over the cord

Wiring connected to hazardous voltage requires installation by qualiﬁed

personnel or the use of ready-made ﬂexible cables.

For your security, your equipment must be connected to an electrical

outlet with grounding connection protection.

The operating electrical outlet must be in an easily accessed place.

ENVIRONMENT

– Install the equipment on an elevated, ﬂat surface

– Install the equipment in a ventilated area

– Avoid exposing the equipment to:

Rain or water

Excessive heat, cold or humidity

Areas exposed to direct sunlight

Dirty areas

Equipment generating strong magnetic ﬁelds

– Avoid placing open containers of liquid, near the equipment

– Keep a minimum distance of 30mm in order to have good ventilation

– Never place any sources of ﬂames, such as lighted candles, etc. above the device

– If you are using the device in extreme weather conditions and/or tropical

climates, the equipment should be installed in a room which ensures a

reasonable level of temperature and humidity

- To prevent damage the equipment must be ﬁrmly anchored to the surface,

as shown in the installation instructions

- When the monitor is closed, the maximum static load is 15Kg /33 lbs

System Description

APPLICATIONS

The AH17D3 RHDGA TALK and AH19D3 RHDGA TALK systems are professional

TFT displays with DynamicTalk and an electrical lift system for installation into a

horizontal furniture surface. The mechanism offers both horizontal and vertical

working positions. With the push of a button, the monitor is lifted. Giving it a

180 degree turn, the monitor is ready to be folded down levelled with the desk

surface.

The DynamicTalk system is a universal motorised microphone lift system

remotely controllable through RS422 or GPI with a Dynamic LED Ring for

“Ready to Talk” and “Talk” indicators (in PA mode).

BOX CONTENTS

Before the installation of your monitor, please check the contents of the

shipping box, it must contain the following items:

- Monitor unit

- Two power cords (one for the monitor and one for the DynamicTalk)

- Two power supplies 100-240Vac, 50-60Hz. Output 12V (one for the monitor

and one for the DynamicTalk)

- Remote control

- User Manual

System Description

FEATURES

- TFT Active Matrix display

AH17D3 RHDGA TALK 17", widescreen format, FULL HD

AH19D3 R16GA TALK 19", widescreen format, FULL HD

- Motorised monitor and DynamicTalk with electrical engine for furniture

integration

- Horizontal and vertical working positions

- Up/Down function operated by buttons on the cover plate

- Low power consumption

- Low radiation

- Quick response time

- Data inputs DVI-I & DVI-D. HDCP compliant

- Addressable RS422 monitor control by AHnet protocol, RJ45 connector

CAT5

- Dynamic LED Ring for “Ready to Talk” and “Talk” indicators (in PA mode)

- Push button on cover plate to externally use (GPO)

- Push button to "Mute" function in PA mode, or to use as GPO in conference

mode

- Integrated DynamicTalk for microphones with a maximum length of 500mm,

including foam. The microphone foam should be taken into consideration on

the total microphone length

Preparation for Installation

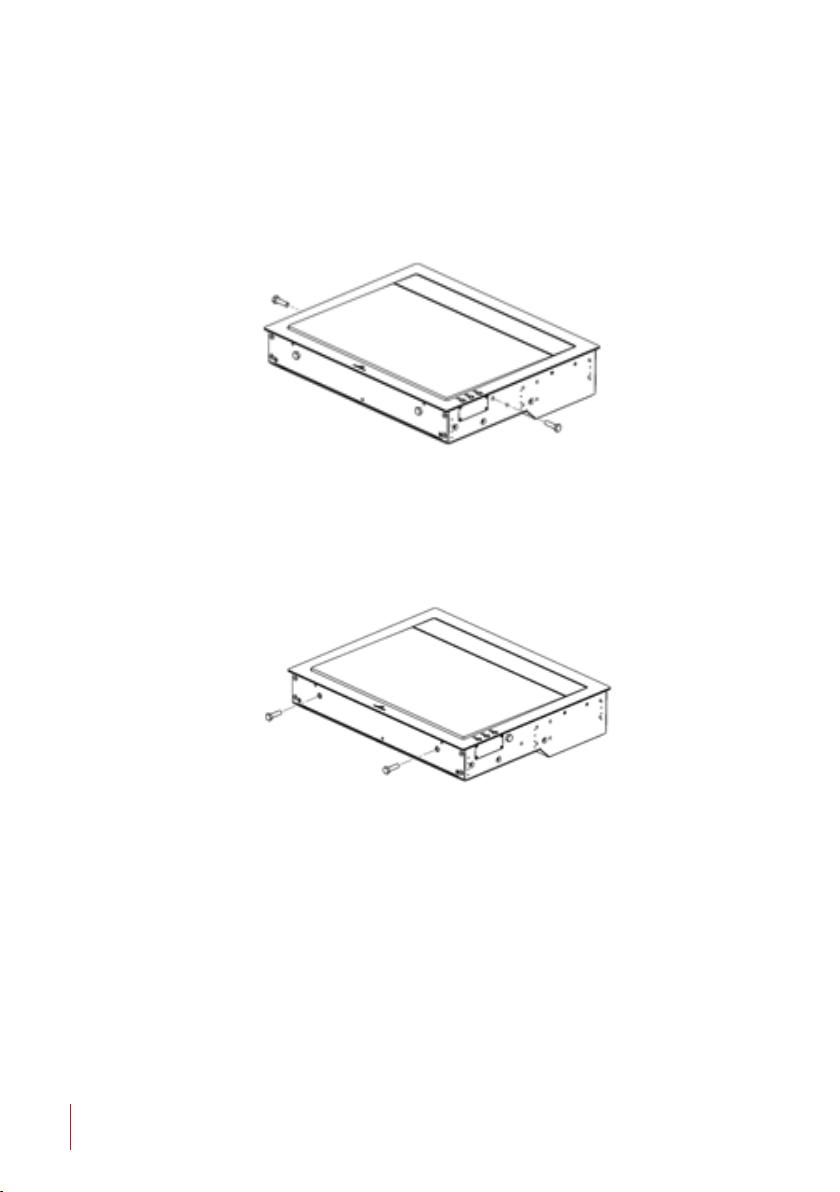

Before the installation of the device, please make sure to follow these steps:

- Remove the two lateral transport plastic screws M8x30 on the

- Remove the two front transport plastic screws M8x30

Preparation for Installation

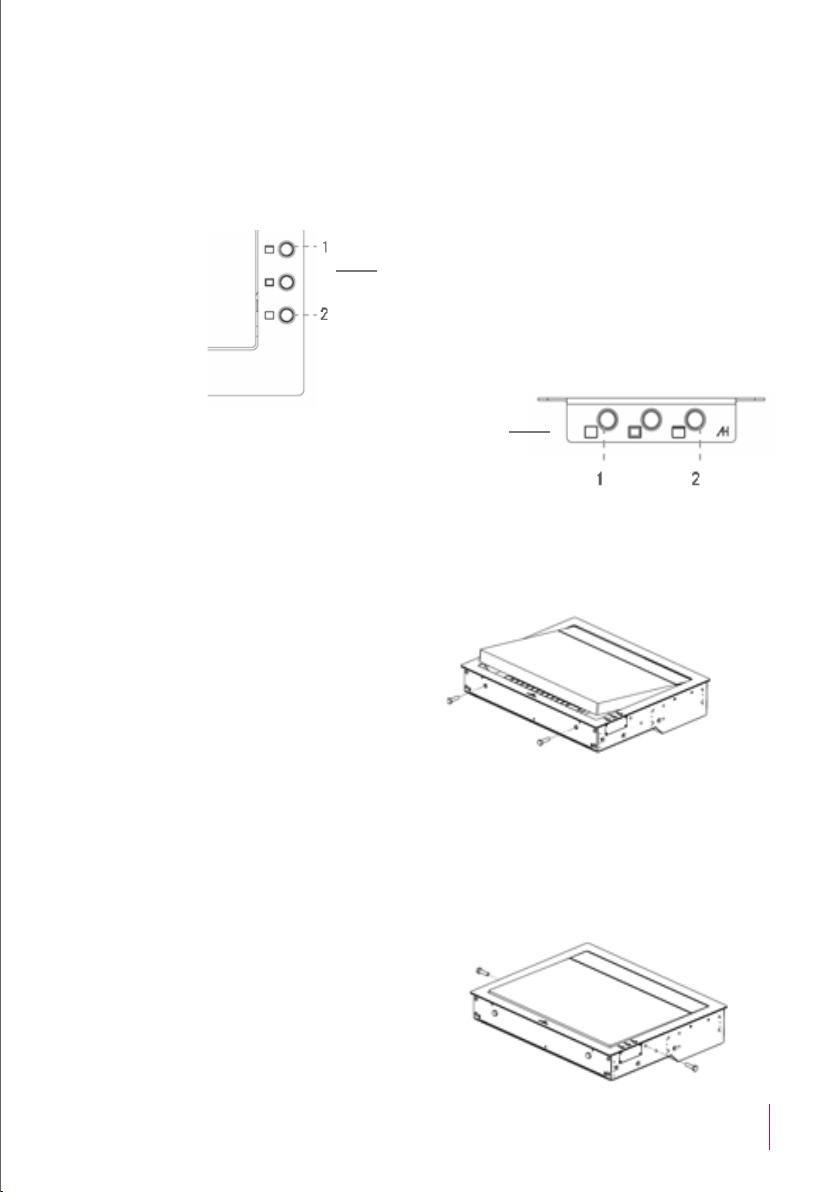

Follow the next steps to pack the device for a safe shipment:

Permanent press button 1 until the monitor housing gets released from the

frame. Insert the two plastic screws (M8x30) entirely. To close the monitor,

permanent press button 2 until the monitor housing touches the two plastic

screws.

The next step is to insert the two lateral plastic screws (M8x30). Starting

by the right hand side, turn the plastic screw into the frame until it touches

the aluminium housing; without moving the aluminium housing (very ﬁne

tolerances). Next, insert the plastic screw into the left side by turning it until

it touches the aluminium housing.

Dynamic3 with cover plate



Dynamic3 with external

control buttons

Controls

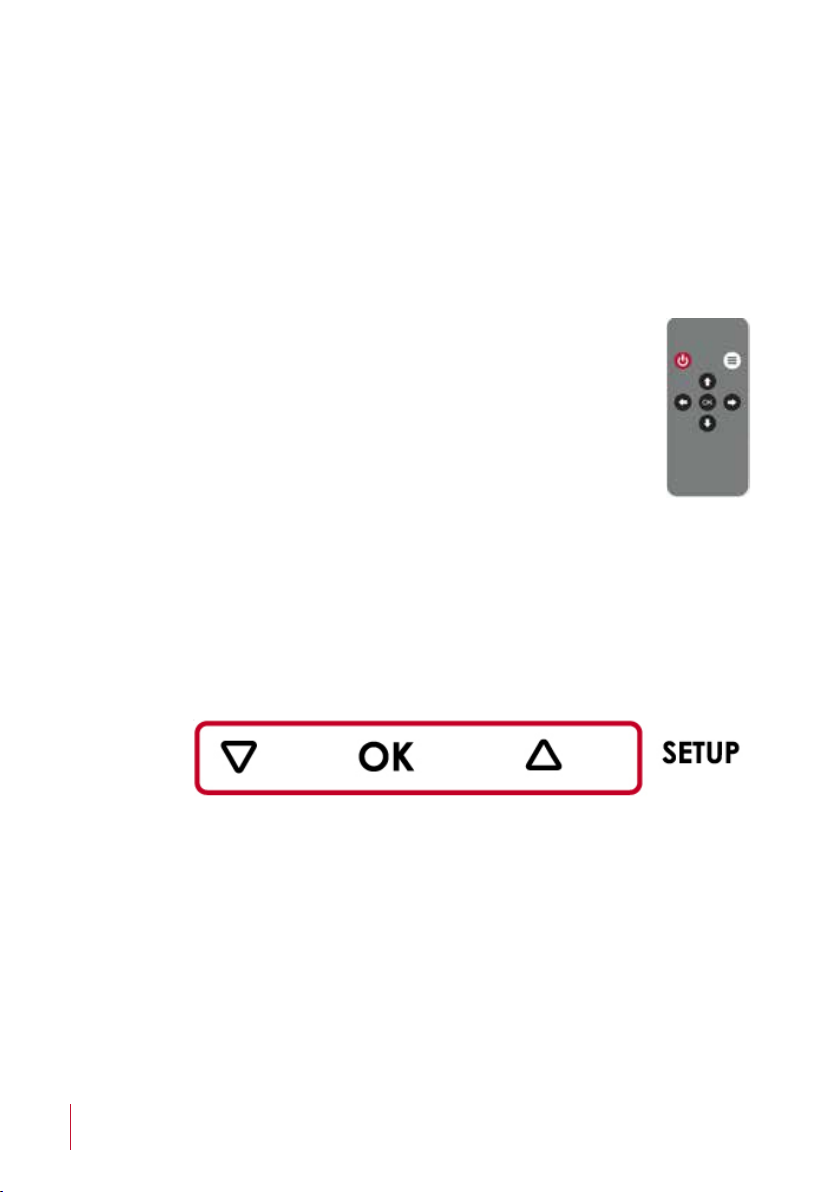

REMOTE IR CONTROL

POWER Switch ON/OFF the monitor

MENU Activates the OSD menu on screen

UP Cursor control up on the OSD menu

DOWN Cursor control down on the OSD menu. When

the OSD menu is not active on screen, selects

the input source

LEFT Cursor control left on the OSD menu

RIGHT Cursor control right on the OSD menu

OK Selects the function on the OSD menu

MONITOR ADDRESS

Below the monitor, there is a screen to conﬁgure the monitor. Press the UP

or DOWN buttons to change the function. Press the OK button to select the

function. Change the parameter using the UP or DOWN buttons and press

OK again to save the changes.

AHnet ID Selects the number AHnet ID to RS422 to externally control

the monitor

Input select Selects the input source signal (DVIA, DVI1 or DVI2)

Brightness Conﬁguration of the monitor brightness level

Contrast Conﬁguration of the monitor contrast level

Backlight Conﬁguration of the monitor backlight level

Status information List of the monitor status to service
