Ascent Communication Technology ACT EC2400 Bedienungsanleitung

ACT EC2400

HD Encoder

User Guide

Revision A

ACT EC2400 4-in-1 MPEG-4 AVC / H.264 HD Encoder

User Manual

ACT Document Number: ACT EC2400 User Manual Revision A

Ascent Communication Technology is strictly forbidden.

This document is produced to assist professional and properly trained personnel with installation and

maintenance issues for the product. The capabilities, system requirements and/or compatibility with

third-party products described herein are subject to change without notice.

For more information, contact ACT: sales@ascentcomtec.com

Revision History

Revision

Date

Reason for Change

1/18/2016

Initial Release

Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 2 of 43

Table of Contents

Chapter 1. Product Introduction ............................................................................................................................................ 4

1.1 Outline········································································································································································ 4

1.2 Main Features··························································································································································· 4

1.3 Specifications···························································································································································· 5

1.4 Principle Chart ·························································································································································· 5

1.5 Appearance and Illustration ···································································································································· 6

Chapter 2. Installation Guide................................................................................................................................................. 8

2.1 Acquisition Check····················································································································································· 8

2.2 Installation Preparation············································································································································ 8

2.3 Wire’s Connection ·················································································································································· 10

2.4 Signal Cable Connection······································································································································· 10

Chapter 3. Operation ............................................................................................................................................................ 13

3.1 Initializing································································································································································· 13

3.2 General Settings····················································································································································· 13

Chapter 4. SNMP Operation................................................................................................................................................ 24

4.1 Installation ······························································································································································· 24

4.2 Software Operation ················································································································································ 24

4.3 EC2400 4 in 1 MPEG-4 AVC/ H.264 HD Encoder Operation ·········································································· 30

4.4 Other Settings························································································································································· 39

Chapter 5. Troubleshooting ................................................................................................................................................. 42

Contact Information ............................................................................................................................................................ 43

Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 3 of 43

The ASCENT EC2400 4 in 1 MPEG-4 AVC/H.264 HD encoder is a professional HD audio & video encoding

and multiplexing device with powerful functionality. It is equipped with 4 HDMI (or SDI) input channels

allowing for 4 HD programs can be processed simultaneously. It adopts the MPEG-4 AVC/H.264 High

Profile encoding format to guarantee the highest picture quality. The EC2400 has an ASI input and can

multiplex the input TS with the 4 encoded programs to generate a stream output through ASI and IP. In

addition, the PSI/SI information can be inserted into an MPTS output. In conclusion, the EC2400’s highly

integrated and cost-effective design makes the device widely used in varieties of digital distribution

systems.



Supports AVC/H.264 High Profile Level 4.0 video encoding



Supports advanced video pretreatment algorithm



Supports MPEG-1 Layer II, HE-AAC (V2), and LC-AAC audio encoding formats



4 channel HDMI (or SDI) inputs and 1 ASI input with mux



Supports PSI/SI editing and inserting



Supports VBR or VBR video bitrate mode



Supports 720P, 1080I, and 1080P HD video formats



Supports ASI output MPTS or 4 × SPTS



Supports IP output (UDP) MPTS and 4 channel SPTS, unicast/multicast



Supports IP null packet filter



Supports PID filter and transparent transport



Real-time effective output bitrate monitoring



Supports device updates through NMS port



Supports LCD / keyboard operation and network management (SNMP)

Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 4 of 43

Input

4 × SDI input

EC2400-SDI

4 × HDMI input

EC2400-HDMI

1 × ASI input, BNC interface

Video

Resolution

1920×1080_59.94P, 1920×1080_50P

1920×1080_59.94i, 1920×1080_50i

1280×720_59.94p, 1280×720_50p

720x576_50i, 720x480_59.94i

Encoding

MPEG-4 AVC/H.264 High Profile Level 4.0

Bitrate

0.8 Mbps ~ 19 Mbps (each channel)

Rate Control

CBR, VBR

GOP Structure

IBBP

Advanced Pretreatment

De-interlacing, noise reduction, sharpening

Audio

Encoding

MPEG-1 Layer II, HE-AAC(V2), LC-AAC

Sampling rate

48 kHz

Resolution

24-bit

Bitrate

64 Kb/s ~ 384 Kb/s each channel

Multiplexing

1 × ASI input multiplexed and 4 encoding channel SPTS

output

2 × ASI outputs, BNC interface

MPTS and 4 SPTS over UDP

10/100Base-T Ethernet interface

Supports unicast / multicast

System

LCD/keyboard operation, net manager (SNMP)

Chinese-English control interface

Ethernet software upgrade

General

Dimensions (W×D×H)

440mm × 410mm × 44.5mm

Approx. weight

4 kg

Temperature range

0 ~ 45°C(operating), -20 ~ 80°C(storage)

Power Requirements

AC 110V±10%, 50/60 Hz

AC 220V±10%, 50/60 Hz

Power consumption

25W

Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 5 of 43

Front Panel Illustration:

1 2 3 4 5 6

Indicated area: All indicators will light on when the device is on the current working state.

LCD Screen

Indicators

Power Indicator

TS in: Input Lock Indicator

CH1 TS out – CH4 TS out: device starts to encode and

output TS

CH1 Alarm – CH4 Alarm: device has stopped encoding

or there is an encoding error

UP / DOWN, LEFT / RIGHT Keys

Enter Key

Menu Key

Lock Key

Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 6 of 43

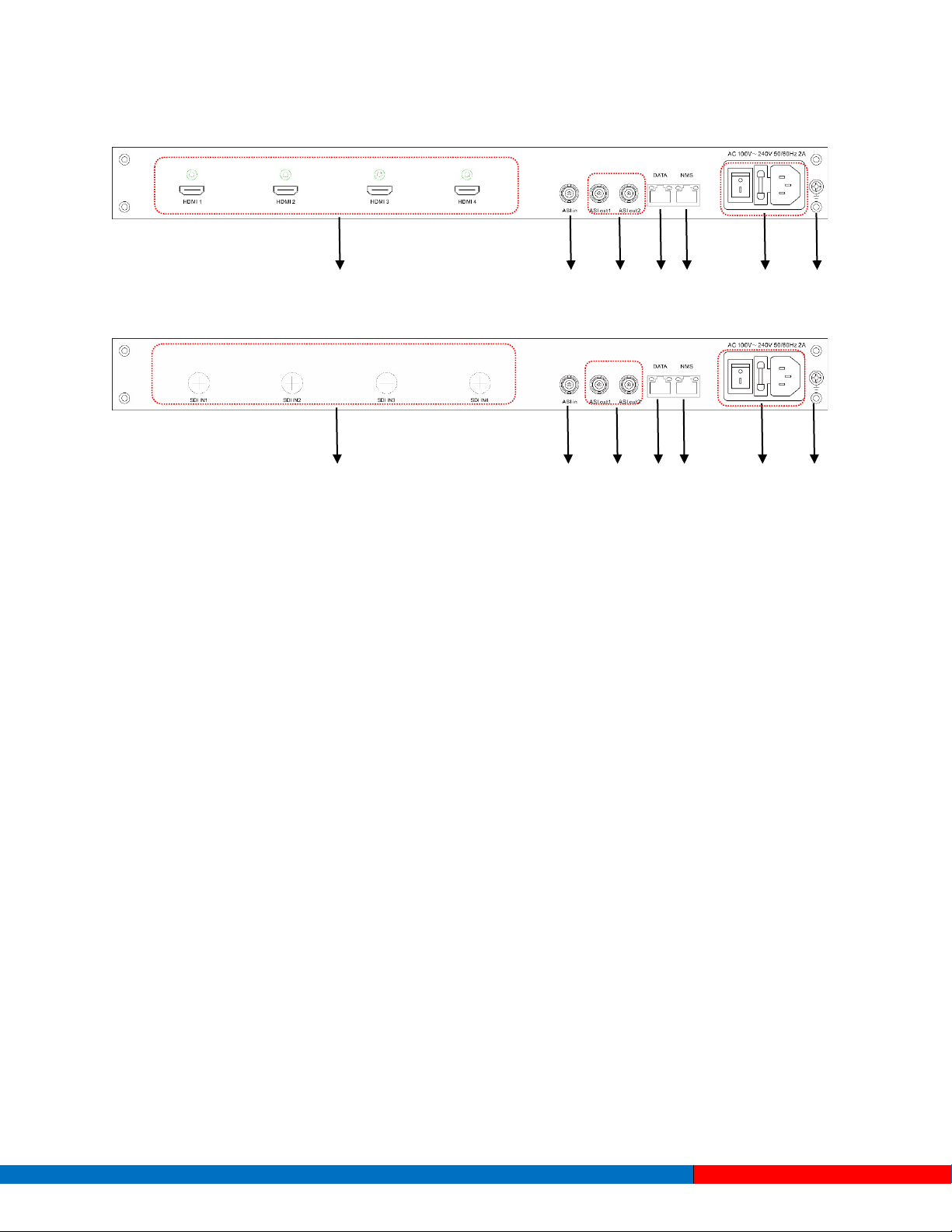

Rear Panel 1

1 2 3 4 5 6 7

Rear Panel Illustration (EC2400-SDI):

1 2 3 4 5 6 7

4 × HDMI Input Ports-- EC2400-HDMI

4 × SDI Input Ports-- EC2400-SDI

2 ASI Input Port

3 2 × ASI Output Ports

4 Data Port (for IP Signal Output)

5 NMS (Network Management Port)

6 Power Switch and Socket

7 Grounding Pole

Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 7 of 43

Users should check the contents of the package of the device prior to installation to ensure that all

items on the packing list are included. Items contained within the package:



EC2400 4-in-1 MPEG-4 AVC/H.264 HD Encoder



User Manual



4 × HDMI Cable for EC2400-HDMI



4 × SDI Cable for EC2400-SDI



ASI Cable



Power Cord

If any item is missing or different from the list above, please contact your local dealer.

Please follow the below steps to install the device. The details of installation will be described in this

chapter. Users can also refer to the rear panel chart in Chapter 1 during the installation.

The main contents of this chapter include:



Checking the device for possible missing or damaged components



Preparing a suitable environment for installation



Installing the encoder



Connecting signal cables



Connecting communication port (if necessary)

Connecting

Grouding

Wire and

Power

Cord

Acquisition

Check Fixing

Device Setting

Parameter Running

Device

Connecting

Signal Wire

Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 8 of 43

Item Requirement

Machine Hall Space When installing the machine frame array into a machine hall, the distance

between 2 rows of machine frames should be 1.2 ~ 1.5 m and the distance

between a machine frame and a wall should be no less than 0.8 m.

Machine Hall Floor Electric Isolation, Dust Free

Volume resistivity of ground anti-static material: 1×107 ~ 1×1010Ω

Grounding current limiting resistance: 1M (Floor bearing should be greater

than 450 kg/㎡)

Environment

Tempe rature

5 ~ 40

°C

(sustainable), 0 ~ 45°C(temporary)

Installing air-conditioning is recommended

Relative Temperature 20% ~ 80% (sustainable), 10% ~ 90% (temporary)

Pressure 86 ~ 105 kPa

Door & Window Install rubber strips to seal door gaps and dual-level window glasses.

Wall Can be covered with wallpaper or non-bright paint.

Fire Protection Fire alarm system and extinguisher

Power Device power, air conditioning power, and lighting power should all be

independent of each other. Device power requires AC power 220V 50 Hz.

Please check carefully before running.



Good grounding designs are the basis of reliability and stability for these devices. Good

grounding is also the best guarantee against lightning arresting and interference rejection.



All machine frames should be connected by protected copper strips



Coaxial cable outer conductors and isolation layers should maintain proper electrical

conduction with the metal housing of the device.



The grounding conductor should be copper in order to reduce high frequency impedance.



The grounding wire should be as thick and short as possible and avoid circling.



Users should make sure both ends of the grounding wire are good conductors and rust-

resistant.



Users should not use any other device as part of the grounding electric circuit.



The area of conduction between the grounding wire and device’s frame should be no less than

25 mm2.



Connect the device’s grounding rod to the frame’s grounding pole with copper wire.

Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 9 of 43

The grounding wire conductive screw is located at the right end of the rear panel, and the power

switch, fuse, and power supply socket are right next to that. The power switch is on the left, the power

supply socket is on the right, and the fuse is between them.



Connecting Power Cord

Insert one end into the power supply socket, and insert the other end to an AC power source.



Connecting Grounding Wire

The grounding resistance should be less than 1Ω.

Caution

Before connecting power cord to EC 2400 4-in-1 MPEG-4 AVC/H.264 HD

Encoder, user should set the power switch to “OFF.”

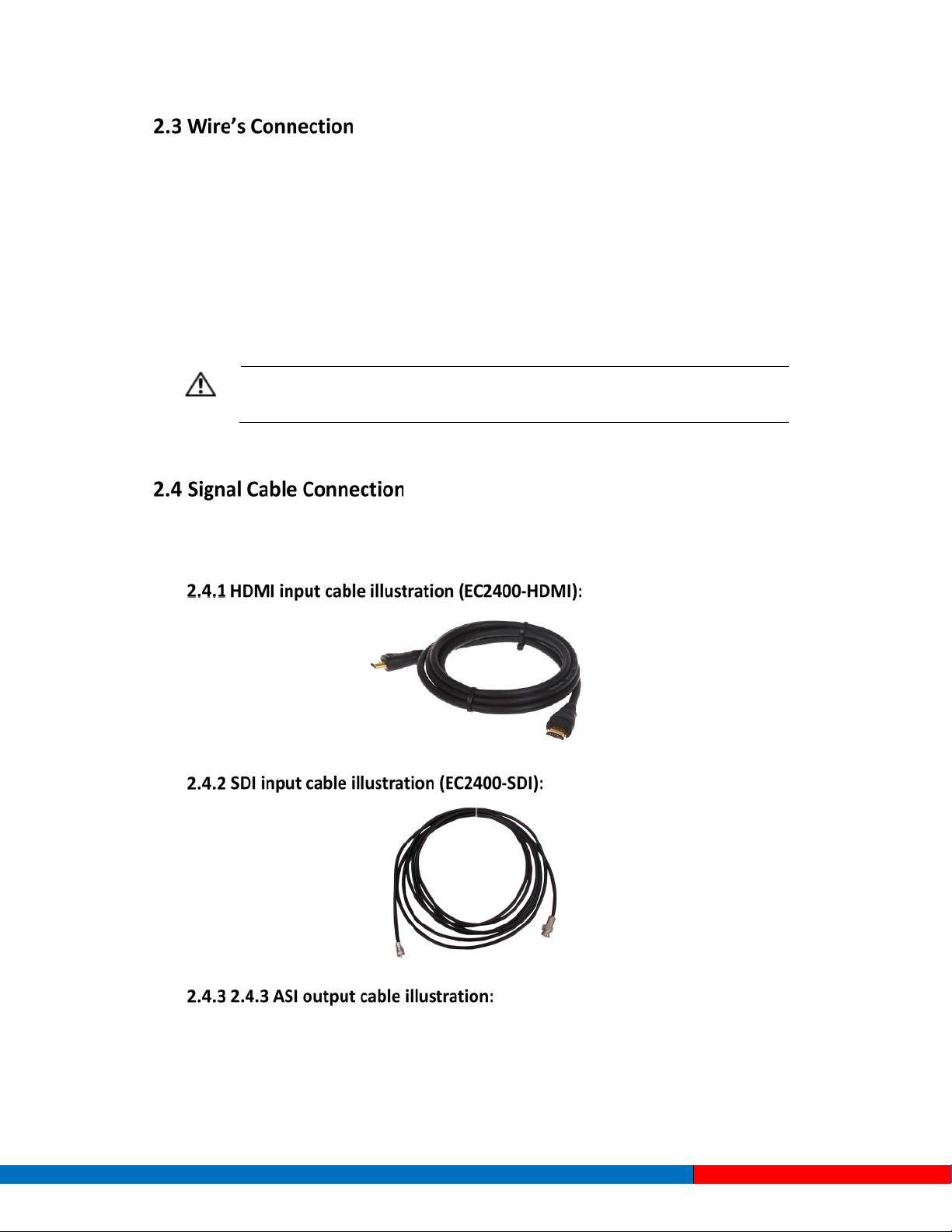

The signal connections include the input signal cable and the output signal cable. The cables look like

the following:

Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 10 of 43
