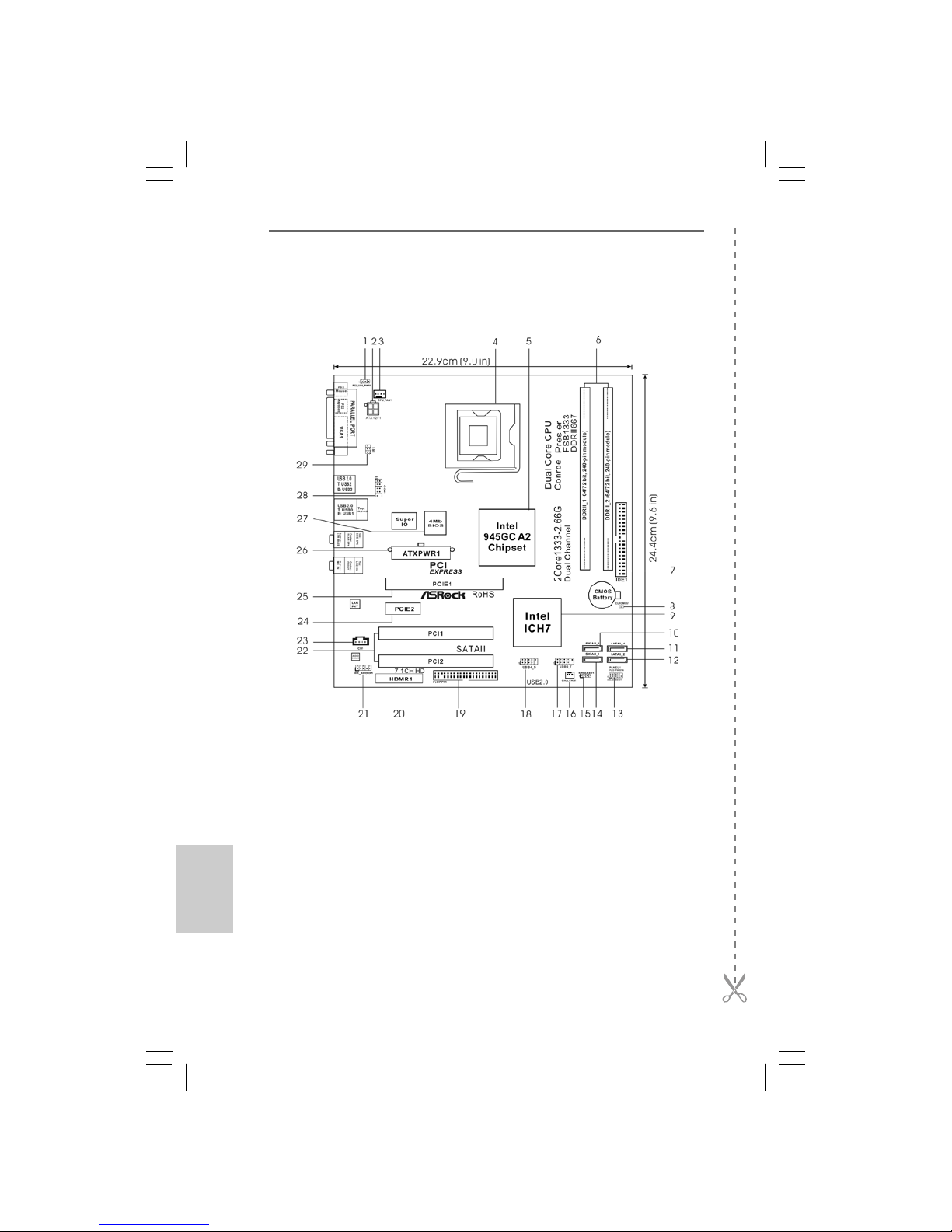

1 PS2_USB_PWR1 Jumper 15 Chassis Speaker Header (SPEAKER 1)

2 ATX 12V Connector (ATX12V1) 16 Chassis Fan Connector (CHA_FAN1)

3 CPU Fan Connector (CPU_FAN1) 17 USB 2.0 Header (USB6_7, Blue)

4 775-Pin CPU Socket 18 USB 2.0 Header (USB4_5, Blue)

5 North Bridge Controller 19 Floppy Connector (FLOPPY1)

6 2 x 240-pin DDRII DIMM Slots 20 HDMR Slot (HDMR1)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 21 Front Panel Audio Header (HD_AUDIO1)

7 IDE1 Connector (IDE1, Blue) 22 PCI Slots (PCI1- 2)

8 Clear CMOS Jumper (CLRCMOS1) 23 Internal Audio Connector: CD1 (Black)

9 South Bridge Controller 24 PCI Express x1 Slot (PCIE2)

10 Third SATAII Connector (SATAII_3; Orange) 25 PCI Express x16 Slot (PCIE1)

11 Fourth SATAII Connector (SATAII_4; Orange) 26 ATX Power Connector (ATXPWR1)

12 Secondary SATAII Connector (SATAII_2; Red) 27 BIOS FWH Chip

13 System Panel Header (PANEL1) 28 Serial Port Connector (COM1)

14 Primary SATAII Connector (SATAII_1; Red) 29 Infrared Module Header (IR1)

ASRock 2Core1333-2.66G Motherboard

EnglishEnglish

English

HD 8CH I/OHD 8CH I/O

HD 8CH I/O

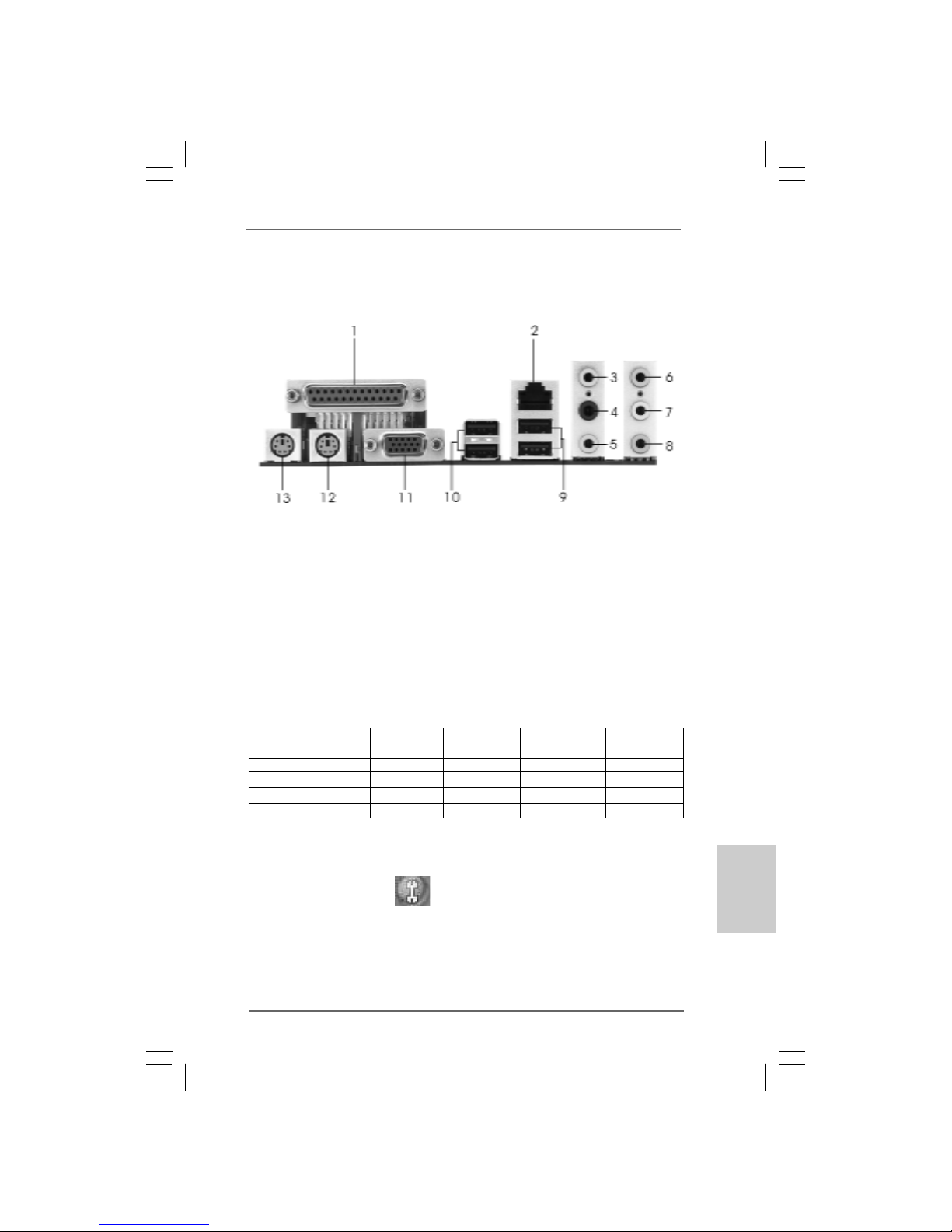

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 VGAPort

5 Central / Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

4ASRock 2Core1333-2.66G Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock 2Core1333-2.66G motherboard, a reliable moth-

erboard produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest VGA cards and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock 2Core1333-2.66G Motherboard Bundled With Selected Dual Core CPU

Operating at FSB1333 / 2.66GHz

(Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm)

ASRock 2Core1333-2.66G Quick Installation Guide

ASRock 2Core1333-2.66G Support CD

One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Data Cable (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

One HD 8CH I/O Shield

One COM Port Bracket

ASRock 2Core1333-2.66G Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm

CPU - Bundle with selected Dual Core CPU operating at

FSB1333 / 2.66GHz

* This motherboard also supports below CPU specifications:

- LGA 775 for Intel®Dual Core CoreTM 2 Extreme / CoreTM 2 Duo

/ Pentium®D / Pentium®Dual Core / Pentium®4 / Celeron®/

Celeron®D

- Compatible with all FSB1333/1066/800/533MHz CPUs except Quad

Core (see CAUTION 1)

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports EM64T CPU

Chipset - Northbridge: Intel®945GC A2

- Southbridge: Intel®ICH7

Memory -Dual ChannelDDRII Memory Technology (see CAUTION 3)

- 2 xDDRIIDIMM slots

- SupportDDRII667/533 (see CAUTION 4)

- Max. capacity: 4GB (see CAUTION 5)

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 6)

- ASRock U-COP (see CAUTION 7)

- Boot Failure Guard (B.F.G.)

Expansion Slot - 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

- 1 x HDMR slot

Graphics - Intel®Graphics Media Accelerator 950

- Pixel Shader 2.0,DirectX 9.0

- Max. shared memory 224MB (see CAUTION 8)

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(ALC888 Audio Codec)

LAN - Realtek PCIE x1 LAN 8101E

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

Rear Panel I/O HD8CHI/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

6ASRock 2Core1333-2.66G Motherboard

EnglishEnglish

English

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 9)

Connector - 4 x SATAII 3.0 Gb/s connectors (No Support for RAID and

“Hot Plug” functions) (see CAUTION 10)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- CPU/Chassis FANconnector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 11)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- AMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000/XP/XP 64-bit/VistaTM/

VistaTM 64-bit compliant (see CAUTION 12)

Certifications - FCC, CE, WHQL

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

ASRock 2Core1333-2.66G Motherboard

EnglishEnglish

English

CAUTION!

1. FSB1333-CPU will operate in overclocking mode. Under this situation,

PCIE frequency will also be overclocked to 115MHz.

2. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 20 for details.

3. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

4. Please check the table below for the CPU FSB frequency and its corre-

sponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1333 DDRII533*, DDRII667

1066 DDRII533, DDRII667

800 DDRII400, DDRII533, DDRII667

533 DDRII400, DDRII533

* When you use a FSB1333-CPU on this motherboard, it will run at

DDRII500 if you adopt a DDRII533 memory module.

5. Due to the chipset limitation, the actual memory size may be less than

4GB for the reservation for system usage under Windows®XP, Windows®

XP 64-bit, Windows®VistaTM and Windows®VistaTM 64-bit.

6. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

7. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

8. The maximum shared memory size is defined by the chipset vendor and

is subject to change. Please check Intel®website for the latest information.

9. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

10. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 19 to adjust your SATAII hard disk drive to

SATAII mode. You can also connect SATA hard disk to SATAII connector

directly.

11. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

12. Microsoft®Windows®VistaTM / VistaTM 64-bit driver keeps on updating now. As

long as we have the latest driver, we will update it to our website in the future.

Please visit our website for Microsoft®Windows®VistaTM / VistaTM 64-bit driver

and related information.

ASRock website http://www.asrock.com

8ASRock 2Core1333-2.66G Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic Logo

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium 2007 and Basic logo, please

follow below table for minimum hardware requirements.

Memory 512MB x 2 Dual Channel (Premium)

512MB Single Channel (Basic)

256MB x 2 Dual Channel (Basic)

VGA DX9.0 with WDDM Driver

* If you plan to use onboard VGA to submit Windows®VistaTM logo, please keep the

default setting of “DVMT Mode Select” option under BIOS.

* If you plan to use external graphics card on this motherboard, please refer to

Premium Discrete requirement at http://www.asrock.com

* After June 1, 2007, all Windows®VistaTM systems are required to meet above

minimum hardware requirements in order to qualify for Windows®VistaTM Premium

2007 logo.

ASRock 2Core1333-2.66G Motherboard

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

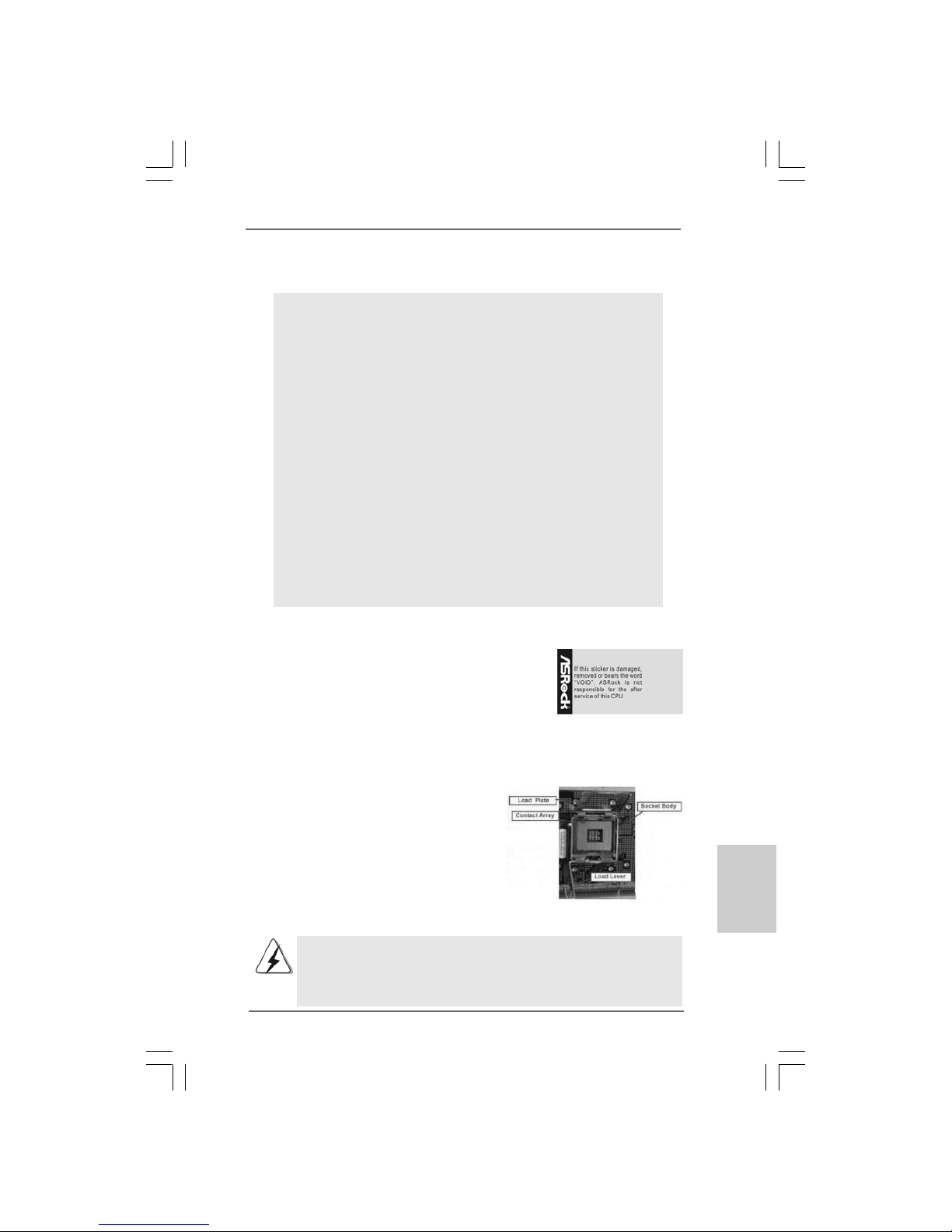

775-Pin Socket Overview

EnglishEnglish

English

ASRock CPU Sticker

2.1 CPU Installation2.1 CPU Installation

2.1 CPU Installation

This motherboard is bundled with one

selected Dual Core CPU operating at

FSB1333 / 2.66GHz. Please do not remove

ASRock CPU stickers on both sides of CPU

socket on this motherboard. If the stick-

ers are damaged, removed or bear the

word “VOID”, ASRock is not respon-

sible for the after service of this CPU.

In the future, you may adopt other

compatible Intel 775-LAND CPU on this

motherboard. For the installation of Intel 775-

LAND CPU, please follow the steps below.

ASRock reminds you that as long as you adopt

other CPU on this motherboard, we will not be

responsible for the after service of the bundled

CPU.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

1010

10 ASRock 2Core1333-2.66G Motherboard

EnglishEnglish

English

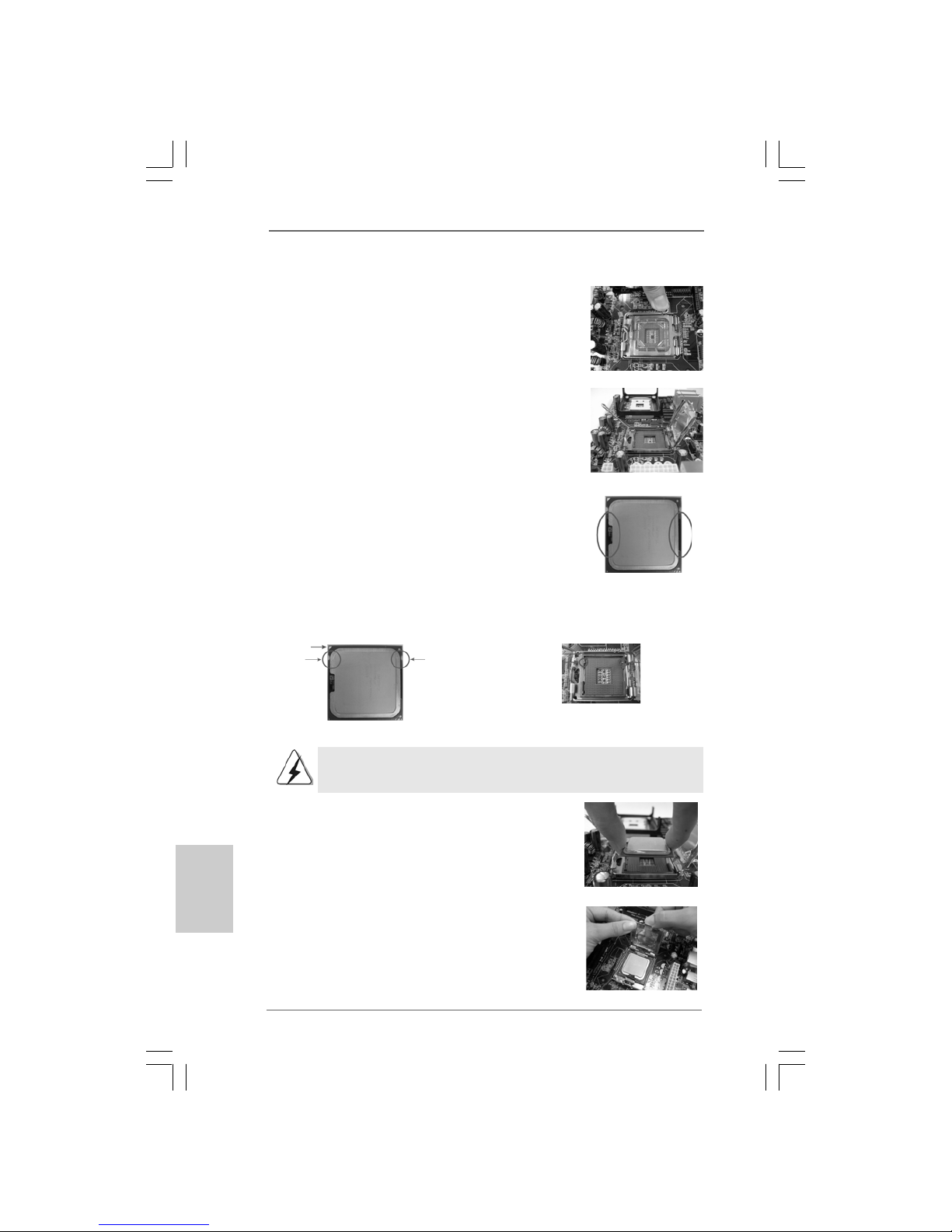

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

Inhaltsverzeichnis

Sprachen:

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK N68-S UCC - Bedienungsanleitung

ASROCK

ASROCK 870ICAFE - V1.0 Bedienungsanleitung

ASROCK

ASROCK 939A790GMH Bedienungsanleitung

ASROCK

ASROCK X79 Extreme6/GB Bedienungsanleitung

ASROCK

ASROCK 760GM-GS3 Bedienungsanleitung

ASROCK

ASROCK PRO Series Bedienungsanleitung

ASROCK

ASROCK EPYC3451D4I2-2T Bedienungsanleitung

ASROCK

ASROCK B550 EXTREME4 Bedienungsanleitung

ASROCK

ASROCK B650 PG LIGHTNING Bedienungsanleitung

ASROCK

ASROCK athena A2 Bedienungsanleitung

ASROCK

ASROCK A780GM-LE128M Bedienungsanleitung

ASROCK

ASROCK PV530A Bedienungsanleitung

ASROCK

ASROCK D1622D4I Bedienungsanleitung

ASROCK

ASROCK Velocita Z490 PG Bedienungsanleitung

ASROCK

ASROCK A320M-HDVP Bedienungsanleitung

ASROCK

ASROCK IMB-170 Bedienungsanleitung

ASROCK

ASROCK athena A1 Bedienungsanleitung

ASROCK

ASROCK WOLFDALE1333-GLAN-M2 - V1.0 Bedienungsanleitung

ASROCK

ASROCK IMB-182 Bedienungsanleitung

ASROCK

ASROCK X79 Extreme4-M Bedienungsanleitung

ASROCK

ASROCK H67M Bedienungsanleitung

ASROCK

ASROCK A520M/ac Bedienungsanleitung

ASROCK

ASROCK B460M Steel Legend Bedienungsanleitung

ASROCK

ASROCK Thunderbolt 3 AIC Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
