Specications

Platform • Dimensions: 3.3-in x 4.1-in

Chipset • Intel® JHL6540 underbolt™ 3 Controller

External

Connectors

• 2 x underbolt™ 3 Type-C Ports (with up to

40Gbps bandwidth)

* Supports daisy-chaining of up to six

underbolt™ devices

• 1 x DisplayPort IN Port

• 1 x Mini DisplayPort IN Port

• 1 x TBT Header

Interface • PCI Express 3.0 x4 interface

Graphics • Supports underboltTM 3 interface with max.

resolution of 5K (5120 x 2880) @ 60Hz for one

display over a single cable connection

• Supports underboltTM 3 interface with max.

resolution of 4K x 2K (4096x2160) @ 60Hz for

dual displays over a single cable connection

• Supports up to two streams (eight lanes) of

DisplayPort video bandwidth ; supports daisy-

chaining of multiple DisplayPort monitors

Data Rate • Supports 40Gbps bi-directional bandwidth

per channel with underbolt™ 3 port

OS • Microso® Windows® 10 32-bit / 10 64-bit / 8

32-bit / 8 64-bit

1InstallingtheThunderbolt3AIC

1. Power o the PC and unplug the power cord. Detach all other cables

from the PC.

2. Remove the PC cover.

3. Align and insert the card into a PCI Express 3.0 slot on the motherboard.

Press rmly until the card is securely seated in place.

*To determine the slot in which to install the underbolt 3 AIC, refer to

the user manual that comes with your motherboard.

ASRockThunderbolt3AIC

PackageContents

• 1 x Quick Installation Guide

• 1 x Support CD

• 1 x TBT Header Cable

• 1 x DisplayPort Cable

• 1 x Mini DisplayPort to DisplayPort Adapter Cable

CardLayout

No. Description

1underboltTM 3 Type-C Port

2underboltTM 3 Type-C Port

3DisplayPort IN Port

4 Mini DisplayPort IN Port

5 PCI Express 3.0 Interface

6TBT Header

Note

e design of this add-in card is based on Intel’s reference design.

However, the BIOS and hardware design of your motherboard may aect

the function of underboltTM 3 Port on this card. It is recommended to

use the motherboard models listed below for underbolt 3 AIC.

*15G062017000AK*

P/N: 15G062017000AK V1.0

1. Intel® underbolt™ 3 is backwards compatible with all underbolt™

cables and devices.

2. e illustrations in this guide are for reference only. e motherboard

layout may vary with models.

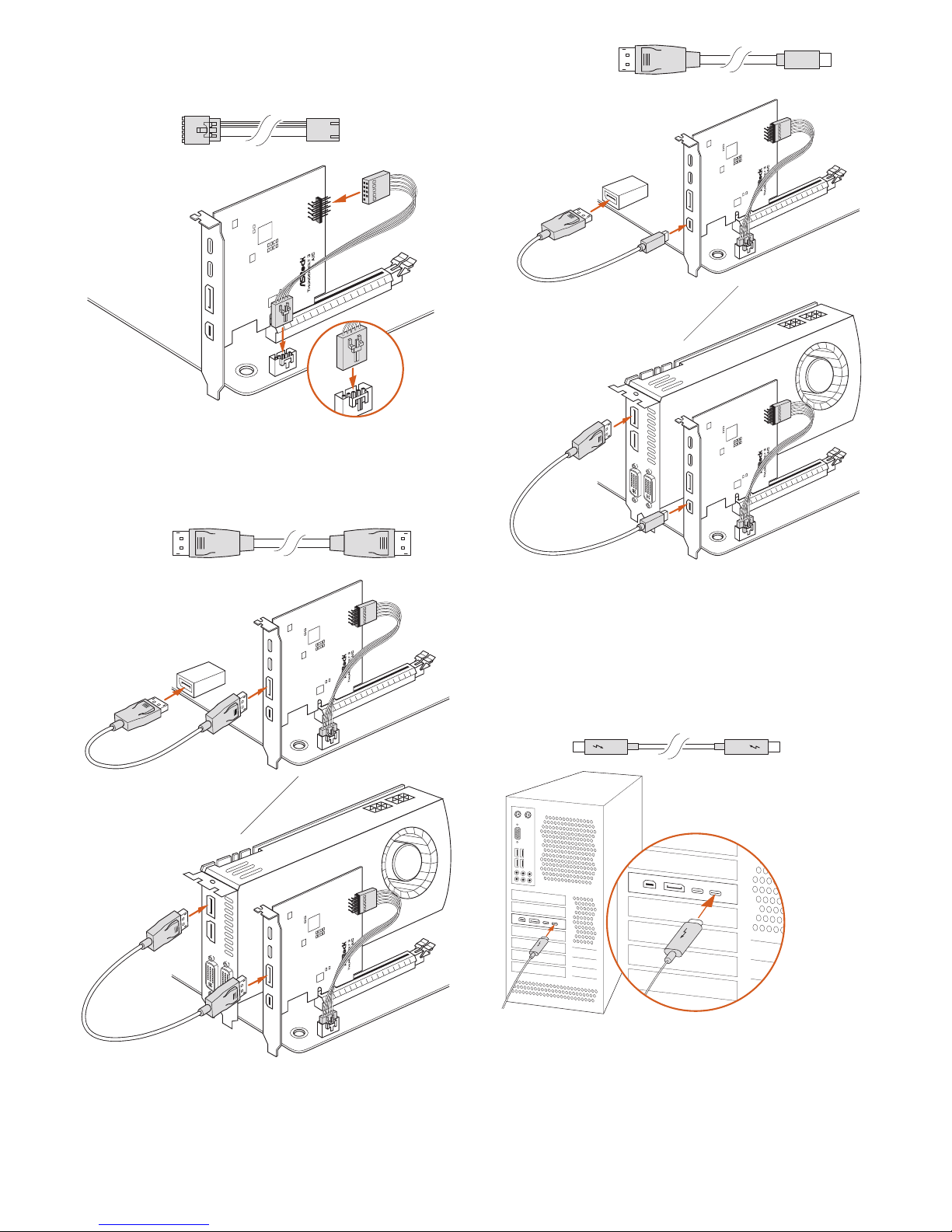

4. Connect one end of the TBT Header Cable to the TBT Header (A) on

the underbolt 3 AIC. en connect the other end of the cable to the

underbolt AIC Connector (TBT1) (B) on the motherboard.

5. Connect one end of the DisplayPort Cable to the DisplayPort IN Port (A)

on the underbolt 3 AIC. en connect the other end of the cable to the

DisplayPort Port (B) on the motherboard's rear I/O panel or on the graphics

card.

6. Connect one end of the Mini DisplayPort to DisplayPort Adapter Cable to

the Mini DisplayPort Port (A) on the underbolt 3 AIC. en connect the

other end of the cable to the DisplayPortPort (B) on the motherboard's rear

I/O panel or on the graphics card.

7. Replace the PC cover.

8. Reconnect the power cord and any other cables that were disconnected.

en power on the PC.

2ConnectingtheThunderbolt™Cable

Connect the underboltTM cable from your underbolt-enabled device to the

underboltTM 3 Port on the underbolt 3 AIC.

* e underboltTM cable is not included in the package.

3EnablingtheThunderbolt™Function

Aer hardware installation is completed, enter the BIOS Setup and enable the

Intel® underbolt™ function in BIOS setup.

4InstallingtheThunderboltSoftwareinWindows

Place the Support CD into your CD-ROM drive and follow the on-screen

instructions to complete the installation.

DisplayPort Cable

TBT Header Cable

Mini DisplayPort to

DisplayPort Adapter Cable

underbolt™ cable

Recommended ASRock Motherboard Models:

Motherboard Models Supported PCIE slot PCIE 3.0

mode

Max.

bandwidth

Z370 Gaming K6 PCIE6 x4 from PCH 40Gbps

Z370 Extreme4 PCIE6 x4 from PCH 40Gbps

Z370 Killer SLI PCIE4 x4 from CPU 40Gbps

Z370 Killer SLI/ac PCIE4 x4 from CPU 40Gbps

Z370 Taichi PCIE5 x4 from CPU 40Gbps

Z370 Professional Gaming i7 PCIE5 x4 from CPU 40Gbps

Z370 Pro4 PCIE4 x4 from PCH 40Gbps

Z270 Professional Gaming i7 PCIE3 x4 from PCH 40Gbps

Z270 Taichi PCIE3 x4 from PCH 40Gbps

Z270 Gaming K6 PCIE6 x4 from PCH 40Gbps

Z270 Extreme4 PCIE6 x4 from PCH 40Gbps

Z270 Pro4 PCIE4 x4 from PCH 40Gbps

H270 Pro4 PCIE4 x4 from PCH 40Gbps

B250 Pro4 PCIE4 x4 from PCH 40Gbps

Z270 Killer SLI PCIE4 x4 from CPU 40Gbps

Z270 Gaming K4 PCIE4 x4 from PCH 40Gbps

H270 Performance PCIE4 x4 from PCH 40Gbps

B250 Gaming K4 PCIE4 x4 from PCH 40Gbps

Z270M Extreme4 PCIE4 x4 from PCH 40Gbps

X299 Professional Gaming i9 XE PCIE1, 2, 3, 5 (44 Lane)

PCIE1, 3, 5 (28 Lane) x4 from CPU 40Gbps

X299 Taichi XE PCIE1, 2, 3, 5 (44 Lane)

PCIE1, 3, 5 (28 Lane) x4 from CPU 40Gbps

X299 Professional Gaming i9 PCIE1, 2, 3, 5 (44 Lane)

PCIE1, 3, 5 (28 Lane) x4 from CPU 40Gbps

X299 Taichi PCIE1, 2, 3, 5 (44 Lane)

PCIE1, 3, 5 (28 Lane) x4 from CPU 40Gbps

X299 OC Formula PCIE6 (for 44 lanes)

PCIE7 (for 28 lanes, 16 lanes) x4 from PCH 40Gbps

X299 Gaming K6 PCIE2 x4 from PCH 40Gbps

X299 Killer SLI/ac PCIE2 x4 from PCH 40Gbps

X299 Extreme4 PCIE4 x4 from PCH 40Gbps

X299 Designer+ PCIE2 x4 from PCH 40Gbps

X299M Extreme4 PCIE3 x4 from PCH 40Gbps

*For the updated information, please visit www.asrock.com.
