ASROCK 770DE3L - AMD RAID Bedienungsanleitung

770DE3L

User Manual

Version 1.0

Published May 2010

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

ContentsContents

Contents

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction ......................................................................................................................

......................................................................................................................

........................................................... 55

1.1 Package Contents..................................................................... 5

1.2 Specifications ............................................................................ 6

1.3 MotherboardLayout................................................................... 10

1.4 I/O Panel .................................................................................... 11

2.2.

2. InstallationInstallation

InstallationInstallation

Installation ............................................................................................................................

............................................................................................................................

.............................................................. 1212

1212

Pre-installation Precautions ............................................................... 12

2.1 CPUInstallation ......................................................................... 13

2.2 Installation of CPU Fan and Heatsink ....................................... 13

2.3 Installation of Memory Modules (DIMM).................................... 14

2.4 Expansion Slots (PCI and PCI Express Slots) .......................... 15

2.5 ATITM CrossFireXTM and Quad CrossFireXTM Operation Guide. 16

2.6 Surround Display Feature......................................................... 20

2.7 Jumpers Setup.......................................................................... 21

2.8 Onboard Headers and Connectors.......................................... 23

2.9 SATAII HardDisk Setup Guide .................................................. 27

2.10 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks

Installation ................................................................................. 28

2.11 Hot Plug and Hot Swap Functions for SATA / SATAII HDDs .... 28

2.12 SATA/ SATAII HDD Hot Plug Feature and OperationGuide ..... 29

2.13 Driver InstallationGuide ............................................................ 31

2.14 Installing Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP /

XP 64-bit With RAID Functions ................................................. 31

2.14.1 Installing Windows®XP / XP 64-bit With RAID

Functions .................................................................... 31

2.14.2 Installing Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit

With RAID Functions..................................................... 32

2.15 Installing Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP /

XP 64-bit Without RAID Functions ............................................ 33

2.15.1 Installing Windows®XP / XP 64-bit Without RAID

Functions...................................................................... 33

2.15.2 Installing Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit

Without RAID Functions................................................ 34

2.16 Untied Overclocking Technology .............................................. 35

3.3.

3. BIOS SBIOS S

BIOS SBIOS S

BIOS SETUP UTILITYETUP UTILITY

ETUP UTILITYETUP UTILITY

ETUP UTILITY ......................................................................................................

......................................................................................................

................................................... 3636

3636

3.1 Introduction ............................................................................... 36

3.1.1 BIOS Menu Bar ............................................................... 36

3.1.2 Navigation Keys ............................................................. 37

3.2 Main Screen.............................................................................. 37

3.3 OC Tweaker Screen................................................................. 38

3.4 Advanced Screen .................................................................... 44

3.4.1 CPU Configuration .......................................................... 45

3.4.2 Chipset Configuration..................................................... 46

3.4.3 ACPI Configuration ......................................................... 47

3.4.4 Storage Configuration .................................................... 48

3.4.5 PCIPnPConfiguration ...................................................... 50

3.4.6 Floppy Configuration ...................................................... 50

3.4.7 Super IO Configuration................................................... 51

3.4.8 USB Configuration .......................................................... 52

3.5 Hardware Health Event Monitoring Screen ............................. 53

3.6 Boot Screen.............................................................................. 54

3.6.1 Boot Settings Configuration ........................................... 54

3.7 Security Screen........................................................................ 55

3.8 Exit Screen ............................................................................... 56

4.4.

4. Software SupportSoftware Support

Software SupportSoftware Support

Software Support ......................................................................................................

......................................................................................................

................................................... 5757

5757

4.1 Install Operating System........................................................... 57

4.2 Support CD Information............................................................. 57

4.2.1 Running Support CD....................................................... 57

4.2.2 Drivers Menu .................................................................. 57

4.2.3 Utilities Menu ................................................................... 57

4.2.4 Contact Information ........................................................ 57

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock 770DE3L motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming toASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to

BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 Package ContentsPackage Contents

Package ContentsPackage Contents

Package Contents

ASRock 770DE3L Motherboard

(ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm)

ASRock 770DE3L Quick InstallationGuide

ASRock 770DE3L Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm

- Solid Capacitor for CPU power

CPU - Support for SocketAM3 processors: AMD PhenomTM II X6 /

X4 / X3 / X2 (except 920 / 940) /Athlon II X4 / X3 / X2 /

Sempron processors

- Six-Core CPU Ready

- Supports CPU up to 140W

- SupportsASRock UCC - Unlock CPU Core

- Supports AMD’s Cool ‘n’ QuietTM Technology

- FSB 2600 MHz (5.2 GT/s)

- Supports Untied Overclocking Technology (see CAUTION 1)

- Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset - Northbridge:AMD 770

- Southbridge: AMD SB710

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 2)

- 2 xDDR3DIMM slots

- SupportDDR3 1800(OC)/1600/1333/1066/800 non-ECC,

un-buffered memory (see CAUTION 3)

- Max. capacity of system memory: 8GB (see CAUTION 4)

Expansion Slot - 2 x PCI Express 2.0 x16 slots

(PCIE2 @ x16 mode, PCIE3 @ x4 mode)

- 1 x PCI Express 2.0 x1 slot

- 3 x PCI slots

- Supports ATITM Quad CrossFireXTM and CrossFireXTM

Audio - 5.1 CH HDAudio (VIA®VT1705 Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

-RealtekRTL8111DL

- Supports Wake-On-LAN

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 6 x Ready-to-Use USB 2.0 Ports

-1 x RJ-45LAN Port with LED (ACT/LINK LED and SPEEDLED)

- HDAudio Jack: Line in/Front Speaker/Microphone

Connector - 6 x Serial ATAII 3.0Gb/s connectors, support RAID(RAID 0,

RAID 1, RAID10 and JBOD),NCQ,AHCI and “Hot Plug”

functions (see CAUTION 5)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU VIDVoltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD

OverDriveTM Utility, ASRock Software Suite (CyberLink DVD

Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)

Unique Feature - ASRock OC Tuner (see CAUTION 6)

- Intelligent Energy Saver (see CAUTION 7)

- Instant Boot

- ASRock Instant Flash (see CAUTION 8)

- ASRock OC DNA (see CAUTION 9)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 10)

- ASRock U-COP (see CAUTION 11)

- Boot FailureGuard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis/Power Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit

/ XP / XP 64-bit compliant

Certifications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 12)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 35 for details.

2. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 14 for proper installation.

3. Whether 1800/1600MHz memory speed is supported depends on the AM3

CPU you adopt. If you want to adopt DDR3 1800/1600 memory module

on this motherboard, please refer to the memory support list on our

website for the compatible memory modules.

ASRock website http://www.asrock.com

4. Due to the operating system limitation, the actual memory size may be less

than 4GB for the reservation for system usage under Windows®7 / VistaTM /

XP. For Windows®OS with 64-bit CPU, there is no such limitation.

5. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 27 to adjust your SATAII hard disk drive to

SATAII mode. You can also connect SATA hard disk to SATAII connector

directly.

6. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows®

environment. Please visit our website for the operation procedures of

ASRock OC Tuner. ASRock website: http://www.asrock.com

7. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. The voltage regulator can reduce the

number of output phases to improve efficiency when the CPU cores are

idle. In other words, it is able to provide exceptional power saving and

improve power efficiency without sacrificing computing performance. To

use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option

in the BIOS setup in advance. Please visit our website for the operation

procedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

8. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

9. The software name itself – OC DNA literally tells you what it is capable of.

OC DNA, an exclusive utility developed by ASRock, provides a conve-

nient way for the user to record the OC settings and share with others. It

helps you to save your overclocking record under the operating system

and simplifies the complicated recording process of overclocking settings.

With OC DNA, you can save your OC settings as a profile and share with

your friends! Your friends then can load the OC profile to their own system

to get the same OC settings as yours! Please be noticed that the OC

profile can only be shared and worked on the same motherboard.

10. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

11. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

12. EuP, stands for Energy Using Product, was a provision regulated by

European Union to define the power consumption for the completed system.

According to EuP, the total AC power of the completed system shall be

under 1.00W in off mode condition. To meet EuP standard, an EuP ready

motherboard and an EuP ready power supply are required. According to

Intel’s suggestion, the EuP ready power supply must meet the standard of

5v standby power efficiency is higher than 50% under 100 mA current

consumption. For EuP ready power supply selection, we recommend you

checking with the power supply manufacturer for more details.

1010

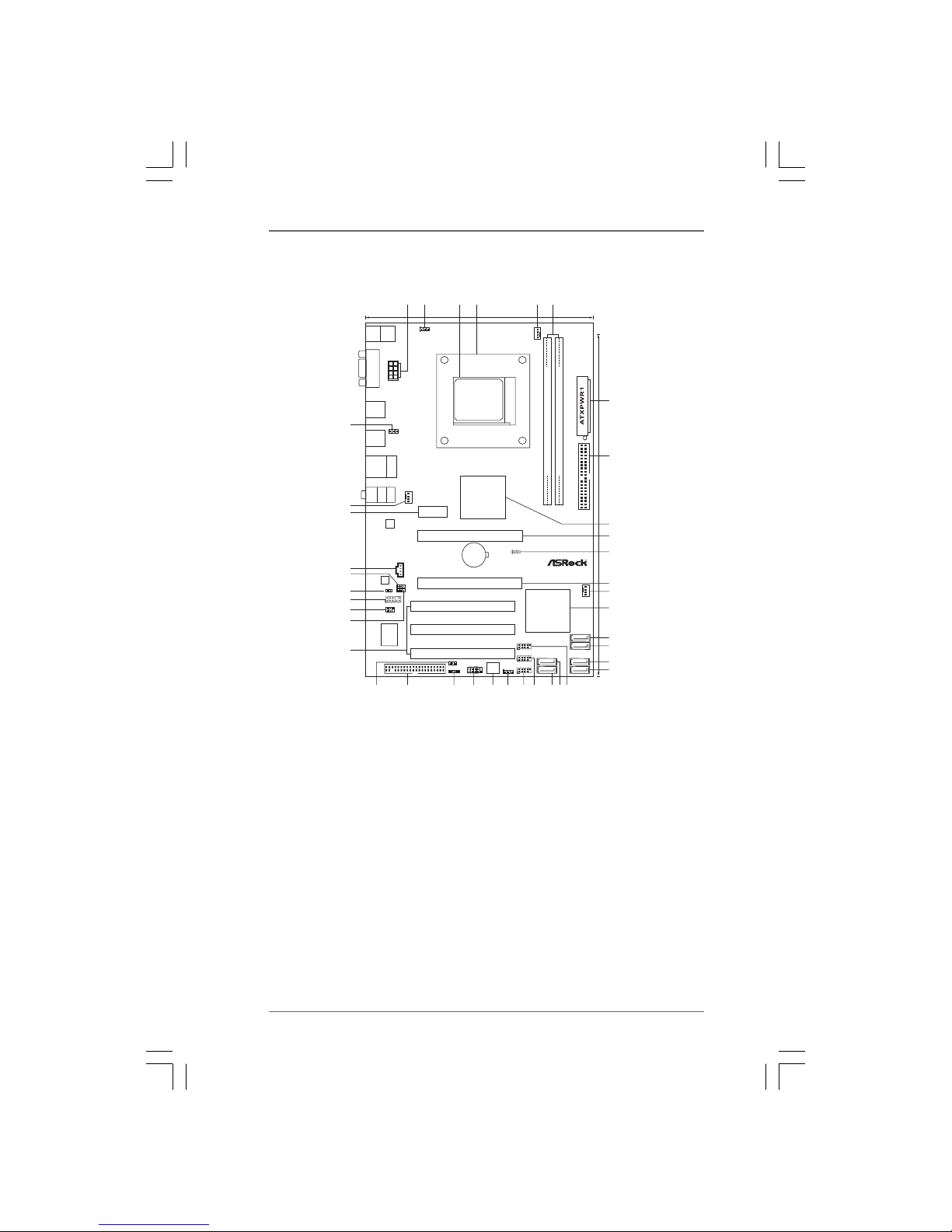

1.3 Motherboard Layout1.3 Motherboard Layout

1.3 Motherboard Layout

1 ATX 12V Power Connector (ATX12V1) 22 USB 2.0 Header (USB8_9, Blue)

2 PS2_USB_PW1 Jumper 23 USB 2.0 Header (USB6_7, Blue)

3 AM3 CPU Socket 24 USB_PW2 Jumper

4 CPU Heatsink Retention Module 25 SPI Flash Memory (8Mb)

5 CPU Fan Connector (CPU_FAN1) 26 System Panel Header (PANEL1, White)

6 2 x 240-pin DDR3 DIMM Slots 27 Chassis Speaker Header

(Dual Channel: DDR3_A1, DDR3_B1; Blue) (SPEAKER 1, White)

7 ATX Power Connector (ATXPWR1) 28 Floppy Connector (FLOPPY1)

8 Primary IDE Connector (IDE1, Blue) 29 Power LED Header (PLED1)

9 Northbridge Controller 30 PCI Slots (PCI1- 3)

10 PCI Express 2.0 x16 Slot (PCIE2; Blue) 31 EUP Audio Jumper (EUP_AUDIO1)

11 Clear CMOS Jumper (CLRCMOS1) 32 Infrared Module Header (IR1)

12 PCI Express 2.0 x16 Slot (PCIE3; Blue) 33 Front Panel Audio Header

13 Chassis Fan Connector (CHA_FAN1) (HD_AUDIO1, White)

14 Southbridge Controller 34 HDMI_SPDIF Header

15 Sixth SATAII Connector (SATAII_6, Blue) (HDMI_SPDIF1, White)

16 Fifth SATAII Connector (SATAII_5, Blue) 35 EUP LAN Jumper (EUP_LAN1)

17 Fourth SATAII Connector (SATAII_4, Blue) 36 Internal Audio Connector: CD1 (Black)

18 Third SATAII Connector (SATAII_3, Blue) 37 PCI Express 2.0 x1 Slot (PCIE1; White)

19 USB 2.0 Header (USB10_11, Blue) 38 Power Fan Connector (PWR_FAN1)

20 Secondary SATAII Connector (SATAII_2, Blue) 39 USB_PW1 Jumper

21 Primary SATAII Connector (SATAII_1, Blue)

124

IDE1

SOCKET AM3

FSB800

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

AMD

SB710

Chipset

PS2_USB_PW1

ATX12V1

CPU_FAN1

8Mb

BIOS

CMOS

BATTERY

CLRCMOS1

LAN

PHY

AUDIO

CODEC

Super

I/O

IR1

CD1

HD_AUDIO1

PCIE1

FLOPPY1

HDLED RESET

PLED PWRBTN

PANEL 1

SPEAKER1

SATAII_2

HT 3.0

19.1cm (7.5-in)

30.5cm (12.0-in)

AMD

770

Chipset

PCIE2

PCIE3

PCI1

PCI2

PCI3

770DE3L

SATAII_4

SATAII_1 SATAII_3

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

PS2

Mouse

PS2

Keyboard

USB 2.0

T: USB0

B: USB1

Top:

RJ-45

USB 2.0

T: US B4

B: USB5

140W CPU FSB2.6GHz DDR3 1800

Phenom II AM3 Dual Channel

PCI Express 2.0

ErP/EuP Ready

RoHS

USB10_11

USB_PW1

USB_PW2

EUP_LAN1

EUP_AUDIO1

SATAII_6

SATAII_5

PLED1

HDMI_SPDIF1

USB8_9

USB6_7

USB 2.0

T: US B2

B: USB3

COM1

PWR_FAN1

CHA_FAN1

Designed in Taipei

Support 6-Core CPU

Andere Handbücher für 770DE3L - AMD RAID

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK A785GMH128M Bedienungsanleitung

ASROCK

ASROCK X79 Extreme3 Bedienungsanleitung

ASROCK

ASROCK Intel N100 Series Bedienungsanleitung

ASROCK

ASROCK AD2550-ITX Bedienungsanleitung

ASROCK

ASROCK P43 PROUSB3 - Bedienungsanleitung

ASROCK

ASROCK N68-GS4 FX R2.0 Bedienungsanleitung

ASROCK

ASROCK FM2A75 PRO04+ Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z68 Professional Gen3 Bedienungsanleitung

ASROCK

ASROCK H110M-HDV R3.0 Bedienungsanleitung

ASROCK

ASROCK B75M-ITX Bedienungsanleitung

ASROCK

ASROCK 1U2-X570/2T Bedienungsanleitung

ASROCK

ASROCK E3C232D4U Bedienungsanleitung

ASROCK

ASROCK Z690D4U-2L2T Bedienungsanleitung

ASROCK

ASROCK M3A UCC - Bedienungsanleitung

ASROCK

ASROCK QC5000M-ITX/PH Bedienungsanleitung

ASROCK

ASROCK 775Dual-880Pro Bedienungsanleitung

ASROCK

ASROCK IMB-157J Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z370 Gaming K6 Series Bedienungsanleitung

ASROCK

ASROCK ZH77 Pro3 Bedienungsanleitung

ASROCK

ASROCK Z75 Pro3 Bedienungsanleitung

ASROCK

ASROCK X79 Extreme3 Bedienungsanleitung

ASROCK

ASROCK M3A785GMH/128M Bedienungsanleitung

ASROCK

ASROCK K8A8X-M Bedienungsanleitung

ASROCK

ASROCK IMB-151N Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
