ASRock A75 Pro4 Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published June 2011

2ASRock A75 Pro4 Motherboard

English

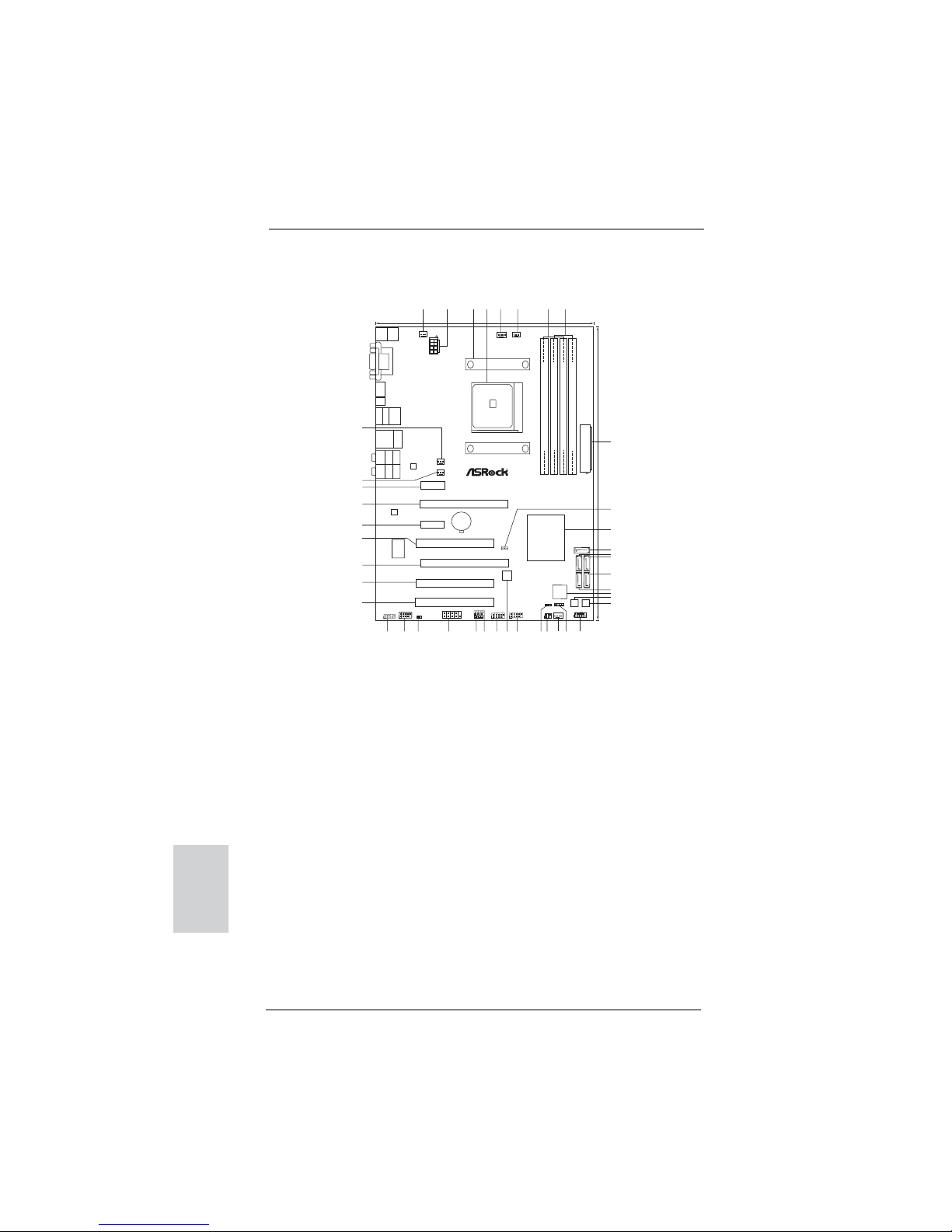

Motherboard Layout

1 Power Fan Connector (PWR_FAN1) 22 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Power Connector (ATX12V1) 23 Infrared Module Header (IR1)

3 CPU Heatsink Retention Module 24 Power LED Header (PLED1)

4 CPU Socket 25 USB 2.0 Header (USB10_11, Blue)

5 CPU Fan Connector (CPU_FAN1) 26 SPI Flash Memory (32Mb)

6 CPU Fan Connector (CPU_FAN2) 27 USB 2.0 Header (USB8_9, Blue)

7 2 x 240-pin DDR3 DIMM Slots 28 USB 2.0 Header (USB6_7, Blue)

(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 29 Consumer Infrared Module Header (CIR1)

8 2 x 240-pin DDR3 DIMM Slots 30 COM Port Header (COM1)

(Dual Channel B: DDR3_A2, DDR3_B2; White) 31 HDMI_SPDIF Header (HDMI_SPDIF1, White)

9 ATX Power Connector (ATXPWR1) 32 Front Panel IEEE 1394 Header

10 Clear CMOS Jumper (CLRCMOS1) (FRONT_1394, White)

11 Southbridge Controller 33 Front Panel Audio Header (HD_AUDIO1, White)

12 SATA3 Connector (SATA3_5, White) 34 PCI Slot (PCI3)

13 SATA3 Connector (SATA3_4, White) 35 PCI Slot (PCI2)

14 SATA3 Connector (SATA3_3, White) 36 PCI Express 2.0 x16 Slot (PCIE4; Blue)

15 SATA3 Connector (SATA3_1, White) 37 PCI Slot (PCI1)

16 SATA3 Connector (SATA3_2, White) 38 PCI Express 2.0 x1 Slot (PCIE3; White)

17 Dr. Debug (LED) 39 PCI Express 2.0 x16 Slot (PCIE2; Blue)

18 Power Switch (PWRBTN) 40 PCI Express 2.0 x1 Slot (PCIE1; White)

19 Reset Switch (RSTBTN) 41 Chassis Fan Connector (CHA_FAN2)

20 System Panel Header (PANEL1, White) 42 Chassis Fan Connector (CHA_FAN3)

21 Chassis Speaker Header (SPEAKER 1, White)

Super

I/O

CMOS

BATTERY

ATXPWR1

AMD

A75 FCH

(Hudson-D3)

Chipset

COM1

PCIE1

PCI1

LAN

AUDIO

CODEC

CLRCMOS1

CPU_FAN1

HDLED RESET

PLED PWRBTN

PANEL1

CHA_FAN1

SPEAKER1

HD_AUDIO1

30.5cm (12.0-in)

22.4cm (8.8-in)

124

358

2627

32Mb

BIOS

IR1

PCIE2

HDMI1

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

USB6_7

CPU_FAN2

A75 Pro4

ErP/EuP Ready

RoHS

DDR3 2400+

USB 3.0

T: US B4

B: USB5

CIR1

SATA3 6Gb/s

ATX12V1

HDMI 1.4a

Ps2

Keyboard/

Mouse

SOCKET FM1

PCIE4

Dr.

Debug

PWRBTN RSTBTN

PLED1

SATA3_1

SATA3_2

SATA3_3

SATA3_4

DDR3_A1 (64 bit, 240-pin module)

DDR3_A2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

PWR_FAN1

FRONT_1394

HDMI_SPDIF1

USB8_9

USB10_11

VGA1

DVI_CON1

Clr

CMOS

USB 2.0

T: US B2

B: USB3

IEEE 1394

eSATA1

Top:

RJ-45

USB 3.0

T: US B0

B: USB1

CHA_FAN3

CHA_FAN2

USB 3.0

1394a

303132

PCIE3

PCI2

PCI3

SATA3_5

DX11

XFast USB

Designed in Taipei

Dual Graphics

ASRock A75 Pro4 Motherboard

English

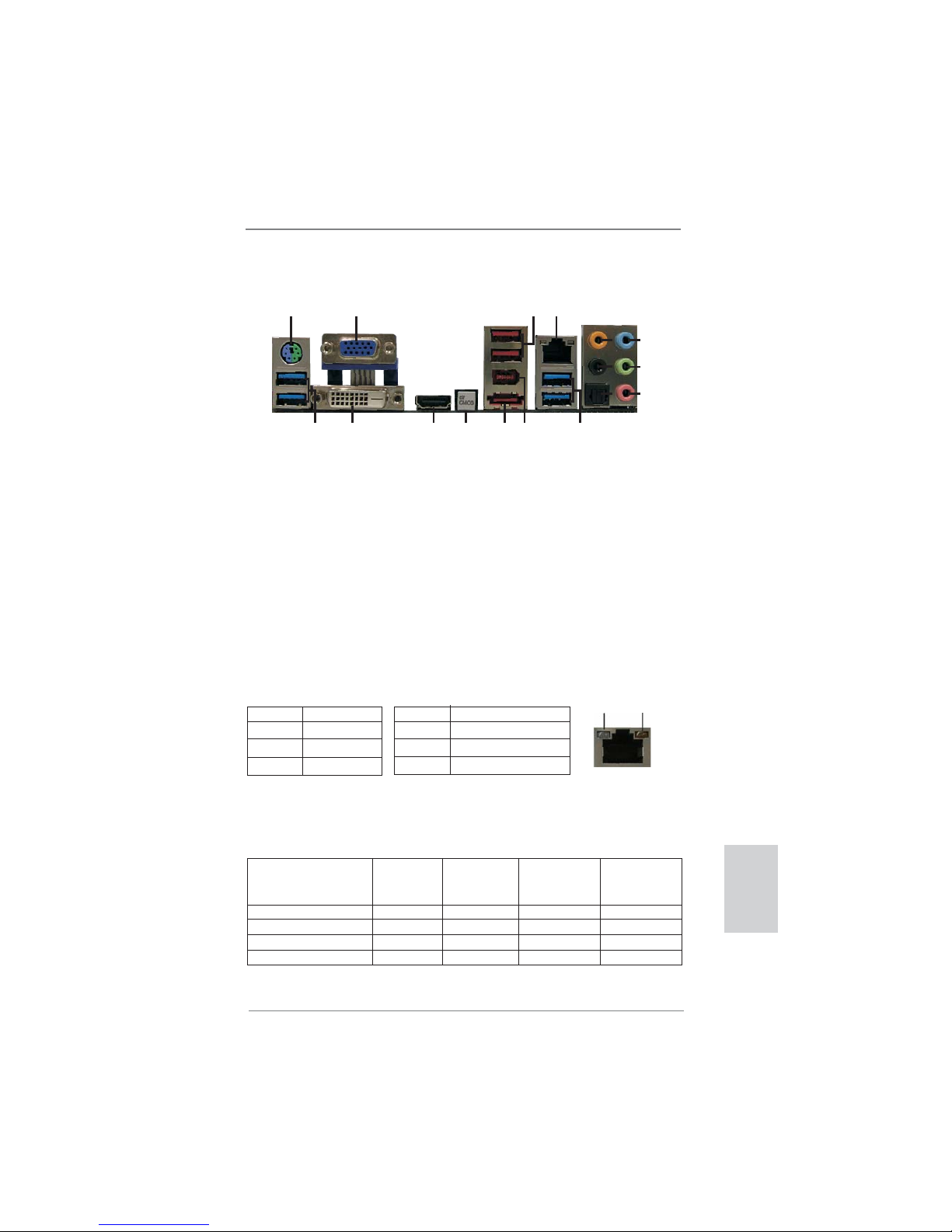

I/O Panel

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 PS/2 Mouse/Keyboard Port (Green/Purple) 10 Microphone (Pink)

2 D-Sub Port 11 USB 3.0 Ports (USB01)

* 3 USB 2.0 Ports (USB23) 12 IEEE 1394 Port (IEEE 1394)

** 4 LAN RJ-45 Port **** 13 eSATA3 Connector

5 Central / Bass (Orange) 14 Clear CMOS Switch (CLRCBTN)

6 Rear Speaker (Black) 15 HDMI Port

7 Optical SPDIF Out Port 16 DVI-D Port

8 Line In (Light Blue) 17 USB 3.0 Ports (USB45)

*** 9 Front Speaker (Lime)

LAN Port

ACT/LINK

LED

SPEED

LED

124

*** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or

(No. 9) (No. 6) (No. 5) Side Speaker

(No. 8)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

* It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB23)

instead of USB 3.0 ports.

4ASRock A75 Pro4 Motherboard

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will ﬁnd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”.

Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Pri-

mary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

**** eSATA3 connector supports SATA Gen3 in cable 1M.

English

ASRock A75 Pro4 Motherboard

English

1. Introduction

Thank you for purchasing ASRock A75 Pro4 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock A75 Pro4 Motherboard

(ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm)

ASRock A75 Pro4 Quick Installation Guide

ASRock A75 Pro4 Support CD

4 x Serial ATA (SATA) Data Cables (Optional)

1 x 3.5mm Audio Cable (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conﬁguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

6ASRock A75 Pro4 Motherboard

English

1.2 Specifications

Platform - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm

- All Solid Capacitor design

CPU - Support for Socket FM1 100W processors

- V4 + 1 Power Phase Design

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A75 FCH (Hudson-D3)

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 1)

- 4 x DDR3 DIMM slots

- Support DDR3 2400+(OC)/1866/1600/1333/1066/

800 non-ECC, un-buffered memory (see CAUTION 2)

- Max. capacity of system memory: 32GB (see CAUTION 3)

Expansion Slot - 2 x PCI Express 2.0 x16 slots

(PCIE2 @ x16 mode; PCIE4 @ x4 mode)

- 2 x PCI Express 2.0 x1 slots

- 3 x PCI slots

- Supports AMD Quad CrossFireXTM, CrossFireXTM and Dual

Graphics

Graphics - AMD Radeon HD 65XX/64XX graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 512MB (see CAUTION 4)

- Three VGA Output options: D-Sub, DVI-D and HDMI

(see CAUTION 5)

- Supports HDMI 1.4a Technology with max. resolution up to

1920x1200 @ 60Hz

- Supports Dual-link DVI with max. resolution up to

2560x1600 @ 75Hz

- Supports D-Sub with max. resolution up to 1920x1600 @

60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required) (see CAUTION 6)

- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

- Supports AMD Steady VideoTM: New video post processing

capability for automatic jutter reduction on home/online

video

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI and HDMI ports

ASRock A75 Pro4 Motherboard

English

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudioTM

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efﬁcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 2 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA3 Connector

- 4 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- 1 x IEEE 1394 Port

- 1 x Clear CMOS Switch with LED

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone (see CAUTION 7)

SATA3 - 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions

USB 3.0 - 4 x USB 3.0 ports, support USB 1.0/2.0/3.0 up to 5Gb/s

Connector - 5 x SATA3 6.0Gb/s connectors

- 1 x IR header

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x IEEE 1394 header

- 1 x Power LED header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

- 1 x Dr. Debug (7-Segment Debug LED)

8ASRock A75 Pro4 Motherboard

English

Smart Switch - 1 x Clear CMOS Switch with LED

- 1 x Power Switch with LED

- 1 x Reset Switch with LED

BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, VDDP, VDDR, SB Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD

Live! Explorer, AMD Fusion, CyberLink MediaEspresso 6.5

Trial, ASRock Software Suite (CyberLink DVD Suite - OEM

and Trial)

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 8)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 9)

- ASRock APP Charger (see CAUTION 10)

- ASRock SmartView (see CAUTION 11)

- ASRock XFast USB (see CAUTION 12)

- ASRock On/Off Play Technology (see CAUTION 13)

- Hybrid Booster:

- ASRock U-COP (see CAUTION 14)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP

SP3 / XP 64-bit compliant

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 15)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the

setting in the BIOS, applying Untied Overclocking Technology, or using the third-party over-

clocking tools. Overclocking may affect your system stability, or even cause damage to the

components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.

ASRock A75 Pro4 Motherboard

English

CAUTION!

1. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 14 for proper installation.

2. Whether 2400/1866/1600MHz memory speed is supported depends on

the CPU you adopt. If you want to adopt DDR3 2400/1866/1600 memory

module on this motherboard, please refer to the memory support list on

our website for the compatible memory modules.

ASRock website http://www.asrock.com

3. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®64-bit OS with 64-bit CPU, there is no such

limitation.

4. The maximum shared memory size is deﬁned by the chipset vendor and

is subject to change. Please check AMD website for the latest informa-

tion.

5. You can choose to use two of the three monitors only. D-Sub, DVI-D and

HDMI monitors cannot be enabled at the same time. Besides, with the

DVI-to-HDMI adapter, the DVI-D port can support the same features as

HDMIport.

6. xvYCC and Deep Color are only supported under Windows®7 64-bit /

7. Deep Color mode will be enabled only if the display supports 12bpc

in EDID. HBR is supported under Windows®7 64-bit / 7 / VistaTM 64-bit /

VistaTM.

7. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-chan-

nel, 6-channel, and 8-channel modes. Please check the table on page 3

for proper connection.

8. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune

different system functions in a user-friendly interface, which is including

Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hard-

ware Monitor, it shows the major readings of your system. In Fan Control,

it shows the fan speed and temperature for you to adjust. In Overclock-

ing, you are allowed to overclock CPU frequency for optimal system

performance. In OC DNA, you can save your OC settings as a proﬁle

and share with your friends. Your friends then can load the OC proﬁle to

their own system to get the same OC settings. In IES (Intelligent Energy

Saver), the voltage regulator can reduce the number of output phases to

improve efﬁciency when the CPU cores are idle without sacriﬁcing com-

puting performance. Please visit our website for the operation procedures

of ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

10 ASRock A75 Pro4 Motherboard

English

9. ASRock Instant Flash is a BIOS ﬂash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems ﬁrst like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS ﬁle to your USB ﬂash drive, ﬂoppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional ﬂoppy diskette or other complicated ﬂash utility. Please

be noted that the USB ﬂash drive or hard drive must use FAT32/16/12 ﬁle

system.

10. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful solu-

tion for you - ASRock APP Charger. Simply installing the APP Charger

driver, it makes your iPhone charged much quickly from your computer

and up to 40% faster than before. ASRock APP Charger allows you to

quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP

Charger driver installed, you can easily enjoy the marvelous charging

experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

11. SmartView, a new function of internet browser, is the smart start page for

IE that combines your most visited web sites, your history, your Facebook

friends and your real-time newsfeed into an enhanced view for a more

personal Internet experience. ASRock motherboards are exclusively

equipped with the SmartView utility that helps you keep in touch with

friends on-the-go. To use SmartView feature, please make sure your OS

version is Windows®7 / 7 64 bit / VistaTM / VistaTM 64 bit, and your browser

version is IE8.

ASRock website: http://www.asrock.com/Feature/SmartView/index.asp

12. ASRock XFast USB can boost USB storage device performance. The

performance may depend on the property of the device.

13. ASRock On/Off Play Technology allows users to enjoy the great audio ex-

perience from the portable audio devices, such like MP3 player or mobile

phone to your PC, even when the PC is turned off (or in ACPI S5 mode)!

This motherboard also provides a free 3.5mm audio cable (optional) that

ensures users the most convenient computing environment.

14. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the moth-

erboard functions properly and unplug the power cord, then plug it back

again. To improve heat dissipation, remember to spray thermal grease

between the CPU and the heatsink when you install the PC system.

Andere Handbücher für A75 Pro4 MVP

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK H570 PHANTOM GAMING 4 Bedienungsanleitung

ASROCK

ASROCK A780GXH 128M - V1.1 Bedienungsanleitung

ASROCK

ASROCK WOLFDALE1333-DVI Bedienungsanleitung

ASROCK

ASROCK ALIVENF6G-DVI Bedienungsanleitung

ASROCK

ASROCK P55 DELUXE - V1.1 Bedienungsanleitung

ASROCK

ASROCK IMB-186V Bedienungsanleitung

ASROCK

ASROCK J3455 PRO BTC+ Bedienungsanleitung

ASROCK

ASROCK 970 Extreme3 Bedienungsanleitung

ASROCK

ASROCK ALIVENF6P-VSTA Bedienungsanleitung

ASROCK

ASROCK 939N68PV-GLAN Bedienungsanleitung

ASROCK

ASROCK A55 Pro3 Bedienungsanleitung

ASROCK

ASROCK H55 EXTREME3 Bedienungsanleitung

ASROCK

ASROCK N68PV-GS - V1.0 Bedienungsanleitung

ASROCK

ASROCK B450M Steel Legend Bedienungsanleitung

ASROCK

ASROCK H110M-DGS Bedienungsanleitung

ASROCK

ASROCK H81M-HG4 Bedienungsanleitung

ASROCK

ASROCK 760GM Bedienungsanleitung

ASROCK

ASROCK A785GXH128M Bedienungsanleitung

ASROCK

ASROCK P55M PRO - Bedienungsanleitung

ASROCK

ASROCK B75M R2.0 Bedienungsanleitung

ASROCK

ASROCK IMB-380-D Bedienungsanleitung

ASROCK

ASROCK H97M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK P45TS-R Bedienungsanleitung

ASROCK

ASROCK H61M-PS4 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
