ASROCK A75M-DGS Bedienungsanleitung

ASRock A75M-DGS Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published November 2012

2ASRock A75M-DGS Motherboard

English

Motherboard Layout

1 ATX 12V Power Connector (ATX12V1) 14 Southbridge Controller

2 Power Fan Connector (PWR_FAN1) 15 System Panel Header (PANEL1)

3 CPU Fan Connector (CPU_FAN1) 16 Infrared Module Header (IR1)

4 CPU Socket 17 Print Port Header (LPT1)

5 CPU Heatsink Retention Module 18 USB 2.0 Header (USB6_7)

6 2 x 240-pin DDR3 DIMM Slots 19 Consumer Infrared Module Header (CIR1)

(Dual Channel: DDR3_A1, DDR3_B1) 20 USB 2.0 Header (USB8_9)

7 ATX 12V Power Connector (ATX12V1) 21 COM Port Header (COM1)

8 Chassis Fan Connector (CHA_FAN1) 22 PCI Slot (PCI1)

9 Chassis Speaker Header (SPEAKER1) 23 SPI Flash Memory (32Mb)

10 SATA3 Connector (SATA_4) 24 PCI Express 2.0 x16 Slot (PCIE1)

11 SATA3 Connector (SATA_3) 25 Front Panel Audio Header (HD_AUDIO1)

12 SATA3 Connector (SATA_1) 26 Clear CMOS Jumper (CLRCMOS1)

13 SATA3 Connector (SATA_2)

Super

I/O

CMOS

BATTERY

ATXPWR1

AMD

A75 FCH

(Hudson-D3)

Chipset

COM1

PCI1

LAN

AUDIO

CODEC

CLRCMOS1

CPU_FAN1

HDLED RESET

PLED PWRBTN

PANEL1

CHA_FAN1

SPEAKER1

HD_AUDIO1

32Mb

BIOS

IR1

PCIE1

FSB800

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

RJ-45 LAN

USB6_7

USB8_9

A75M-DGS

ErP/EuP Ready

RoHS

DDR3 2400+

USB 2.0

T: USB0

B: USB1

CIR1

SOCKET FM1

SATA_4

SATA_3

LPT1

PS2

Mouse

PS2

Keyboard

VGA1

USB 3.0

T: USB2

B: USB3

Dual Graphics

XFast USB

PWR_FAN1

XFast LAN

XFast RAM

SATA_2

SATA_1

ATX12V1

DX11

124

356

181920

DVI1

USB 3.0

T: USB4

B: USB5

ASRock A75M-DGS Motherboard

English

I/O Panel

1 PS/2 Mouse Port (Green) 7 USB 3.0 Ports (USB45)

* 2 LAN RJ-45 Port 8 USB 3.0 Ports (USB23)

3 Line In (Light Blue) 9 DVI-D Port

** 4 Front Speaker (Lime) 10 D-Sub Port

5 Microphone (Pink) 11 PS/2 Keyboard Port (Purple)

6 USB 2.0 Ports (USB01)

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will ﬁnd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®8 / 7 / VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conﬁguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

10 8 7

4ASRock A75M-DGS Motherboard

1. Introduction

Thank you for purchasing ASRock A75M-DGS motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock A75M-DGS Motherboard (Micro ATX Form Factor)

ASRock A75M-DGS Quick Installation Guide

ASRock A75M-DGS Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit, it is recommended to set the BIOS option in Storage Con-

ﬁguration to AHCI mode. For the BIOS setup, please refer to the “User

Manual” in our support CD for details.

English

ASRock A75M-DGS Motherboard

English

1.2 Speciﬁcations

Platform - Micro ATX Form Factor

- Solid Capacitor for CPU power

CPU - Support for Socket FM1 100W processors

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A75 FCH (Hudson-D3)

Memory - Dual Channel DDR3 Memory Technology

- 2 x DDR3 DIMM slots

- Support DDR3 2400+(OC)/1866/1600/1333/1066 non-ECC,

un-buffered memory (see CAUTION 1)

- Max. capacity of system memory: 16GB (see CAUTION 2)

Expansion Slot - 1 x PCI Express 2.0 x16 slot

- 1 x PCI slot

- Supports AMD Dual Graphics

Graphics - AMD Radeon HD 65XX/64XX graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 512MB

- Dual VGA Output: support DVI-D and D-Sub ports by

independent display controllers

- Supports Dual-link DVI with max. resolution up to

2560x1600 @ 75Hz

- Supports D-Sub with max. resolution up to 1920x1600 @

60Hz

- Supports AMD Steady VideoTM: New video post processing

capability for automatic jutter reduction on home/online

video

- Supports HDCP function with DVI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI port

Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efﬁcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

6ASRock A75M-DGS Motherboard

English

- 1 x D-Sub Port

- 1 x DVI-D Port

- 2 x Ready-to-Use USB 2.0 Ports

- 4 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line in / Front Speaker / Microphone

SATA3 - 4 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions

USB 3.0 - 4 x USB 3.0 ports, support USB 1.1/2.0/3.0 up to 5Gb/s

Connector - 4 x SATA3 6.0 Gb/s connectors

- 1 x IR header

- 1 x CIR header

- 1 x Print port header

- 1 x COM port header

- 1 x CPU Fan connector (4-pin)

- 1 x Chassis Fan connector (4-pin)

- 1 x Power Fan connector (3-pin)

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU, DRAM, VDDP, SB Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, Google Chrome

Browser and Toolbar

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit / XP SP3 / XP 64-bit compliant

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

ASRock A75M-DGS Motherboard

English

CAUTION!

1. Whether 2400/1866/1600MHz memory speed is supported depends on

the CPU you adopt. If you want to adopt DDR3 2400/1866/1600 memory

module on this motherboard, please refer to the memory support list on

our website for the compatible memory modules.

ASRock website http://www.asrock.com

2. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®8 / 7

/ VistaTM / XP. For Windows®64-bit OS with 64-bit CPU, there is no such

limitation. You can use ASRock XFast RAM to utilize the memory that

Windows®cannot use.

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

8ASRock A75M-DGS Motherboard

English

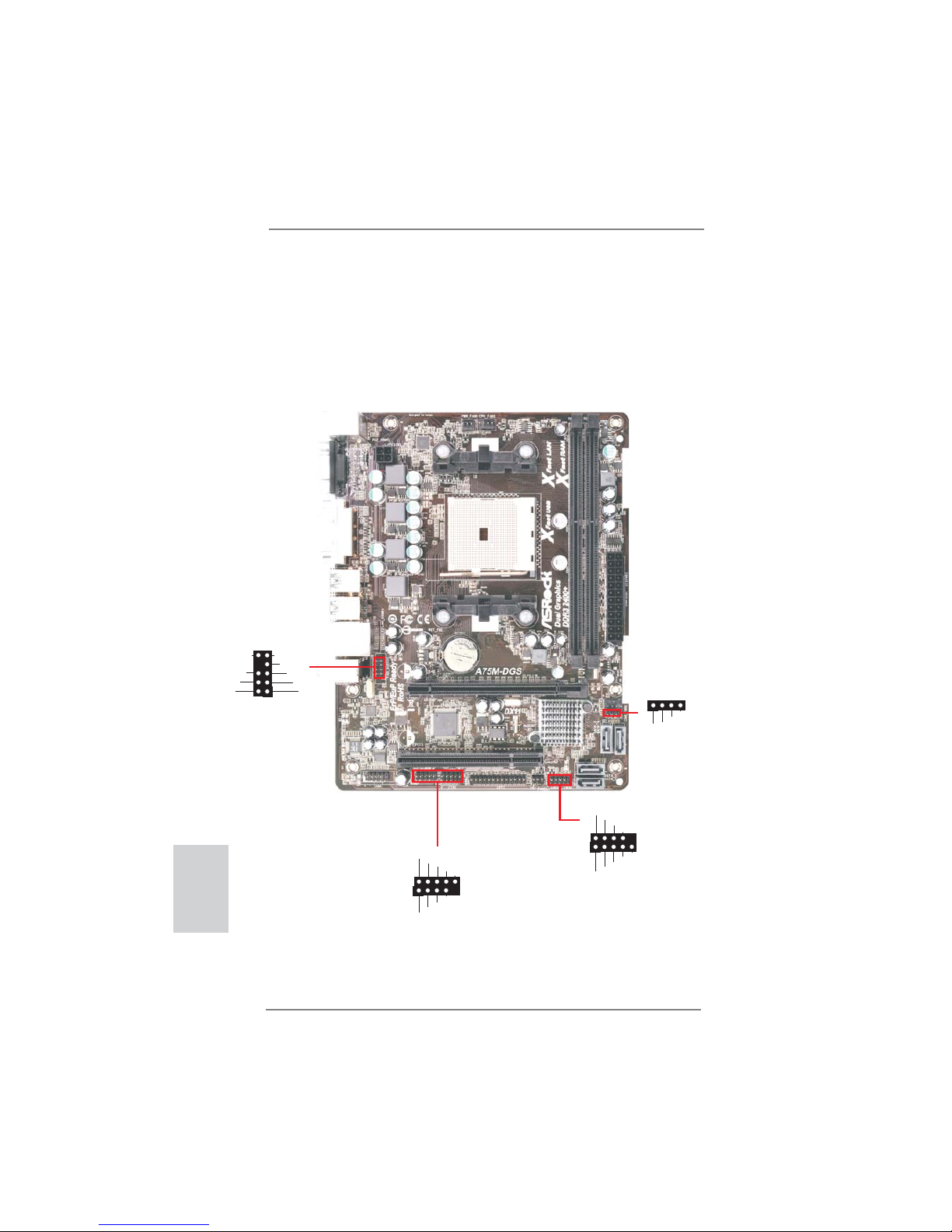

1.3 Pin Header Easy Installation Guide

ASRock motherboard is equipped with pin headers with obvious colors which indi-

cate you to recognize the crucial headers more easily. Please refer to below illustra-

tions for the pin deﬁnition of onboard headers. If you want to have more information

about the usage of these headers, please refer to “Jumpers Setup“ and “Onboard

Headers and Connectors“ for details.

GND

PRESENCE#

MIC_RET

MIC2_L

MIC2_R

OUT2_R

J_SENSE

OUT2_L

OUT_RET

Front Panel Audio Header

PLED+

PLED-

PWRBTN#

HDLED+

HDLED-

GND

REST#

GND

DUMMY

System Panel Header

USB 2.0 Header

USB_PWR

P- P+

USB_PWR

P-

P+

GND

DUMMY

Chassis Speaker Header

+5V

DUMMY

SPEAKER

DUMMY

ASRock A75M-DGS Motherboard

English

1.4 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 26)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just ﬁnish updating the BIOS, you must boot

up the system ﬁrst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default proﬁle, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

Clear CMOSDefault

10 ASRock A75M-DGS Motherboard

English

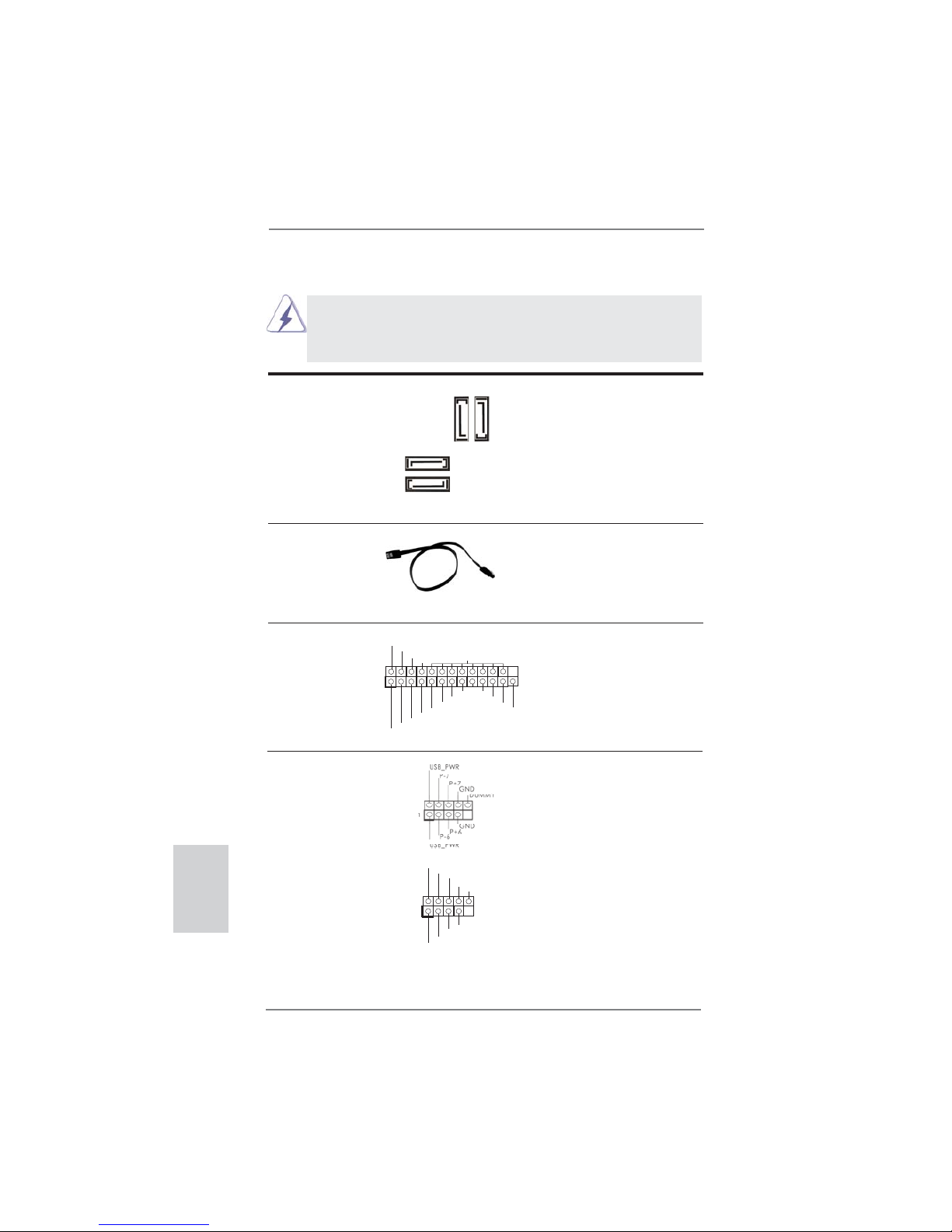

1.5 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA3 Connectors These four Serial ATA3

(SATA_1: see p.2, No. 12) (SATA3) connectors support

(SATA_2: see p.2, No. 13) SATA data cables for internal

(SATA_3: see p.2, No. 11) storage devices. The current

(SATA_4: see p.2, No. 10) SATA3 interface allows up to

6.0 Gb/s data transfer rate.

USB_PWR

P-8

GND

DUMMY

USB_PWR

P+8

GND

P-9 P+9

USB 2.0 Headers Besides two default USB 2.0

(9-pin USB6_7) ports on the I/O panel, there

(see p.2 No. 18) are two USB 2.0 headers on

this motherboard. Each USB 2.0

header can support two USB

2.0 ports.

(9-pin USB8_9)

(see p.2 No. 20)

Print Port Header This is an interface for print

(25-pin LPT1) port cable that allows

(see p.2 No. 17) convenient connection of printer

devices.

AFD#

ERROR#

PINIT# GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

SLCT

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

(Optional) SATA3 hard disk or the SATA3

connector on this motherboard.

SATA_1

SATA_2

SATA_3 SATA_4

Andere Handbücher für A75M-DGS

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK M810LMR Bedienungsanleitung

ASROCK

ASROCK QC5000-ITXQC5000-ITX/PH Bedienungsanleitung

ASROCK

ASROCK 939NF6G-VSTA Bedienungsanleitung

ASROCK

ASROCK B150 Pro4/3.1 Bedienungsanleitung

ASROCK

ASROCK 775XFIRE-ESATA2 - 02-2006 Kurzanleitung

ASROCK

ASROCK H81M-HG4 Bedienungsanleitung

ASROCK

ASROCK X533 Bedienungsanleitung

ASROCK

ASROCK X99 X99 Extreme3 Bedienungsanleitung

ASROCK

ASROCK X99 Extreme11 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty 990FX Professional Bedienungsanleitung

ASROCK

ASROCK K10N78 Bedienungsanleitung

ASROCK

ASROCK TRX40 CREATOR Bedienungsanleitung

ASROCK

ASROCK IMB-195-D Bedienungsanleitung

ASROCK

ASROCK Z590 EXTREME Bedienungsanleitung

ASROCK

ASROCK Z690 Phantom Gaming 4 Bedienungsanleitung

ASROCK

ASROCK N100M Bedienungsanleitung

ASROCK

ASROCK P4I945GC Bedienungsanleitung

ASROCK

ASROCK J5040-ITX Bedienungsanleitung

ASROCK

ASROCK CONROEXFIRE-ESATA2 Bedienungsanleitung

ASROCK

ASROCK X79 Extreme9 Bedienungsanleitung

ASROCK

ASROCK IMB-A180-H Bedienungsanleitung

ASROCK

ASROCK 880GMH/USB3 R2.0 Bedienungsanleitung

ASROCK

ASROCK IMB-156 Bedienungsanleitung

ASROCK

ASROCK Z690 PG Velocita Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
