ASRock AD2550B-ITX Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published April 2012

2ASRock AD2550B-ITX Motherboard

English

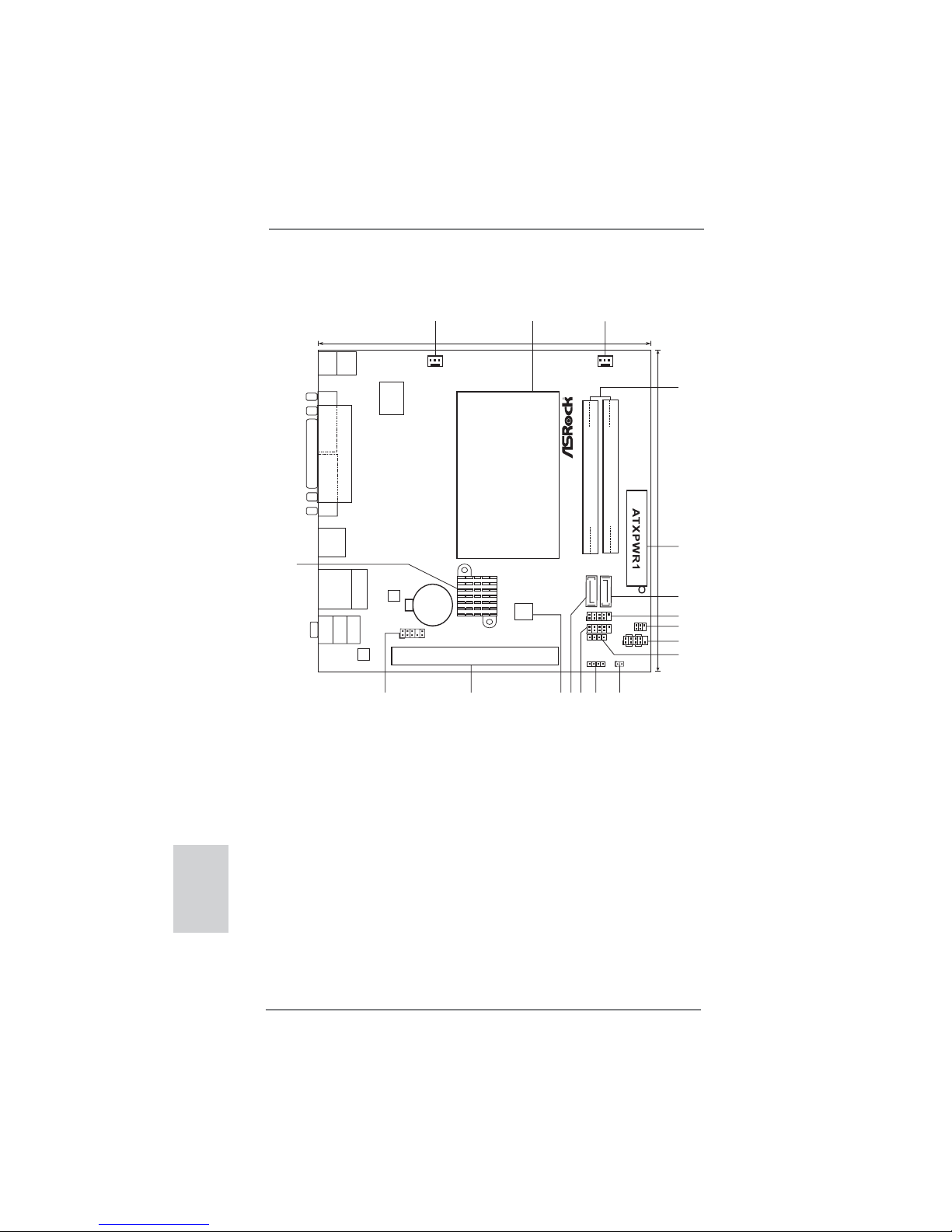

Motherboard Layout

1 CPU Fan Connector (CPU_FAN1) 11 Clear CMOS Jumper (CLRCMOS1)

2 CPU Heatsink 12 Chassis Speaker Header

3 Chassis Fan Connector (CHA_FAN1) (SPEAKER 1, White)

4 2 x 240-pin DDR3 SO-DIMM Slots 13 USB 2.0 Header (USB4_5, Blue)

(DDR3_A1, DDR3_A2, Black) 14 SATA2 Connector (SATAII_1, Blue)

5 ATX Power Connector (ATXPWR1) 15 16Mb SPI Flash

6 SATA2 Connector (SATAII_2, Blue) 16 PCI Slot (PCI1)

7 USB 2.0 Header (USB6_7, Blue) 17 Front Panel Audio Header

8 Infrared Module Header (IR1) (HD_AUDIO1, White)

9 System Panel Header (PANEL1, White) 18 Intel NM10 Express Chip

10 Consumer Infrared Module Header (CIR1)

SPEAKER1

HD_AUDIO1

PANE L 1

HDLED RESET

PLED PWRBTN

CMOS

Battery

16Mb

BIOS

AUDIO

CODEC

17.0cm (6.7 in)

Super

14 11

FSB800

DDR3_A1 (64 bit, 204-pin module)

FSB800

DDR3_A2 (64 bit, 204-pin module)

SATAII_1 SATAII_2

LAN

PHY

RoHS

USB 2.0

T: USB0

B: USB1

Top:

RJ-45

PARALLEL PORT

VGA1

Top:

Line In

Center:

Line Out

Bottom:

Mic In

CPU_FAN1

USB6_7

PCI1

USB4_5

ErP/EuP Ready

USB 2.0

T: USB2

B: USB3

COM1

Design in Taipei

PS2

Mouse

PS2

Keyboard

CIR1

IR1

CHA_FAN1

Fast LAN

Fast USB

DX10.1

AD2550B-ITX

CLRCMOS1

ASRock AD2550B-ITX Motherboard

English

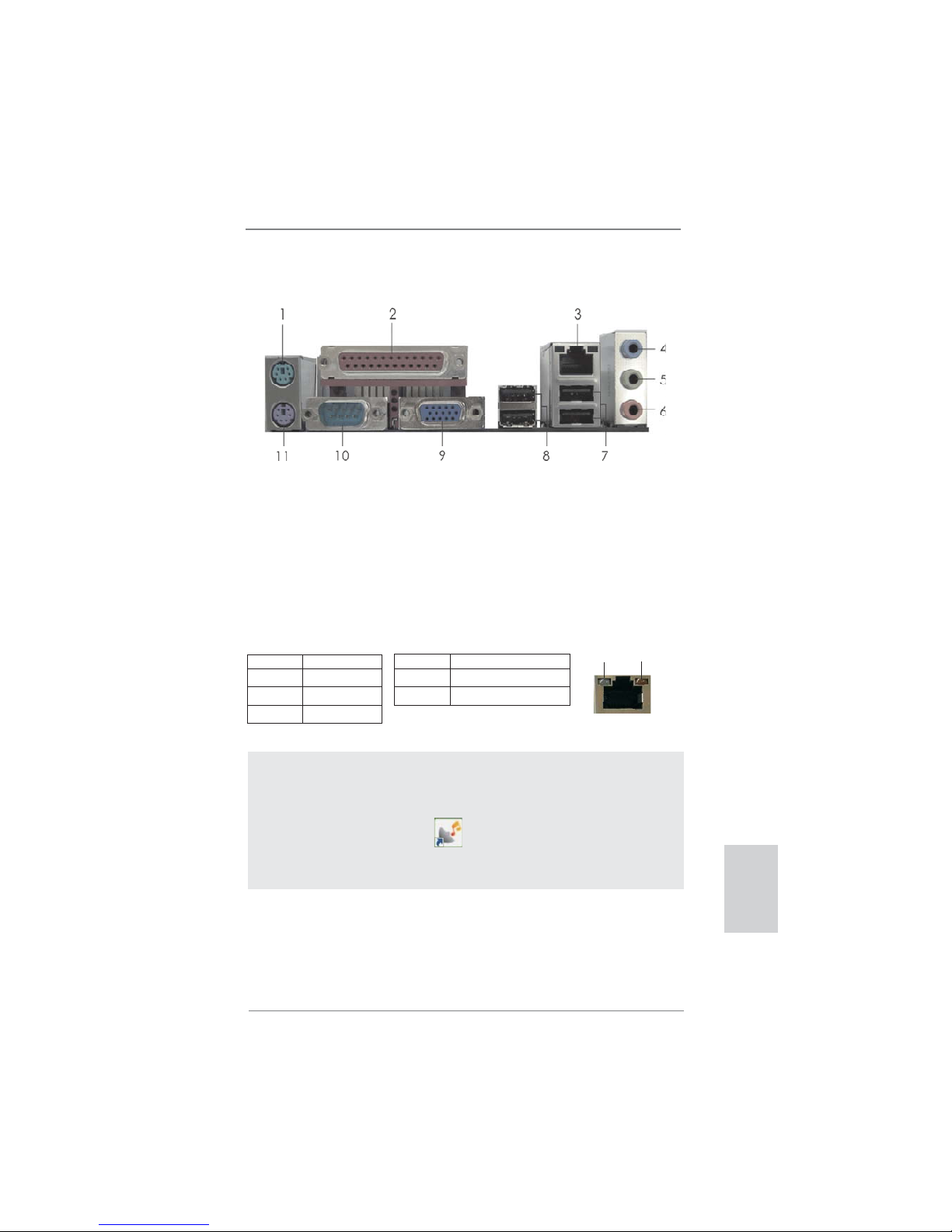

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link

ACT/LINK

LED

SPEED

LED

LAN Port

1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB01)

2 Parallel Port 8 USB 2.0 Ports (USB23)

* 3 LAN RJ-45 Port 9 VGA Port

4 Line In (Light Blue) 10 COM Port

5 Front Speaker (Lime) 11 PS/2 Keyboard Port (Purple)

6 Microphone (Pink)

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will ﬁnd “VIA HD Audio Deck” tool on

your system. Please follow below instructions according to the OS you install.

Please click “VIA HD Audio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

4ASRock AD2550B-ITX Motherboard

English

1. Introduction

Thank you for purchasing ASRock AD2550B-ITX motherboard, a reliable mother-

board produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock AD2550B-ITX Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock AD2550B-ITX Quick Installation Guide

ASRock AD2550B-ITX Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock AD2550B-ITX Motherboard

English

1.2 Specifications

Platform - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

- Solid Capacitor for CPU power

CPU - Intel®Dual-Core AtomTM Processor D2550 (1.86 GHz)

Chipset - Southbridge: Intel®NM10 Express

Memory - 2 x DDR3 SO-DIMM slots

- Supports DDR3 1066/800 non-ECC, un-buffered

memory

- Max. capacity of system memory: 4GB (see CAUTION 1)

Expansion Slot - 1 x PCI slot

Graphics - Intel®PowerVR SGX545

- DirectX 9.0, Pixel Shader 3.0

- Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

Audio - 5.1 CH HD Audio (VIA®VT1705 Audio Codec)

- Supports THX TruStudioTM

LAN - Realtek PCIE x1 LAN RTL8105E

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Parallel Port (ECP/EPP Support)

- 1 x Serial Port: COM1

- 1 x VGA Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line in/Front Speaker/Microphone

Connector - 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and

Hot Plug functions

- 1 x IR header

- 1 x CIR header

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

6ASRock AD2550B-ITX Motherboard

English

BIOS Feature - 16Mb AMI BIOS

- AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX

Multimedia Suite - OEM

Unique Feature - ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 2)

- ASRock APP Charger (see CAUTION 3)

- ASRock SmartView (see CAUTION 4)

- ASRock XFast USB (see CAUTION 5)

- ASRock XFast LAN (see CAUTION 6)

- ASRock XFast RAM (see CAUTION 7)

- ASRock Crashless BIOS (see CAUTION 8)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 9)

- ASRock U-COP (see CAUTION 10)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU/Chassis Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 7 32-bit compliant

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 11)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or

using the third-party overclocking tools. Overclocking may affect your system

stability, or even cause damage to the components and devices of your system.

It should be done at your own risk and expense. We are not responsible for possible

damage caused by overclocking.

ASRock AD2550B-ITX Motherboard

English

CAUTION!

1. Due to the chipset limitation, the actual memory size may be less than

4GB for the reservation for system usage under Windows®OS. You can

use ASRock XFast RAM to utilize the memory that Windows®cannot use.

2. ASRock Instant Flash is a BIOS ﬂash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems ﬁrst like MS-DOS or Windows®. With

this utility, you can press the <F6> key during the POST or the <F2>

key to enter into the BIOS setup menu to access ASRock Instant Flash.

Just launch this tool and save the new BIOS ﬁle to your USB ﬂash drive,

ﬂoppy disk or hard drive, then you can update your BIOS only in a few

clicks without preparing an additional ﬂoppy diskette or other complicated

ﬂash utility. Please be noted that the USB ﬂash drive or hard drive must

use FAT32/16/12 ﬁle system.

3. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPad/iPod Touch, ASRock has prepared a wonderful solu-

tion for you - ASRock APP Charger. Simply install the APP Charger

driver, it makes your iPhone charge much quickly from your computer and

up to 40% faster than before. ASRock APP Charger allows you to quickly

charge many Apple devices simultaneously and even supports continu-

ous charging when your PC enters into Standby mode (S1), Suspend to

RAM (S3), hibernation mode (S4) or power off (S5). With APP Charger

driver installed, you can easily enjoy the marvelous charging experience.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

4. ASRock SmartView, a new function for internet browsers, is the smart

start page for IE that combines your most visited web sites, your history,

your Facebook friends and your real-time newsfeed into an enhanced

view for a more personal Internet experience. ASRock motherboards are

exclusively equipped with the ASRock SmartView utility that helps you

keep in touch with friends on-the-go. To use ASRock SmartView feature,

please make sure your OS version is Windows®7, and your browser ver-

sion is IE8.

ASRock website: http://www.asrock.com/Feature/SmartView/index.asp

5. ASRock XFast USB can boost USB storage device performance. The

performance may depend on the properties of the device.

6. ASRock XFast LAN provides a faster internet access, which includes

the beneﬁts listed below. LAN Application Prioritization: You can conﬁg-

ure your application’s priority ideally and/or add new programs. Lower

Latency in Game: After setting online game’s priority higher, it can lower

the latency in games. Trafﬁc Shaping: You can watch Youtube HD videos

and download simultaneously. Real-Time Analysis of Your Data: With

the status window, you can easily recognize which data streams you are

transferring currently.

8ASRock AD2550B-ITX Motherboard

English

7. ASRock XFast RAM fully utilizes the memory space that cannot be used

under Windows®OS 32-bit CPU. ASRock XFast RAM shortens the load-

ing time of previously visited websites, making web surﬁng faster than

ever. And it also boosts the speed of Adobe Photoshop 5 times faster.

Another advantage of ASRock XFast RAM is that it reduces the

frequency of accessing your SSDs or HDDs in order to extend their lifes-

pan.

8. ASRock Crashless BIOS allows users to update their BIOS without fear

of failing. If power loss occurs during the BIOS update process, ASRock

Crashless BIOS will automatically ﬁnish the BIOS update procedure after

regaining power. Please note that BIOS ﬁles need to be placed in the

root directory of your USB disk. Only USB2.0 ports support this feature.

9. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause instability of the system or damage the CPU.

10. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the moth-

erboard functions properly and unplug the power cord, then plug it back

again. To improve heat dissipation, remember to spray thermal grease

between the CPU and the heatsink when you install the PC system.

11. EuP stands for Energy Using Product, was a provision regulated by the

European Union to deﬁne the power consumption for the completed sys-

tem. According to EuP, the total AC power of the completed system

should be under 1.00W in off mode condition. To meet EuP standards,

an EuP ready motherboard and an EuP ready power supply are required.

According to Intel’s suggestion, the EuP ready power supply must meet

the standard of 5v, and the standby power efﬁciency should be higher

than 50% under 100 mA current consumption. For EuP ready power sup-

ply selection, we recommend you to check with the power supply manu-

facturer for more details.

ASRock AD2550B-ITX Motherboard

English

2. Installation

This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you

install the motherboard, study the conﬁguration of your chassis to ensure that the

motherboard ﬁts into it.

Make sure to unplug the power cord before installing or removing the

motherboard. Failure to do so may cause physical injuries to you and

damages to motherboard components.

2.1 Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not over-tighten the screws! Doing so may damage the motherboard.

2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity,

NEVER place your motherboard directly on the carpet or the like. Also

remember to use a grounded wrist strap or touch a safety grounded object

before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure that the power is

switched off or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard, peripherals,

and/or components.

10 ASRock AD2550B-ITX Motherboard

English

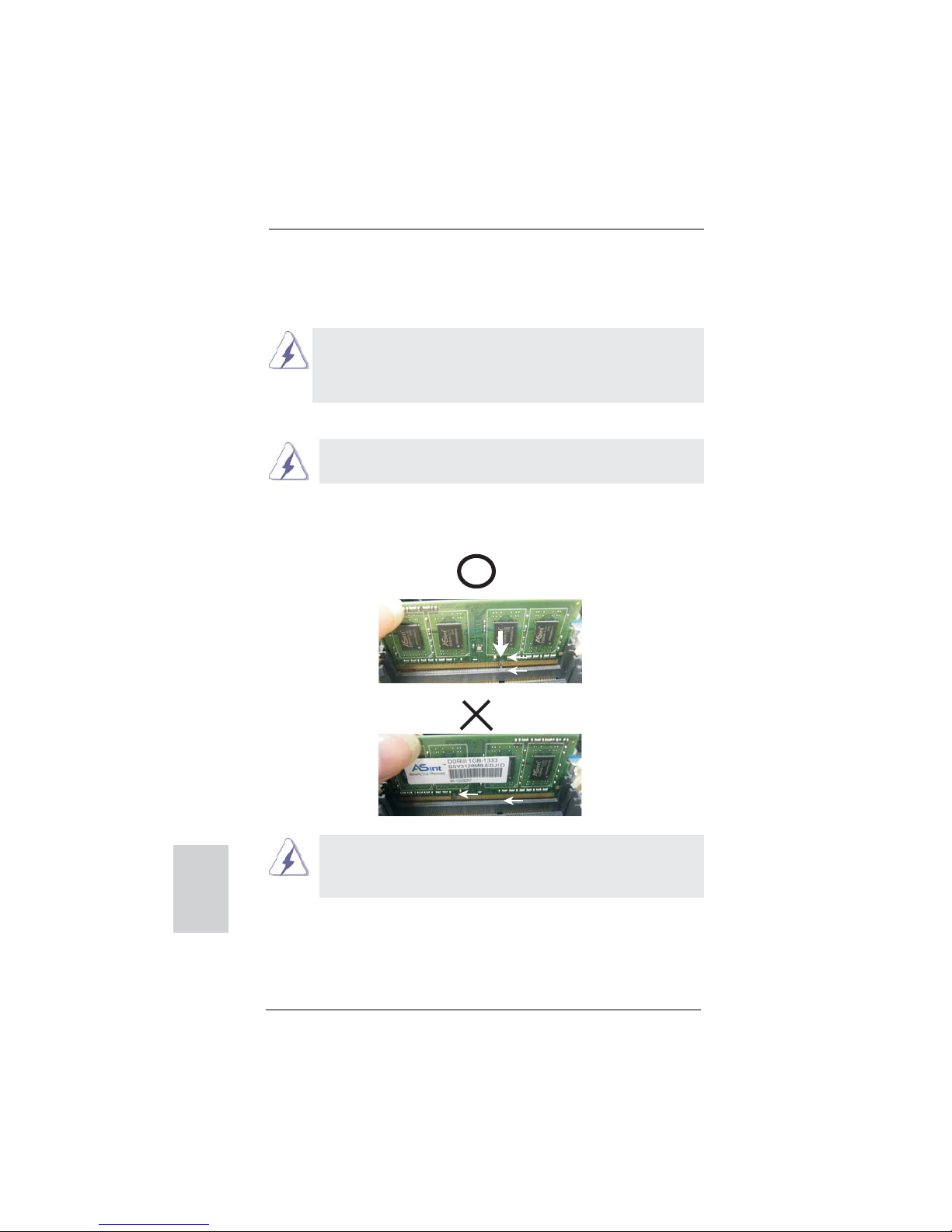

2.3 Installation of Memory Modules (SO-DIMM)

AD2550B-ITX motherboard provides two 240-pin DDR3 (Double Data Rate 3) SO-

DIMM slots.

1. It is not allowed to install a DDR or DDR2 memory module into DDR3

slot; otherwise, this motherboard and SO-DIMM may be damaged.

2. Please install the memory module from DDR3_A2 slot for the ﬁrst

priority.

Installing a SO-DIMM

Please make sure to disconnect power supply before adding or

removing SO-DIMMs or the system components.

Step 1. Unlock a SO-DIMM slot by pressing the retaining clips outward.

Step 2. Align a SO-DIMM on the slot such that the notch on the SO-DIMM

matches the break on the slot.

The SO-DIMM only ﬁts in one correct orientation. It will cause perma-

nent damage to the motherboard and the SO-DIMM if you force the SO-

DIMM into the slot at incorrect orientation.

Step 3. Firmly insert the SO-DIMM into the slot until the retaining clips at both

ends fully snap back in place and the SO-DIMM is properly seated.

notch

break

notch break

Andere Handbücher für AD2550B-ITX

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK H61M-VG3 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X99 Professional Series Bedienungsanleitung

ASROCK

ASROCK Z97 Extreme6 Bedienungsanleitung

ASROCK

ASROCK N7AD-SLI Bedienungsanleitung

ASROCK

ASROCK IMB-V2000 Bedienungsanleitung

ASROCK

ASROCK P55 EXTREME Bedienungsanleitung

ASROCK

ASROCK B550M Phantom Gaming 4 Bedienungsanleitung

ASROCK

ASROCK H81M-HG4 Bedienungsanleitung

ASROCK

ASROCK 785G Pro Bedienungsanleitung

ASROCK

ASROCK B150M-HDV Bedienungsanleitung

ASROCK

ASROCK P4TWINS-HDTV Bedienungsanleitung

ASROCK

ASROCK Z75 Pro3 Bedienungsanleitung

ASROCK

ASROCK M3N78D Bedienungsanleitung

ASROCK

ASROCK K10N78D Bedienungsanleitung

ASROCK

ASROCK X670E STEEL LEGEND Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z97X Killer Series Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X99X Killer Series Bedienungsanleitung

ASROCK

ASROCK A55iCafe Bedienungsanleitung

ASROCK

ASROCK FM2A85M-DG3 Bedienungsanleitung

ASROCK

ASROCK B660M-STX Bedienungsanleitung

ASROCK

ASROCK X370 Taichi Bedienungsanleitung

ASROCK

ASROCK H67M-GE/HT Bedienungsanleitung

ASROCK

ASROCK WRX80 CREATOR Bedienungsanleitung

ASROCK

ASROCK ALIVEXFIRE-ESATA2 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
