ASROCK B85M-DGS Bedienungsanleitung

B85M-DGSB85M-DGS

B85M DGSB85M DGS

Version 1.1

Published October 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 5

1.4 I/O Panel 7

Chapter 2 Installation 8

2.1 Installing the CPU 9

2.2 Installing the CPU Fan and Heatsink 12

2.3 Installing Memory Modules (DIMM) 13

2.4 Expansion Slots (PCI Express Slots) 15

2.5 Jumpers Setup 16

2.6 Onboard Headers and Connectors 17

Chapter 3 Software and Utilities Operation 22

3.1 Installing Drivers 22

3.2 A-Tuning 23

3.3 Intel® Rapid Start Technology 29

3.4 Intel® Smart Connect Technology 34

3.5 ASRock APP Shop 39

3.5.1 UI Overview 39

3.5.2 Apps 40

3.5.3 BIOS & Drivers 43

3.5.4 Setting 44

3.6 Start8 45

Chapter 4 UEFI SETUP UTILITY 48

4.1 Introduction 48

4.1.1 UEFI Menu Bar 48

4.1.2 Navigation Keys 49

4.2 Main Screen 50

4.3 OC Tweaker Screen 51

4.4 Advanced Screen 59

4.4.1 CPU Conguration 60

4.4.2 Chipset Conguration 62

4.4.3 Storage Conguration 64

4.4.4 Intel® Rapid Start Technology 65

4.4.5 Intel® Smart Connect Technology 66

4.4.6 Super IO Conguration 67

4.4.7 ACPI Conguration 68

4.4.8 USB Conguration 70

4.4.9 Trusted Computing 72

4.5 Tools 73

4.6 Hardware Health Event Monitoring Screen 76

4.7 Boot Screen 77

4.8 Security Screen 80

4.9 Exit Screen 81

•

B85M-DGS

English

Chapter 1 Introduction

ank you for purchasing ASRock B85M-DGS motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

• ASRock B85M-DGS Motherboard (Micro ATX Form Factor)

• ASRock B85M-DGS Quick Installation Guide

• ASRock B85M-DGS Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• All Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Supports New 4th and 4th Generation Intel® CoreTM i7/i5/i3/

Xeon®/Pentium®/Celeron® Processors (Socket 1150)

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® B85

Memory • Dual Channel DDR3 Memory Technology

• 2 x DDR3 DIMM Slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB (see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

• 1 x PCI Express 2.0 x1 Slot

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

• Dual graphics output: support DVI-D and D-Sub by

independent display controllers

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports HDCP with DVI-D Port

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

Port

B85M-DGS

English

Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• Supports Surge Protection (ASRock Full Spike Protection)

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WAN

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

Connector • 1 x Print Port Header

• 1 x COM Port Header

• 1 x Chassis Intrusion Header

• 1 x TPM Header

• 1 x CPU Fan Connector (4-pin)

• 1 x Chassis Fan Connector (4-pin)

• 1 x Power Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x 4 pin 12V Power Connector

• 1 x Front Panel Audio Connector

English

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

BIOS

Feature

• 32Mb AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 1.1 Compliant wake up events

• SMBIOS 2.3.1 support

• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjust-

ment

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis/Power Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-

bit / 7 32-bit / 7 64-bit

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjust-

ing the setting in the BIOS, applying Untied Overclocking Technology, or using third-

party overclocking tools. Overclocking may aect your system’s stability, or even cause

damage to the components and devices of your system. It should be done at your own

risk and expense. We are not responsible for possible damage caused by overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

Due to limitation, the actual memory size may be less than 4GB for the reservation

for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-

ing systems do not have such limitations. You can use ASRock XFast RAM to utilize

the memory that Windows® cannot use.

B85M-DGS

English

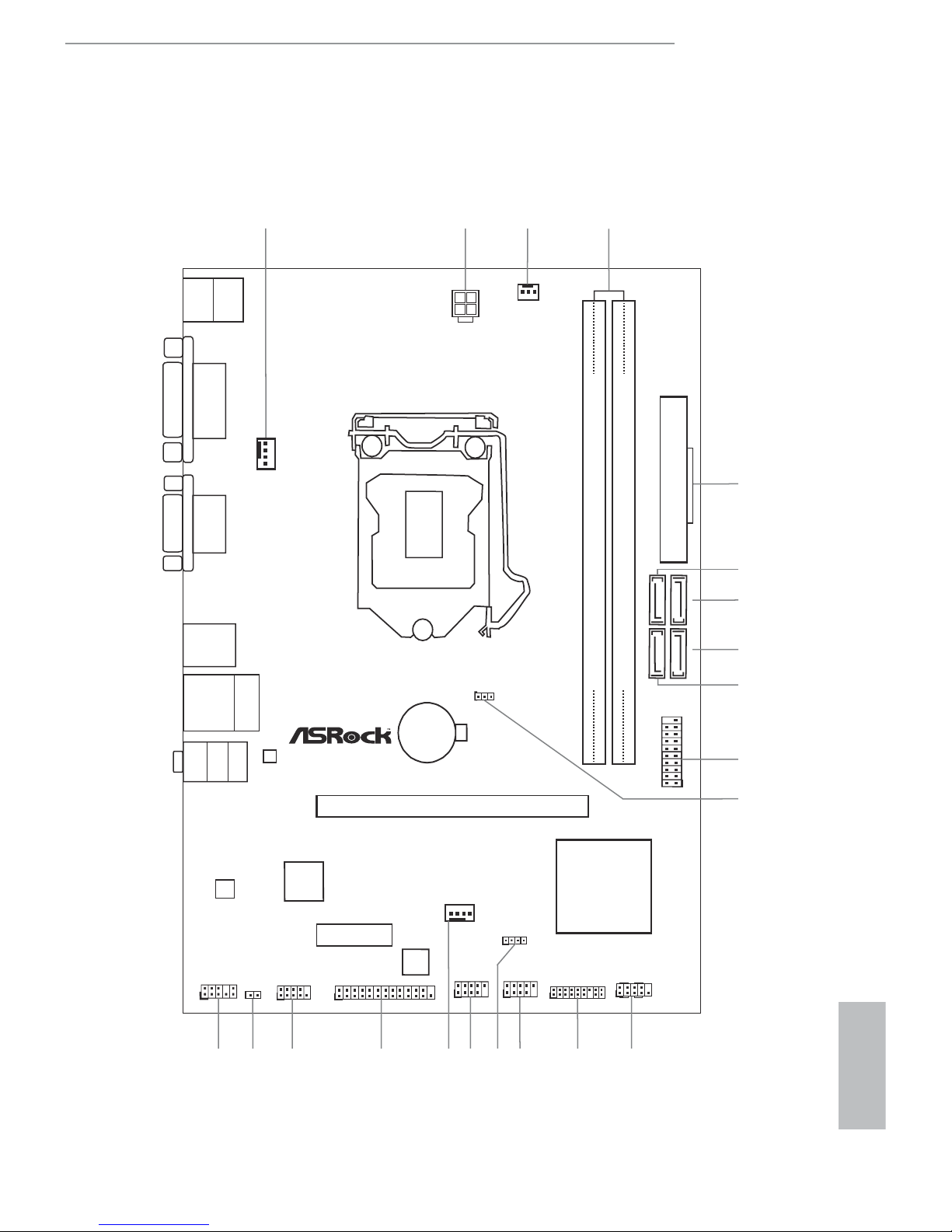

1.3 Motherboard Layout

Intel

B85

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

CMOS

Battery

Super

I/O

ATXPWR1

LAN

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

CLRCMO S1

SPE AKE R1

HDL ED RE SET

PLE D PWR BTN

PANE L1

USB4 _5

COM1

HD_AUDIO1

B85M-DGS

CHA_FAN1

RoHS

16 12

21 18

CPU_FAN1

32Mb

BIOS

VGA1

Audio

CODEC

PCIE1

Front USB 3.0

PWR_FAN1

TPMS1

LPT1

CI1

USB3_2_3

SATA3 _3

PCIE2

USB 3.0

T: USB0

B: USB1

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

USB6 _7

ATX12V1

SATA3 _1

SATA3 _2

SATA3 _0

PCI Express 3.0

USB 2.0

T: USB0

B: USB1

PS2

Keyboard/

Mouse

DVI1

English

No. Description

1 CPU Fan Connector (CPU_FAN1)

2 ATX 12V Power Connector (ATX12V1)

3 Power Fan Connector (PWR_FAN1)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

5 ATX Power Connector (ATXPWR1)

6 SATA3 Connector (SATA3_3)

7 SATA3 Connector (SATA3_2)

8 SATA3 Connector (SATA3_0)

9 SATA3 Connector (SATA3_1)

10 USB 3.0 Header (USB3_2_3)

11 Clear CMOS Jumper (CLRCMOS1)

12 System Panel Header (PANEL1)

13 TPM Header (TPMS1)

14 USB 2.0 Header (USB6_7)

15 Chassis Speaker Header (SPEAKER1)

16 USB 2.0 Header (USB4_5)

17 Chassis Fan Connector (CHA_FAN1)

18 Print Port Header (LPT1)

19 COM Port Header (COM1)

20 Chassis Intrusion Header (CI1)

21 Front Panel Audio Header (HD_AUDIO1)

Andere Handbücher für B85M-DGS

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK 960GM/U3S3 FX Bedienungsanleitung

ASROCK

ASROCK M3A UCC - Bedienungsanleitung

ASROCK

ASROCK Z690D4U-2L2T Bedienungsanleitung

ASROCK

ASROCK IMB-1224P Bedienungs- und Wartungsanleitung

ASROCK

ASROCK P65iCafe Bedienungsanleitung

ASROCK

ASROCK 770DE3L - AMD RAID Bedienungsanleitung

ASROCK

ASROCK WOLFDALE1333-D667 Bedienungsanleitung

ASROCK

ASROCK 985GM-GS3 FX Bedienungsanleitung

ASROCK

ASROCK IMB-1003 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z87 Professional Bedienungsanleitung

ASROCK

ASROCK E35LM1 Bedienungsanleitung

ASROCK

ASROCK Super Alloy H110M-HDV Bedienungsanleitung

ASROCK

ASROCK IMB-785 Service-Handbuch

ASROCK

ASROCK Z690 Taichi Bedienungsanleitung

ASROCK

ASROCK 4Core1600Twins-P35D Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z68 Professional Gen3 Bedienungsanleitung

ASROCK

ASROCK Z690 AQUA OC Bedienungsanleitung

ASROCK

ASROCK EP2C612 WS Bedienungsanleitung

ASROCK

ASROCK M3N78D FX Bedienungsanleitung

ASROCK

ASROCK 939NF4G-VSTA Bedienungsanleitung

ASROCK

ASROCK B150M-DVS R2.0 Bedienungsanleitung

ASROCK

ASROCK H81M-ITX Bedienungsanleitung

ASROCK

ASROCK A780GMH-128M Bedienungsanleitung

ASROCK

ASROCK B365 PHANTOM GAMING 4 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
