2ASRock H77M Motherboard

English

Motherboard Layout

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 CPU Fan Connector (CPU_FAN2)

4 1155-Pin CPU Socket

5 2 x 240-pin DDR3 DIMM Slots

(DDR3_A1, DDR3_B1, Black)

6 ATX Power Connector (ATXPWR1)

7 USB 3.0 Header (USB3_0_1, Black)

8 SATA3 Connector (SATA3_1, Gray)

9 SATA3 Connector (SATA3_0, Gray)

10 SATA2 Connector (SATA2_2, Black)

11 SATA2 Connector (SATA2_3, Black)

12 SATA2 Connector (SATA2_4, Black)

13 SATA2 Connector (SATA2_5, Black)

14 SPI Flash Memory (64Mb)

15 Intel H77 Chipset

16 System Panel Header (PANEL1, Black)

17 Chassis Speaker Header (SPEAKER1, Black)

18 Clear CMOS Jumper (CLRCMOS1)

19 USB 2.0 Header (USB6_7, Black)

20 Consumer Infrared Module Header

(CIR1, Gray)

21 USB 2.0 Header (USB8_9, Black)

22 Chassis Fan Connector (CHA_FAN1)

23 Print Port Header (LPT1, Black)

24 COM Port Header (COM1)

25 Infrared Module Header (IR1)

26 PCI Express 2.0 x16 Slot (PCIE2, Black)

27 PCI Slots (PCI1-2, Black)

28 HDMI_SPDIF Header

(HDMI_SPDIF1, Black)

29 PCI Express 3.0 x16 Slot (PCIE1, Black)

30 Front Panel Audio Header

(HD_AUDIO1, Black)

31 Chassis Fan Connector (CHA_FAN2)

32 Power Fan Connector (PWR_FAN1)

Intel

H77

ATXPWR1

Designed in Taipei

21.6cm (8.5 in)

24.4cm (9.6 in)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

DDR3

PCIE1

PCI2

Top:

RJ-45

USB 2.0

T: USB4

B: USB5

USB 2.0

T: USB0

B: USB1

PS2

Keyboard

USB 3.0

T: USB2

B: USB3

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Super

I/O

CMOS

Battery

ATX12V1

PWR_FAN1

CPU_FAN1

PCI Express 3.0

ErP/EuP Ready

LAN

PHY

HD_AUDIO1

HDMI_SPDIF1

AUDIO

CODEC

COM1

RoHS

IR1

USB6_7

USB8_9

CLRCMOS1

64Mb

BIOS

SATA3_0

SATA3_1

HDLED RESET

PLED PWRBTN

PANEL1

SPEAKER1

CPU_FAN2

LPT1

12345

1824 19

Front USB 3.0

Fast USB

VGA1

DVI1

HDMI1

USB 2.0

T: USB2

B: USB3

SATA2_4

SATA2_5

USB3_0_1

CHA_FAN1

CIR1

CHA_FAN2

PCI1

PCIE2

SATA2_2

SATA2_3

H77M

Fast LAN

Fast RAM

ASRock H77M Motherboard

English

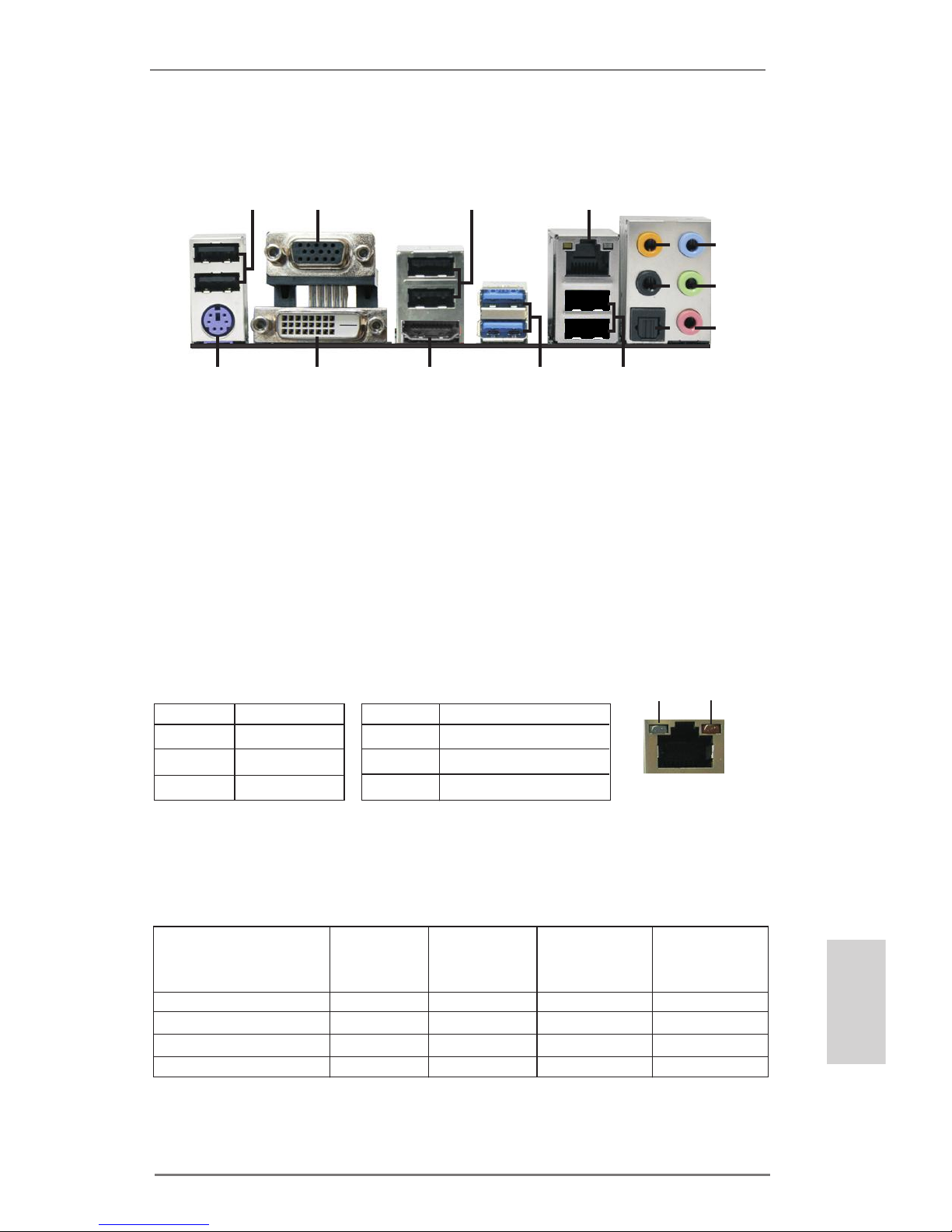

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 USB 2.0 Ports (USB01) ** 9 Front Speaker (Lime)

2 D-Sub Port (VGA1) 10 Microphone (Pink)

3 USB 2.0 Ports (USB23) 11 USB 2.0 Ports (USB45)

* 4 LAN RJ-45 Port 12 USB 3.0 Ports (USB3_23)

5 Central / Bass (Orange) 13 HDMI Port (HDMI1)

6 Rear Speaker (Black) 14 DVI-D Port (DVI1)

7 Optical SPDIF Out Port 15 PS/2 Keyboard Port (Purple)

8 Line In (Light Blue)

ACT/LINK

LED

SPEED

LED

LAN Port

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line in

(No. 9) (No. 6) (No. 5) (No. 8)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

123

4ASRock H77M Motherboard

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will nd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

ASRock H77M Motherboard

1. Introduction

Thank you for purchasing ASRock H77M motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock H77M Motherboard

(Micro ATX Form Factor: 9.6-in x 8.5-in, 24.4 cm x 21.6 cm)

ASRock H77M Quick Installation Guide

ASRock H77M Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

English

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

6ASRock H77M Motherboard

English

1.2 Specifications

Platform - Micro ATX Form Factor: 9.6-in x 8.5-in, 24.4 cm x 21.6 cm

- All Solid Capacitor design

CPU - Supports 3rd and 2nd Generation Intel®CoreTM i7 / i5 / i3 in

LGA1155 Package

- Digi Power Design

- 4 + 2 Power Phase Design

- Supports Intel®Turbo Boost 2.0 Technology

- Supports Intel®K-Series unlocked CPU

- Supports Hyper-Threading Technology (see CAUTION 1)

- Supports Intel®Rapid Start Technology and Smart Connect

Technology with Intel®Ivy Bridge CPU

Chipset - Intel®H77

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 2)

- 2 x DDR3 DIMM slots

- Supports DDR3 1600/1333/1066 non-ECC, un-buffered

memory (DDR3 1600 with Intel®Ivy Bridge CPU, DDR3

1333 with Intel®Sandy Bridge CPU)

- Max. capacity of system memory: 16GB (see CAUTION 3)

- Supports Intel® Extreme Memory Prole (XMP)1.3/1.2

Expansion Slot - 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)

(see CAUTION 4)

* PCIE 3.0 is only supported with Intel®Ivy Bridge CPU. With

Intel®Sandy Bridge CPU, it only supports PCIE 2.0.

- 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)

- 2 x PCI slots

- Supports AMD Quad CrossFireXTM and CrossFireXTM

Graphics * Intel®HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU

integrated.

- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick

Sync Video, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000,

Intel®Advanced Vector Extensions (AVX)

- Pixel Shader 5.0, DirectX 11 with Intel®Ivy Bridge CPU.

Pixel Shader 4.1, DirectX 10.1 with Intel®Sandy Bridge

CPU.

- Max. shared memory 1760MB (see CAUTION 5)

- Three VGA Output options: D-Sub, DVI-D and HDMI

(see CAUTION 6)

ASRock H77M Motherboard

English

- Supports HDMI 1.4a Technology with max. resolution up to

1920x1200 @ 60Hz

- Supports DVI with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @

75Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required) (see CAUTION 7)

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI and HDMI ports

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 2 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone (see CAUTION 8)

SATA3 - 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel

Smart Response Technology), NCQ, AHCI and Hot Plug

functions

USB3.0 - 2 x Rear USB 3.0 ports, support USB 1.0/2.0/3.0 up to

5Gb/s

- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports),

supports USB 1.0/2.0/3.0 up to 5Gb/s

8ASRock H77M Motherboard

English

Connector - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel

Smart Response Technology), NCQ, AHCI and Hot Plug

functions

- 2 x SATA3 6.0Gb/s connectors

- 1 x IR header

- 1 x CIR header

- 1 x Print Port header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage

Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX

Multimedia Suite - OEM

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 9)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 10)

- ASRock APP Charger (see CAUTION 11)

- ASRock SmartView (see CAUTION 12)

- ASRock XFast USB (see CAUTION 13)

- ASRock XFast LAN (see CAUTION 14)

- ASRock XFast RAM (see CAUTION 15)

- ASRock Crashless BIOS (see CAUTION 16)

- ASRock On/Off Play Technology (see CAUTION 17)

- Hybrid Booster:

- ASRock U-COP (see CAUTION 18)

- Boot Failure Guard (B.F.G.)

- Combo Cooler Option (C.C.O.) (see CAUTION 19)

- Good Night LED

ASRock H77M Motherboard

English

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

third-party overclocking tools. Overclocking may affect your system’s stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

CAUTION!

1. About the settings of “Hyper Threading Technology”, please check page

49 of the “User Manual” in the support CD.

2. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 17 for proper installation.

3. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®OS with 64-bit CPU, there is no such limita-

tion. You can use ASRock XFast RAM to utilize the memory that Win-

dows®cannot use.

4. Only PCIE1 slot supports Gen 3 speed. To run the PCI Express in Gen 3

speed, please install an Ivy Bridge CPU. If you install a Sandy Bridge

CPU, the PCI Express will run only at PCI Express Gen 2 speed.

5. The maximum shared memory size is dened by the chipset vendor and

is subject to change. Please check Intel®website for the latest informa-

tion.

6. You can choose to use two of the three monitors only. D-Sub, DVI-D and

HDMI monitors cannot be enabled at the same time. Besides, with the

DVI-to-HDMI adapter, the DVI-D port can support the same features as

HDMI port.

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan (Allows Chassis Fan Speed Auto-

Adjust by CPU Temperature)

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft®Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit /

XP / XP 64-bit compliant (see CAUTION 20)

Certications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 21)

* For detailed product information, please visit our website: http://www.asrock.com

10 ASRock H77M Motherboard

English

7. xvYCC and Deep Color are only supported under Windows®7 64-bit /

7. Deep Color mode will be enabled only if the display supports 12bpc

in EDID. HBR is supported under Windows®7 64-bit / 7 / VistaTM 64-bit /

VistaTM.

8. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-chan-

nel, 6-channel, and 8-channel modes. Please check the table on page 3

for proper connection.

9. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune dif-

ferent system functions in a user-friendly interface, which includes Hard-

ware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware

Monitor, it shows the major readings of your system. In Fan Control, it

shows the fan speed and temperature for you to adjust. In Overclocking,

you are allowed to overclock CPU frequency for optimal system per-

formance. In OC DNA, you can save your OC settings as a prole and

share it with your friends. Your friends then can load the OC prole to

their own system to get the same OC settings. In IES (Intelligent Energy

Saver), the voltage regulator can reduce the number of output phases to

improve efciency when the CPU cores are idle without sacricing

computing performance. Please visit our website for the operation proce-

dures of ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

10. ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems rst like MS-DOS or Windows®. With

this utility, you can press the <F6> key during the POST or the <F2>

key to enter into the BIOS setup menu to access ASRock Instant Flash.

Just launch this tool and save the new BIOS le to your USB ash drive,

oppy disk or hard drive, then you can update your BIOS only in a few

clicks without preparing an additional oppy diskette or other complicated

ash utility. Please be noted that the USB ash drive or hard drive must

use FAT32/16/12 le system.

11. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPad/iPod Touch, ASRock has prepared a wonderful so-

lution for you - ASRock APP Charger. Simply install the APP Charger

driver, it makes your iPhone charge much quickly from your computer

and up to 40% faster than before. ASRock APP Charger allows you to

quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP

Charger driver installed, you can easily enjoy the marvelous charging

experience.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

Andere Handbücher für H77M

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK 990FX Extreme9 Bedienungsanleitung

ASROCK

ASROCK B550 PHANTOM GAMING 4 Bedienungsanleitung

ASROCK

ASROCK Z690 Taichi Bedienungsanleitung

ASROCK

ASROCK P5B-DE Bedienungsanleitung

ASROCK

ASROCK H81M-DG6 Bedienungsanleitung

ASROCK

ASROCK N73V-S Bedienungsanleitung

ASROCK

ASROCK PHANTOM GAMING B650I LIGHTNING WiFi Bedienungsanleitung

ASROCK

ASROCK N68-VGS3 UCC - Bedienungsanleitung

ASROCK

ASROCK H470M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK 939A785GMH Bedienungsanleitung

ASROCK

ASROCK X48TURBOTWINS-WIFI Bedienungsanleitung

ASROCK

ASROCK 2CORE1333-2.66G - V1.0 Bedienungsanleitung

ASROCK

ASROCK K10N78D Bedienungsanleitung

ASROCK

ASROCK 4CoreDual-VSTA Bedienungsanleitung

ASROCK

ASROCK H55DE3 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X79 Champion Bedienungsanleitung

ASROCK

ASROCK B75M-GL Bedienungsanleitung

ASROCK

ASROCK WOLFDALE1333-D667 Bedienungsanleitung

ASROCK

ASROCK B85M-HDS Bedienungsanleitung

ASROCK

ASROCK WOLFDALE1333-D667 Bedienungsanleitung

ASROCK

ASROCK WOLFDALE1333-GLAN-M - V1.0 Bedienungsanleitung

ASROCK

ASROCK X58 EXTREME - Bedienungsanleitung

ASROCK

ASROCK P43DE3L Bedienungsanleitung

ASROCK

ASROCK AMD A620A Series Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
