IMB-150

User Manual

Version 1.0

Published January 2014

Version 1.0

Published January 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMITM and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications................................................................. 6

1.3 Motherboard Layout....................................................... 8

1.4 I/O Panel........................................................................ 10

2 Installation ......................................................... 11

2.1 Screw Holes................................................................... 11

2.2 Pre-installation Precautions ........................................... 11

2.3 Installation of Memory Modules (SO-DIMM).................. 12

2.4 Expansion Slot............................................................... 14

2.5 Jumpers Setup............................................................... 15

2.6 Onboard Headers and Connectors................................ 17

3 UEFI SETUP UTILITY......................................... 22

3.1 Introduction .................................................................... 22

3.1.1 UEFI Menu Bar .................................................... 22

3.1.2 Navigation Keys ................................................... 23

3.2 Main Screen................................................................... 23

3.3 Advanced Screen........................................................... 24

3.3.1 CPU Conguration ............................................... 25

3.3.2 Chipset Conguration........................................... 27

3.3.3 Storage Conguration .......................................... 29

3.3.4 Intel(R) Smart Connect Technology ..................... 30

3.3.5 Super IO Conguration ........................................ 31

3.3.6 ACPI Conguration............................................... 32

3.3.7 USB Conguration ............................................... 33

3.4 Hardware Health Event Monitoring Screen ................... 34

3.5 Security Screen ............................................................. 35

3.6 Boot Screen ................................................................... 36

3.7 Exit Screen .................................................................... 38

4 Software Support .............................................. 39

4.1 Install Operating System................................................ 39

4.2 Support CD Information ................................................. 39

4.2.1 Running Support CD............................................ 39

4.2.2 Drivers Menu........................................................ 39

4.2.3 Utilities Menu........................................................ 39

4.2.4 Contact Information.............................................. 39

Chapter 1: Introduction

Thank you for purchasing ASRock IMB-150 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock IMB-150 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock IMB-150 Driver CD

ASRock IMB-150 Jumper Setting Instruction

1 x I/O Panel Shield

1.2 Specications

Form

Factor Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor

System

CPU Intel®AtomTM Baytrail-M/D Processor

Supports Hyper-Threading Technology

Core

Number 4

Max Speed (By CPU)

Cache 2MB

Chipset N/A

BIOS UEFI

Expansion

Slot

PCI 0

Mini-PCIe 1 (Half Size)

mSATA 1

PCIe 1

CFast Card

Socket 0

Memory

Technology Dual Channel DDR3L 1333 MHz SDRAM

Max. 8GB

Socket 2 x SO-DIMM

Graphics

Controller Intel®Gen7 Intel®Graphics DX 11, OGL3.2

VRAM Shared Memory

VGA Supports max. resolution 1920x1200

LVDS Dual Channel 24-bit, max resolution

1920x1200@60Hz

HDMI Supports HDMI 1.4a, max resolution 1920x1200

DVI No

DisplayPort No

Multi Display Yes (Dual Display)

Ethernet

Ethernet 10/100/1000 Mbps

Controller GbE LAN: 2 x Realtek RTL8111G-CG

Connector 2 x RJ-45

SATA

Max Data

Transfer

Rate

SATA2 (3.0Gb/s)

Rear I/O

VGA 1

DVI 0

HDMI 1

DisplayPort 0

Ethernet 2

USB 4 (2 x USB 3.0, 2 x USB 2.0)

Audio 2 (Mic-in, Line-out)

Serial 3 (RS232/422/485)

PS/2 2 (1 x keyboard, 1 x mouse)

Internal

Connector

USB 6 (2 x USB 3.0, 4 x USB 2.0)

LVDS/

Inverter 1/1

VGA 0

Serial 2 (RS232)

SATA 2 x SATA2 (3.0Gb/s)

mPCIe 1

Parallel 1

mSATA 1 (shared)

IrDA 0

GPIO 8-bit 4 x GPI + 4 x GPO

SATA PWR

Output Con 1

Speaker

Header 1

Watchdog

Timer

Output Output from super I/O to drag RESETCON#

Interval 256 Segments, 0,1,2…255 Sec/Min

Power

Requirements

Input PWR 9-19V DC-In (4-pin ATX PWR Con)

Power On

AT/ATX Supported

-AT : Directly PWR on as power input ready

-ATX : Press button to PWR on after power

input ready

Environment Temperature 0ºC – 60ºC

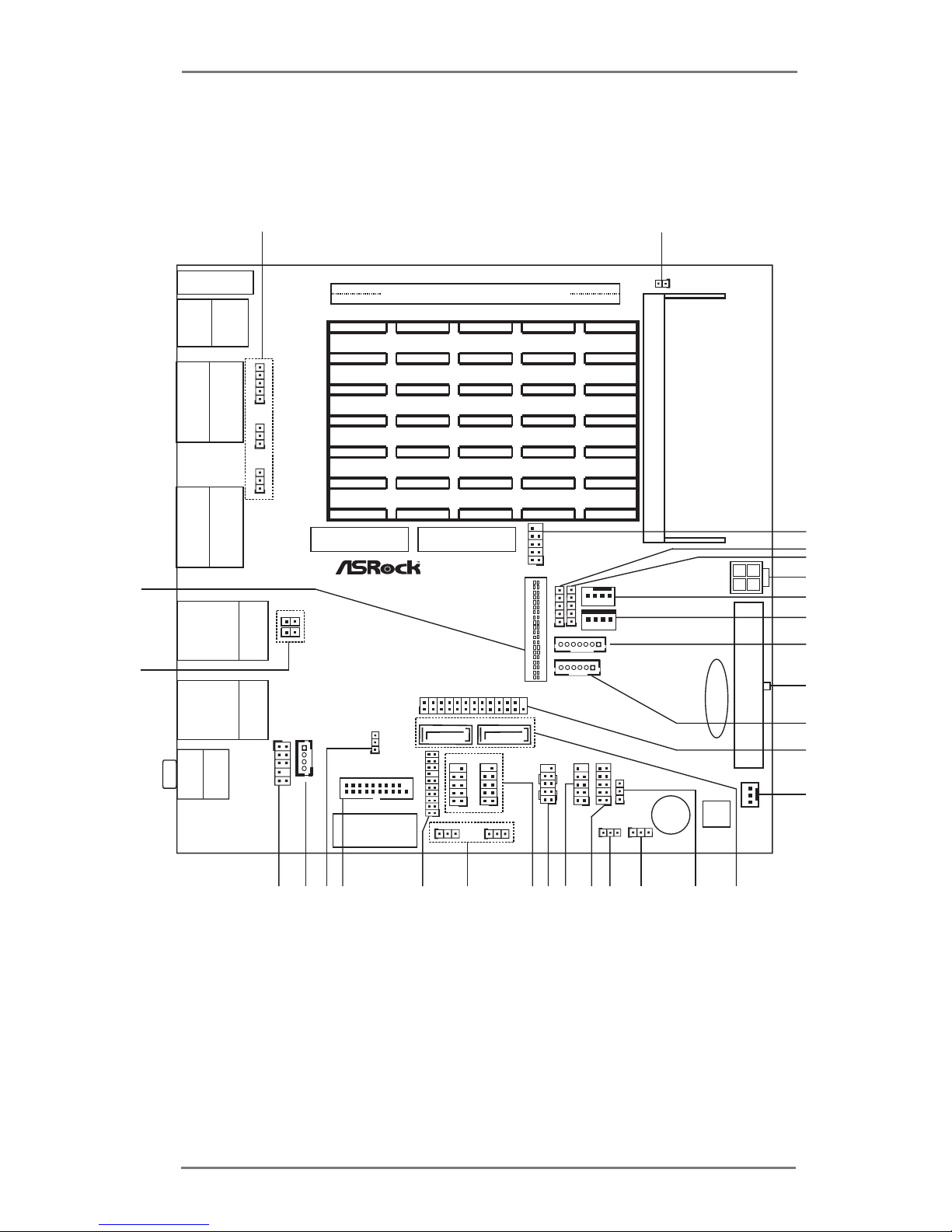

1.3 Motherboard Layout

BUZZ1

BIOS

Chip

IMB-150

2224

SATA2_1

SATA2_2

CPU_FAN1

PCIE1

mini-PCIe

TPM1

CLRCMOS1

CHA_FAN1

SPEAKER1

HDMI1

ATX12V1

BLT_VOL1

BLT_PWM1

HDLED RESET

PLED PWRBTN

PANEL1

COM4

LPT1

SATA_PWR1

USB3_2_3

USB2_4_5

LVDS 1

BLT_PWR1

Industrial

PWR_JP1

JGPIO_PWR1

PWR_COM3

PS2

Keyboard

PS2

Mouse

COM

Port 1

COM

Port 2

COM

Port 3

VGA1

Top:

RJ-45

USB 3.0

T: USB1

B: USB0

Top:

RJ-45

USB 2.0

T: USB1

B: USB0

Top:

Line Out

Bottom:

Mic In

mini-SATA

ATXPWR1

PWR_COM2

PWR_COM1

ME_OVR1

USB2_2_3

JGPIO1

CMOS

Battery

PNL_PWR1

BKT_PWR1

PWR_COM4

PWR_COM6

COM6

CI2

CI1

HD_AUDIO1

DDR3_A1 (Support DDR3L Only)

DDR3_B1 (Support DDR3L Only)

1 : COM Port PWR Setting Jumpers (PWR_COM1, PWR_COM2, PWR_COM3)

2 : ME Override (Security Flash Descriptors)

3 : USB2.0 Connector (USB2_4_5)

4 : Panel Power Selection (LCD_VCC) (PNL_PWR1)

5 : Backlight Power Selection (LCD_BLT_VCC) (BKT_PWR1)

6 : ATX Power Connector

7 :

4-Pin CPU FAN Connector (+12V)

8 : SATA Power Output Connector

9 : Backlight Volume Control (BLT_VOL1)

10 : 20-pin ATX Power Input Connector

11 :

Backlight Power Connector (BLT_PWR1)

12 : Printer Port Header

13 :

3-Pin Chassis FAN Connector (+12V)

14 : SATA2 Connectors (SATA2_1, SATA2_2)

15 : BLT_PWM1

16 : Clear CMOS Header

17 : Digital Input / Output Power Select

18 : Digital Input / Output Pin Header

19 : USB2.0 Connector (USB2_2_3)

20 :

System Panel Header

21 : COM4, 6 Headers (RS232)

22 : COM Port PWR Setting Jumpers (PWR_COM4, PWR_COM6)

23 : TPM Header

24 :

USB3.0 Connector (USB3_2_3)

25 : ATX/AT Mode Selection

26 : 3W Audio AMP Output Wafer

27 :

Front Panel Audio Header

28 : Chassis Intrusion Headers (CI1, Cl2)

29 : LVDS Panel Connector

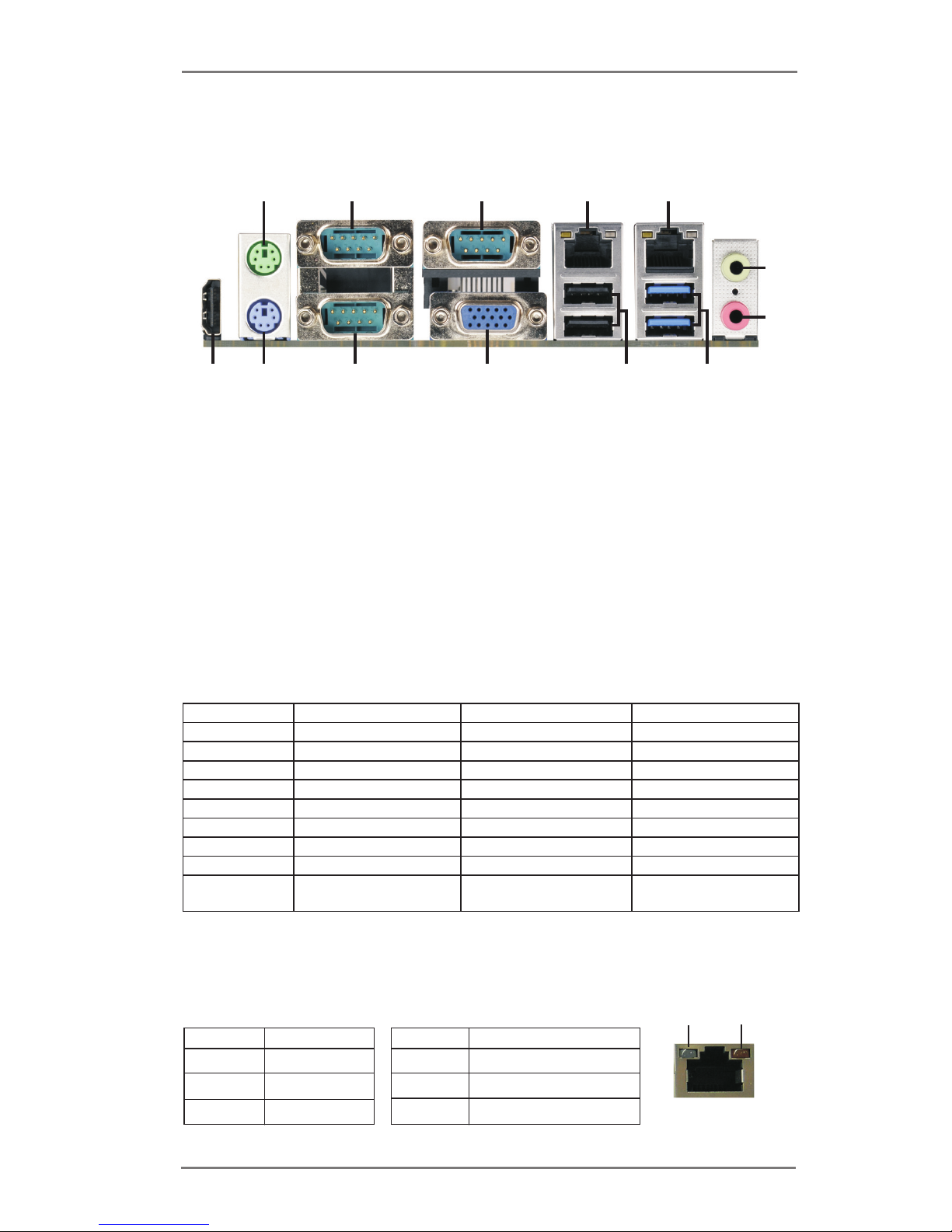

1.4 I/O Panel

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 PS/2 Mouse Port

2 COM Port 1 (COM1)*

3 COM Port 3 (COM3)*

4 LAN RJ-45 Port**

5 LAN RJ-45 Port**

6 Line out (Green)

7 Microphone (Pink)

8 USB 3.0 Ports (USB3_0_1)

9 USB 2.0 Ports (USB_0_1)

10 VGA Port (VGA1)

11 COM Port 2 (COM2)*

12 PS/2 Keyboard Port

13 HDMI Port (HDMI1)

ACT/LINK

LED

SPEED

LED

LAN Port

* This motherboard supports RS232/422/485 on COM1~3 ports. Please refer to below table for

the pin denition. In addition, COM1~3 ports (RS232/422/485) can be adjusted in BIOS setup

utility > Advanced Screen > Super IO Conguration. You may refer to page 31 for details.

COM1~3 Port Pin Denition

124

13 12 10

11 9

PIN RS232 RS422 RS485

1 DCD TX- RTX-

2 RXD RX+ N/A

3 TXD TX+ RTX+

4 DTR RX- N/A

5 GND GND GND

6 DSR N/A N/A

7 RTS N/A N/A

8 CTS N/A N/A

9COM1: +5V/+12V/+5VSB

COM2, 3: +5V/+12V

COM1: +5V/+12V/+5VSB

COM2, 3: +5V/+12V

COM1: +5V/+12V/+5VSB

COM2, 3: +5V/+12V

Andere Handbücher für IMB-150

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK H97M Anniversary Bedienungsanleitung

ASROCK

ASROCK 870iCafe Bedienungsanleitung

ASROCK

ASROCK 790GX Pro Bedienungsanleitung

ASROCK

ASROCK N3700-ITX Bedienungsanleitung

ASROCK

ASROCK E35LM1 R2.0 Bedienungsanleitung

ASROCK

ASROCK 890GX Extreme3 Bedienungsanleitung

ASROCK

ASROCK H61M-GE Bedienungsanleitung

ASROCK

ASROCK N68-GS UCC - Bedienungsanleitung

ASROCK

ASROCK 960GM-VGS3 FX Bedienungsanleitung

ASROCK

ASROCK X58 DELUXE Bedienungsanleitung

ASROCK

ASROCK Z75 Pro3 Bedienungsanleitung

ASROCK

ASROCK X299 Extreme4 Bedienungsanleitung

ASROCK

ASROCK H61M-S1 PLUS Bedienungsanleitung

ASROCK

ASROCK H61DEL Bedienungsanleitung

ASROCK

ASROCK 4CoreDual-SATA2 Bedienungsanleitung

ASROCK

ASROCK K8N68PV-GLAN Bedienungsanleitung

ASROCK

ASROCK B660 Steel Legend Bedienungsanleitung

ASROCK

ASROCK P67 Pro Bedienungsanleitung

ASROCK

ASROCK WOLFDALE1333-GLAN/M2 Bedienungsanleitung

ASROCK

ASROCK IMB-155B Bedienungsanleitung

ASROCK

ASROCK FM2A85X Extreme6 Bedienungsanleitung

ASROCK

ASROCK ALIVENF6P-VSTA Bedienungsanleitung

ASROCK

ASROCK P43DE - V1.0 Bedienungsanleitung

ASROCK

ASROCK Z390 Phantom Gaming 9 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
