ASROCK 4CoreDual-SATA2 Bedienungsanleitung

ASRock 4CoreDual-SATA2 Motherboard

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

EnglishEnglish

English

Published September 2007

ASRock 4CoreDual-SATA2 Motherboard

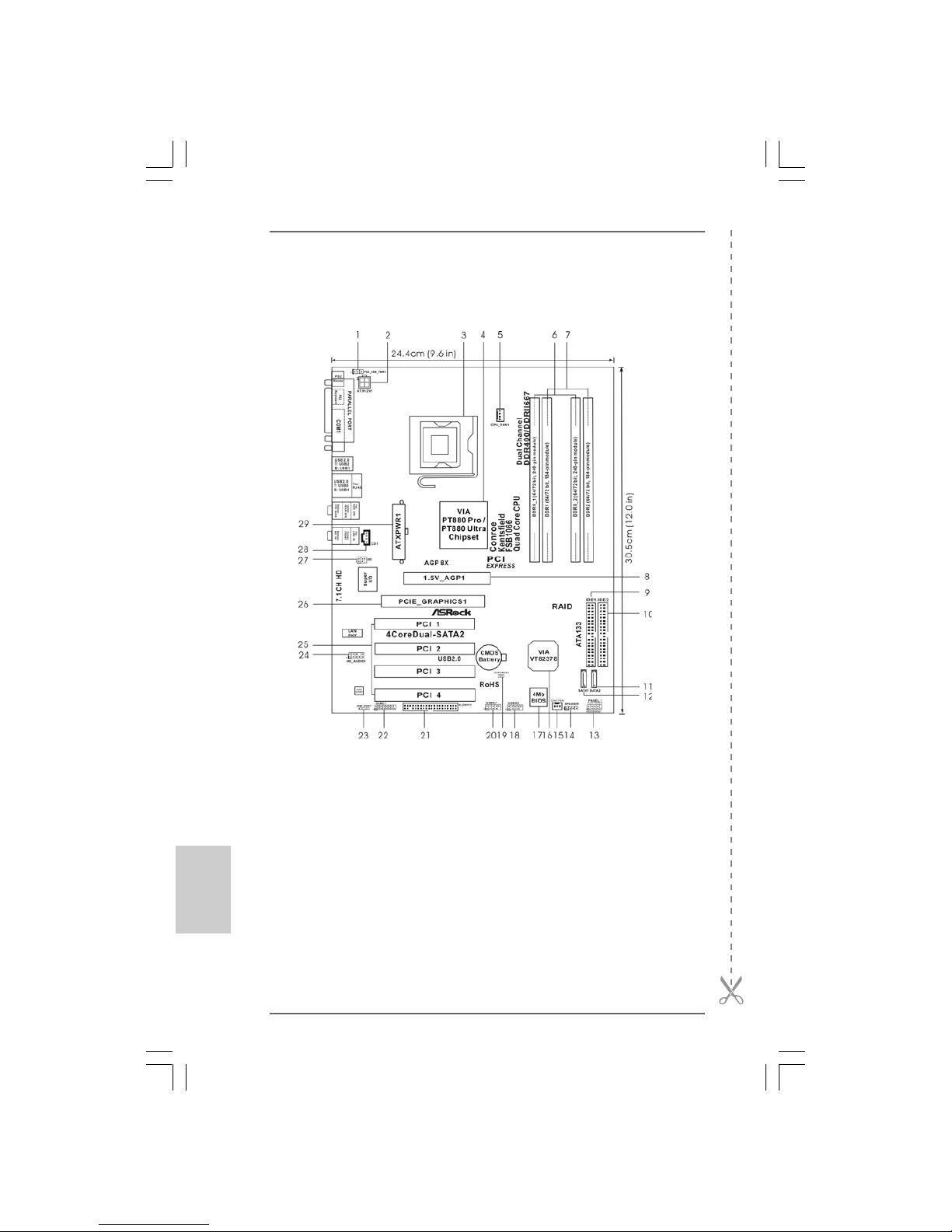

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

EnglishEnglish

English

1 PS2_USB_PWR1 Jumper 15 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Connector (ATX12V1) 16 South Bridge Controller

3 775-Pin CPU Socket 17 FlashMemory

4 North Bridge Controller 18 USB 2.0 Header (USB45, Blue)

5 CPU Fan Connector (CPU_FAN1) 19 Clear CMOS Jumper (CLRCMOS1)

6 2 x 240-pin DDRII DIMM Slots 20 USB 2.0 Header (USB67, Blue)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 21 Floppy Connector (FLOPPY1)

7 2 x 184-pin DDR DIMM Slots 22 Game Connector (GAME1)

(Dual Channel B: DDR1, DDR2; Blue) 23 HDMI_SPDIF Header (HDMI_SPDIF1)

8 AGP Slot (1.5V_AGP1) 24 Front Panel Audio Header (HD_AUDIO1)

9 Primary IDE Connector (IDE1, Blue) 25 4 x PCI Slots (PCI1- 4)

10 Secondary IDE Connector (IDE2, Black) 26 PCI Express Graphics Slot

11 Secondary Serial ATAII Connector (SATA2) 27 Infrared Module Header (IR1)

12 Primary Serial ATAII Connector (SATA1) 28 Internal Audio Connector: CD1 (Black)

13 System Panel Header (PANEL1) 29 ATX Power Connector (ATXPWR1)

14 Chassis Speaker Header (SPEAKER 1)

ASRock 4CoreDual-SATA2 Motherboard

EnglishEnglish

English

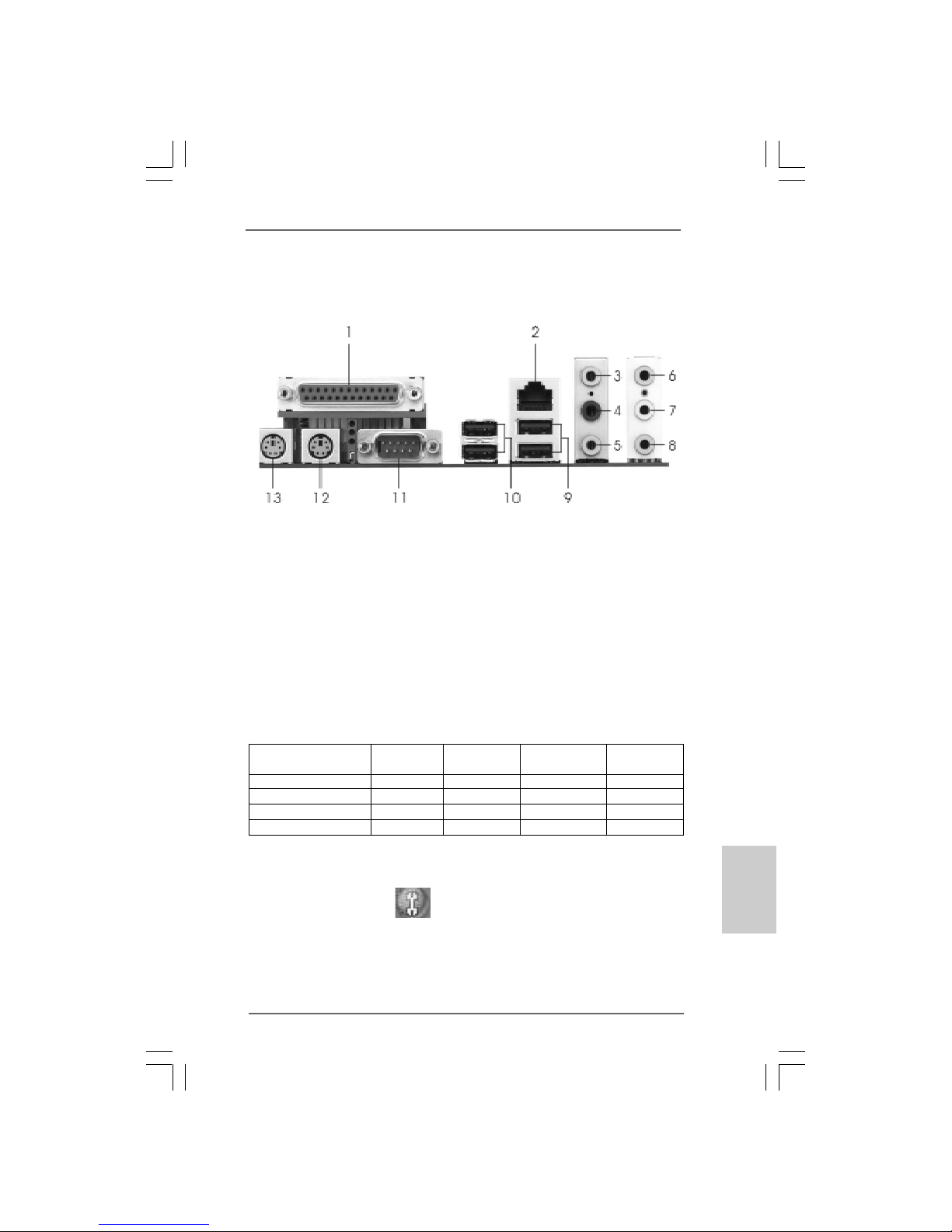

HD 8CH I/OHD 8CH I/O

HD 8CH I/O

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 Serial Port: COM1

5 Central/ Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

ASRock 4CoreDual-SATA2 Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock 4CoreDual-SATA2 motherboard, a reliable moth-

erboard produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest VGA cards and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock 4CoreDual-SATA2 Motherboard

(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)

ASRock 4CoreDual-SATA2 Quick Installation Guide

ASRock 4CoreDual-SATA2 Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Cable (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

OneHDMI_SPDIF Cable (Optional)

One HD 8CH I/O Panel Shield

EnglishEnglish

English

ASRock 4CoreDual-SATA2 Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Duo /

Pentium®XE / Pentium®D/ Pentium®Dual Core / Pentium®4 /

Celeron®/ Celeron® D, supporting Quad Core Kentsfield

processors (see CAUTION 1)

- FSB 1066/800/533 MHz

- Supports Hyper-ThreadingTechnology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: VIA® PT880 Pro/PT880 Ultra

- Southbridge: VIA®VT8237S

Memory -Dual ChannelDDR/DDRII MemoryTechnology

(see CAUTION 4)

- 2 xDDRIIDIMM slots

-SupportDDRII667/533

- Max. capacity: 2GB

- 2 xDDRDIMM slots

-SupportDDR400/333/266

- Max. capacity: 2GB

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 5)

-ASRock U-COP (see CAUTION 6)

- Boot FailureGuard (B.F.G.)

Expansion Slot - 4 x PCI slots

- 1 x PCI ExpressGraphics slot (see CAUTION 7)

- 1 xAGP 8X slot (see CAUTION 8)

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(ALC888Audio Codec)

LAN - VIA®PHY VT6103

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

Rear Panel I/O HD8CHI/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 Port

-Audio Jack: Side Speaker/Rear Speaker/Central Bass/Line

in/Front Speaker/Microphone (see CAUTION 9)

ASRock 4CoreDual-SATA2 Motherboard

EnglishEnglish

English

Connector - 2 x Serial ATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID 1, and JBOD) and “Hot Plug” functions

(see CAUTION 10)

- 2 x ATA133 IDE connectors (support 4 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Game header

- 1 x HDMI_SPDIF header

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 11)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000/XP/XP 64-bit/VistaTM/

VistaTM 64-bit compliant (see CAUTION 12)

Certifications - FCC, CE, WHQL

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

ASRock 4CoreDual-SATA2 Motherboard

EnglishEnglish

English

CAUTION!

1. When you adopt Quad Core CPU on this motherboard, FSB frequency

may be reduced 5%.

2. About the setting of “Hyper Threading Technology”, please check page

37 of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 27 for details.

4. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 13 for proper

installation.

5. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

6. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

7. For the information of the compatible PCI Express VGA cards, please

refer to the “Supported PCI Express VGA Card List for PCI Express

Graphics Slot” on page 9. For the proper installation of PCI Express VGA

card, please refer to the installation guide on page 15.

8. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

9. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

10. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 23 to adjust your SATAII hard disk drive to

SATAII mode. You can also connect SATA hard disk to SATAII connector

directly.

11. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

12. Microsoft®Windows®VistaTM / VistaTM 64-bit driver keeps on updating now.

As long as we have the latest driver, we will update it to our website in the

future. Please visit our website for Microsoft®Windows®VistaTM / VistaTM 64-

bit driver and related information.

ASRock website http://www.asrock.com

ASRock 4CoreDual-SATA2 Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium 2007 and Basic OSPremium 2007 and Basic OS

Premium 2007 and Basic OSPremium 2007 and Basic OS

Premium 2007 and Basic OS

This motherboard can support all features in Windows®VistaTM Premium

2007. Please follow below table for minimum hardware requirement.

CPU Celeron D 326

Memory 1GB system memory

VGA DX9.0 with WDDM Driver

with 128bit VGA memory (Premium)

with 64bit VGA memory (Basic)

ASRock 4CoreDual-SATA2 Motherboard

EnglishEnglish

English

1.41.4

1.4 Supported PCI Express VGA Card List for PCISupported PCI Express VGA Card List for PCI

Supported PCI Express VGA Card List for PCISupported PCI Express VGA Card List for PCI

Supported PCI Express VGA Card List for PCI

Express Graphics SlotExpress Graphics Slot

Express Graphics Slot

(for Windows®2000/XP/XP 64-bit/VistaTM/VistaTM 64-bit)

For the latest updates of the supported PCI Express VGA card list for PCI

Express Graphics slot, please visit ASRock website for details.

ASRock website: http://www.asrock.com/support/index.htm

ModelName Chip Name

ASUS Extreme N6800GT GeForce 6800GT

ASUS EN7600GT/2DHT GeForce 7600GT

ASUS Extreme N7800GTX/2DHTV GeForce 7800 GTX

ALBATRONPC6600GT GeForce 6600GT

GigabyteGV-NX71G512P8 GeForce 7100GS

GIGABYTE GF-8500GT GeForce 8600 GTS

LEADTEK PX6500 TDH GeForce 6500

LEADTEKPX7300GSTDH GeForce 7300 GS

LEADTEKPX7300LE-TDH GeForce 7300 LE

LEADTEKPX7900GSTDH GeForce 7900GS

MSI PCX 5750-TD128E GeForce PCX5750

MSINX8600GTS GeForce 8600 GTS

MSINX8800GTS/320M GeForce 8800 GTS

ASUSEAX1900XT/2DHTV RadeonX1900XT

GECUBERadeon X850XT 256M RADEONX850XT

MSIRX1300PRO-TD256E RADEON X1300Pro

MSIRX1600PRO-TD256E RADEON X1600Pro

MSIRX1600XT-T2D256EZ RADEONX1600XT

Graphics Chip

Vendor

NVIDIA

ATI

ASRock 4CoreDual-SATA2 Motherboard

1010

EnglishEnglish

English

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

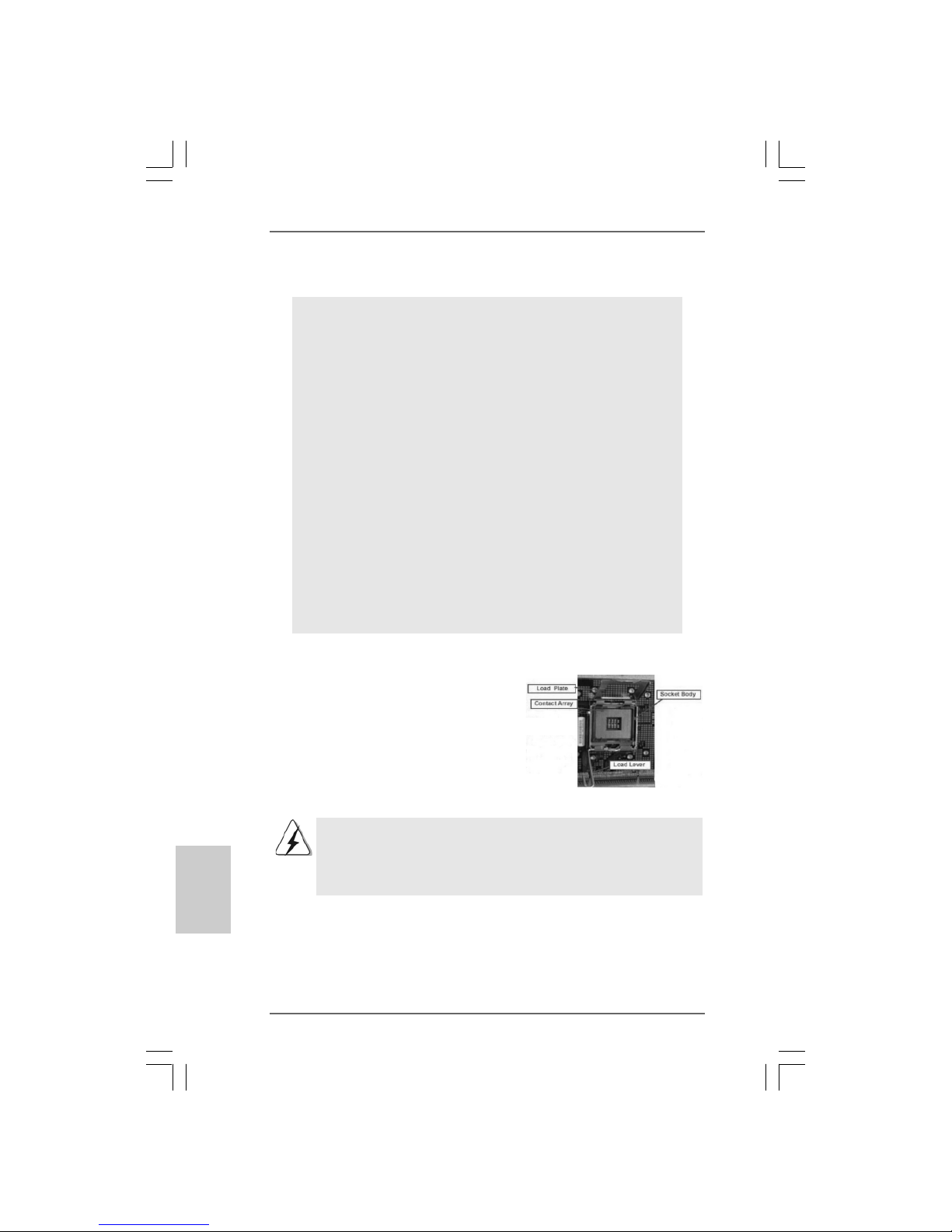

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

775-Pin Socket Overview

Andere Handbücher für 4CoreDual-SATA2

Inhaltsverzeichnis

Sprachen:

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK C621A WS Bedienungsanleitung

ASROCK

ASROCK WHLM-STX Bedienungsanleitung

ASROCK

ASROCK E350M1 - Bedienungsanleitung

ASROCK

ASROCK PV530 Bedienungsanleitung

ASROCK

ASROCK 880GXH-USB3 - V1.0 Bedienungsanleitung

ASROCK

ASROCK B450M Pro4 Bedienungsanleitung

ASROCK

ASROCK 775i945GZ Bedienungsanleitung

ASROCK

ASROCK SBC-250J Service-Handbuch

ASROCK

ASROCK OC FORMULA X299 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X99X Killer Series Bedienungsanleitung

ASROCK

ASROCK SBC-220A Bedienungsanleitung

ASROCK

ASROCK K7VM3 Bedienungsanleitung

ASROCK

ASROCK H110M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK X300D4-P1/DASH Bedienungsanleitung

ASROCK

ASROCK H81M-S1 PLUS Bedienungsanleitung

ASROCK

ASROCK IMB-150N Bedienungsanleitung

ASROCK

ASROCK B75M-ITX Bedienungsanleitung

ASROCK

ASROCK IMB-199 Bedienungsanleitung

ASROCK

ASROCK 880GMH USB3 R2.0 Bedienungsanleitung

ASROCK

ASROCK IMB-780 Bedienungsanleitung

ASROCK

ASROCK Z68 Extreme7 Gen3 Bedienungsanleitung

ASROCK

ASROCK Z390 Extreme4 Bedienungsanleitung

ASROCK

ASROCK 4CORE1600-GLAN/M Bedienungsanleitung

ASROCK

ASROCK H410M-HDV/M.2 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
