K7VM3

User Manual

Version 1.0

Published April 2004

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

Contents

1 Introduction.................................................... 4

1.1 Package Contents ........................................................... 4

1.2 Specifications ................................................................. 5

1.3 Motherboard Layout ....................................................... 7

1.4 ASRock I/OTM .................................................................. 8

2 Installation...................................................... 9

2.1 Screw Holes................................................................... 9

2.2 Pre-installation Precautions ............................................ 9

2.3 CPUInstallation ............................................................... 10

2.4 Installation of Heatsink and CPU fan .............................. 10

2.5 Installation of Memory Modules (DIMM) .......................... 11

2.6 Expansion Slots .............................................................. 12

2.7 Jumpers Setup................................................................ 13

2.8 Connectors ..................................................................... 16

3 BIOS Setup ...................................................... 18

3.1 BIOS Setup Utility ............................................................ 18

3.1.1 BIOS Menu Bar ..................................................... 18

3.1.2 Legend Bar ........................................................... 18

3.2 Main Menu ....................................................................... 19

3.3 Advanced, Security, Power, Boot, and Exit Menus ...... 21

4 Software Support ........................................... 22

4.1 Installing Operating System ............................................ 22

4.2 Support CD Information................................................... 22

4.2.1 Running Support CD ............................................. 22

4.2.2 Drivers Menu ........................................................ 22

4.2.3 Utilities Menu ......................................................... 22

4.2.4 ASRock “PC-DIY LiveDemo” Program ................. 22

4.2.5 Contact Information............................................... 22

Appendix ........................................................... 23

1. Advanced Menu ............................................................. 23

2. Security Menu ................................................................. 27

3. Power Menu ................................................................... 28

4. Boot Menu ....................................................................... 29

5. Exit Menu......................................................................... 30

Chapter 1 Introduction

Thank you for purchasing ASRock K7VM3 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide for new DIY system builders. Chapter 3 and 4 contain basic

BIOS setup and support CD information. For advanced users’ reference, the Appen-

dix appearing on page 23 offers more advanced BIOS setup information.

Because the motherboard specifications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modifications of this manual

occur, the updated version will be available on ASRock website

without further notice. You may find the latest memory and CPU

support lists on ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents

ASRock K7VM3 motherboard

(Micro ATX form factor: 9.6" x 7.5", 24.4 x 19.1 cm)

ASRock K7VM3 Quick InstallationGuide

ASRock AMD-VIA Series Support CD

1 cable for IDE devices (1 x ATA 66/100/133)

1 cable for floppy drive (1 x ribbon cable)

1ASRock I/O shield

1 COM port bracket

1.2 Specifications

Platform: Micro ATX form factor (9.6" x 7.5", 24.4 x 19.1 cm)

CPU: Supports Socket A (462 pins) for

AMDAthlonTM / AthlonTM XP/ DuronTM processor

Chipsets: North Bridge: VIA KM266Pro, FSB@200/266/333 MHz

South Bridge: VIA VT8235, supports USB 2.0, ATA 133

Memory: 2DDRDIMMslots:DDR1 andDDR2

PC2100 (DDR266) / PC2700 (DDR333), Max. 2GB

IDE: IDE1:ATA133 / UltraDMAMode 6;

IDE2:ATA133 / UltraDMAMode 6;

Can connect up to 4 IDE devices

Floppy Port: Supports 2 floppy disk drives

Audio: 5.1channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing;

Chassis temperature sensing;

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 1);

Voltage monitoring: +12V, +5V, +3V, Vcore;

CPU fan tachometer; Chassis fan tachometer

PCI slots: 2 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 4X AGP card (see CAUTION 2)

AMR slot: 1 slot, supports AMR modem card

USB 2.0: 4 default USB 2.0 ports and 1 extra set of header for two

additional USB 2.0 ports upgrade (see CAUTION 3)

ASRock I/OTM:PS/2: 1 keyboard port / 1 mouse port;

1 RJ 45 port; 4 rear default USB 2.0 ports;

1 VGAport; 1 parallel port: ECP/EPP support;

Audio Jack: Line Out / Line In / Microphone +Game port

BIOS: AMI legal BIOS; Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 4)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. While CPU overheat is detected, the system will

automatically shutdown. Please check if the CPU fan on the

motherboard functions properly before you resume the

system. To improve heat dissipation, remember to spray ther

mal grease between the CPU and the heatsink when you

install the PC system.

2. Do NOT use a 3.3V AGP card on K7VM3’s AGP slot!

It may cause permanent damage!

3. Power Management for USB 2.0 works fine under Microsoft®

Windows®XP SP1 / 2000 SP4. It may not work properly under

Microsoft®Windows®98/ ME. Please refer to Microsoft®official

document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

4. Although K7VM3 offers stepless control, it is not recommended to

perform over clocking. When the CPU frequency of K7VM3 is set

to perform over clocking, other clocks, such as PCI clock, AGP

clock, and Memory clock will also be overclocked proportionally.

Frequencies other than the recommended CPU bus frequencies may

cause the instability of the system or damage the CPU.

PCI 2

PCI 1

2MB

BIOS

USB45

IR1

K7VM3

SPEAKER1

FLOPPY1

CHA_FAN1

ATXPWR1

IDE1 IDE2

ATA133

USB 2.0

Super

I/O

AGP1

CPU_FAN1

AUDIO1

Mic

GAME AUDIO1

USB 2.0

Ports

LAN

Mic in

Line out

GAME AUDIO1

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

VGA

Line

Line in

USB 2.0

Ports

FSB_SEL1

VIA

VT8235

VIA

KM266Pro

Chipset

PS2_USB_PWR1

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

CLRCMOS2

CMOS

Battery

HDLED RST

PLED PWRBTN

PANEL 1

JR1 JL1

AMR1

CLRCMOS1

LAN

PHY

AUDIO

CODEC

COM1

19.1cm (7.5 in)

24.4cm (9.6 in)

12 45637

1617

2021

FID1

FID2

FID3

FID4

FID0

PWR_LED1

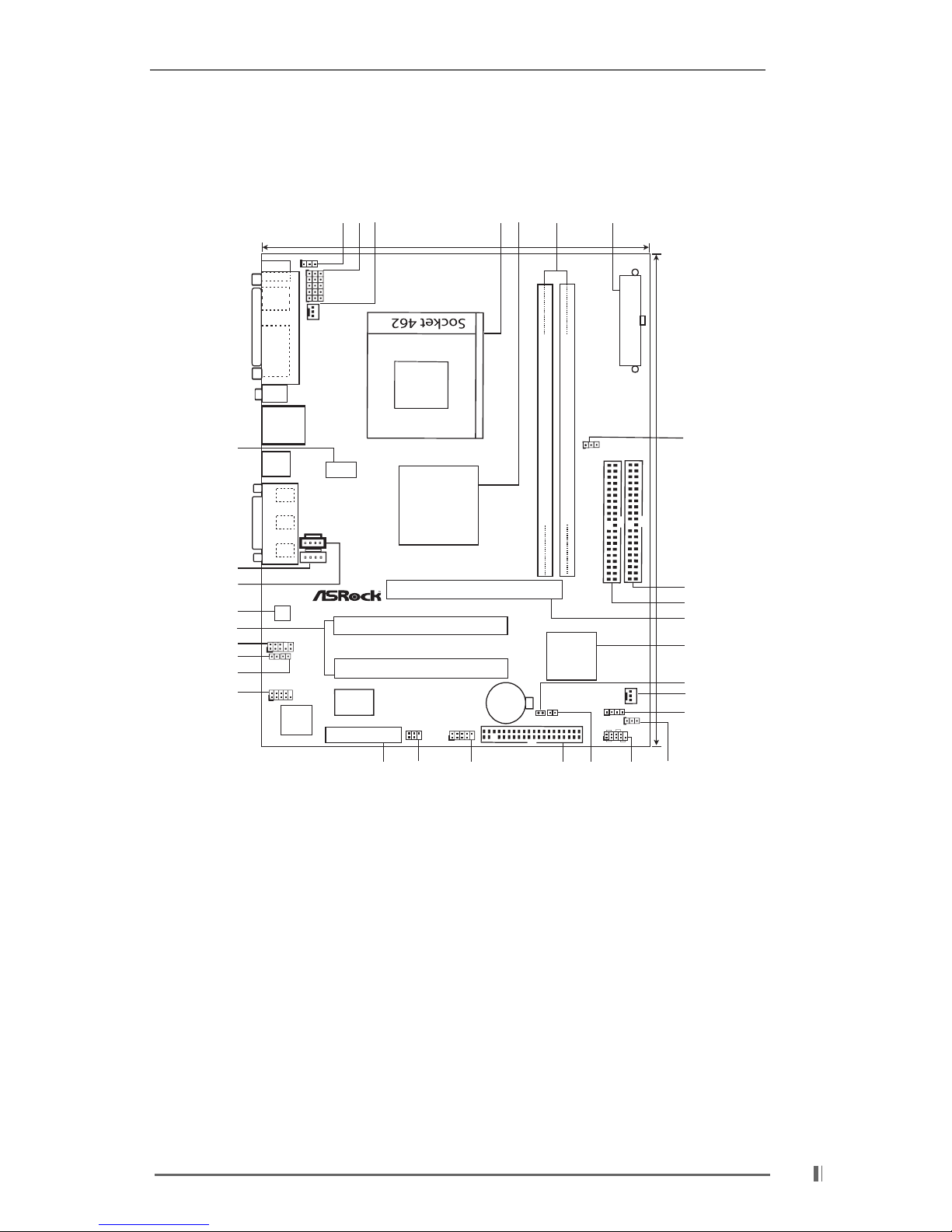

1.3 Motherboard Layout

1 PS2_USB_PWR1 jumper 2 FID Jumpers (FID0, FID1, FID2, FID3)

3 CPU fan connector (CPU_FAN1) 4 CPU socket

5 North Bridge controller 6 184-pin DDR DIMM slots (DDR 1- 2)

7 ATX power connector (ATXPWR1) 8 FSB select jumpers (FSB_SEL1)

9 Secondary IDE connector (IDE2, Black) 10 Primary IDE connector (IDE1, Blue)

11 AGP slot (AGP1) 12 South Bridge controller

13 Clear CMOS (CLRCMOS1, solder points) 14 Chassis fan connector (CHA_FAN1)

15 External speaker connector (SPEAKER 1) 16 Power LED Connector (PWR_LED1)

17 System panel connector (PANEL1) 18 Clear CMOS (CLRCMOS2, 2-pin jumper)

19 Floppy connector (FLOPPY1) 20 USB 2.0 header (USB45, Blue)

21 Infrared module connector (IR1) 22 AMR slot (AMR1)

23 Serial port connector (COM1) 24 JL1 jumper

25 JR1 jumper 26 Front panel audio connector (AUDIO1)

27 PCI slots (PCI 1- 2) 28 AUDIO CODEC

29 Internal audio connector: CD1 (Black) 30 Internal audio connector: AUX1 (White)

31 LAN PHY

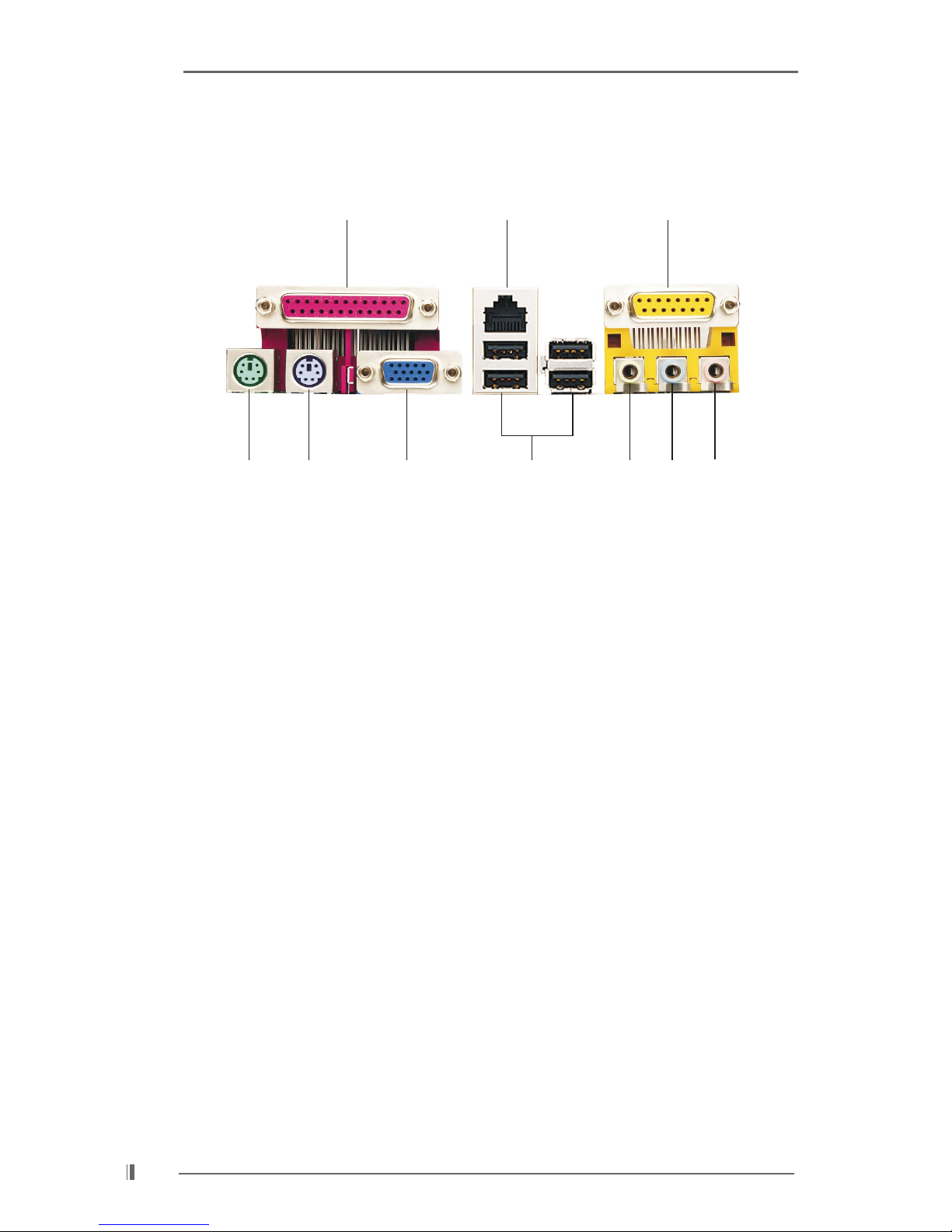

1.4 ASRock I/OTM

1 Parallel port 2 RJ-45 port

3 Game port 4 Microphone (Pink)

5 Line In (Light Blue) 6 Line Out (Lime)

7 USB 2.0 ports 8 VGAport

9 PS/2 keyboard port (Purple) 10 PS/2 mouse port (Green)

11 23

1098 765

Chapter 2 Installation

K7VM3 is a Micro ATX form factor (9.6" x 7.5", 24.4 x 19.1 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to

ensure that the motherboard fits into it.

Make sure to unplug the power cord before installing or

removing the motherboard. Failure to do so may cause physical

injuries to you and damages to motherboard components.

2.1 Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not over-tighten the screws! Doing so may damage the

motherboard.

2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity,NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure that the power

is switched off or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard,

peripherals, and/or components.

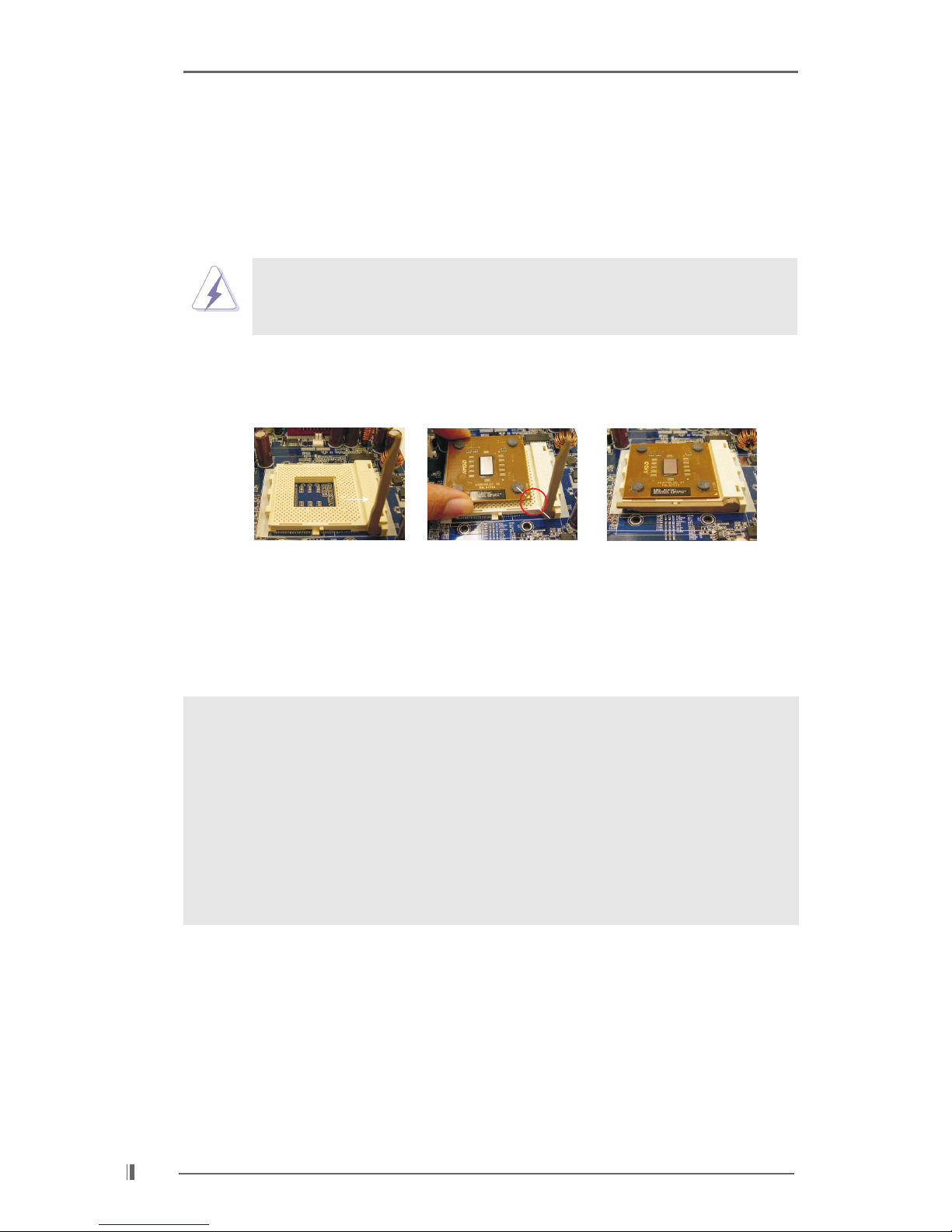

2.3 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90oangle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the

CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.4 Installation of CPU Fan and Heatsink

This motherboard adopts 462-pin CPU socket to supportAMDAthlon

XP / DuronCPU. It requires larger heatsink and cooling fan to dissi-

pate heat. You also need to spray thermal grease between the CPU

and the heatsink to improve heat dissipation. Make sure that the CPU

and the heatsink are securely fastened and in good contact with

each other. Then connect the CPU fan to the CPU_FAN connector

(CPU_FAN1, see page 7,No. 3). For proper installation, please kindly

refer to the instruction manuals of the CPU fan and the heatsink.

STEP1:

LiftUpTheSocketLever

STEP2/STEP3:

Match The CPU Marked Corner

toTheSocketMarkedCorner

STEP4:

PushDownAndLock

TheSocketLever

Lever 90° Up

CPU Marked Corner

Socket Marked Corner

Andere Handbücher für K7VM3

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK H410TM-ITX Bedienungsanleitung

ASROCK

ASROCK H110M-DVP Bedienungsanleitung

ASROCK

ASROCK Z590 EXTREME Bedienungsanleitung

ASROCK

ASROCK Z87 Extreme6 Bedienungsanleitung

ASROCK

ASROCK FM2A78M Pro3+ Bedienungsanleitung

ASROCK

ASROCK 970 Pro3 Bedienungsanleitung

ASROCK

ASROCK 990FX Extreme4 Bedienungsanleitung

ASROCK

ASROCK M810LMR Bedienungsanleitung

ASROCK

ASROCK H67DE3 Bedienungsanleitung

ASROCK

ASROCK 775XFIRE-ESATA2 - 02-2006 Bedienungsanleitung

ASROCK

ASROCK Q1900DC-ITX Bedienungsanleitung

ASROCK

ASROCK A75 Pro4 MVP Bedienungsanleitung

ASROCK

ASROCK 1U2LW Series Bedienungsanleitung

ASROCK

ASROCK Z370M Pro4 Bedienungsanleitung

ASROCK

ASROCK A75 Pro4-M Bedienungsanleitung

ASROCK

ASROCK Z77 Extreme11 Bedienungsanleitung

ASROCK

ASROCK IMB-156 Bedienungsanleitung

ASROCK

ASROCK M3A790GXH/USB3 Bedienungsanleitung

ASROCK

ASROCK Z97 Extreme9 Bedienungsanleitung

ASROCK

ASROCK P67 TRANSFORMER - Bedienungsanleitung

ASROCK

ASROCK Taichi Razer Edition B550 Bedienungsanleitung

ASROCK

ASROCK X299 Taichi Bedienungsanleitung

ASROCK

ASROCK P4VT8 Bedienungsanleitung

ASROCK

ASROCK 939Dual-SATA2 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
