ASRock K7VT4A Pro Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any

kind, either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

PublishedDecember 2004

2ASRock K7VT4A Pro Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 15 Chassis Fan Connector (CHA_FAN1)

2 CPU Fan Connector (CPU_FAN1) 16 System Panel Connector (PANEL1)

3 CPU Socket 17 Chassis Speaker Connector (SPEAKER1)

4 North Bridge Controller 18 USB 2.0 Connector (USB67, Blue)

5 184-pin DDR DIMM Slots (DDR1- 2) 19 Floppy Connector (FLOPPY1)

6 ATX Power Connector (ATXPWR1) 20 Internal Audio Connector: CD1 (Black)

7 Secondary IDE Connector (IDE2, Black) 21 Internal Audio Connector: AUX1 (White)

8 Primary IDE Connector (IDE1, Blue) 22 Clear CMOS Jumper (CLRCMOS2)

9 AGP Slot (1.5V_AGP1) 23 JR1 / JL1 Jumpers

10 FSB Select Jumpers 24 Front Panel Audio Connector (AUDIO1)

(FSB_SEL0,FSB_SEL1, FSB_SEL2) 25 PCI Slots (PCI1- 5)

11 South Bridge Controller 26 Game Port Connector (GAME1)

12 Primary Serial ATA Connector (SATA1) 27 Flash Memory

13 Secondary Serial ATA Connector (SATA2) 28 Shared USB 2.0 Header (JUSB45, Blue)

14 Power LED Connector (PWR_LED1) 29 J1 Jumper (FID0, FID1, FID2, FID3, FID4)

ASRock K7VT4A Pro Motherboard

EnglishEnglish

English

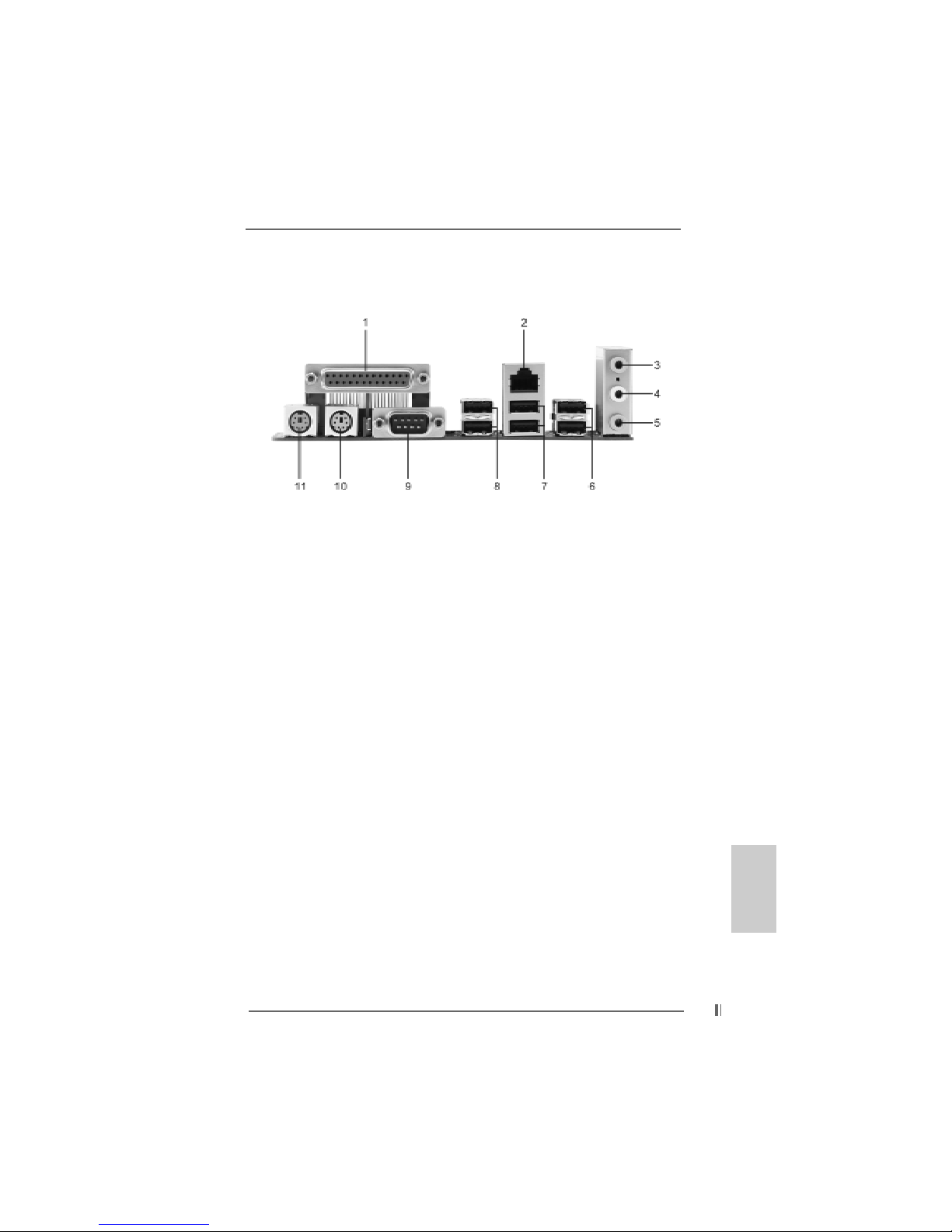

ASRock I/O PlusASRock I/O Plus

ASRock I/O PlusTMTM

TMTM

1 Parallel Port 7 2 x USB 2.0 Port (USB0, USB1)

2 RJ-45 Port 8 2 x USB 2.0 Port (USB2, USB3)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 2 x Shared USB 2.0 Port (USB4, USB5)

4ASRock K7VT4A Pro Motherboard

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock K7VT4A Pro motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available onASRock website without further notice. You

may find the latest memory and CPU support lists on ASRock website

as well.

ASRock website http://www.asrock.com

1.11.1

1.1 Package ContentsPackage Contents

Package ContentsPackage Contents

Package Contents

1 x ASRock K7VT4A Pro Motherboard

(ATX Form Factor: 12.0-in x 7.0-in, 30.5 cm x 17.8 cm)

1 x ASRock K7VT4A Pro Quick Installation Guide

1 x ASRock K7VT4A Pro Support CD

1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor)

1 x 3.5-in Floppy Drive Ribbon Cable

1 x SerialATA (SATA) Data Cable

1 x Serial ATA (SATA) HDD Power Cable (Optional)

1 xASRock I/O PlusTM Shield

EnglishEnglish

English

ASRock K7VT4A Pro Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform: ATX Form Factor: 12.0-in x 7.0-in, 30.5 cm x 17.8 cm

CPU: Supports Socket A (462 pins) for

AMDAthlonTM / AthlonTM XP / DuronTM / SempronTM processor

Chipsets: North Bridge:

VIA KT400A, FSB@200 / 266 / 333 MHz

South Bridge:

VIAVT8237, Supports USB 2.0, ATA 133, SATA 1.5Gb/s

Memory: 2DDRDIMM slots:DDR1andDDR2

PC2100 (DDR266) / PC2700 (DDR333)

for 2DDR DIMM slots, Max. 2GB;

PC3200 (DDR400) for 1DDR DIMM slot, Max. 1GB

IDE: IDE1:ATA133 / UltraDMA Mode 6

IDE2:ATA133 / UltraDMA Mode 6

Supports up to 4 IDE Devices

Serial ATA: 2 SATA Connectors, Support 1.5Gb/s Data Transfer Rate

Floppy Port: Supports up to 2 Floppy Disk Drives

Audio: 5.1 Channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), Supports Wake-On-LAN

Hardware Monitor: CPU Temperature Sensing

Motherboard Temperature Sensing

CPU Overheat Shutdown to Protect CPU Life

(ASRock U-COP)(see CAUTION 1)

CPU Fan Tachometer

Chassis Fan Tachometer

Voltage Monitoring: +12V, +5V, +3.3V, Vcore

PCI slots: 5 Slots with PCI Specification 2.2

AGP slot: 1AGP Slot, Supports 1.5V, 8X/4XAGPCard (see CAUTION 2)

USB 2.0: 8 USB 2.0 ports:

include 6 ready-to-use USB 2.0 ports on the rear panel,

plus one on-board header supporting 2 extra USB 2.0 ports

(see CAUTION 3)

ASRock I/O PlusTM:1 PS/2 Mouse Port, 1 PS/2 Keyboard Port,

1 Serial Port: COM1,

1 Parallel Port (ECP/EPP Support)

6 ready-to-use USB 2.0 Ports,

1 RJ-45 Port,

Audio Jack: Line In / Line Out / Microphone

6ASRock K7VT4A Pro Motherboard

BIOS: AMI legal BIOS, Supports “Plug and Play”,

ACPI 1.1 Compliance Wake-Up Events,

SMBIOS 2.3.1 Support,

CPU Frequency Stepless Control

(only for advanced users’ reference, see CAUTION 4)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP Compliant

CAUTION!

1. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

2. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

3. Power Management for USB 2.0 works fine under Microsoft®Windows®

XP SP1/2000 SP4. It may not work properly under Microsoft®Windows®

98/ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

4. Although this motherboard offers stepless control, it is not recommended

to perform over clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU. The CPU host frequency of this motherboard is determined by

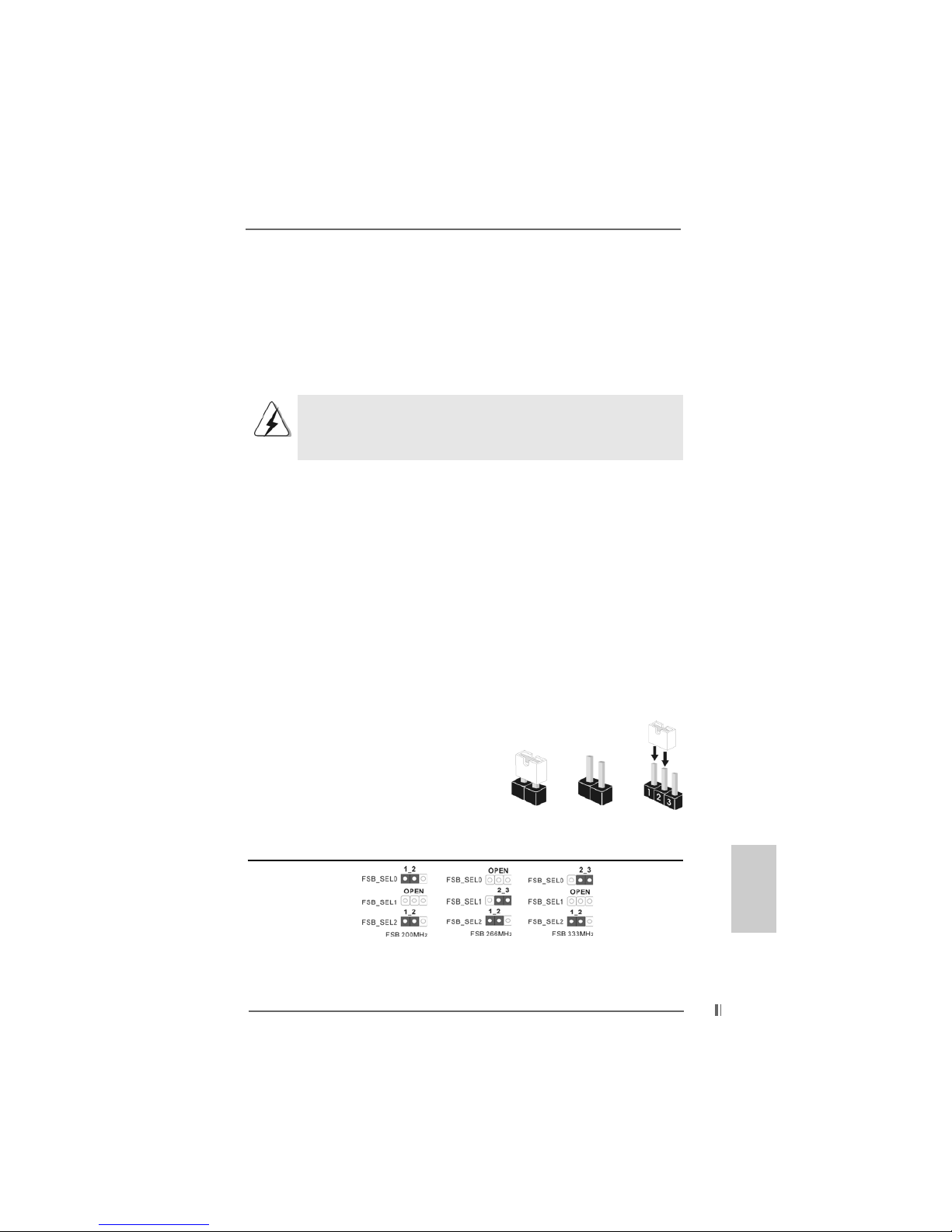

jumper-setting. You must adjust “FSB Select Jumpers” according to the

FSB of your AMD CPU before you set the “CPU Host Frequency” con-

figuration as “Manual” in BIOS. See page 9 for the details of “FSB Select

Jumpers” adjustment, and page 25 of “User Manual” in the Support CD for

“CPU Host Frequency” configuration.

EnglishEnglish

English

ASRock K7VT4A Pro Motherboard

2.2.

2. InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the car-

pet or the like. Also remember to use a grounded wrist strap or

touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a

grounded antstatic pad or in the bag that comes with the

component.

5. When placing screws into the screw holes to secure the

motherboardtothe chassis, please do notover-tighten the screws!

Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90° angle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

Step 5. Install CPU fan and heatsink. For proper installation, please kindly refer to

the instruction manuals of your CPU fan and heatsink vendors.

EnglishEnglish

English

8ASRock K7VT4A Pro Motherboard

2.22.2

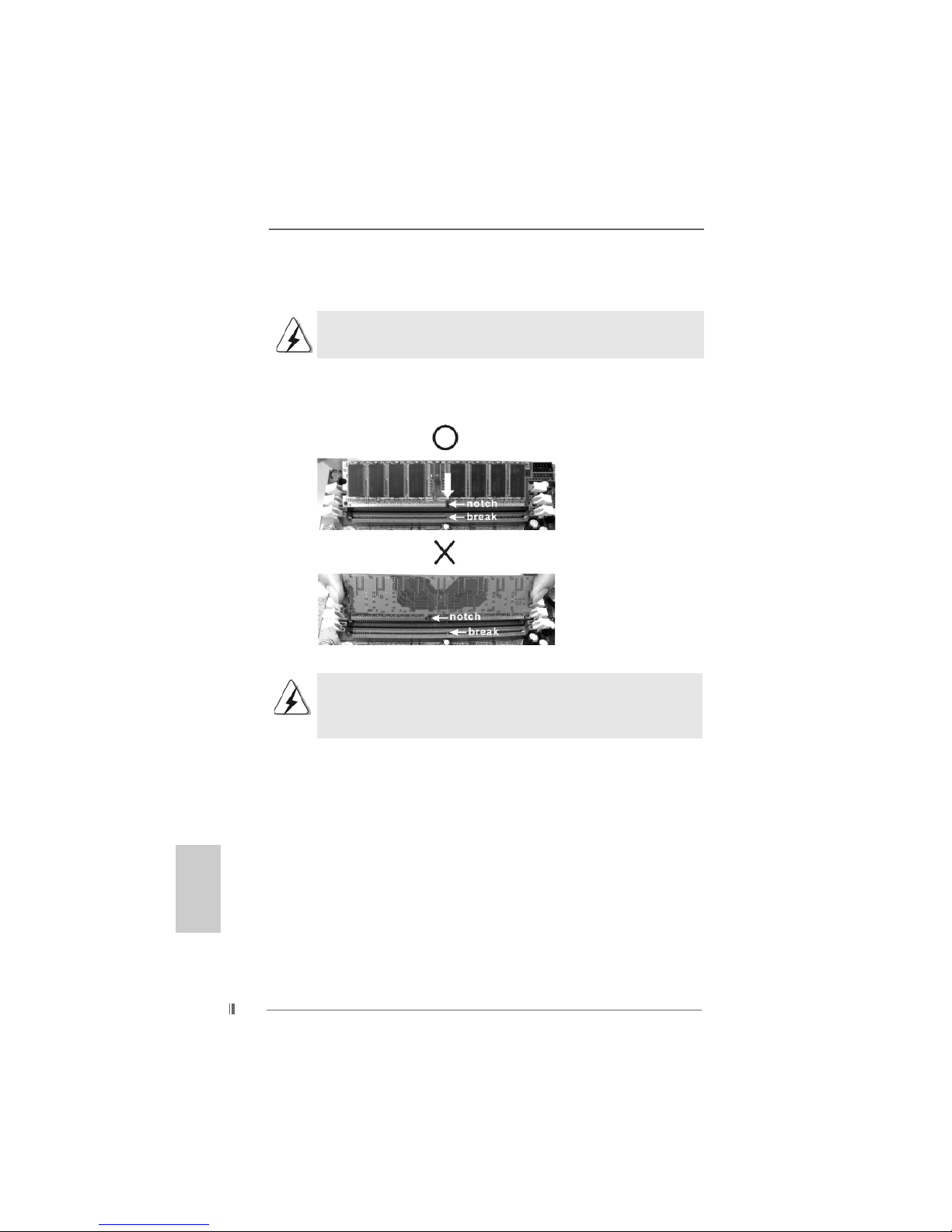

2.2 Installation of Memory Modules (DIMM)Installation of Memory Modules (DIMM)

Installation of Memory Modules (DIMM)Installation of Memory Modules (DIMM)

Installation of Memory Modules (DIMM)

K7VT4APro motherboard provides two 184-pinDDR (DoubleData Rate)DIMM slots.

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock aDIMM slot by pressing the retaining clips outward.

Step 2. Align aDIMM on the slot such that the notch on theDIMM matches the break

on the slot.

The DIMM only fits in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into the

slot at incorrect orientation.

Step 3. Firmly insert theDIMM into the slot until the retaining clips at both ends fully

snap back in place and theDIMM is properly seated.

EnglishEnglish

English

ASRock K7VT4A Pro Motherboard

2.3 Expansion Slots (PCI and AGP Slots)2.3 Expansion Slots (PCI and AGP Slots)

2.3 Expansion Slots (PCI and AGP Slots)

There are 5 PCI slots and 1 AGP slot on K7VT4A Pro motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

AGP slot: TheAGP slot is used to install a graphics card. TheASRockAGP slot has

a special design of clasp that can securely fasten the inserted graphics

card.

Please do NOT use a 3.3VAGP card on theAGP slot of this motherboard!

It may cause permanent damage! For the voltage information of your

graphics card, please check with the graphics card vendors.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the bracket facing the slot that you intend to use. Keep the screw

for later use.

Step 3. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 4. Fasten the card to the chassis with screws.

2.4 Jumpers Setup2.4 Jumpers Setup

2.4 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on the pins, the jumper is “Open”.

The illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting

FSB Select Jumpers

(FSB_SEL0,

FSB_SEL1,

FSB_SEL2)

(see p.2item 10)

Note: The CPU FSB frequency of this motherboard is determined by jumper-setting. You must

adjust “FSB Select Jumpers” according to the FSB of your AMD CPU. Please follow the

figures above to set the CPU FSB frequency.

Short Open

EnglishEnglish

English

1010

10 ASRock K7VT4A Pro Motherboard

PS2_USB_PWR1 Short pin2, pin3 to enable

(seep.2 item 1) +5VSB (standby) for PS/2 or

USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power

supply.

JR1 / JL1 Jumpers

(seep.2item23)

Note: If JR1 and JL1 Jumpers are short, both the front panel and the rear panel audio

connectors can work.

Clear CMOS Jumper

(CLRCMOS2)

(seep.2item22)

Note: CLRCMOS2 allows you to clear the data in CMOS. The data in CMOS includes system

setup information such as system password, date, time, and system setup parameters. To

clear and reset the system parameters to default setup, please turn off the computer and

unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper

cap to short the Clear CMOS jumper for 5 seconds. After shorting the Clear CMOS jumper,

please remove the jumper cap. However, please do not clear the CMOS right after you

update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS,

you must boot up the system first, and then shut it down before you do the clear-CMOS

action.

J1 Jumper

(FID0, FID1, FID2, FID3, FID4)

(seep.2item29)

Note: The set of J1 Jumper allows users to adjust the multiplier of CPU. See page 14 of User

Manual in the Support CD for details. However, the system will work well without the

adjustment of multiplier. You do not have to adjust the multiplier for normal usage.

2-pin jumper

EnglishEnglish

English

Andere Handbücher für K7VT4A PRO

Inhaltsverzeichnis

Sprachen:

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK Z590 PRO4 Bedienungsanleitung

ASROCK

ASROCK 990FX Extreme9 Bedienungsanleitung

ASROCK

ASROCK ALIVENF5SLI-1394 Bedienungsanleitung

ASROCK

ASROCK Z97M-ITX Bedienungsanleitung

ASROCK

ASROCK SBC-210 Bedienungsanleitung

ASROCK

ASROCK B450M Steel Legend Bedienungsanleitung

ASROCK

ASROCK B450 Pro4 R2.0 Bedienungsanleitung

ASROCK

ASROCK Z77 Pro4-M Bedienungsanleitung

ASROCK

ASROCK B95M-DGS Bedienungsanleitung

ASROCK

ASROCK 785GM-GS3 - V1.0 Bedienungsanleitung

ASROCK

ASROCK H97M Anniversary Bedienungsanleitung

ASROCK

ASROCK K7UPGRADE - Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z370 Gaming K6 Series Bedienungsanleitung

ASROCK

ASROCK X99 Extreme6/ac Bedienungsanleitung

ASROCK

ASROCK Phantom Gaming Z490 Bedienungsanleitung

ASROCK

ASROCK B75M-GL R2.0 Bedienungsanleitung

ASROCK

ASROCK K7UPGRADE-880 Bedienungsanleitung

ASROCK

ASROCK P4I65G Bedienungsanleitung

ASROCK

ASROCK B250 Gaming K4 Bedienungsanleitung

ASROCK

ASROCK IMB-170 Bedienungsanleitung

ASROCK

ASROCK A520M-HDV Bedienungsanleitung

ASROCK

ASROCK N68C-S Bedienungsanleitung

ASROCK

ASROCK A75M-ITX Bedienungsanleitung

ASROCK

ASROCK A320M-HDV Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
