IMB-370-L

IMB-370-D

User Manual

Version 1.0

Published October 2012

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identication or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ofcers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in Cali-

fornia, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction........................................................ 5

1.1 Package Contents ......................................................... 5

1.2 Specications................................................................. 6

1.3 Motherboard Layout....................................................... 8

1.4 I/O Panel........................................................................ 10

2 Installation.......................................................... 11

2.1 Screw Holes................................................................... 11

2.2 Pre-installation Precautions ........................................... 11

2.3 Installation of Memory Modules (DIMM) ........................ 12

2.4 Expansion Slot .............................................................. 14

2.5 Jumpers Setup............................................................... 15

2.6 Onboard Headers and Connectors................................ 17

2.7 Serial ATA2 (SATA2) / Serial ATA3 (SATA3) Hard Disks

Installation...................................................................... 22

2.8 Hot Plug and Hot Swap Functions for SATA2 / SATA3

HDDs ............................................................................ 22

2.9 Driver Installation Guide ............................................ 23

3 UEFI SETUP UTILITY ................................................ 24

3.1 Introduction .................................................................... 24

3.1.1 UEFI Menu Bar .................................................... 24

3.1.2 Navigation Keys ................................................... 25

3.2 Main Screen................................................................... 25

3.3 Advanced Screen........................................................... 26

3.3.1 CPU Conguration ............................................... 27

3.3.2 North Bridge Conguration................................... 30

3.3.3 South Bridge Conguration.................................. 32

3.3.4 Storage Conguration .......................................... 33

3.3.5 Intel(R) Rapid Start Technology ........................... 34

3.3.6 Intel(R) Smart Connect Technology ..................... 35

3.3.7 AMT Conguration ............................................... 36

3.3.8 Super IO Conguration ........................................ 38

3.3.9 ACPI Conguration............................................... 39

3.3.10 USB Conguration .............................................. 40

3.4 Hardware Health Event Monitoring Screen ................... 41

3.5 Boot Screen ................................................................... 42

3.6 Security Screen ............................................................. 43

3.7 Exit Screen .................................................................... 44

4 Software Support................................................ 45

4.1 Install Operating System................................................ 45

4.2 Support CD Information ................................................. 45

4.2.1 Running Support CD............................................ 45

4.2.2 Drivers Menu........................................................ 45

4.2.3 Utilities Menu........................................................ 45

4.2.4 Contact Information.............................................. 45

Chapter 1: Introduction

Thank you for purchasing ASRock IMB-370 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock IMB-370 Motherboard

(Micr ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

ASRock IMB-370 Driver CD

ASRock IMB-370 Jumper setting instruction

2 x Serial ATA (SATA) Data Cables

1 x Serial ATA (SATA) HDD Power Cable

1 x I/O Panel Shield

1.2 Specifications

Form

Factor Dimensions Micro ATX (9.6-in x 9.6-in)

Processor

System

CPU Socket LGA1155 for Intel®Core i7/i5/i3/Celeron

(Sandy Bridge and Ivy Bridge)

Core

Number (By CPU, Max 4)

Max Speed (By CPU)

L3 Cache (By CPU)

Chipset Q77

BIOS UEFI

Expansion

Slot

PCI 2

Mini-PCIE 1

PCIE 1 (x16) + 1 (x4)

CF Card

Socket 0

Memory

Technology Dual Channel DDR3 1066/1333/1600 MHz

SDRAM

Max. 32GB

Socket Long DIMM x 4

Graphics

Controller Intel® HD Graphics (By CPU)

VRAM Shared Memory

DSub Through DVI-I, Supports max resolution

2048x1536

LVDS Dual Channel 24bits, Support max resolution

1920x1200 (Shared with DisplayPort)

HDMI Support HDMI 1.4a, max resolution 1920x1200

DVI Support max resolution 1920x1200

Display Port Support max resolution 2560x1600

Multi Display Yes

Ethernet

Interface 10/100/1000 Mbps

Controller GbE LAN1:Intel®82579LM/V, LAN2: Intel®

82583V

Controller RJ-45 x 2 w/ LED

SATA

Max Data

Transfer

Rate

SATA2 X2 (3.0Gb/S), SATA3 X2 (6.0Gb/S),

Support RAID0/1/5

Rear I/O

VGA 0 (Can transfer from DVI-I)

HDMI 1

DVI 1 (DVI-I)

Display Port 1

Ethernet 2

USB 6 (USB 2.0 x4, USB 3.0 x2)

Audio 3 (Mic-In, Line-Out, Line-In)

Serial 2 (RS-232/422/485)

PS/2 1 (Combo)

Internal

Connector

USB 6 (USB 2.0 x4, USB 3.0 x2)

LVDS/

Inverter 1/1

VGA 0

Serial 4 (RS-232)

SATA 4 (SATA2 X2 (3.0Gb/S), SATA3 X2 (6.0Gb/

S), Support RAID0/1/5/10)

m-SATA 1

Mini-PCIE 1

Parallel 1

IrDA 0

GPIO 4 x GPI + 4 x GPO

SATA PWR

Output Con 2

Speaker

Header 1

Watchdog

Timer

Output Output from super I/O to drag RESETCON#

Interval 256 Segments, 0,1,2…255 Sec/Min

Power

Requirements

Input PWR ATX PWR

Power On

AT/ATX Supported

-AT : Directly PWR on as power input ready

-ATX : Press button to PWR on after power

input ready

Environment Temperature 0ºC – 60ºC

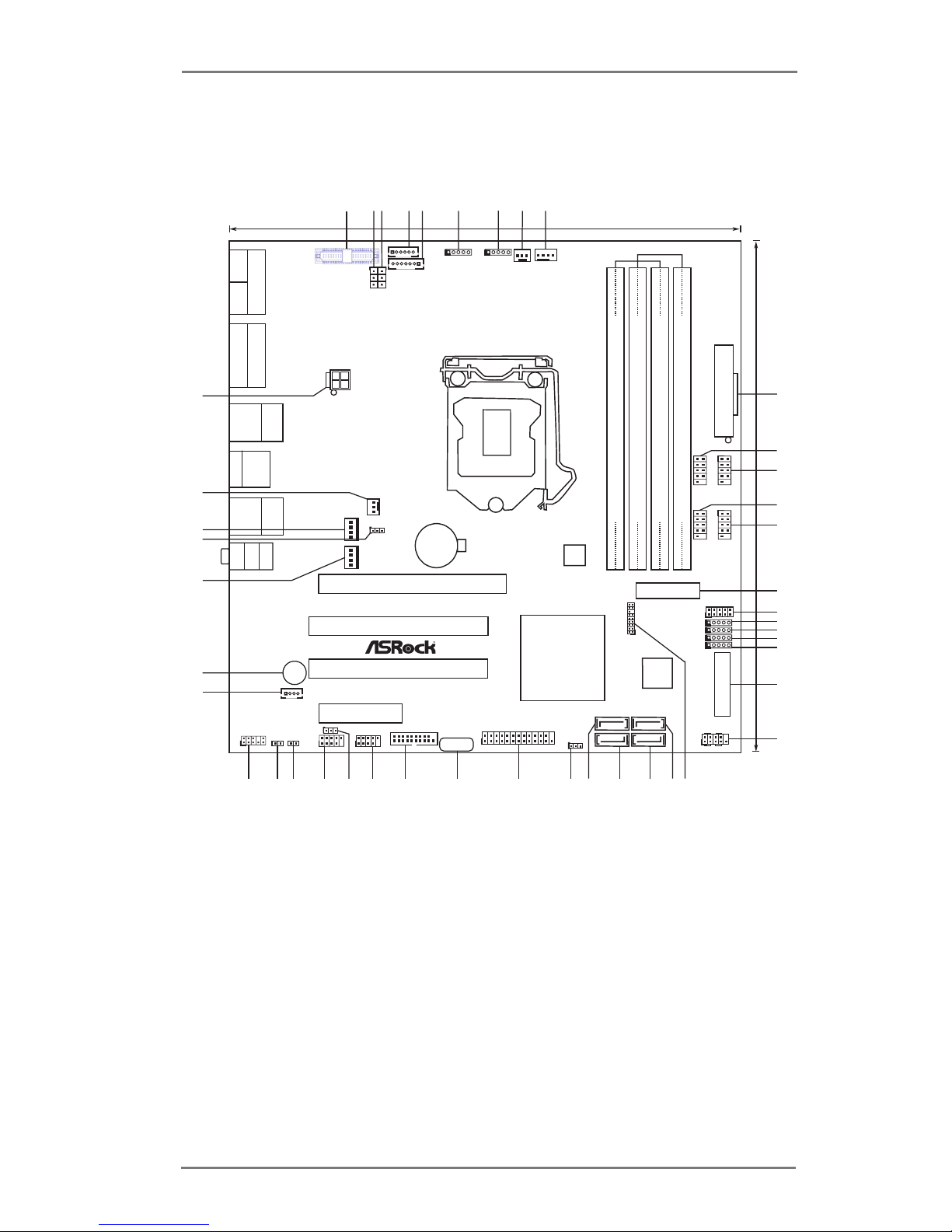

1.3 Motherboard Layout

ATXPWR1

Intel

Q77

DDR3_A2 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

PCI1

PCI2

PCIE1

PCIE2

HD_AUDIO1

COM6

COM5

COM3

COM4

CMOS

Battery

HDLED RESET

PLED PWRBTN

PANEL1

Super

I/O

SATA2_2

SATA3_0

SATA3_1 SATA2_3

CLRCMOS1

CHA_FAN1

64Mb

BIOS

ATX12V1

CPU_FAN1

CPU_FAN2

24.4cm (9.6 in)

USB6_7

USB8_9

CI1

CI2

JGPIO_PWR1

PWR_JP1

LPT1

Top:

RJ-45

USB 2.0

T: USB0

B: USB1

Top:

RJ-45

USB 3.0

T: USB4

B: USB5

USB 2.0

T: USB2

B: USB3

HDMI

LVDS 1

BKT_PWR1

PNL_PWR1

BLT_PWR2

BLT_VOL1

SET_CM1

SET_CM2

SET_CM6

SET_CM5

SET_CM4

SET_CM3

BUZZ1

Top:

Line In

Center:

Line Out

Bottom:

Mic In

MINI_SATA1

MINI_PCIE1

SPEAKER1

JPWR1 JPWR2

USB12

JGP I O1

COM2

DVI1

USB3_10_11

1* 2*3* 4* 5* 679

3132

3536

RoHS

Designed in Taipei

IMB-370

COM1

PS2

Keyboard

/Mouse

DISPLAY1

TPM1

1* LVDS Panel Connector (LVDS1)

Panel Power Selection

(PNL_PWR1)

Blacklight Power Selection (BKT_PWR1)

Inverter Power Control Wafer (BLT_PWR2)

Backlight & Amp Volume Control (BLT_VOL1)

6 COM Port Signal/Power Setting Jumpers, For COM2 (SET_CM2)

7 COM Port Signal/Power Setting Jumpers, For COM1 (SET_CM1)

8 CPU FAN Connector (CPU_FAN2)

9 CPU FAN Connector (CPU_FAN1)

10 ATX Power Input Connector (ATXPWR1)

11 COM Port Header (COM5)

12 COM Port Header (COM6)

13 COM Port Header (COM4)

14 COM Port Header (COM3)

15 mini-PCIE Slot (MINI_PCIE1)

16 Digital Input/Output Pin Header (JGPIO1)

17 COM Port Signal/Power Setting Jumpers, For COM6 (SET_CM6)

18 COM Port Signal/Power Setting Jumpers, For COM5 (SET_CM5)

19 COM Port Signal/Power Setting Jumpers, For COM4 (SET_CM4)

20 COM Port Signal/Power Setting Jumpers, For COM3 (SET_CM3)

21 mini-PCIE Slot (MINI_SATA1)

22 System Panel Header (PANEL1)

23 TPM Header (TPM1)

24 SATA2 Connector (SATA2_2)

25 SATA2 Connector (SATA2_3)

26 SATA3 Connector (SATA3_1)

27 SATA3 Connector (SATA3_0)

28 Clear CMOS Header (CLRCMOS1)

29 Printer Port Header (LPT1)

30 USB 2.0 Port (USB12)

31 USB 3.0 Header (USB3_10_11)

32 USB 2.0 Header (USB8_9)

33 Digital Input/Output Power Select (JGPIO_PWR1)

34 USB 2.0 Header (USB6_7)

35 Chassis Intrusion Header (CI2)

36 Chassis Intrusion Header (CI1)

37 Front Panel Audio Header (HD_AUDIO1)

38 3W Audio Amp Output Wafer (SPEAKER1)

39 Buzzer (BUZZ1)

40 SATA Power Connector (JPWR1)

41 ATX/AT Mode Selection (PWR_JP1)

42 SATA Power Connector (JPWR2)

43 Chassis FAN Connector (CHA_FAN1)

44 ATX Power Input Connector (ATX12V1)

* For IMB-370L only

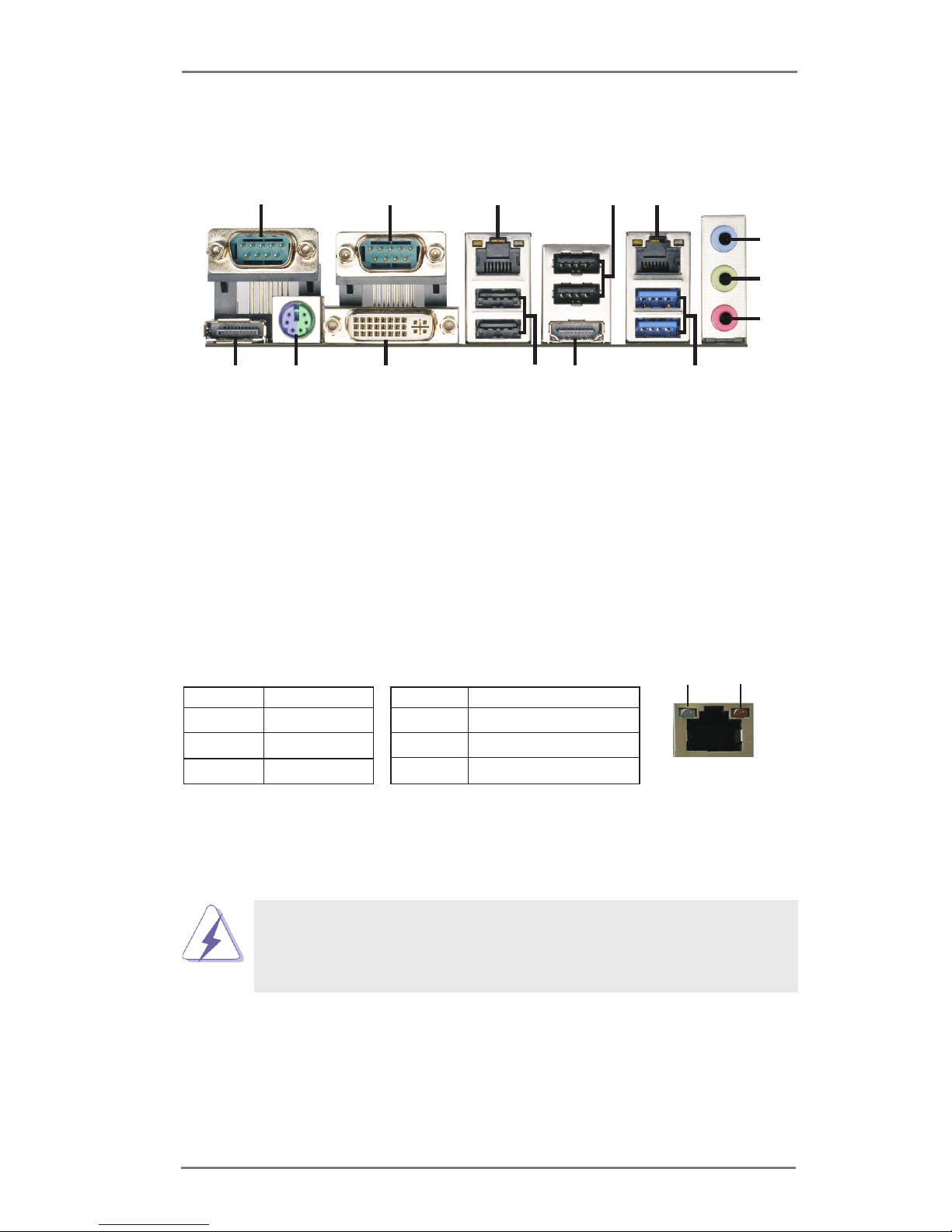

1.4 I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 COM Port (COM1)

2 COM Port (COM2)

* 3 LAN RJ-45 Port

4 USB 2.0 Ports (USB23)

* 5 LAN RJ-45 Port

6 Line In (Light Blue)

7 Line out (Lime)

8 Microphone (Pink)

9 USB 3.0 Ports (USB3_45)

10 HDMI Port (HDMI1)

11 USB 2.0 Ports (USB01)

12 DVI Port (DVI1)

13 PS/2 Mouse/Keyboard Port

** 14 DisplayPort (DP1)

ACT/LINK

LED

SPEED

LED

LAN Port

124

** Only IMB-370D has DisplayPort.

DVI, HDMI and DisplayPort monitors cannot be enabled at the sam

time. You can only choose the combination: DVI + HDMI, HDMI + Dis-

playPort, or DVI + DisplayPort.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK B660M Steel Legend Bedienungsanleitung

ASROCK

ASROCK B85M Pro3 Bedienungsanleitung

ASROCK

ASROCK A320M-ITX Bedienungsanleitung

ASROCK

ASROCK K10N78 Bedienungsanleitung

ASROCK

ASROCK 775XFIRE-ESATA2 - 02-2006 Bedienungsanleitung

ASROCK

ASROCK CONROE1333-D667 Bedienungsanleitung

ASROCK

ASROCK Z77 OC Formula Bedienungsanleitung

ASROCK

ASROCK STX-1500 Bedienungsanleitung

ASROCK

ASROCK Q270 Pro BTC+ Bedienungsanleitung

ASROCK

ASROCK P4VT8 Bedienungsanleitung

ASROCK

ASROCK Z87E-ITX Bedienungsanleitung

ASROCK

ASROCK FM2A85X Extreme4 Bedienungsanleitung

ASROCK

ASROCK ALIVEDUAL-ESATA2 - V1.2 Bedienungsanleitung

ASROCK

ASROCK H55ICAFE Bedienungsanleitung

ASROCK

ASROCK 4Core1333-Viiv Bedienungsanleitung

ASROCK

ASROCK ALIVESATA2-GLAN Bedienungsanleitung

ASROCK

ASROCK PHANTOM GAMING Z790 NOVA WiFi Bedienungsanleitung

ASROCK

ASROCK X58 DELUXE3 - V1.0 Bedienungsanleitung

ASROCK

ASROCK UTX-110 Service-Handbuch

ASROCK

ASROCK AD2550B-ITX Bedienungsanleitung

ASROCK

ASROCK Z690 AQUA OC Bedienungsanleitung

ASROCK

ASROCK P55DE3 Bedienungsanleitung

ASROCK

ASROCK H67M-HT Bedienungsanleitung

ASROCK

ASROCK H61M-U3S3 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
