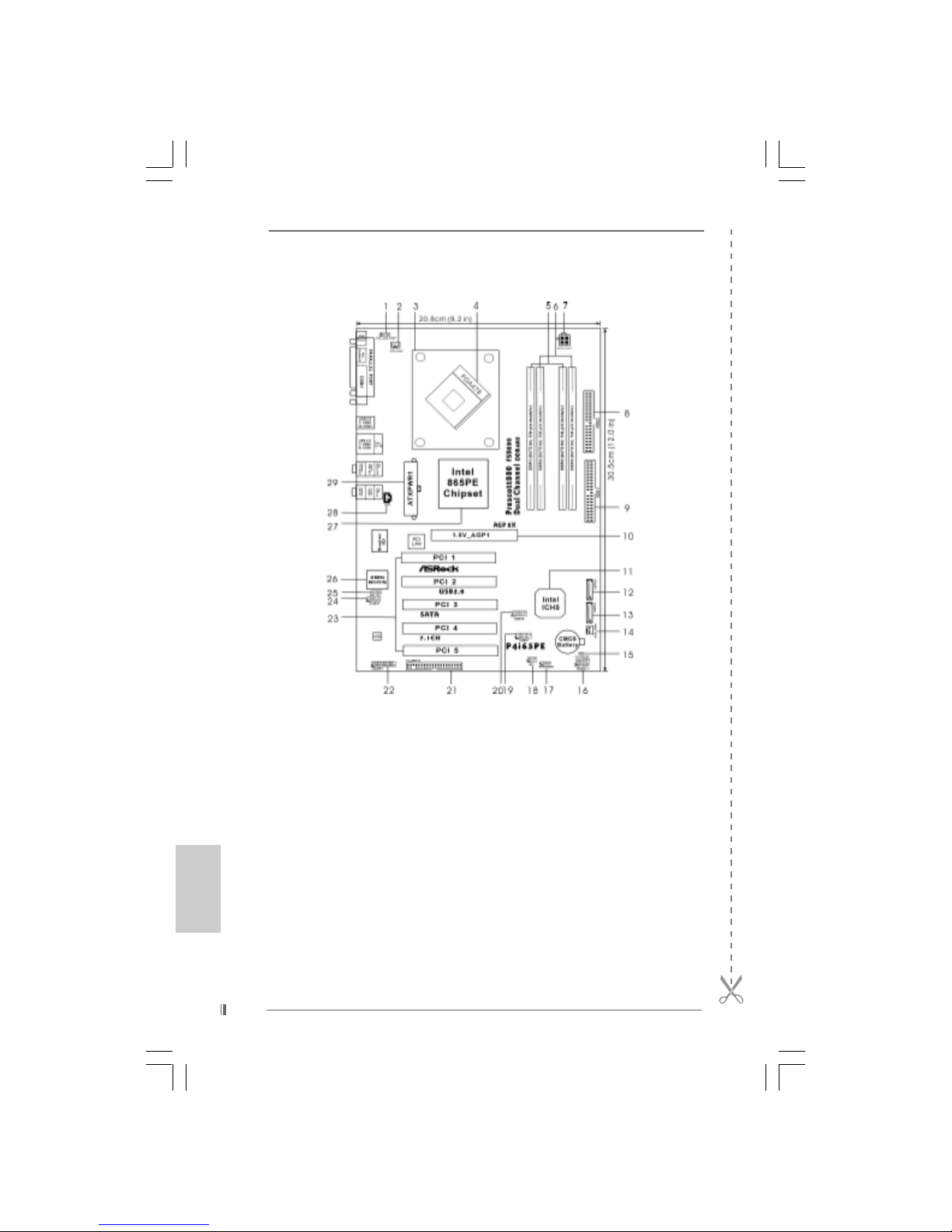

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 15 Clear CMOS Jumper (CLRCMOS0)

2 CPU Fan Connector (CPU_FAN1) 16 System Panel Header (PANEL1)

3 CPU Heatsink Retention Module 17 Chassis Speaker Header (SPEAKER 1)

4 P4-478 CPU Socket 18 Infrared Module Header (IR1)

5 2 x 184-pin DDR DIMM Slots 19 USB 2.0 Header (USB67, Blue)

(Dual Channel A: DDR1, DDR3; Blue) 20 USB 2.0 Header (USB45, Blue)

6 2 x 184-pin DDR DIMM Slots 21 Floppy Connector (FLOPPY1)

(Dual Channel B: DDR2, DDR4; Black) 22 Game Connector (GAME1)

7 ATX 12V Connector (ATX12V1) 23 PCI Slots (PCI1- 5)

8 Secondary IDE Connector (IDE2,Black) 24 Front Panel Audio Header (AUDIO1)

9 Primary IDE Connector (IDE1, Blue) 25 JR1 / JL1 Jumpers

10 AGP Slot (1.5V_AGP1) 26 BIOS FWH Chip

11 South Bridge Controller 27 North Bridge Controller

12 Secondary Serial ATA Connector (SATA2) 28 Internal Audio Connector: CD1 (Black)

13 Primary Serial ATA Connector (SATA1) 29 ATX Power Connector (ATXPWR1)

14 Chassis Fan Connector (CHA_FAN1)

ASRock P4i65PE Motherboard

EnglishEnglish

English

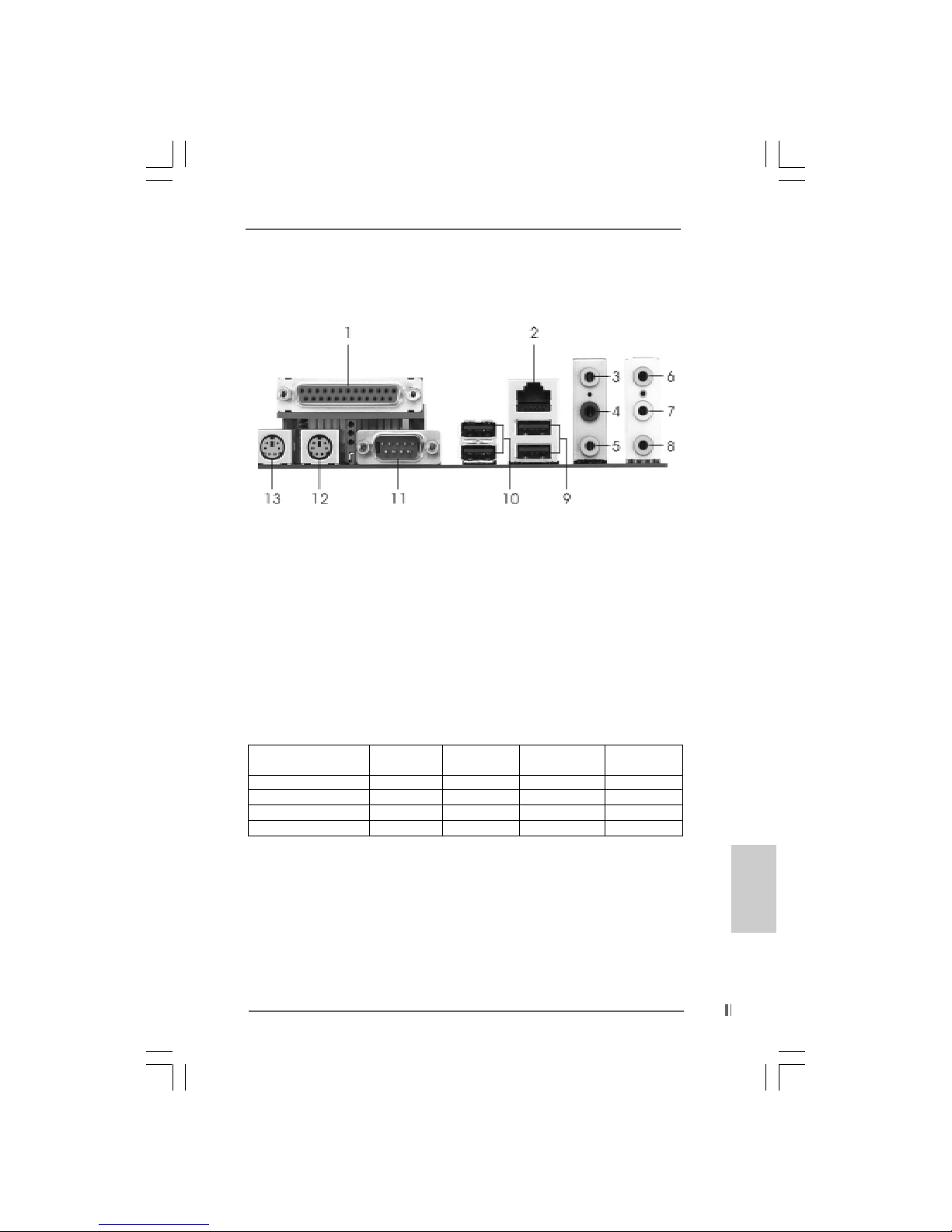

ASRock 8CH I/OASRock 8CH I/O

ASRock 8CH I/O

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 Serial Port: COM1

5 Central / Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

4ASRock P4i65PE Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock P4i65PE motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest memory and CPU support lists onASRock website as

well. ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock P4i65PE Motherboard

(ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm)

ASRock P4i65PE Quick InstallationGuide

ASRock P4i65PE Support CD

One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Data Cable

One SerialATA (SATA) HDD Power Cable (Optional)

OneASRock 8CH I/O Shield

ASRock P4i65PE Motherboard

EnglishEnglish

English

1.2 Specifications1.2 Specifications

1.2 Specifications

Platform: ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm

CPU: Socket 478, supports Intel®Pentium® 4/ Celeron®(Prescott,

Northwood, Willamatte) processor

Chipsets: North Bridge:

Intel®865PE chipset, FSB @ 800 / 533 / 400MHz,

supports Hyper-Threading Technology (see CAUTION 1)

South Bridge:

Intel®ICH5, supports SATA 1.5Gb/s

Memory: 4DDRDIMMSlots:DDR1,DDR2,DDR3, andDDR4

4DDRDIMM Slots Supports PC3200 (DDR400) / PC2700

(DDR333) / PC2100 (DDR266), Max. 4GB

(see CAUTION 2)

Dual Channel Memory Technology support (see CAUTION 3)

IDE: IDE1:ATA100 / Ultra DMAMode 5

IDE2:ATA100 / Ultra DMAMode 5

Supports up to 4 IDE devices

Serial ATA: Supports up to 2 SATA devices at 1.5Gb/s data transfer rate

(Not Support “RAID and “Hot Plug” functions)

Floppy Port: Supports up to 2 floppy disk drives

Audio: 7.1 channels AC’97 Audio

PCI LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing,

Chassis temperature sensing,

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 4),

CPU fan tachometer,

Chassis fan tachometer,

Voltage monitoring: +12V, +5V, +3.3V, Vcore

PCI slots: 5 PCI slots with PCI Specification 2.3

AGP slot: 1 AGP slot, supports 1.5V, 8X/4XAGP card (see CAUTION 5)

USB 2.0: 8 USB 2.0 ports:

includes 4 default USB 2.0 ports on the rear panel,

plus two headers to support 4 additional USB 2.0 ports

(see CAUTION 6)

ASRock 8CH I/O: 1 PS/2 Mouse Port, 1 PS/2 Keyboard Port

1 Serial Port: COM1

1 Parallel Port (ECP/EPP Support)

4 Ready-to-Use USB 2.0 Ports

1 RJ-45 Port

6ASRock P4i65PE Motherboard

EnglishEnglish

English

Audio Jack: Side Speaker / Rear Speaker / Central/Bass /

Line In / Front Speaker / Microphone

(see CAUTION 7)

BIOS: AMI legal BIOS,

Supports “Plug and Play”,

ACPI 1.1 compliance wake up events,

Supports jumperfree,

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 8)

OS: Microsoft®Windows®98 SE / ME / 2000 / XP compliant

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 23

of “User Manual” in the Support CD.

2. Please check the table below for the memory support frequency and its

corresponding CPU FSB frequency.

CPU FSB Frequency Memory Support Frequency

800 DDR266, DDR320*, DDR400

533 DDR266, DDR333

400 DDR266

*When you use an FSB800-CPU on this motherboard, it will run at

DDR320 if you adopt a DDR333 memory module.

3. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 8 for proper installation.

4. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

5. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

6. Power Management for USB 2.0 works fine under Microsoft®Windows®XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows®98/

ME.

7. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

8. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

ASRock P4i65PE Motherboard

2. Installation2. Installation

2. Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90oangle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push down

the socket lever to secure the CPU. The lever clicks on the side tab to

indicate that it is locked.

Step 5. Install CPU fan and heatsink. For proper installation, please kindly refer to

the instruction manuals of your CPU fan and heatsink vendors.

EnglishEnglish

English

8ASRock P4i65PE Motherboard

EnglishEnglish

English

Dual Channel Memory Configurations

DDR1 DDR2 DDR3 DDR4

(Blue Slot) (Black Slot) (Blue Slot) (Black Slot)

(1) Populated - Populated -

(2) - Populated - Populated

(3) Populated Populated Populated Populated

1. If you want to install two memory modules, for optimal compatibility

and reliability, it is recommended to install them in the slots of the

same color. In other words, install them either in the set of blue slots

(DDR1 and DDR3), or in the set of black slots (DDR2 and DDR4).

2. If only one memory module or three memory modules are installed

in the DDR DIMM slots on this motherboard, it is unable to activate

the Dual Channel Memory Technology.

3. If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in DDR1

and DDR2, it is unable to activate the Dual Channel Memory

Technology.

2.2 Installation of Memory Modules (DIMM)2.2 Installation of Memory Modules (DIMM)

2.2 Installation of Memory Modules (DIMM)

P4i65PE motherboard provides four 184-pinDDR (DoubleData Rate) DIMM slots, and

supports Dual Channel Memory Technology. For dual channel configuration, you

always need to install identical (the same brand, speed, size and chip-type) DDR

DIMM pair in the slots of the same color. In other words, you have to install identical

DDR DIMM pair in Dual Channel A (DDR1 andDDR3; Blue slots; see p.2 No. 5) or

identical DDRDIMM pair in Dual Channel B (DDR2 andDDR4; Black slots; see p.2

No. 6), so that Dual Channel Memory Technology can be activated. This motherboard

also allows you to install four DDRDIMMs for dual channel configuration, and please

install identical DDR DIMMs in all four slots. You may refer to the Dual Channel

Memory Configuration Table below.

ASRock P4i65PE Motherboard

EnglishEnglish

English

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align aDIMM on the slot such that the notch on the DIMM matches the break

on the slot.

The DIMM only fits in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully

snap back in place and theDIMM is properly seated.

Installation of Memory Modules (DIMM)Installation of Memory Modules (DIMM)

Installation of Memory Modules (DIMM)

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

1010

10 ASRock P4i65PE Motherboard

EnglishEnglish

English

2.3 Expansion Slots (PCI and AGP Slots)2.3 Expansion Slots (PCI and AGP Slots)

2.3 Expansion Slots (PCI and AGP Slots)

There are 5 PCI slots and 1 AGP slot on P4i65PE motherboard.

PCI slots: The PCI slots are used to install expansion cards that have the 32-bit

PCI interface.

AGP slot: The AGP slot is used to install a graphics card. The ASRock AGP slot

has a special locking mechanism which can securely fasten the graph-

ics card inserted.

Do NOT use a 3.3V AGP card on the AGP slot of P4i65PE motherboard!

It may cause permanent damage!

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed in a

chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

Step 4. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

Andere Handbücher für P4I65PE

Inhaltsverzeichnis

Sprachen:

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK H81 Pro BTC Bedienungsanleitung

ASROCK

ASROCK P4 COMBO Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X470 Gaming K4 Series Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

ASROCK

ASROCK Q87M vPro Bedienungsanleitung

ASROCK

ASROCK ALIVENF6P-VSTA Bedienungsanleitung

ASROCK

ASROCK G965M-S Bedienungsanleitung

ASROCK

ASROCK FM2A85X Pro Bedienungsanleitung

ASROCK

ASROCK FM2A75M-ITX R2.0 Bedienungsanleitung

ASROCK

ASROCK B660M Pro RS Bedienungsanleitung

ASROCK

ASROCK TRX40 TAICHI Bedienungsanleitung

ASROCK

ASROCK A790GX 128M - V1.0 Bedienungsanleitung

ASROCK

ASROCK SP55 DELUXE Bedienungsanleitung

ASROCK

ASROCK K10N750SLI-110DB Bedienungsanleitung

ASROCK

ASROCK SP2C741D16HM3 Bedienungsanleitung

ASROCK

ASROCK Z77 Extreme6 Bedienungsanleitung

ASROCK

ASROCK FM2A55M-DGS R2.0 Bedienungsanleitung

ASROCK

ASROCK AD510PV Bedienungsanleitung

ASROCK

ASROCK P55 DELUXE - V1.1 Bedienungsanleitung

ASROCK

ASROCK ALIVENF4G-DVI Bedienungsanleitung

ASROCK

ASROCK EP2C622D24LM Bedienungsanleitung

ASROCK

ASROCK B85M-HDS R2.0 Bedienungsanleitung

ASROCK

ASROCK 770DE3L - AMD RAID Bedienungsanleitung

ASROCK

ASROCK P4VM890 - V2.1 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
