P4VX4

User Manual

Version 1.0

Published April 2003

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

ASRock Website: http://www.asrock.com

Contents

1 Introduction ................................................... 4

1.1 Package Contents .......................................................... 4

1.2 Specifications ................................................................ 5

1.3 Motherboard Layout ...................................................... 7

1.4 ASRock I/OTM ................................................................. 8

2 Installation...................................................... 9

2.1 Screw Holes ................................................................. 9

2.2 Pre-installation Precautions ........................................... 9

2.3 CPU Installation .............................................................. 10

2.4 Installation of Heatsink and CPU fan ............................. 10

2.5 Installation of Memory Modules (DIMM)......................... 11

2.6 Expansion Slots ............................................................. 11

2.7 Jumpers Setup .............................................................. 12

2.8 Connectors .................................................................... 13

3 BIOS Setup ...................................................... 15

3.1 BIOS Setup Utility ........................................................... 15

3.1.1 BIOS Menu Bar ....................................................... 15

3.1.2 Legend Bar ............................................................. 15

3.2 Main Menu...................................................................... 16

3.3 Advanced, Security, Power, Boot, and Exit Menus ..... 18

4 Software Support ........................................... 19

4.1 Installing Operating System ........................................... 19

4.2 Support CD Information ................................................. 19

4.2.1 Running Support CD ............................................... 19

4.2.2 Drivers Menu .......................................................... 19

4.2.3 Utilities Menu ........................................................... 19

4.2.4 ASRock “PC-DIY Live Demo” Program ................... 19

4.2.5 Contact Information ................................................ 19

Appendix ............................................................ 20

1. Advanced Menu .............................................................. 20

2. Security Menu ................................................................. 24

3. Power Menu .................................................................... 25

4. Boot Menu ........................................................................ 26

5. Exit Menu ......................................................................... 27

Chapter 1 Introduction

Thank you for purchasing ASRock P4VX4 motherboard, a reliable motherboard pro-

duced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and

step-by-step installation guide for new DIY system builders. Chapter 3 and 4

contain basic BIOS setup and support CD information.

For advanced users’ reference, the Appendix appearing on page 21 offers more

advanced BIOS setup information.

Because the motherboard specifications and the BIOS soft-

ware might be updated, the content of this manual will be

subject to change without notice. In case any modifications of

this manual occur, the updated version will be available on

ASRock website without further notice.

ASRock website http://www.asrock.com

1.1 Package Contents

ASRock P4VX4 motherboard (ATX form factor: 12.0" x 7.5", 30.5 x 19.0 cm)

ASRock P4VX4 Quick Setup Guide

ASRock P4VX4 Support CD

1 Cable for IDE devices (1 x ATA 66/100/133)

1 Cable for floppy drive (1 x ribbon cable)

1 ASRock I/O shield

1.2 Specifications

Platform: ATX form factor (12.0" x 7.5", 30.5 x 19.0 cm)

CPU: Socket 478 for Intel®Pentium® 4/ Celeron®processor

Chipsets: North Bridge:

VIA P4X400, FSB 533/400 MHz,

with Hyper-Threading Technology ready;

South Bridge:

VIA VT8235, supports USB 2.0, ATA 133

Clock Generator:100 MHz - 248MHz

Memory: 4 DDR DIMM slots:

PC1600 for 4 DDR DIMM slots, Max. 3.5GB;

PC2100 for 3 DDR DIMM slots, Max. 2GB;

PC2700 for 2 DDR DIMM slot, Max. 1GB

IDE: IDE1: ATA 133 / Ultra DMA Mode 6;

IDE2: ATA 133 / Ultra DMA Mode 6;

Can connect up to 4 IDE devices

Floppy Port: Supports 1 floppy disk drive

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing (ASRock U-COP);

Chassis temperature sensing;

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 1);

Voltage monitoring: +12V, +5V, +3V, Vcore;

CPU fan tachometer; Chassis fan tachometer

PCI slots: 5 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 2)

USB 2.0: 4 default USB 2.0 ports and a set of header for 2 additional

USB 2.0 ports upgrade (see CAUTION 3)

ASRock I/OTM:PS/2: 1 keyboard port / 1 mouse port;

1 RJ 45 port;

4 rear default USB 2.0 ports;

1 serial port: COM1;

1 parallel port: ECP/EPP support;

Audio Jack: Line Out/ Line In/ Microphone + Game port

BIOS: AMI BIOS;

Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

Supports jumperfree;

SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 4)

OS: Microsoft®Windows®98SE / ME / 2000 / XP compliant

CAUTION!

1. If the CPU is overheated, please check if the CPU fan on the

motherboard functions properly before you resume the system.

To improve heat dissipation, remember to spray thermal grease

between the CPU and the heatsink when you install the PC

system.

2. Do NOT use a 3.3V AGP card on P4VX4’s AGP slot!

It may cause permanent damage!

3. Power Management for USB 2.0 works fine under Microsoft®

Windows®XP. It may not work properly under Microsoft®

Windows®98/ME/2000. Please refer to Microsoft®official

document at

http://www.microsoft.com/HWDEV/BUS/usb/USB2support.asp

4. Although P4VX4 offers stepless control, it is not recommended

to perform over clocking. When the CPU frequency of P4VX4 is

set to perform over clocking, other clocks, such as PCI clock,

AGP clock, and Memory clock will also be overclocked

proportionally. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or

damage the CPU and the motherboard.

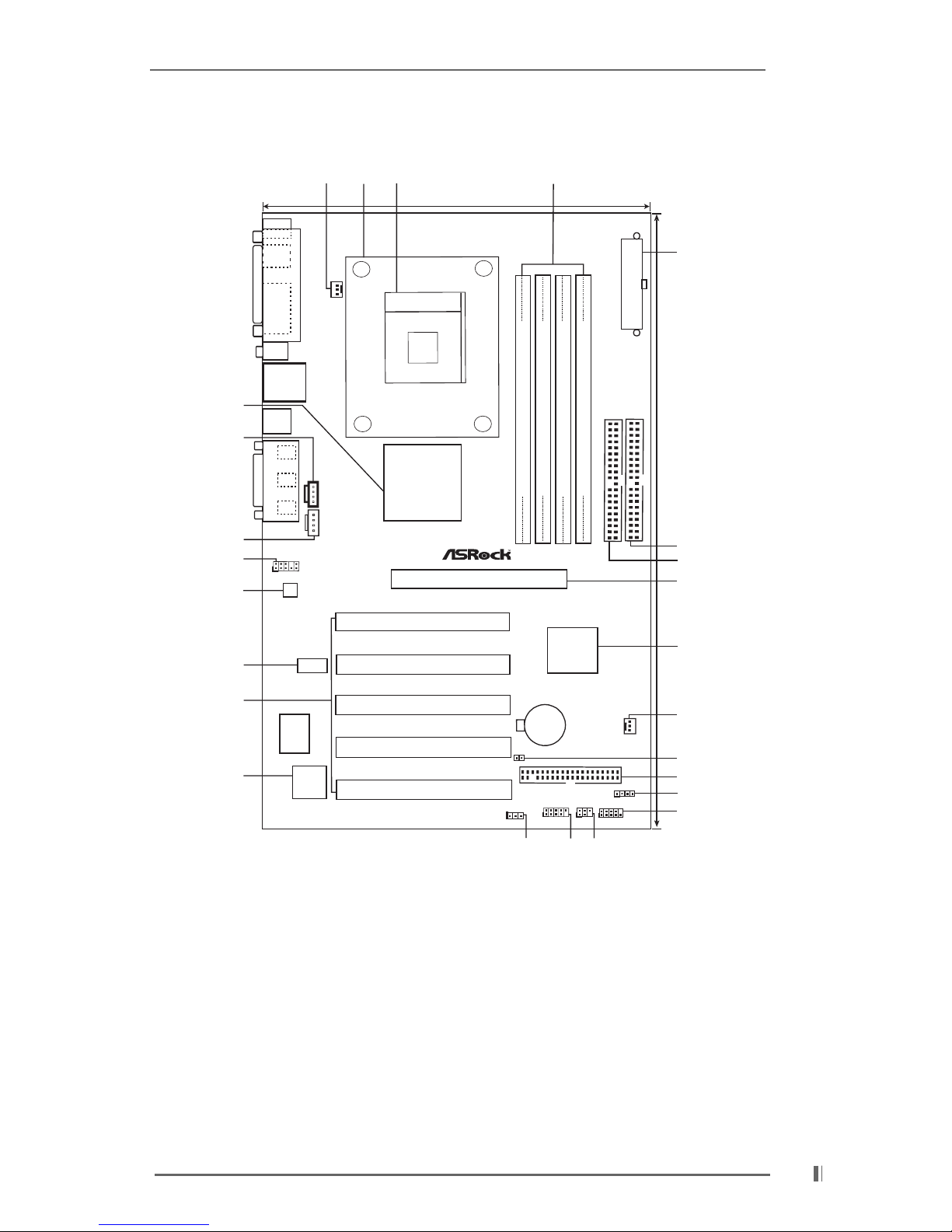

1.3 Motherboard Layout

1 ATX power connector (ATXPWR1) 14 Infrared module connector (IR1)

2 CPU socket 15 Speaker connector (SPEAKER 1)

3 CPU fan connector (CPU_FAN1) 16 South Bridge controller

4 North Bridge controller 17 Clear CMOS (CLRCMOS1: 2-pin jumper)

5 184-pin DDR DIMM slots (DDR1- 4) 18 PCI slots (PCI1- 5)

6 CPU heatsink retention module 19 AUDIO CODEC

7 Primary IDE connector (IDE1, blue) 20 Front panel audio connector (AUDIO1)

8 Secondary IDE connector (IDE2, black) 21 LAN PHY

9 Chassis fan connector (CHA_FAN1) 22 PS2_USB_PWR1 jumper

10 Floppy connector (FLOPPY1) 23 Internal audio connector: AUX1 (white)

11 Flash Memory 24 Internal audio connector: CD1 (black)

12 System panel connector (PANEL1) 25 AGP slot (AGP1)

13 USB header (USB45, blue)

PCI 2

PCI 3

PCI 4

PCI 5

PCI 1

2MB

BIOS

AUDIO1

Audio CODEC

Super

I/O

LAN

PHY

AGP1

USB45

IR1

PANEL 1

HDLED RESET

PLED PWRBTN

PS2_USB_PWR1

P4VX4

VIA

VT8235

SPEAKER1

FLOPPY1

CHA_FAN1

ATXPWR1

CMOS

Battery

VIA

P4X400

Chipset

IDE1 IDE2

CPU_FAN1

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

DDR3 (64/72 bit, 184-pin module)

DDR4 (64/72 bit, 184-pin module)

PGA478

Mic

GAME AUDIO1

USB 2.0

Ports

LAN

Mic in

Line out

GAME AUDIO1

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

COM1

Line

Line in

USB 2.0

Ports

19.0cm (7.5 in)

30.5cm (12.0 in)

CLRCMOS1

AGP 8X

ATA133

USB 2.0

5.1 CH

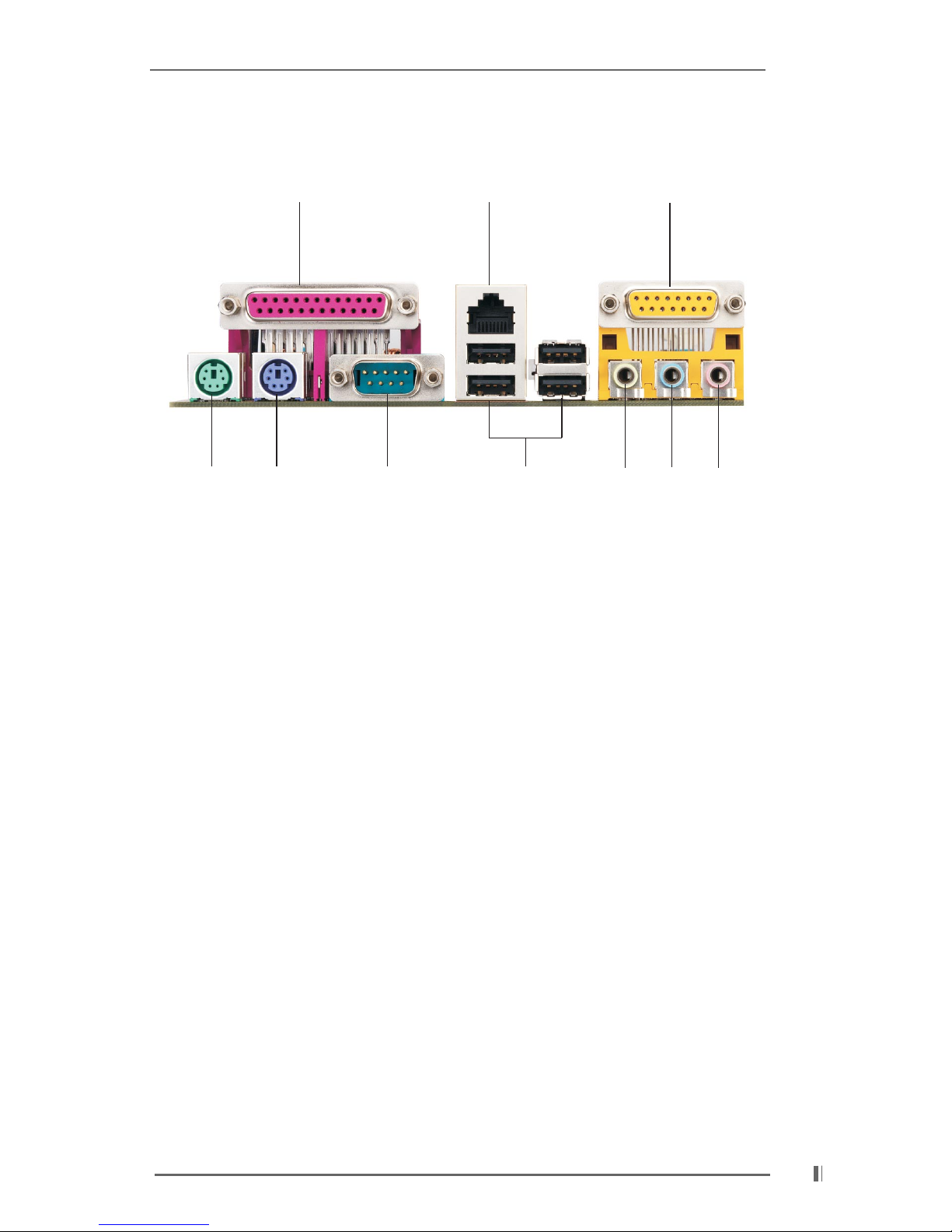

1.4 ASRock I/OTM

1 Parallel port 6 Line Out (Lime)

2 RJ-45 port 7 USB 2.0 ports

3 Game port 8 Serial port: COM1

4 Microphone (Pink) 9 PS/2 keyboard port (Purple)

5 Line In (Light Blue) 10 PS/2 mouse port (Green)

4567

910

Chapter 2 Installation

P4VX4 is an ATX form factor (12.0" x 7.5", 30.5 x 19.0 cm) motherboard. Before you

install the motherboard, study the configuration of your chassis to ensure that the

motherboard fits into it.

Make sure to unplug the power cord before installing or removing the

motherboard. Failure to do so may cause physical injuries to you and

damages to motherboard components.

2.1 Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not over-tighten the screws! Doing so may damage the

motherboard.

2.2 Pre-installation Precautions

1. Make sure to unplug the power cord before installing or removing the

motherboard. Failure to do so may cause physical injuries to you and damages

to motherboard components. Unplug the power cord from the wall socket

before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you remove any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

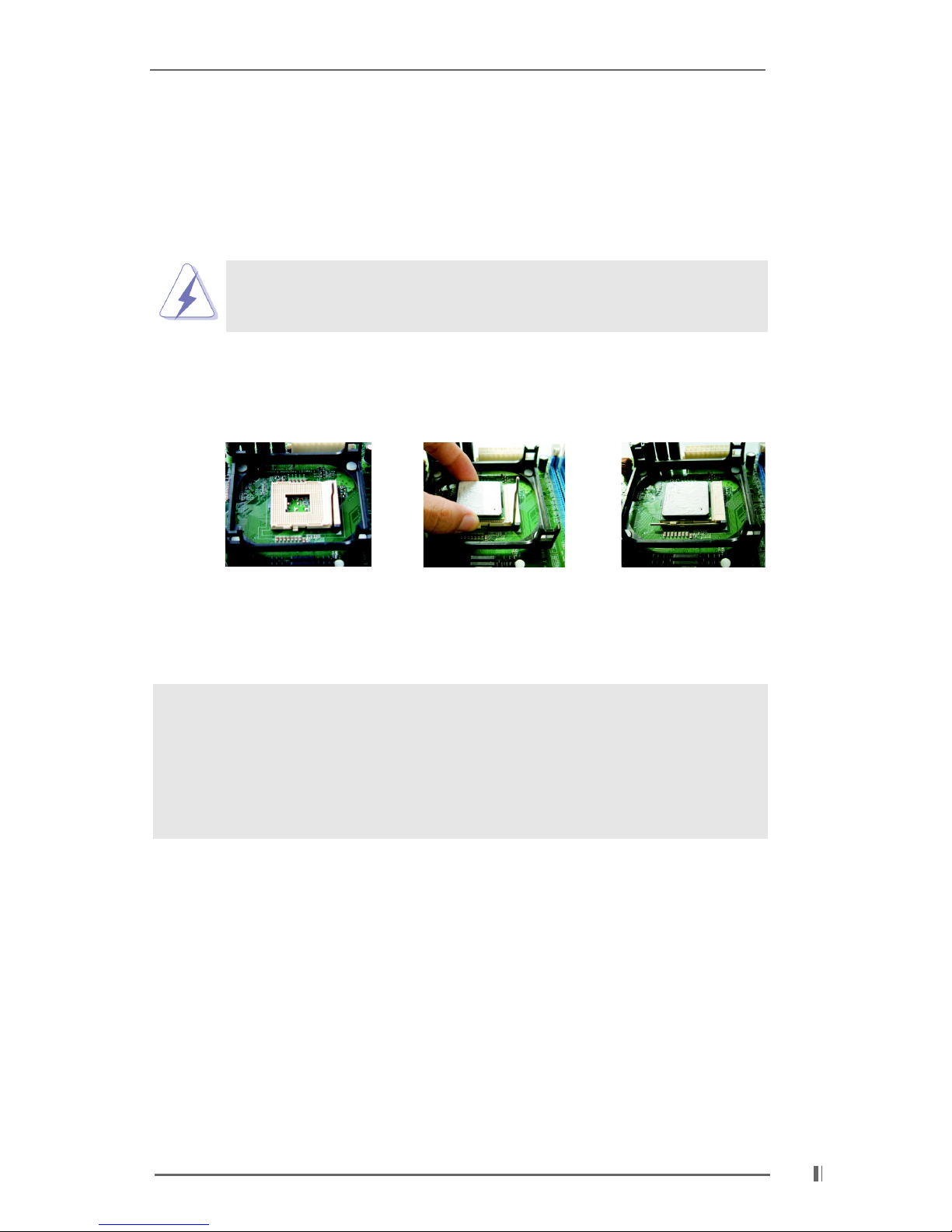

2.3 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90° angle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the

CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side

tab to indicate that it is locked.

2.4 Installation of CPU Fan and Heatsink

Intel®Pentium 4®and Celeron®CPU requires larger heatsink and cooling fan.

Thermal grease between the CPU and the heatsink is also needed to improve

heat transfer. Make sure that the CPU and the heatsink are securely fas-

tened and in good contact with each other. For proper installation, please

kindly refer to the instruction manuals of vendors of CPU fan and heatsink.

Step 1 Step 2, 3 Step 4

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK Z170M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK H81M-ITX Bedienungsanleitung

ASROCK

ASROCK B150M-HDV Bedienungsanleitung

ASROCK

ASROCK P45TS-R Bedienungsanleitung

ASROCK

ASROCK H310M-STX Bedienungsanleitung

ASROCK

ASROCK J3160B-ITX Bedienungsanleitung

ASROCK

ASROCK PENRYN1600SLI-110DB Bedienungsanleitung

ASROCK

ASROCK Z370 Taichi Bedienungsanleitung

ASROCK

ASROCK X299E-ITX/ac Bedienungsanleitung

ASROCK

ASROCK M3A785GM-LE - V1.0 Bedienungsanleitung

ASROCK

ASROCK H81M-ITX Bedienungsanleitung

ASROCK

ASROCK B450M Pro4-F Bedienungsanleitung

ASROCK

ASROCK 970A-G3.1 Bedienungsanleitung

ASROCK

ASROCK M3A785GM-LE/128M Bedienungsanleitung

ASROCK

ASROCK H55ICAFE Bedienungsanleitung

ASROCK

ASROCK 775V88 Bedienungsanleitung

ASROCK

ASROCK Q1900TM-ITX Bedienungsanleitung

ASROCK

ASROCK Z77 Pro3 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X370 Gaming X Series Bedienungsanleitung

ASROCK

ASROCK Q1900M Pro3 Bedienungsanleitung

ASROCK

ASROCK Z390 Phantom Gaming 9 Bedienungsanleitung

ASROCK

ASROCK H97 Anniversary Bedienungsanleitung

ASROCK

ASROCK K10N78 - V1.1 Bedienungsanleitung

ASROCK

ASROCK P4V88-M Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
