ASROCK Q1900M Pro3 Bedienungsanleitung

Q1900M Pro3Q1900M Pro3

Version 1.1

Published November 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 5

1.4 I/O Panel 7

Chapter 2 Installation 8

2.1 Installing Memory Modules (DIMM) 9

2.2 Expansion Slots (PCI and PCI Express Slots) 11

2.3 Jumpers Setup 12

2.4 Onboard Headers and Connectors 13

Chapter 3 Software and Utilities Operation 17

3.1 Installing Drivers 17

3.2 A-Tuning 18

3.3 Intel® Smart Connect Technology 20

3.4 ASRock APP Shop 25

3.4.1 UI Overview 25

3.4.2 Apps 26

3.4.3 BIOS & Drivers 29

3.4.4 Setting 30

3.5 Start8 31

Chapter 4 UEFI SETUP UTILITY 34

4.1 Introduction 34

4.1.1 UEFI Menu Bar 34

4.1.2 Navigation Keys 35

4.2 Main Screen 36

4.3 Advanced Screen 37

4.3.1 CPU Conguration 38

4.3.2 Chipset Conguration 40

4.3.3 Storage Conguration 42

4.3.4 Intel® Smart Connect Technology 43

4.3.5 Super IO Conguration 44

4.3.6 ACPI Conguration 45

4.3.7 USB Conguration 47

4.3.8 Trusted Computing 48

4.4 Tools 49

4.5 Hardware Health Event Monitoring Screen 51

4.6 Security Screen 52

4.7 Boot Screen 53

4.8 Exit Screen 55

Q1900M Pro3

English

Chapter 1 Introduction

ank you for purchasing ASRock Q1900M Pro3 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

• ASRock Q1900M Pro3 Motherboard (Micro ATX Form Factor)

• ASRock Q1900M Pro3 Quick Installation Guide

• ASRock Q1900M Pro3 Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Intel® Quad-Core Processor J1900 (2 GHz)

Memory • Dual Channel DDR3/DDR3L Memory Technology

• 2 x DDR3/DDR3L DIMM Slots

• Supports DDR3/DDR3L 1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB

(see CAUTION)

* If only one DIMM module is installed, please install it into

DDR3_A1.

Expansion

Slot

• 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)

• 1 x PCI Express 2.0 x1 Slot

• 2 x PCI Slots

Graphics

• Intel®7th generation (Gen 7) graphics

• DirectX 11.0, Pixel Shader 5.0

• Dual graphics output: support HDMI and D-Sub ports by

independent display controllers

• Supports HDMI Technology with max. resolution up to

1920x1200 @ 60Hz

• Supports D-Sub with max. resolution up to 2560x1600 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant

HDMI monitor is required)

• Supports HDCP with HDMI Port

• Supports Full HD 1080p Blu-ray (BD) playback with HDMI

Port

Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• Supports Surge Protection (ASRock Full Spike Protection)

• ELNA Audio Caps

Q1900M Pro3

English

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WAN

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse Port

• 1 x PS/2 Keyboard Port

• 1 x Serial Port: COM1

• 1 x Parallel Port (ECP/EPP support)

• 1 x D-Sub Port

• 1 x HDMI Port

• 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

Connector • 1 x COM Port Header

• 1 x TPM Header

• 1 x Chassis Intrusion Header

• 1 x CPU Fan Connector (3-pin)

• 1 x Chassis Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

English

BIOS

Feature

• 64Mb AMI UEFI Legal BIOS with GUI support

• Supports Plug and Play

• ACPI 1.1 compliant wake up events

• Supports jumperfree

• SMBIOS 2.3.1 support

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-

bit / 7 32-bit / 7 64-bit

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Due to limitation, the actual memory size may be less than 4GB for the reservation

for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-

ing systems do not have such limitations. You can use ASRock XFast RAM to utilize

the memory that Windows® cannot use.

Q1900M Pro3

English

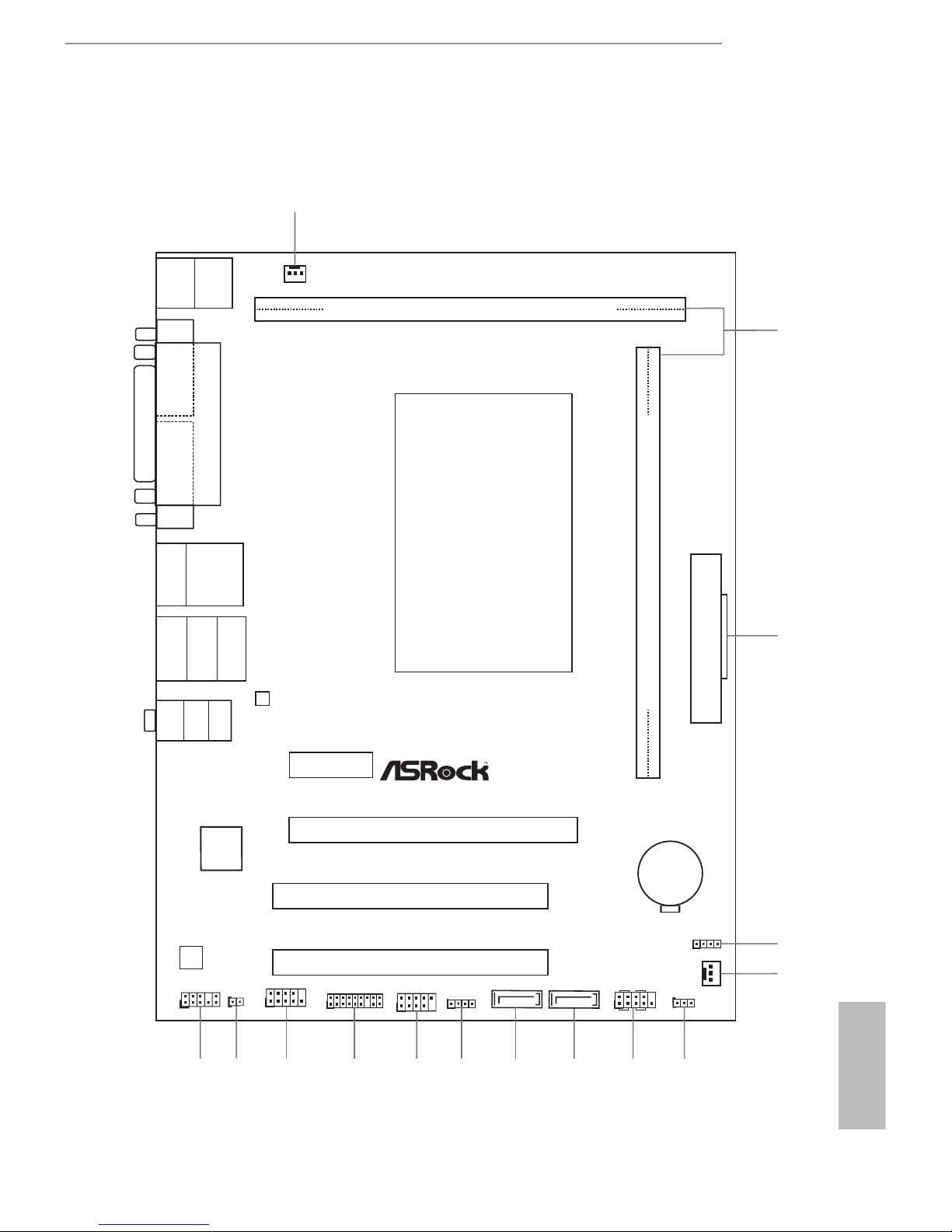

1.3 Motherboard Layout

RoHS

USB 3.0

CMOS

Battery

Super

I/O

LAN

AUDIO

CODEC

PS2

Keyboard

PS2

Mouse

Top:

RJ-45

USB 3.0:

USB3

USB 2.0:

USB2

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

PCIE1

PCIE2

ATXPWR1

HD_AUDIO1

CI1

TPMS 1

COM2

USB4 _5

SPE AKE R1

CLRM OS 1

USB 6

HDLED R ESET

PLED PW RBTN

PANEL1

SATA2 _2

CPU_FAN1

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

13 12 11 9

Q1900M Pro3

PCI1

PCI2

SATA2 _1

CHA_FAN1

PARALLEL PORT

COM1

VGA1

HDMI1

USB 2.0

T: USB0

B: USB1
