ASROCK X300M-STX Bedienungsanleitung

Version 1.0

Published July 2020

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer

Law. You are entitled to a replacement or refund for a major failure and compensation for

any other reasonably foreseeable loss or damage caused by our goods. You are also entitled

to have the goods repaired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

PB 1

English

X300M-STX

Motherboard Layout

Top:

RJ-45

T: USB 2.0

USB2

B: USB 3. 1 Gen1

USB3

Audio

CODEC

USB_4_5

HDLED RESET

PLED PWRBTN

PANEL1

Mic In

USB 3.1 Gen1

USB_TC_1

USB 3.1 Gen1

USB_1

Headphone

/ Headset

VGA1

DDR4_A1DDR4_A1

DDR4_B1

DC Jack

HDMI1

DP1

CI1

Supe r

I/O

BIOS

ROM

M.2 WiFi

M.2 PCIe SSD

CPU_FAN2 CPU_FAN1

AUDIO3

SOCKETAM4

RoHS

8 7 6

CLRMOS1

SPEAKER1

2 3

English

10 11

SATA3SATA3

M2_2

CT1

CMOS

Battery

Back Side View

2 3

English

X300M-STX

No. Description

1 USB 2.0 Header (USB_4_5)

2 Clear CMOS Jumper (CLRCMOS1)

3 Chassis Intrusion Header (CI1)

4 MONO Speaker Header (SPEAKER1)

5 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_B1)

6Audio Header (AUDIO3)

7 System Panel Header (PANEL1)

8 CPU Fan Connector (CPU_FAN1)

9 CPU Fan Connector (CPU_FAN2)

10 SATA3 Connector (SATA2)

11 SATA3 Connector (SATA1)

4 5

English

Front Panel

No. Description No. Description

1Headphone/Headset Jack (AUDIO1) 3 USB 3.1 Gen1 Type-C Port (USB_TC_1)

2 USB 3.1 Gen1 Type-A Port (USB_1) 4 Microphone Input (AUDIO2)

1234

4 5

English

X300M-STX

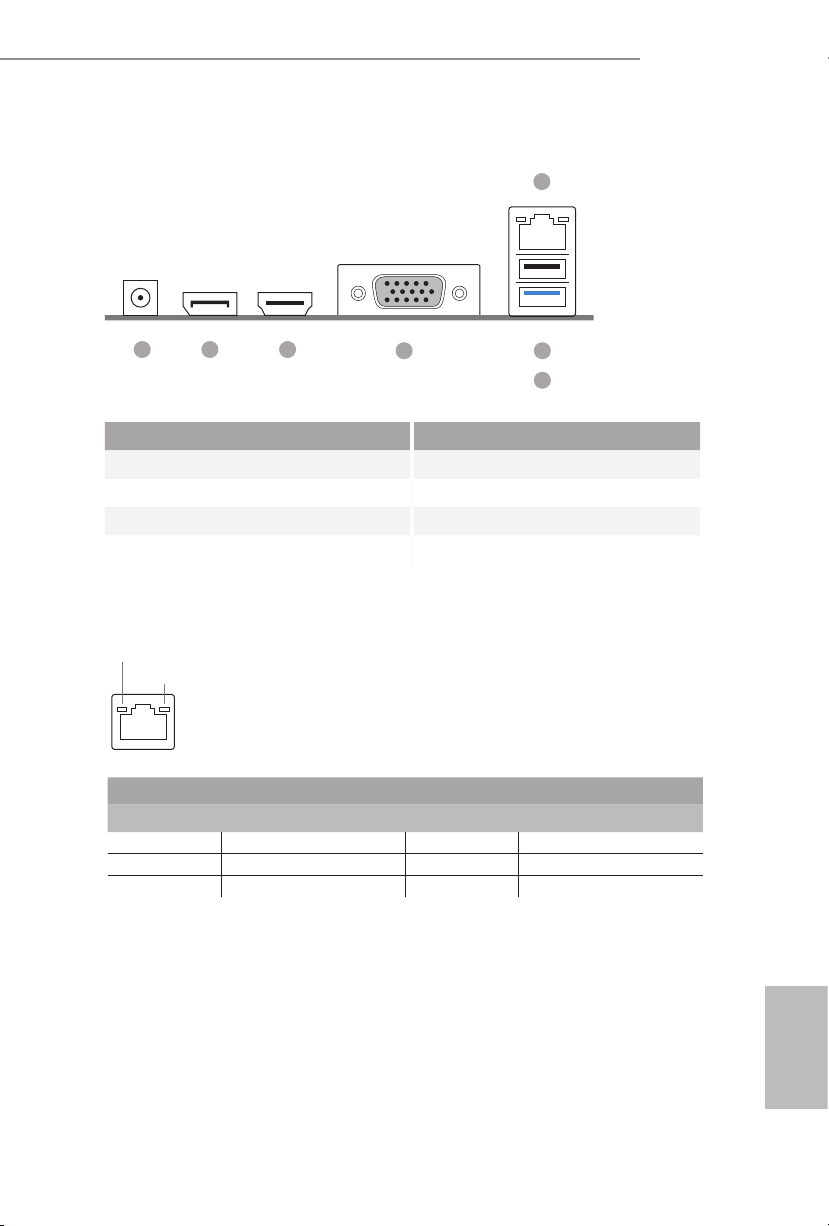

Rear Panel

No. Description No. Description

1 DC Jack 4 D-Sub Port

(Supports 19V DC Power Adapters) 5 USB 2.0 Port (USB_2)

2 Display Port 6 USB 3.1 Gen1 Port (USB_3)

3 HDMI Port 7 LAN RJ-45 Port*

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

1 2 3 4 5

6 7

English

Chapter 1 Introduction

ank you for purchasing X300M-STX motherboard. In this documentation,

Chapter 1 and 2 contains the introduction of the motherboard and step-by-step

installation guides. Chapter 3 contains the operation guide of the soware and

utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

• X300M-STX Motherboard (Mini-STX Form Factor)

• X300M-STX Quick Installation Guide

• X300M-STX Support CD

• 1 x I/O Panel Shield

• 2 x Serial ATA(SATA) Data with Power Cable (Optional)

• 2 x Screws for M.2 Sockets (M2*2) (Optional)

• 1 x Screw for WiFi Module (M2*2) (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice.

6 7

English

X300M-STX

1.2 Specications

Platform • Mini-STX Form Factor

• Solid Capacitor design

CPU • Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven

Ridge, up to 65W)

• Supports CPU up to 65W

• 5 Power Phase design

Chipset • AMD X300

Memory • Dual Channel DDR4 Memory Technology

• 2 x DDR4 SO-DIMM Slots

• AMD Renoir series APUs support DDR4

3200/2933/2667/2400/2133 non-ECC, un-buered memory*

• AMD Ryzen series CPUs (Raven Ridge) support DDR4

2933/2667/2400/2133 non-ECC, un-buered memory*

* Please refer to page 19 for DDR4 SO-DIMM maximum

frequency support.

• Max. capacity of system memory: 64GB

• 15μ Gold Contact in SO-DIMM Slots

Expansion

Slot • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

Graphics • Integrated AMD RadeonTM Vega Series Graphics in Ryzen

Series APU*

* Actual support may vary by CPU

• DirectX 12, Pixel Shader 5.0

• Shared memory default 2GB. Max Shared memory supports

up to 16GB.

* e Max shared memory 16GB requires 32GB system memory

installed.

8 9

English

• ree graphics output options: D-Sub, DisplayPort 1.2 and

HDMI

• Supports Triple Monitor

• Supports HDMI with max. resolution up to 4K x 2K

(4096x2160) @ 60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K

(4096x2304) @ 60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR

(High Bit Rate Audio) with HDMI Port (Compliant HDMI

monitor is required)

• Supports HDCP with HDMI and DisplayPort 1.2 Ports

• Supports 4K Ultra HD (UHD) playback with HDMI and

DisplayPort 1.2 Ports

Audio • Realtek ALC233 Audio Codec

• 1 x Headphone/Headset Jack

• 1 x MIC-In

• 1 x Audio Header

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111H

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Front

Panel I/O

• 1 x Headphone/Headset Jack

• 1 x USB 3.1 Gen1 Type-A Port (Supports ESD Protection (Full

Spike Protection))

• 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection (Full

Spike Protection))

• 1 x Microphone Input Jack
