ASRock Z77 Pro4 Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identica-

tion or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or tness for a particular purpose. In no event shall ASRock, its

directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of prots, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published December 2011

2ASRock Z77 Pro4 Motherboard

21 Power LED Header (PLED1)

22 Chassis Fan Connector (CHA_FAN2)

23 USB 2.0 Header (USB_6_7, Black)

24 USB 2.0 Header (USB_8_9, Black)

25 Consumer Infrared Module Header

(CIR1, Gray)

26 Infrared Module Header (IR1)

27 Clear CMOS Jumper (CLRCMOS1)

28 COM Port Header (COM1)

29 HDMI_SPDIF Header

(HDMI_SPDIF1, Black)

30 Front Panel Audio Header

(HD_AUDIO1, Black)

31 PCI Slot (PCI3, Black)

32 PCI Slot (PCI2, Black)

33 PCI Express 2.0 x16 Slot (PCIE3, Black)

34 PCI Slot (PCI1, Black)

35 PCI Express 3.0 x16 Slot (PCIE2, Black)

36 PCI Express 2.0 x1 Slot (PCIE1, Black)

37 Power Fan Connector (PWR_FAN1)

38 Chassis Fan Connector (CHA_FAN1)

English

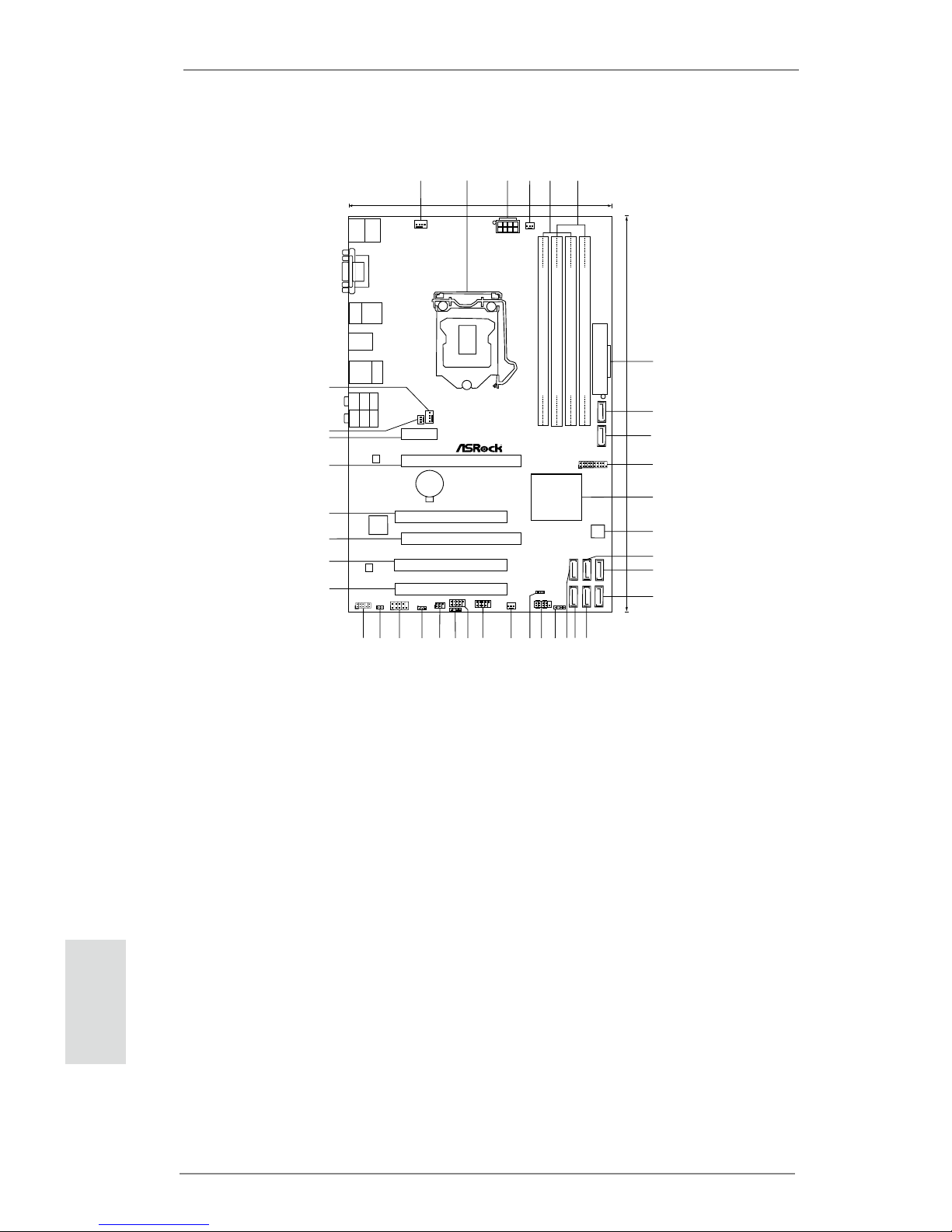

Motherboard Layout

Intel

Z77

SATA3_0

SATA3_1

SATA2_2 SATA2_5

SATA2_3

SATA2_4

CHA_FAN2

64Mb

BIOS

DDR3_ A2 (6 4 bit, 240-pin mo dul e)

DDR3_ A1 (6 4 bit, 240-pin mo dul e)

DDR3_ B2 (6 4 bit, 240-pin mo dul e)

DDR3_ B1 (6 4 bit, 240-pin mo dul e)

ATX12V1

CPU_FAN1

CMOS

Battery

Super

I/O

USB 2.0

T: USB0

B: USB1

PS2

Keyboard

ATXPWR1

USB3_0_1

CPU_FAN2

AUDIO

CODEC

LAN

PHY

HD_AUDIO1

HDMI_SPDIF1

COM1

CLRCMOS1

IR1

USB_8_9

CIR1

USB_6_7

HDLED RESET

PLED PWRBTN

PANEL1

PLED1

SPEAKER1

PCIE1

PCIE2

PCIE3

PCI1

PCI2

PCI3

CHA_FAN1

PWR_FAN1

VGA1

DVI1

HDMI1

USB 2.0

T: USB2

B: USB3

USB 3.0

T: USB2

B: USB3

Top:

RJ-45

USB 2.0

T: USB4

B: USB5

Top:

Central/Bass

Center:

REAR SPK

Top:

LIN E IN

Center:

FRONT

Bottom:

Optical

SPDIF

Bottom:

MIC I N

20.1cm (7.9 in)

30.5cm (12.0 in)

123456

2324

DDR3 2800+

RoHS

Front USB 3.0

Z77 Pro4

XFast USB

XFast LAN

PCI Express 3.0

Designe d in Taipei

ErP/EuP Ready

SATA3 6Gb/s

Xast RAMF

SATA3_A1

SATA3_A2

1 CPU Fan Connector (CPU_FAN1)

2 1155-Pin CPU Socket

3 ATX 12V Power Connector (ATX12V1)

4 CPU Fan Connector (CPU_FAN2)

5 2 x 240-pin DDR3 DIMM Slots

(DDR3_A1, DDR3_B1, Black)

6 2 x 240-pin DDR3 DIMM Slots

(DDR3_A2, DDR3_B2, Black)

7 ATX Power Connector (ATXPWR1)

8 SATA3 Connectors (SATA3_A1, Gray)

9 SATA3 Connectors (SATA3_A2, Gray)

10 USB 3.0 Header (USB3_0_1, Black)

11 Intel Z77 Chipset

12 SPI Flash Memory (64Mb)

13 SATA2 Connectors (SATA2_4, Black)

14 SATA2 Connectors (SATA2_3, Black)

15 SATA3 Connectors (SATA3_0, Gray)

16 SATA3 Connectors (SATA3_1, Gray)

17 SATA2 Connectors (SATA2_2, Black)

18 SATA2 Connectors (SATA2_5, Black)

19 Chassis Speaker Header (SPEAKER1, Black)

20 System Panel Header (PANEL1, Black)

ASRock Z77 Pro4 Motherboard

English

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 USB 2.0 Ports (USB01) 9 Microphone (Pink)

2 D-Sub Port (VGA1) 10 Optical SPDIF Out Port

3 USB 2.0 Ports (USB23) 11 USB 2.0 Ports (USB45)

* 4 LAN RJ-45 Port 12 USB 3.0 Ports (USB3_2_3)

5 Central / Bass (Orange) 13 HDMI Port (HDMI1)

6 Rear Speaker (Black) 14 DVI-D Port (DVI1)

7 Line In (Light Blue) 15 PS/2 Keyboard Port (Purple)

** 8 Front Speaker (Lime)

ACT/LINK

LED

SPEED

LED

LAN Port

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line in

(No. 8) (No. 6) (No. 5) (No. 7)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

1234

13 12

4ASRock Z77 Pro4 Motherboard

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will nd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

English

ASRock Z77 Pro4 Motherboard

1. Introduction

Thank you for purchasing ASRock Z77 Pro4 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock Z77 Pro4 Motherboard

(ATX Form Factor: 12.0-in x 7.9-in, 30.5 cm x 20.1 cm)

ASRock Z77 Pro4 Quick Installation Guide

ASRock Z77 Pro4 Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

English

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

6ASRock Z77 Pro4 Motherboard

English

1.2 Specifications

Platform - ATX Form Factor: 12.0-in x 7.9-in, 30.5 cm x 20.1 cm

- All Solid Capacitor design

CPU - Supports 3rd and 2nd Generation Intel®CoreTM i7 / i5 / i3 in

LGA1155 Package

- Digi Power Design

- 4 + 2 Power Phase Design

- Supports Intel®Turbo Boost 2.0 Technology

- Supports Intel®K-Series unlocked CPU

- Supports Hyper-Threading Technology (see CAUTION 1)

- Supports Intel®Rapid Start Technology and Smart Connect

Technology with Intel®Ivy Bridge CPU

Chipset - Intel®Z77

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 2)

- 4 x DDR3 DIMM slots

- Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/

1600/1333/1066 non-ECC, un-buffered memory

- Max. capacity of system memory: 32GB (see CAUTION 3)

- Supports Intel® Extreme Memory Prole (XMP)1.3/1.2

Expansion Slot - 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode)

(see CAUTION 4)

* PCIE 3.0 is only supported with Intel®Ivy Bridge CPU. With

Intel®Sandy Bridge CPU, it only supports PCIE 2.0.

- 1 x PCI Express 2.0 x16 slot (PCIE3: x4 mode)

- 1 x PCI Express 2.0 x 1 slot

- 3 x PCI slots

- Supports AMD Quad CrossFireXTM and CrossFireXTM

Graphics * Intel®HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU

integrated.

- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick

Sync Video, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000,

Intel®Advanced Vector Extensions (AVX)

- Pixel Shader 5.0, DirectX 11 with Intel®Ivy Bridge CPU.

Pixel Shader 4.1, DirectX 10.1 with Intel®Sandy Bridge CPU

- Max. shared memory 1760MB (see CAUTION 5)

- Three VGA Output options: D-Sub, DVI-D and HDMI

(see CAUTION 6)

- Supports HDMI 1.4a Technology with max. resolution up to

ASRock Z77 Pro4 Motherboard

English

1920x1200 @ 60Hz

- Supports DVI with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @

75Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required) (see CAUTION 7)

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI and HDMI ports

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudioTM

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 2 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone (see CAUTION 8)

SATA3 - 2 x SATA3 6.0 Gb/s connectors by Intel®Z77, support RAID

(RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage and

Intel Smart Response Technology), NCQ, AHCI and Hot

Plug functions

- 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061,

support NCQ, AHCI and Hot Plug functions

USB3.0 - 2 x Rear USB 3.0 ports, support USB 1.0/2.0/3.0 up to

5Gb/s

- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports),

8ASRock Z77 Pro4 Motherboard

English

supports USB 1.0/2.0/3.0 up to 5Gb/s

Connector - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel

Smart Response Technology), NCQ, AHCI and Hot Plug

functions

- 4 x SATA3 6.0Gb/s connectors

- 1 x IR header

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage

Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX

Multimedia Suite - OEM

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 9)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 10)

- ASRock APP Charger (see CAUTION 11)

- ASRock SmartView (see CAUTION 12)

- ASRock XFast USB (see CAUTION 13)

- ASRock XFast LAN (see CAUTION 14)

- ASRock XFast RAM (see CAUTION 15)

- ASRock Crashless BIOS (see CAUTION 16)

- Lucid Virtu Universal MVP (see CAUTION 17)

* Lucid Virtu Universal MVP can be supported only with

processors which are GPU integrated.

- ASRock On/Off Play Technology (see CAUTION 18)

- Hybrid Booster:

ASRock Z77 Pro4 Motherboard

English

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

third-party overclocking tools. Overclocking may affect your system’s stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

- CPU Frequency Stepless Control (see CAUTION 19)

- ASRock U-COP (see CAUTION 20)

- Boot Failure Guard (B.F.G.)

- Combo Cooler Option (C.C.O.) (see CAUTION 21)

- Good Night LED

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan (Allows Chassis Fan Speed Auto-

Adjust by CPU Temperature)

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft®Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit /

XP / XP 64-bit compliant (see CAUTION 22)

Certications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 23)

* For detailed product information, please visit our website: http://www.asrock.com

10 ASRock Z77 Pro4 Motherboard

English

CAUTION!

1. About the settings of “Hyper Threading Technology”, please check page

53 of the “User Manual” in the support CD.

2. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 17 for proper installation.

3. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®OS with 64-bit CPU, there is no such limita-

tion. You can use ASRock XFast RAM to utilize the memory that Win-

dows®cannot use.

4. Only PCIE2 slot supports Gen 3 speed. To run the PCI Express in Gen

3 speed, please install an Ivy Bridge CPU. If you install a Sandy Bridge

CPU, the PCI Express will run only at PCI Express Gen 2 speed.

5. The maximum shared memory size is dened by the chipset vendor and

is subject to change. Please check Intel®website for the latest informa-

tion.

6. You can choose to use two of the three monitors only. D-Sub, DVI-D and

HDMI monitors cannot be enabled at the same time. Besides, with the

DVI-to-HDMI adapter, the DVI-D port can support the same features as

the HDMIport.

7. xvYCC and Deep Color are only supported under Windows®7 64-bit /

7. Deep Color mode will be enabled only if the display supports 12bpc

in EDID. HBR is supported under Windows®7 64-bit / 7 / VistaTM 64-bit /

VistaTM.

8. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-chan-

nel, 6-channel, and 8-channel modes. Please check the table on page 3

for proper connection.

9. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune dif-

ferent system functions in a user-friendly interface, which includes Hard-

ware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware

Monitor, it shows the major readings of your system. In Fan Control, it

shows the fan speed and temperature for you to adjust. In Overclocking,

you are allowed to overclock CPU frequency for optimal system per-

formance. In OC DNA, you can save your OC settings as a prole and

share it with your friends. Your friends then can load the OC prole to

their own system to get the same OC settings. In IES (Intelligent Energy

Saver), the voltage regulator can reduce the number of output phases to

improve efciency when the CPU cores are idle without sacricing com-

puting performance. Please visit our website for the operation procedures

of ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

10. ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

Andere Handbücher für Z77 Pro4

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK N68-GS3 FX Bedienungsanleitung

ASROCK

ASROCK 4CoreDual-SATA2 Bedienungsanleitung

ASROCK

ASROCK FM2A55M-DGS Bedienungsanleitung

ASROCK

ASROCK 4CORE1600-D800 Bedienungsanleitung

ASROCK

ASROCK Z590 Phantom Gaming 4/ac Bedienungsanleitung

ASROCK

ASROCK B450M-HDV R4.0 Bedienungsanleitung

ASROCK

ASROCK ROMED4ID-2T Bedienungsanleitung

ASROCK

ASROCK Q270 Pro BTC+ Bedienungsanleitung

ASROCK

ASROCK K10N78M PRO Bedienungsanleitung

ASROCK

ASROCK A785GMH128M_840 - Bedienungsanleitung

ASROCK

ASROCK EPC621D6U Bedienungsanleitung

ASROCK

ASROCK H470M-HDV Bedienungsanleitung

ASROCK

ASROCK NUC-8365UE Bedienungsanleitung

ASROCK

ASROCK Z590 Phantom Gaming-ITX/TB4 Bedienungsanleitung

ASROCK

ASROCK CONROE1333-DVI-H - V1.0 Bedienungsanleitung

ASROCK

ASROCK H61M-HGS Bedienungsanleitung

ASROCK

ASROCK H55M/USB3 Bedienungsanleitung

ASROCK

ASROCK Z87 OC Formula ac Bedienungsanleitung

ASROCK

ASROCK Z77 Pro4 Bedienungsanleitung

ASROCK

ASROCK H61M-XT PLUS Bedienungsanleitung

ASROCK

ASROCK X570 CREATOR Bedienungsanleitung

ASROCK

ASROCK ALIVEXFIRE-ESATA2 R3.0 - Bedienungsanleitung

ASROCK

ASROCK IMB-155B Bedienungsanleitung

ASROCK

ASROCK H55M - - 11-2009 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
