ASSOCIATED1:10SCALEELECTRICBUGGYMANUAL

INSTRUCTIONMANUALFORTHERC10B3BUGGYKITS

#9003,9013,9032&9043

Masami Hirosaka’s RC10B3 won the

‘99 IFMAR World Championships!

ASSOCIATED’S RC10B3--

6TIMESIFMARWORLDCHAMPION!

RC10B3 TQ’d & won

the 1999 IFMAR Worlds!

RC10B3 TQ’d & won

the 1999 IFMAR Worlds!

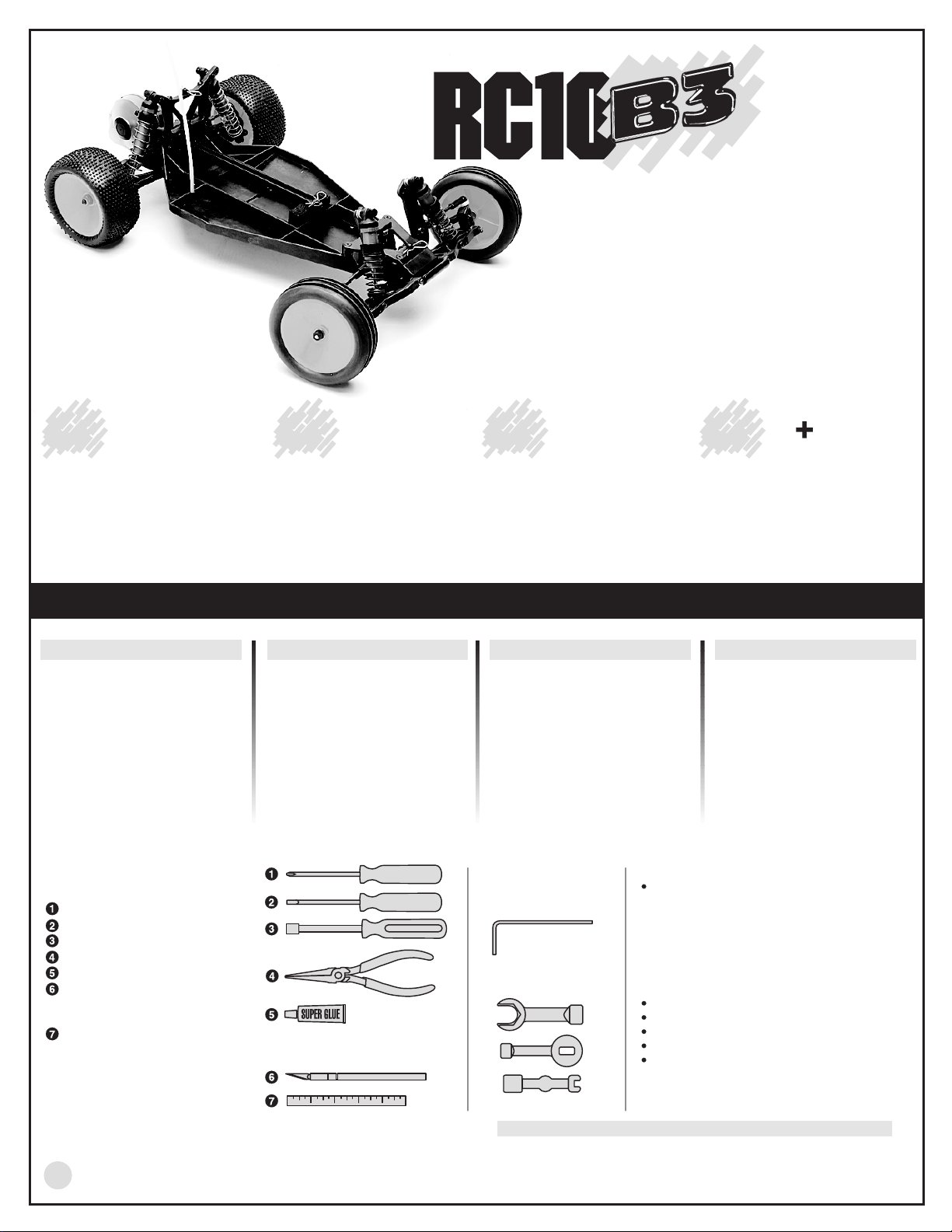

ASSOCIATED1:10SCALEELECTRICBUGGYMANUAL

TEAM KIT SPORT KIT B A S I C K IT

Shocks:Hardanodized,PTFE-

coated gray.

Rear Axles: MIP CVD's.

Also includes:

Ball bearings

throughout.

Shocks: Gold shocks.

Rear Axles: Associated dogbones &

stub axles.

Also includes:

Mechanical speed

control and motor. Bushings

throughout.

Shocks: Gold shocks.

Rear Axles: Associated dogbones &

stub axles.

Also includes:

Bushings

throughout.

All kit versions include:

2.40:1 Stealth transmission for effortless power handling.

Molded composite chassis for better rigidity and Lexan B3 racing body.

Quadra-symmetric suspension for greater stability and handling.

Optimized front end geometry improves steerging and increases rigidity.

Adjustable battery placement for fine tuning of traction or steering.

2.2" one-piece front and rear wheels.

Pro-Line 4 Rib M2 front tires and Pro-Line "Holeshot" M2 rear tires.

FAC TO R Y TEA M

Shocks:Hardanodized,PTFE-

coated gray.

Rear Axles: MIP CVD's.

Also includes:

Factory Team

parts, ball bearings throughout.

YOU WILL NEED THESE TOOLS

TO ASSEMBLE YOUR KIT

Phillips screwdriver #2.

1/8" flat head screwdriver.

5/16" driver or glow plug wrench.

Needlenose pliers.

Super glue (cyanoacrylic glue).

Hobby knife

WARNING!

This knife

cuts plastic and fingers with equal

ease, so be careful.

Precision ruler.

WARNING! Always use hand and eye

protection with cyanoacrylic glue!

for the

B3 Basic+ kit #9003

R/C two channel surface

frequency radio system

with one servo.

Battery pack (6 cell).

Battery charger (we recommend

a peak detection charger).

Electronic speed control.

Pinion gear, 48 ptich. Teeth to be

determined by type and wind of

motor.

REQUIRED EQUIPM ENTTO RUN YOUR KIT

for the

B3 Sport kit #9013

R/C two channel surface

frequency radio system

with two servos.

Battery pack (6 cell).

Battery charger (we recommend

a peak detection charger).

for the

B3 Team kit #9032

R/C two channel surface

frequency radio system

with one servo.

Battery pack (6 cell).

Battery charger (we recommend

a peak detection charger).

Electronic speed control.

R/C electric motor.

Pinion gear, 48 ptich. Teeth to be

determined by type and wind of

motor.

TOOLS SUPPLIED

Allen wrenches, .050",

1/16", 3/32", 5/64".

Molded tools (#6956):

for the

Factory Team kit #9043

R/C two channel surface

frequency radio system

with one servo.

Battery pack (6 cell).

Battery charger (we recommend

a peak detection charger).

Electronic speed control.

R/C electric motor.

Pinion gear, 48 ptich. Teeth to be

determined by type and wind of

motor.

HELPFUL TOOLS (NOT REQUIRED)

Allen drivers (straight Allen wrenches with hex

shaped handles) such as the following made by

Associated:

#6957 .050" Allen wrench

#6958 1/16" Allen wrench

#6959 5/64" Allen wrench

#6960 3/32" Allen wrench

#6961 2.5mm Allen wrench

Hand drill with 1/8" & 1/4" bits

Vernier calipers

Hobby scissors

Liquid dish soap

Nut drivers (screwdriver-handled hex socket

tools) such as the following from Associated:

#SP-86 3/16" nut driver

#SP-85 1/4" nut driver

WARNING!

Do not use a power screwdriver to install screws into nylon, plastic, or

composite materials. The fast rotation speed can heat up the screws being

installed. They can then break the molded parts or strip the threads during

installation.

7211

6273, qty 2

ball end

7210, qty 2

front block carrier,

30° caster 6272, qty 4

dust cover

7220, qty 2

front steering

block

6951, qty 2

4-40 set screw

6299, qty 2

E-clip

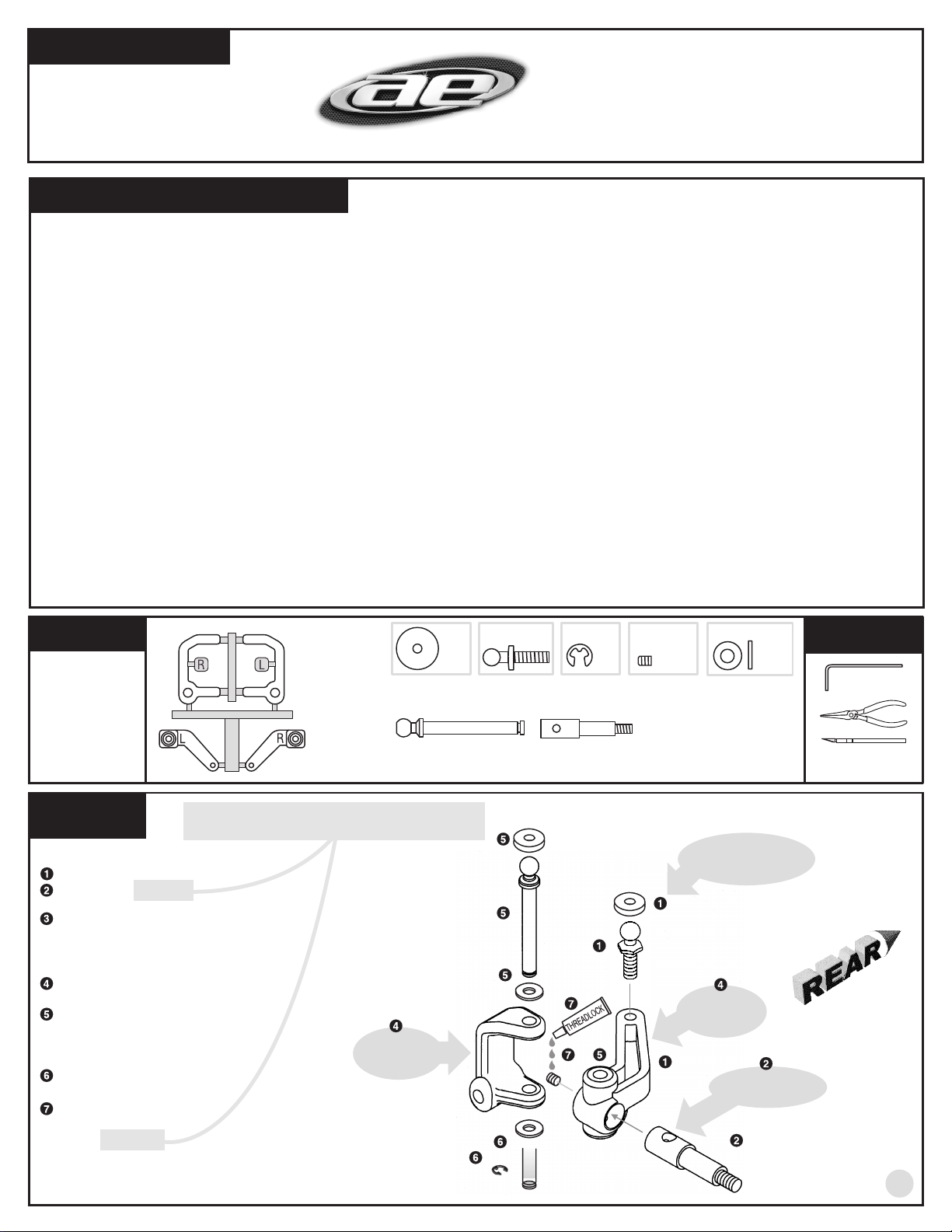

step 1

ASSEMBLE STEERING BLOCKS

Assemble parts #7220, 6273 and 6272.

Push #7221 (7221B*) axle into the #7220 steering

block, lining up holes.

Push the #7211 kingpin through both to clear any

burrs. Then remove the kingpin.

ASSEMBLE BLOCK CARRIERS

Note location of L and R on #7210 block carriers and

#7220 steering blocks.

Align holes of #7220 (L) inside #7210 (L). Add

one #4187 spacer to #7211 kingpin and insert

#7211 through block and axle. Add a #6272

dust cover to the ball end as shown.

Insert one #4187 spacer and then one #6299

E-clip to the bottom of #7211 kingpin.

Add screw locking compound such as Loctite® (not

included in kit) to #6951 set screw and tighten into

#7221 (7221B*).

Now assemble right side.

LEFT S ID E

7210

6273

6299

"L" = left side

"R" = right side

BAG A

REMOVE THESE

PARTS FOR:

Step 1

.050

1:1

1:1 1:1

7221, 7221B*

6272

(foam)

TOOLS USED

Match this number

to the text to find

your way faster

Align this hole

with hole in #7220

7220

6951

6272

(foam)

4187

"L" = left side

"R" = right side

7221

, 7221B*

, qty 2

front axle

7211, qty 2

kingpin ball end

4187, qty 4

1/32" thin plastic

washer

1:1

REACHING US

ASSOCIATED ELECTRICS, INC.

3585 Cadillac Ave.

Costa Mesa, CA 92626-1401

USA

http://www.rc10.com

CUSTOMER SUPPORT

(714) 850-9342

Fax (714) 850-1744

http://www.rc10.com/help

http://www.rc10.com/kits

READ THIS BEFOREBUILDING

READ THE MANUAL!

This manual is for four different B3 kits and will help you

assemble and set up each one. Read the manual before

starting your kit and before contacting us for help.

"Hello,

Associated, I need some help." "Did you read the manual?"

OPEN THE BAGS IN ORDER

The assembly is arranged so that you will open and finish that

bag before you go on to the next bag. Sometimes you will

have parts remaining at the end of a bag. These will

become part of the next bag. Some bags may have a large

amount of small parts. To make it easier to find the parts, we

recommend using a partitioned paper plate for spreading out

the parts so they will be easier to find.

SUPPLEMENTAL SHEETS

We are constantly updating parts to improve our kits. These

changes, if any, will be noted in supplementary sheets located

in a parts bag or inside the kit box. Check the kit box before

you start and each bag as it is opened. When a supplement is

found, attach it to the appropriate section of the manual.

MANUAL FORMAT

The following explains the format of these instructions.

The beginning of each section indicates:

1Which bag to open ("BAG A") and which steps you'll be using

those parts for ("FOR STEPS 1-3").

2Which parts you will use for those steps. Remove only the

parts shown. "1:1" indicates an actual size drawing; place your

part on top and compare it so it does not get confused with a

similar part.

3Which tools you should have handy for that section.

4An asterix ( * ) next to a part number indicates the part used in

the Factory Team B3 kit. (You can use those numbers to

upgrade your B3 kits to Factory Team specs.)

5 The instructions in each step are ordered in the order you

complete them, so read the words AND follow the pictures. The

numbers in circles are also in the drawing to help you locate

them faster.

6When we refer to left and right sides of the buggy, we are

referring to the driver's point of view inside the car.

Asterix ( * ) denotes Factory Team part number.

Use this number if you have the Factory Team kit.

ball cups thread on in opposite directions

1:1

REMOVING BALL CUPS

Hold the cup next to the ball

with your pliers and twist the

cup off

9142, 9143*, qty 1

front shock tower

REMOVE SUSPENSION ARMS

Twist the #9107 (9108*) suspension arms

from the mold runners (shown in gray)

with your pliers, and trim away remaining

molding with your hobby knife. Do not cut

off the antiroll mounting balls. Carefully trim

balls so they are perfectly smooth.

ARMS TO BULKHEAD

Attach the block carrier assembly to the #9107 (9108*)

suspension arm with its #9115 hinge pin and #6299 E-clips.

Align the #9125 bulkhead with the #9107 suspension arm

hinge pin holes as shown. Install #6299 E-clip to one end of

#9110 hinge pin. Next hold the #9120 front cross brace in

front of the suspension arm while sliding the #9110 hinge

pin through the assembly. Install #6299 E-clip to other end

of pin. Assemble the other side the same way.

SHOCK TOWER TO BULKHEAD

Attach the shock screws and hardware #7413,

6936 and 6295. Do other side.

Attach the #9145 ball ends and #7260 nuts

through middle holes.

Attach the shock tower to the bulkhead with

the three #6924 screws.

Twist #7230 ball cups onto the #6263 (-

(1406*) turnbuckle until you get the

dimension shown.

Connect ball ends with the turnbuckle ball

cups as shown, using your needlenose

pliers.

7413, qty 2

4-40 x 3/4 6936, qty 2

#4 washer

6295, qty 2

4-40 nut 6924, qty 3

4-40 x 3/8

9145, qty 2

ball end 7230, qty 4

large ball cup

6263, 1406*, qty 2

2.06" turnbuckle

9110, qty 2

front inner hinge pin 9115, qty 2

front outer hinge pin

6299, qty 8

E-clip

9120, qty 1

cross brace

steel

9125, qty 1

front bulkhead

step 2

LEFT S ID E

BAG A

7260, qty 2

4-40 nut

3/32"

1:1

1:1 1:1

1:1

1:11:11:1

1:1 1:1

1:1

TOOLS USED

COMPLETED FRONT ASSEMBLY

9107, 9108*, qty 2

front suspension arm

V IEW ED FR O M R EAR

REMOVE THESE

PARTS FOR:

Step 2

9107,

9108*

9115

9125

9145

6924

7230

9120

7260

6295

6936

6924

7230

9110

6299

7260

7413

9107, 9108*

6299

HOW TO USE THE

TURNBUCKLE WRENCH

2 3/4" (2.75" or 69.9mm)

6924

6263, 1406*

DO NOT CUT OFF BALLS.

REMOVE FLASHING SO BALLS

ARE PERFECTLY SMOOTH.

9107, 9108*

6263, 1406*

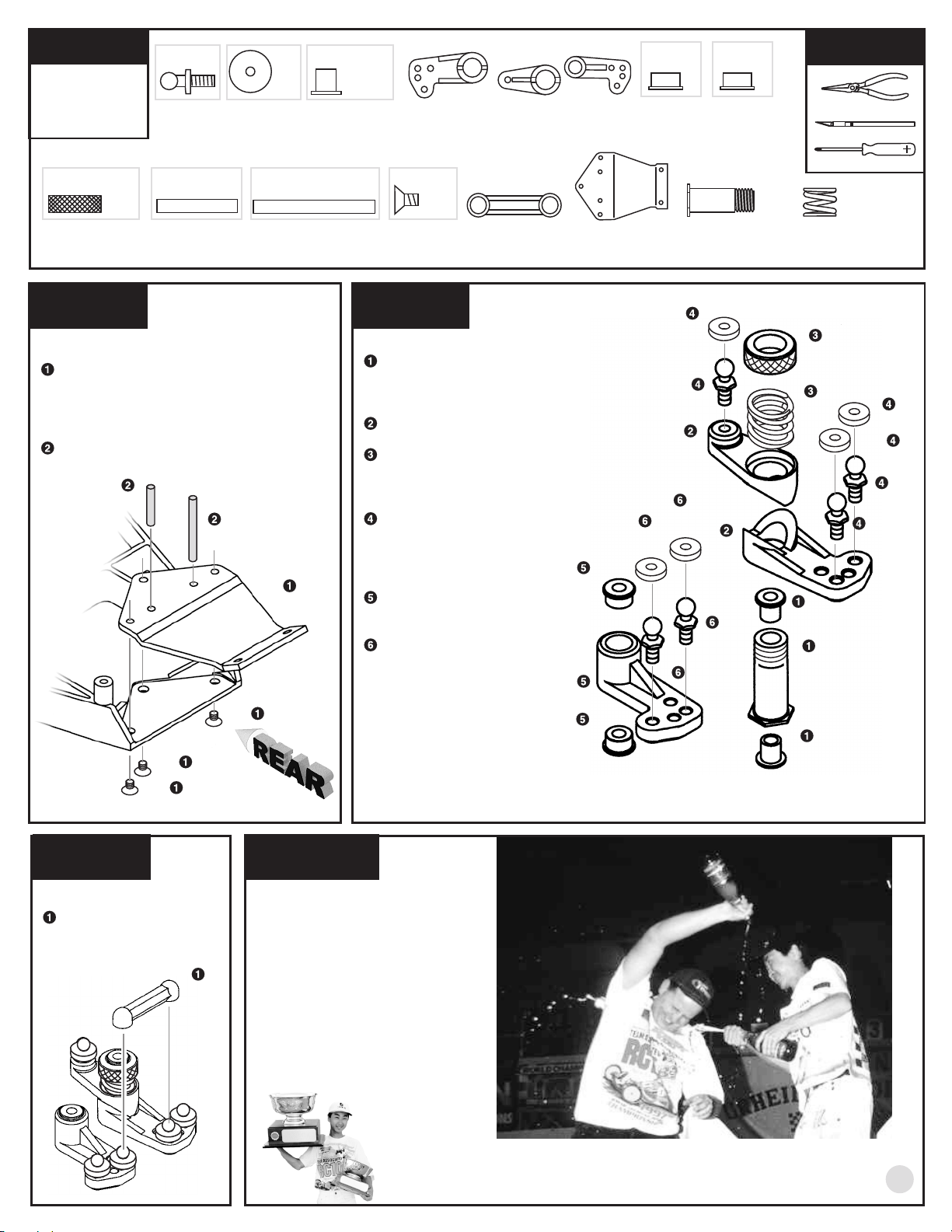

KICKUP TO CHASSIS

Add screw locking compound such as

Loctite© (not included in kit) to the three

#9215 screws and attach the #9210 (9210B*)

aluminum kickup (nose plate) to the #9200

(9199*) chassis.

Place the two #9160 servo saver/bell crank

mounting pins in the locating holes.

9215, qty 3

6-32 x 3/16

step 1

9160, qty 1

mounting pin,

right hand

9160, qty 1

mounting pin,

left hand

SERVO SAVER

Push one #9155 servo saver

bushing into each end of the

#9158 (9156B*) aluminum

tube.

Slide the two #9155 servo

saver arms onto the tube.

Slide the spring and adjusting

nut on the tube. Tighten the

nut until 1/32" of the tube

threads are exposed.

Add three #6270 ball ends

where shown and three #6272

foam dust covers onto them.

BELLCRANK

Install the two #9155 (9162*)

bushings or 9162* bearings

into the bell crank.

Add two #6270 ball ends

where shown and two #6272

foam dust covers onto them.

6270, qty 5

ball end 6272, qty 5

dust cover 9155, 9162*, qty 2

left hand servo

saver bushing

9155, qty 1

servo saver arm 9155, qty 1

servo saver

arm

9155, qty 2

bell crank

bushing

9158, 9156B*, qty 1

tube,

aluminum

9158, 9156B*, qty 1

adjusting nut 9158, qty 1

servo saver

spring

9155, qty 1

bell crank

9165, qty 1

drag link

DRAG LINK

Install the #9165 drag link

over the two ball ends with

your needlenose pliers.

1:1 1:1

1:1 1:1 1:11:1

1:1 1:1

9210, 9210B*, qty 1

kickup

TOOLS USED

step 2

step 3 PROFILE

IFMAR 2WD World Champion

Masami has a long string of wins for

Associated 2WD and Yokomo 4WD

cars. Masami drove the fastest car at

the '97 World's with his RC10B3

buggy, and took top honors in the

4WD category.

At the '99 Worlds in Finland Mark

Pavidis (left) TQ'd with his RC10B3

and Masami (right) was crowned as

World Champion driving his B3.

REMOVE THESE

PARTS FOR:

Steps 1-3

9210,

9210B*

9160

9215

9160

9200,

9199* 9215

9215

6272

(foam)

6272

(foam)

9155

9158, 9156B*

9155

9155,

9162*

9155,

9162*

9155

6272

6270

9158, 9156B*

9158

6272

9165

BAG B

9162*, qty 2

bell crank

ball bearing

1:1

Masami in 1997

Mark Pavidis

Masami Hirosaka

2WD World Champion

IFM AR W ORLD CHAM PIONSHIPS,1999

The RC10B3 TQ'd and w on the

1999 IFM AR W orld Cham pionship

SERVO SAVER TO CHASSIS

Place the servo saver assembly over the

pins.

TOP PLATE TO CHASSIS

Line up the #9130 (9131*) front top plate

with the servo saver pins and screw holes.

Bolt down the top plate with two #6923

screws tightly,

then back off both screws

one full turn.

This will allow us to

accomplish step 5 below.

6292, qty 2

4-40 x 3/8

BAG B

9130, 9131*, qty 1

front top plate

6923, qty 2

4-40 x 3/4 9220, qty 1

front bumper

7673, 6933*, qty 2

4-40 x 5/16

1:1 1:1 1:1

BUMPER TO CHASSIS

Use two #6922 (6934*)

screws to secure the top plate

to front bulkhead.

FRONT END TO CHASSIS

Slip front end under top plate, then

push rearward over kickup.

TOOLS USED

step 4

1/16"

step 5

step 6

REMOVE THESE

PARTS FOR:

Steps 4-6 6922, 6934*, qty 2

4-40 x 1/2

1:1

6922,

6934*

9130, 9131*

6923

under top plate

6292 6292

9220

7673,

6933*

over kickup

Secure front bulkhead to kickup plate

with two #6292 screws.

Go back and tighten the two #6923

screws from Bag B, step 4.

Bolt on the #9220 bumper with the two

#7673 (6933*) screws.

6922,

6934*

7673,

6933*

BAG B

6263, 1406*, qty 2

2.06" turnbuckle

7230, qty 4

large ball cup

1:1 1:1

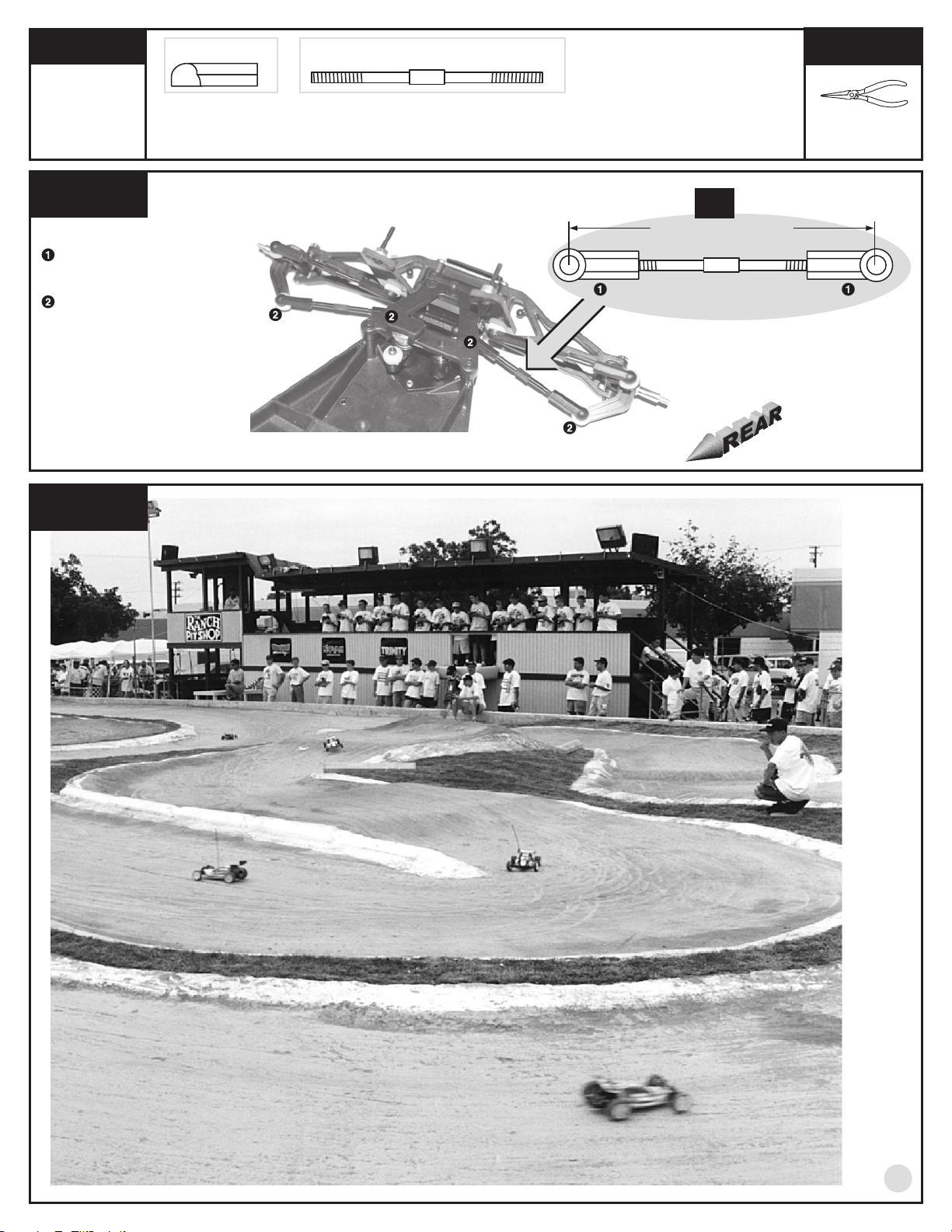

TURNBUCKLES

Add #7230 ball cups to two

#6263 or 1406* turnbuckles to

the dimension shown.

Pop on the turnbuckles. Do both

sides.

TOOLS USED

step 7

PROFILE

Ranch Pit Shop

The RC10B3 TQ'd as the fastest car in the World's on this track

in Pomona, California, site of the 1997 IFMAR Off Road World

Championships. The B3 was driven by Masami Hirosaka, multi-

World Champion from Japan.

The B3 was later to come back to TQ and win at the very next

'99 World's at Finland!

REMOVE THESE

PARTS FOR:

Step 7

ball cups thread on in opposite directions

2 47/64" (2.74 or 69.5mm)

1:1

TRIM SUSPENSION ARMS

Twist the #9257 (9258*) suspension arms

from the mold runners (shown in gray) with

your pliers, and trim away the remaining

molding with your hobby knife.

step 2

LEFT S ID E

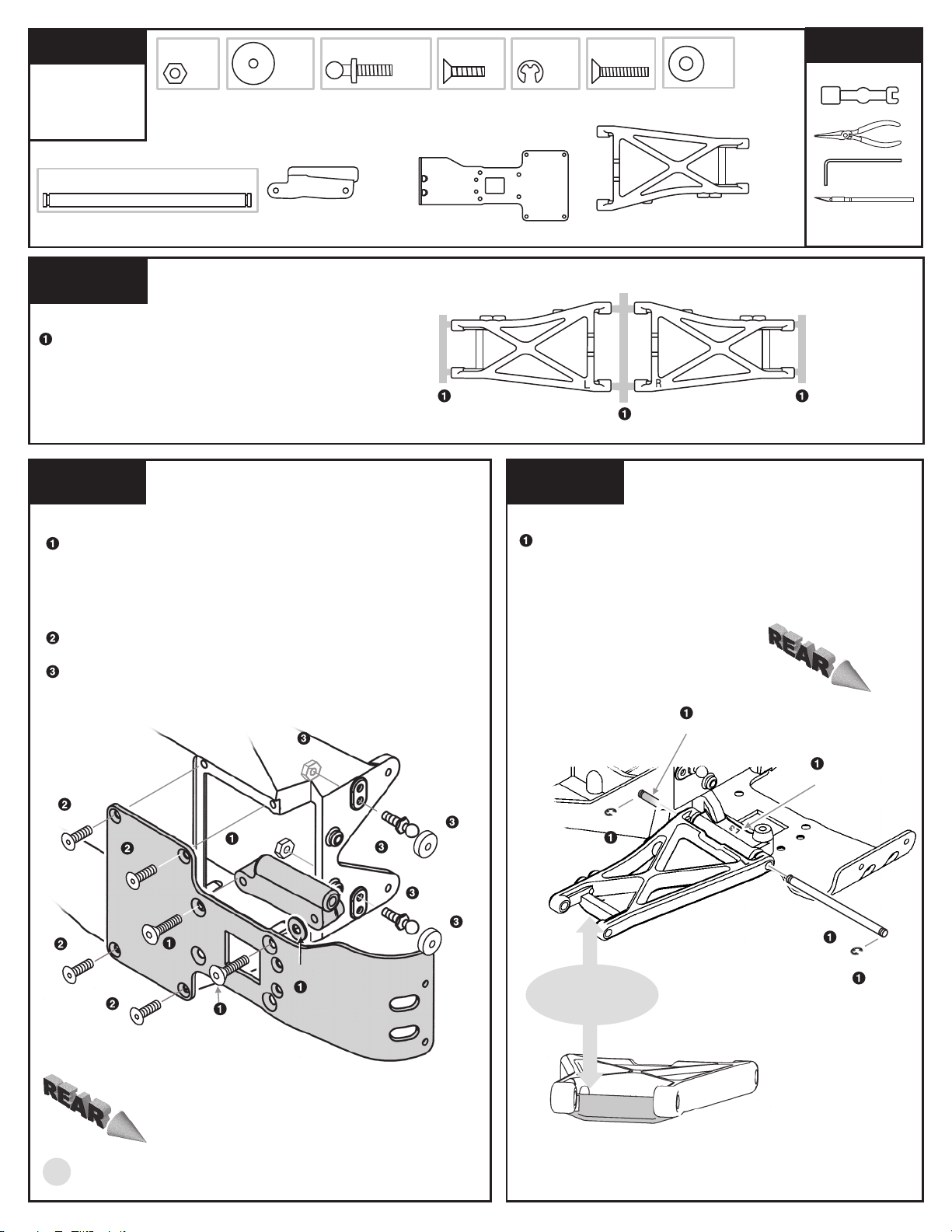

REAR PLATE TO CHASSIS

Attach the two #9267 (3-3) rear suspension arm mounts to the #9241

(9241B*) chassis plate with two #9269 5-40 x 1/2 screws and a single

#6936 washer as shown.

These mounts are marked L3-3 (left) and R3-3 (right). The coding

stands for 3° toe in and 3° anti-squat.

NOTE: by using the #4 washer,

your anti-squat is effectively reduced to 1.5°.

Fasten the chassis plate to the bottom of the chassis with four #6292

screws.

Add two #6273 ball ends to the inside holes of the chassis, then thread

on the #7260 nuts to the ball ends. Then add the #6272 foam dust

covers.

SUSPENSION ARMS TO MOUNTS

Attach the #9257 (9258*) left suspension

arm to the #9267 left mount with the #9260

hinge pin and #6299 E-clips.

Now do the right side.

step 1

step 3

LEFT S ID E

9257, 9258*, qty pr

rear suspension arm

9267, qty 2

rear suspension mount, 3-3

(3° toe-in, 3° anti-squat)

9260, qty 2

rear inner hinge pin 9241, 9241B*, qty 1

rear chassis plate

7260, qty 2

4-40 nut 6272, qty 2

dust cover

1:1 1:1 1:1

6273, qty 2

ball end

1:1

6299, qty 4

E-clip

1:1

9269, qty 4

5-40 x 1/2

1:1

6292, qty 4

4-40 x 3/8

1:1

TOOLS USED

1/16", 5/64"

6936

1:1

6936, qty 2

#4 washer

9241,

921B*

6299

9260

6299

9260

9257,

9258*

9241,

9241B*

9267 6272

(foam)

6272

(foam)

6273

6292

9269

7260

6292

REMOVE THESE

PARTS FOR:

Steps 1-3

9267

Make sure the

arm outer rib

is facing down

9257, 9258*

BAG C

9257, 9258*

9269

Andere Handbücher für RC10B3

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Associated Electrics Motorisiertes Spielzeugauto Handbücher

Associated Electrics

Associated Electrics rc10b5 Bedienungsanleitung

Associated Electrics

Associated Electrics Nomad-DB8 Bedienungsanleitung

Associated Electrics

Associated Electrics RC82 Bedienungsanleitung

Associated Electrics

Associated Electrics RC10TC6.1-FT Bedienungsanleitung

Associated Electrics

Associated Electrics Pro SC 4x4 Qualifier Series Bedienungsanleitung

Associated Electrics

Associated Electrics DR10 Bedienungsanleitung

Associated Electrics

Associated Electrics RC10B3 Bedienungsanleitung

Associated Electrics

Associated Electrics 8400 Bedienungsanleitung

Associated Electrics

Associated Electrics RC10GT Bedienungsanleitung

Associated Electrics

Associated Electrics MGT 4.60 SE Bedienungsanleitung

Associated Electrics

Associated Electrics RC10 B4.2 Bedienungsanleitung

Associated Electrics

Associated Electrics RC18T Bedienungsanleitung

Associated Electrics

Associated Electrics RC8 B3.1E Bedienungsanleitung

Associated Electrics

Associated Electrics ELEMENT RC ENDURO GATEKEEPER KIT 40110 Handbuch

Associated Electrics

Associated Electrics Qualifier Series Bedienungsanleitung

Associated Electrics

Associated Electrics SC10GT Bedienungsanleitung

Associated Electrics

Associated Electrics Qualifier Series Bedienungsanleitung

Associated Electrics

Associated Electrics APEX2 SPORT Bedienungsanleitung

Associated Electrics

Associated Electrics Element RC Enduro Bedienungsanleitung

Associated Electrics

Associated Electrics RC10 T4.2 Bedienungsanleitung

Associated Electrics

Associated Electrics RC10 B74.2D TEAM KIT Bedienungsanleitung

Associated Electrics

Associated Electrics REEDY POWER RC10 T6.4 TEAM KIT Bedienungsanleitung

Associated Electrics

Associated Electrics TEAM ASSOCIATED RC10B4 Bedienungsanleitung

Associated Electrics

Associated Electrics TEAM ASSOCIATED RC10B4 Bedienungsanleitung

Beliebte Motorisiertes Spielzeugauto Handbücher anderer Marken

Eduard

Eduard Humber Scout Car Mk.I exterior Bedienungsanleitung

Traxxas

Traxxas 4995X Bedienungsanleitung

Jamara

Jamara VW T1 Bus Bedienungsanleitung

REVELL

REVELL 68 CHEVY CHEVELLE SS 396 Bedienungsanleitung

Schumacher

Schumacher Pro Cat Bedienungsanleitung

Tamiya

Tamiya TT-01 TYPE E Bedienungsanleitung

Eduard

Eduard Krupp Protze 6x4 1/48 Bedienungsanleitung

New Bright

New Bright 61072UEP Bedienungsanleitung

Team Durango

Team Durango DEX410v5 Bedienungsanleitung

Jamara

Jamara Mercedes Actros Muldenkipper 2,4 GHz Bedienungsanleitung

PLAYMOBIL

PLAYMOBIL 9536 Bedienungsanleitung

Atomic

Atomic BZ3 Bedienungsanleitung

Aiyaplay

Aiyaplay 370-290V00 Bedienungsanleitung

Power Wheels

Power Wheels GRJ53 Bedienungsanleitung

ZEROTRIBE

ZEROTRIBE Zetricks ZT1144 Bedienungsanleitung

INJUSA

INJUSA 412 Bedienungsanleitung

Maverick

Maverick MSC-30BR-WP Bedienungsanleitung

Land of B.

Land of B. Rollin' Riders Bedienungsanleitung
