Asus Zenfone Go Bedienungsanleitung

U11349-1

User Guide

U11349-1_ZB500KL_UM_(EU)_Booklet.indb 1 2016/7/28 14:52:10

First Edition / April 2016

Model: ASUS_X00AD (ZB500KL)

ASUS_X00ADC (ZB500KL)

ASUS_X00ADA (ZB500KL)

Before you start, ensure that you have read all the safety

information and operating instructions in this User

Guide to prevent injury or damage to your device.

NOTE: For the latest updates and more detailed

information, please visit www.asus.com.

Front features

Touch screen

display

Receiver

LED indicator

Touch keys

Sensor

Front camera

U11349-1_ZB500KL_UM_(EU)_Booklet.indb 2 2016/7/28 14:52:10

Side features

NOTE: Pry open the rear cover from the groove.

Power Key

Audio jack

Micro USB port

Groove

U11349-1_ZB500KL_UM_(EU)_Booklet.indb 3 2016/7/28 14:52:11

Rear features

NOTES:

• Removetherearcovertodisplaythedualmicro

SIM and microSD card slots.

• ThemicroSIMcardslotssupportLTE,WCDMA,

and GSM/EDGE network bands.

• ThemicroSDcardslotsupportsmicroSDand

microSDHC card formats.

Rear camera

Camera ash

Rear cover

Speaker

NOTES:

• Useonlythepoweradapterthatcamewithyour

device. Using a diﬀerent power adapter may damage

your device.

• UsingthebundledpoweradapterandASUSPhone

signal cable to connect your ASUS Phone to a power

outlet is the best way to charge your ASUS Phone.

• Theinputvoltagerangebetweenthewalloutletand

thisadapterisAC100V-240V.Theoutputvoltageof

the micro USB cable is +5.2V, 1A/1.35A.

IMPORTANT!

• YourASUSPhonecomespartiallychargedbutyoumust

chargeitfullybeforeusingitforthersttime.Readthe

important notices and cautions before charging your

device.

• WhenusingyourASUSPhonewhileitispluggedtoa

power outlet, the grounded power outlet must be near

to the unit and easily accessible.

• WhenchargingyourASUSPhonethroughyour

computer, ensure that you plug the micro USB cable to

your computer’s USB 2.0 / USB 3.0 port.

• AvoidchargingyourASUSPhoneinanenvironment

with ambient temperature of above 35oC (95oF).

Volume key

Microphone

U11349-1_ZB500KL_UM_(EU)_Booklet.indb 4 2016/7/28 14:52:11

Rear features

Charging your ASUS Phone

To charge your ASUS Phone:

1. Connect the USB connector into the power

adapter’s USB port.

2. Connect the other end of the micro USB cable to

your ASUS Phone.

3. Plug the power adapter into a wall socket.

NOTES:

• Useonlythepoweradapterthatcamewithyour

device. Using a diﬀerent power adapter may damage

your device.

• UsingthebundledpoweradapterandASUSPhone

signal cable to connect your ASUS Phone to a power

outlet is the best way to charge your ASUS Phone.

• Theinputvoltagerangebetweenthewalloutletand

thisadapterisAC100V-240V.Theoutputvoltageof

the micro USB cable is +5.2V, 1A/1.35A.

IMPORTANT!

• YourASUSPhonecomespartiallychargedbutyoumust

chargeitfullybeforeusingitforthersttime.Readthe

important notices and cautions before charging your

device.

• WhenusingyourASUSPhonewhileitispluggedtoa

power outlet, the grounded power outlet must be near

to the unit and easily accessible.

• WhenchargingyourASUSPhonethroughyour

computer, ensure that you plug the micro USB cable to

your computer’s USB 2.0 / USB 3.0 port.

• AvoidchargingyourASUSPhoneinanenvironment

with ambient temperature of above 35oC (95oF).

U11349-1_ZB500KL_UM_(EU)_Booklet.indb 5 2016/7/28 14:52:11

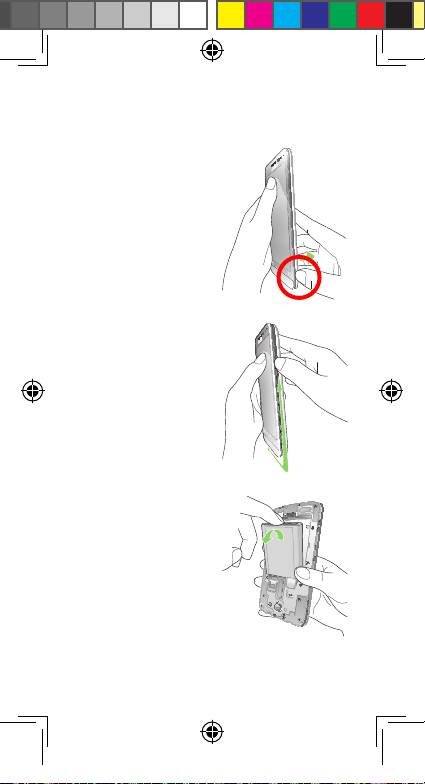

1. Locate the groove

on the bottom-right

corner of your ASUS

Phone.

Installing a micro SIM card

To install a micro SIM card:

2. Pry the cover loose and

then pull the rear cover

oﬀ.

4. Insert the micro SIM card into one of the micro SIM

card slots.

3. Removethebattery.

U11349-1_ZB500KL_UM_(EU)_Booklet.indb 6 2016/7/28 14:52:12

NOTES:

• ThemicroSIMcardslot2isatthelowerpartof

the micro SIM / micro SD combo card slot.

• BothMicroSIMcardslotssupport2G/3G

WCDMA/4GLTEnetworkbands.Butonlyone

microSIMcardcanconnectto2G/4GLTEservice

at a time.

CAUTION!

• Donotusesharptoolsorsolventonyourdevice

to avoid scratches on it.

• UseonlyastandardmicroSIMcardonyour

ASUS Phone. A nano to micro SIM adapter or a

trimmed SIM card may not properly ﬁt into and

may not be detected by your ASUS Phone.

• DO NOT install an empty nano to micro SIM

adapter into the micro SIM card slot to avoid

irreversible damage.

Micro SIM card

2/microSD card

combo card slot

Micro SIM card 1

1. Locate the groove on

the bottom-right corner

of your ASUS Phone.

Installing a microSD card

To install a microSD card:

U11349-1_ZB500KL_UM_(EU)_Booklet.indb 7 2016/7/28 14:52:12

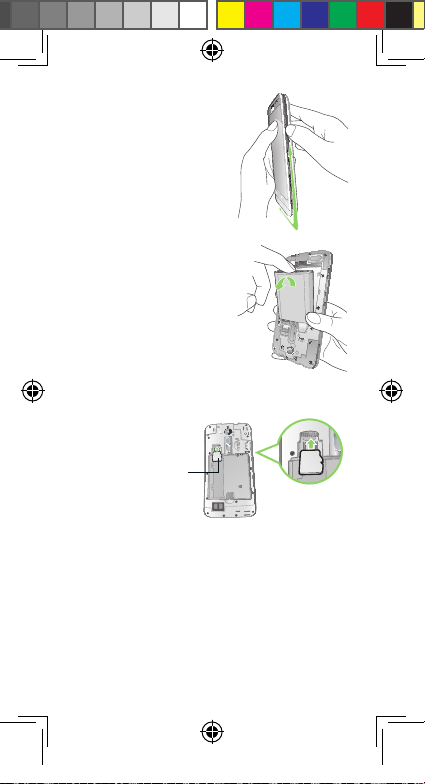

2. Pry the cover loose

and then pull the rear

cover oﬀ.

4. Insert the microSD card into the microSD card slot.

Micro SIM card 2/

microSD card combo

card slot

3. Removethebattery.

U11349-1_ZB500KL_UM_(EU)_Booklet.indb 8 2016/7/28 14:52:13

CE RF Exposure Compliance

ThisdevicemeetstheEUrequirements(1999/519/EC)

on the limitation of exposure of the general public to

electromagnetic ﬁelds by way of health protection.

For body-worn operation, this device has been

testedandmeetstheICNIRPguidelinesandthe

European Standard EN 62209-2, for use with dedicated

accessories.SARismeasuredwiththisdeviceata

separation of 0.5 cm to the body, while transmitting at

thehighestcertiedoutputpowerlevelinallfrequency

bands of this device. Use of other accessories which

containmetalsmaynotensurecompliancewithICNIRP

exposure guidelines.

CE Mark Warning

CE marking for devices with wireless LAN/

Bluetooth

Thisequipmentcomplieswiththerequirementsof

Directive 1999/5/EC of the European Parliament and

Commissionfrom9March,1999governingRadio

andTelecommunicationsEquipmentandmutual

recognitionofconformity.ThehighestCESARvaluesfor

the device are as follows:

• 0.484W/Kg(Head)

• 1.020W/Kg(Body)

CLASS1LASERPRODUCT

Laser safety information

U11349-1_ZB500KL_UM_(EU)_Booklet.indb 9 2016/7/28 14:52:13

Prevention of Hearing Loss

Topreventpossiblehearingdamage,donotlistenat

high volume levels for long periods.

Using GPS (Global Positioning

System) on your ASUS Phone

TousetheGPSpositioningfeatureonyourASUSPhone:

• Ensure that your device is connected to the

Internet before using Google Map or any GPS-

enabled apps.

• For ﬁrst-time use of a GPS-enabled app on your

device, ensure that you are outdoors to get the

best positioning data.

• WhenusingaGPS-enabledapponyourdevice

inside a vehicle, the metallic component of the

car window and other electronic devices might

aﬀect the GPS performance.

For France, headphones/earphones for this device are

compliantwiththesoundpressurelevelrequirement

laid down in the applicable EN 50332-1:2013 and/or

EN50332-2:2013standardrequiredbyFrenchArticle

L.5232-1.

U11349-1_ZB500KL_UM_(EU)_Booklet.indb 10 2016/7/28 14:52:13
