Asus Eee PC 900HD Series Betriebsanleitung

Quick Use Guide

E4158

15G06Q069000

Quick Use Guide - 2

Powering on your Eee PC

These are only quick instructions for using your Eee PC. Read the full

manual for detailed information.

1. Install the battery pack 2. Connect the AC power

adapter

3. Turn ON the Eee PC

Remember to fully charge the battery before ﬁrst use and

whenever it is depleted to prolong battery life.

Status Indicators

Status indicators represent various hardware/software conditions.

Power Indicator

Battery Charge Indicator

When you open the display panel, do not force it down to the

table or else the hinges may break! Never lift the Eee PC by the

display panel!

Hard Disk Drive (HDD)

Indicator

Wireless Indicator

Damage may occur if you

use a different adapter

to power the Eee PC.You

may damage both your

battery pack(s) and the

Eee PC with a faulty AC-DC

adapter.

Quick Use Guide - 3

Powering off your Eee PC

Do the following instructions to turn down your Eee PC.

1. Click the red power switch in the Notiﬁcation area.

Or, click Instant Shutdown from the Settings tab and select

Shutdown.

2. Select Shut Down from the dialogue box.

3. Select OK to proceed.

Or, press the power switch of the Eee PC directly, and follow the

previous instructions to shut down your Eee PC.

Quick Use Guide - 4

In Full desktop mode

1. Click the Launch button on the bottom left corner of the

desktop.

2. Select Logout user (user name) from the menu.

3. Click Shut down from the Log Out Desktop Session message

box to shut down the Eee PC.

Launching First Run Wizard

For the ﬁrst time you start your Eee PC, the First Run Wizard will

auto-launch and lead you through setting up your preferences and

some basic information. Follow the wizard instructions to ﬁnish the

initiation.

1. Toggle I agree with

this license and click

Next to continue.

ASUS Eee PC also supports Windows® XP operating system. Refer

to user guide for detailed instructions and notices on installing

the WinXP SP2 32 bit operating system.

4. Follow the on-screen instructions to complete the ﬁrst run

wizard.

2. Select your keyboard

type and click Next

to continue.

3. Enter your User

Name. Click Next to

continue.

Quick Use Guide - 5

Conguring a network connection

Wireless network connection

1. Ensure that the wireless LAN function is enabled.

2. Click Wireless Networks

from Internet tab.

3. Select the wireless access

point you want to connect

to from the list and click

Connect to build the

connection. Ensure that the

box before Enable wireless is

checked.

4. When connecting, you may

have to enter a password.

5. After a connection has been

established, the connection is

shown on the list.

6. You can see the wireless

signal strength bars in the

Notiﬁcation area.

Activate the wireless LAN function by pressing + (<Fn>

+ <F2>) before conﬁguring a wireless network connection if

needed.

Quick Use Guide - 6

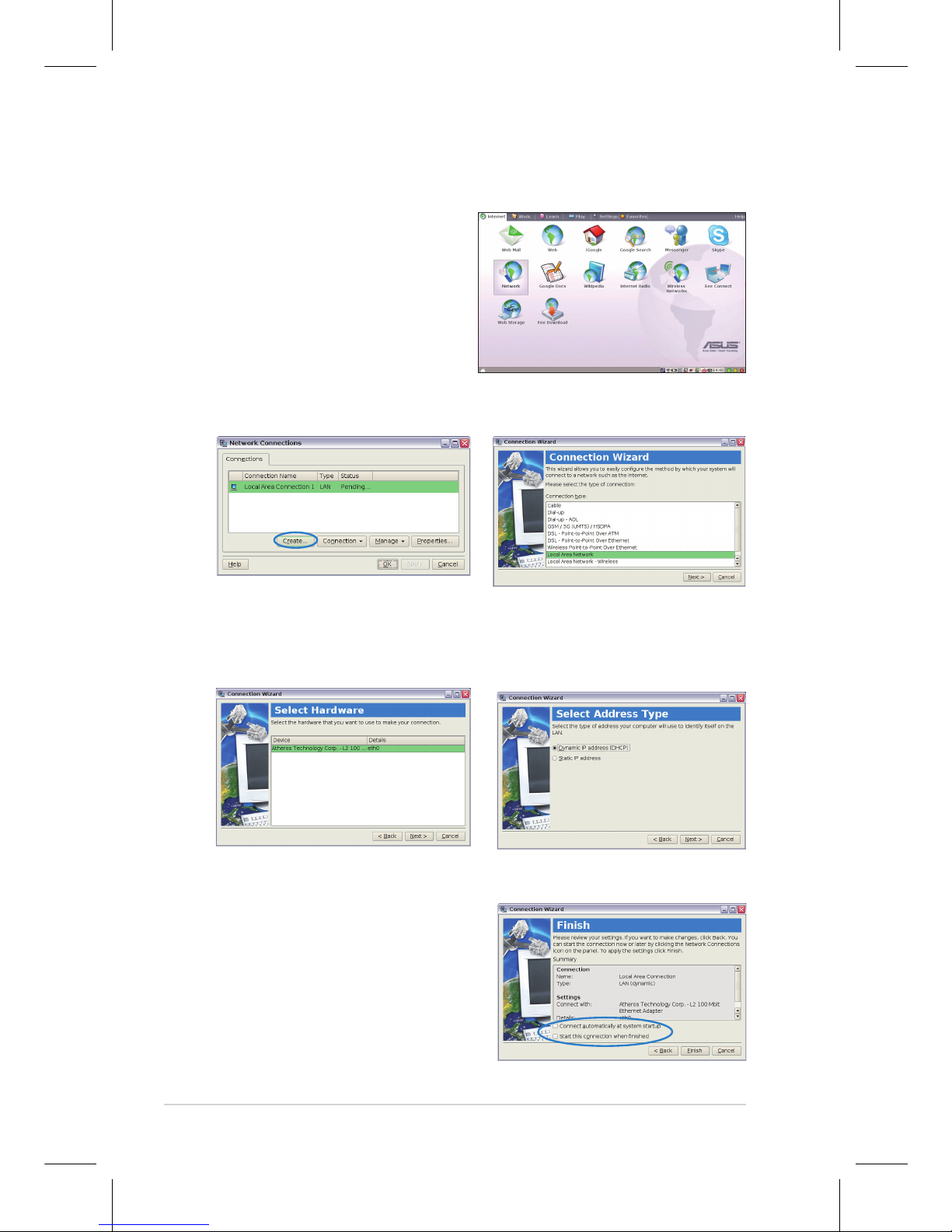

Using a dynamic IP:

1. From the Internet tab,

select Network to start the

conﬁguration.

Local Area Network

3. Select the type of connection

you are using and click Next.

5. Toggle the ﬁrst option

Dynamic IP address (DHCP)

and click Next.

2. Click Create to create a

network connection.

6. Enter a name for this connection and click Next.

7. Click Finish to apply the

settings or click Back to make

changes. Click the box before

Connect automatically at

system startup or before the

box Start this connection

when ﬁnished based on your

needs.

4. Select the hardware that you

want to use to make your

connection and click Next.

Quick Use Guide - 7

Point-to-Point Protocol over Ethernet (PPPoE)

1. Repeat the step 1–2 of Using a static IP to start the PPPoE

network conﬁguration.

3. Select the hardware that you

want to use to make your

connection and click Next.

5. Enter a name for this

connection and click Next.

6. Click Finish to apply the

settings or click Back to make

changes.

4. Enter your user and password

and click Next..

2. Select the type of connection

you are using and click Next.

Quick Use Guide - 8
