Asus G51J Bedienungsanleitung

E-S ATA

HDMI

1394

ANT.

Notebook PC User Manual

July 2009

E4878

Notebook PC User Manual

Table of Contents

Safety Precautions ............................................................................................. 3

Preparing your Notebook PC......................................................................... 5

Using the Touchpad .......................................................................................... 7

Knowing the Parts.............................................................................................. 8

Right Side ............................................................................................................ 8

Left Side .............................................................................................................11

Rear Side ............................................................................................................14

Front Side ..........................................................................................................16

Recovering Your Notebook PC ....................................................................17

Using Recovery Partition ............................................................................17

Using Recovery DVD (on selected models)...........................................18

Declarations and Safety Statements .........................................................20

Federal Communications Commission Statement.............................20

FCC Radio Frequency (RF) Exposure Caution Statement.................21

Declaration of Conformity(R&TTE directive 1999/5/EC)...................21

CE Mark Warning.............................................................................................22

IC Radiation Exposure Statement for Canada ......................................22

Wireless Operation Channel for Different Domains...........................23

France Restricted Wireless Frequency Bands .......................................23

UL Safety Notices............................................................................................25

Power Safety Requirement .........................................................................26

TV Tuner Notices.............................................................................................26

REACH .............................................................................................................26

Nordic Lithium Cautions (for lithium-ion batteries)...........................27

Notebook PC User Manual

Safety Precautions

The following safety precautions will increase the life of the

Notebook PC. Follow all precautions and instructions. Except as

described in this manual, refer all servicing to qualiﬁed personnel.

Battery safety warning:

DO NOT throw the

battery in ﬁre. DO NOT

short circuit the contacts.

DO NOT disassemble the

battery.

DO NOT leave the

Notebook PC on your lap

or any part of the body

to prevent discomfort

or injury from heat

exposure.

DO NOT expose to dirty

or dusty environments.

DO NOT operate during a

gas leak.

DO NOT expose to

strong magnetic or

electrical ﬁelds.

DO NOT expose to or

use near liquids, rain,

or moisture. DO NOT

use the modem during

electrical storms.

DO NOT press or touch

the display panel. Do not

place together with small

items that may scratch or

enter the Notebook PC.

DO NOT place on

uneven or unstable work

surfaces. Seek servicing

if the casing has been

damaged.

DO NOT place or drop

objects on top and

do not shove any

foreign objects into the

Notebook PC.

Disconnect the AC power and remove the battery pack(s) before

cleaning.Wipe the Notebook PC using a clean cellulose sponge

or chamois cloth dampened with a solution of nonabrasive

detergent and a few drops of warm water and remove any extra

moisture with a dry cloth.

Notebook PC User Manual

SAFE TEMP:This

Notebook PC should

only be used in

environments with

ambient temperatures

between 10°C (50°F) and

35°C (95°F)

DO NOT carry or cover

a Notebook PC that

is powered ON with

any materials that will

reduce air circulation

such as a carrying bag.

DO NOT throw the Notebook PC in municipal waste.This

product has been designed to enable proper reuse of parts

and recycling.The symbol of the crossed out wheeled bin

indicates that the product (electrical, electronic equipment

and mercury-containing button cell battery) should not

be placed in municipal waste. Check local regulations for

disposal of electronic products.

DO NOT throw the battery in municipal waste.The symbol

of the crossed out wheeled bin indicates that the battery

should not be placed in municipal waste.

INPUT RATING: Refer to

the rating label on the

bottom of the Notebook

PC and be sure that your

power adapter complies

with the rating.

Incorrect installation

of battery may cause

explosion and damage

the Notebook PC.

DO NOT use damaged

power cords, accessories,

or other peripherals.

DO NOT use strong

solvents such as

thinners, benzene, or

other chemicals on or

near the surface.

Notebook PC User Manual

Preparing your Notebook PC

These are only quick instructions for using your Notebook PC.

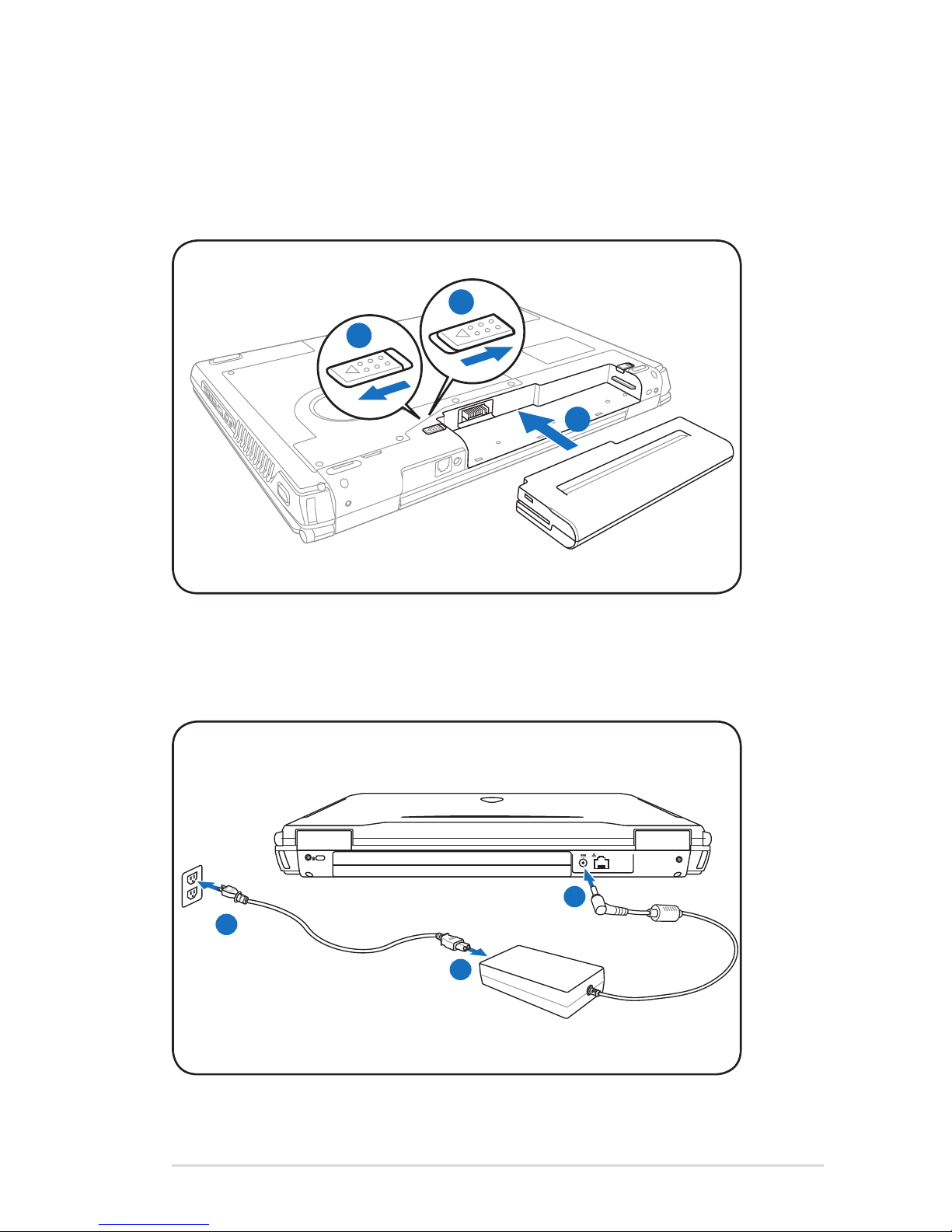

Installing the Battery Pack

Connecting the Power Adapter

110V-220V

Notebook PC User Manual

Opening the LCD display panel

1. Carefully lift up the display panel with your thumb.

2. Slowly tilt the display panel forward or backward to a

comfortable viewing angle.

Turning on the Power

1. Push and release the power button located beneath the LCD

display panel.

2. Use [Fn]+[F5] or [Fn]+[F6] to adjust the LCD brightness.

Notebook PC User Manual

A. Slide your ﬁnger across the touchpad to move the pointer.You

can also hold the left button and slide your ﬁnger to drag the

selected item.

B. Use the left and right buttons like a standard mouse.

C. Slide your ﬁnger up or down on the right side to scroll up or

down a window.

Using the Touchpad

Left button

Right button

Left button

Right button

Notebook PC User Manual

Knowing the Parts

Right Side

Microphone Input Jack

The mono microphone jack (1/8 inch) can be used to

connect an external microphone or output signals from

audio devices. Using this jack automatically disables the

built-in microphone.Use this feature for video conferencing,

voice narrations, or simple audio recordings.

Audio Input Jack

The stereo input jack (1/8 inch) can be used to connect a

stereo audio source to the Notebook PC.This feature is used

mainly to add audio to multimedia applications.

SPDIF Output Jack

This jack provides connection to SPDIF (Sony/Philips Digital

Interface) compliant devices for digital audio output. Use

this feature to turn the Notebook PC into a hi-ﬁ home

entertainment system.

Headphone Output Jack

The stereo headphone jack (1/8 inch) is used to connect

the Notebook PC’s audio out signal to ampliﬁed speakers

or headphones. Using this jack automatically disables the

built-in speakers.

1 2 3 4 567 8

Combo

Notebook PC User Manual

USB Port (2.0/1.1)

The USB (Universal Serial Bus) port is compatible with USB

2.0 or USB 1.1 devices such as keyboards, pointing devices,

cameras, hard disk drives, printers, and scanners connected

in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec

(USB 2.0). USB allows many devices to run simultaneously

on a single computer, with some peripherals acting as

additional plug-in sites or hubs.USB supports hot-swapping

of devices so that most peripherals can be connected or

disconnected without restarting the computer.

Optical Drive

The Notebook PC comes in various models with different

optical drives.The Notebook PC’s optical drive may support

compact discs (CD) and/or digital video discs (DVD) and

may have recordable (R) or re-writable (RW) capabilities.

See the marketing speciﬁcations for details on each model.

Optical Drive Activity Indicator

(location varies by model)

The optical drive activity indicator shows when data is

being transferred by the optical disk drive.This indicator

will light in proportion to the data size transferred.

Optical Drive Electronic Eject

The optical drive eject has an electronic eject button for

opening the tray.You can also eject the optical drive tray

through any software player or by right clicking the optical

drive in Windows“Computer”and selecting Eject.This eject

also functions as the optical drive activity indicator which

shows when data is being transferred by the optical disk

drive.This indicator will light in proportion to the data size

transferred.

Notebook PC User Manual

Optical Drive Emergency Eject

(location varies by model)

The emergency eject is used to eject the optical drive tray

in case the electronic eject does not work. Do not use the

emergency eject in place of the electronic eject.
