DISASSEMBLY PROCEDURE
2 - 1
Chapter
2
Disassembly Procedure
Please follow the information provided in this section to perform the
complete disassembly procedure of the notebook. Be sure to use
proper tools described before.
SUS M2400Ne (ID1) Series Notebook consists of various modules. This
chapter describes the procedures for the complete notebook disassembly. In
addition, in between procedures, the detailed disassembly procedure of
individual modules will be provided for your service needs.
The disassembly procedure consists of the following steps:
•Battery module
•Optical drive Module
•HDD Module
•Memory Module
•CPU Module
•Keyboard Module
•Mini-PCI Module
•LCD Module
•Top Case Module
•Motherboard Module
•Modem Module
•Bottom Case Module
A
DISASSEMBLY PROCEDURE
2 - 2
Battery module
The illustration below shows how to remove the battery module.

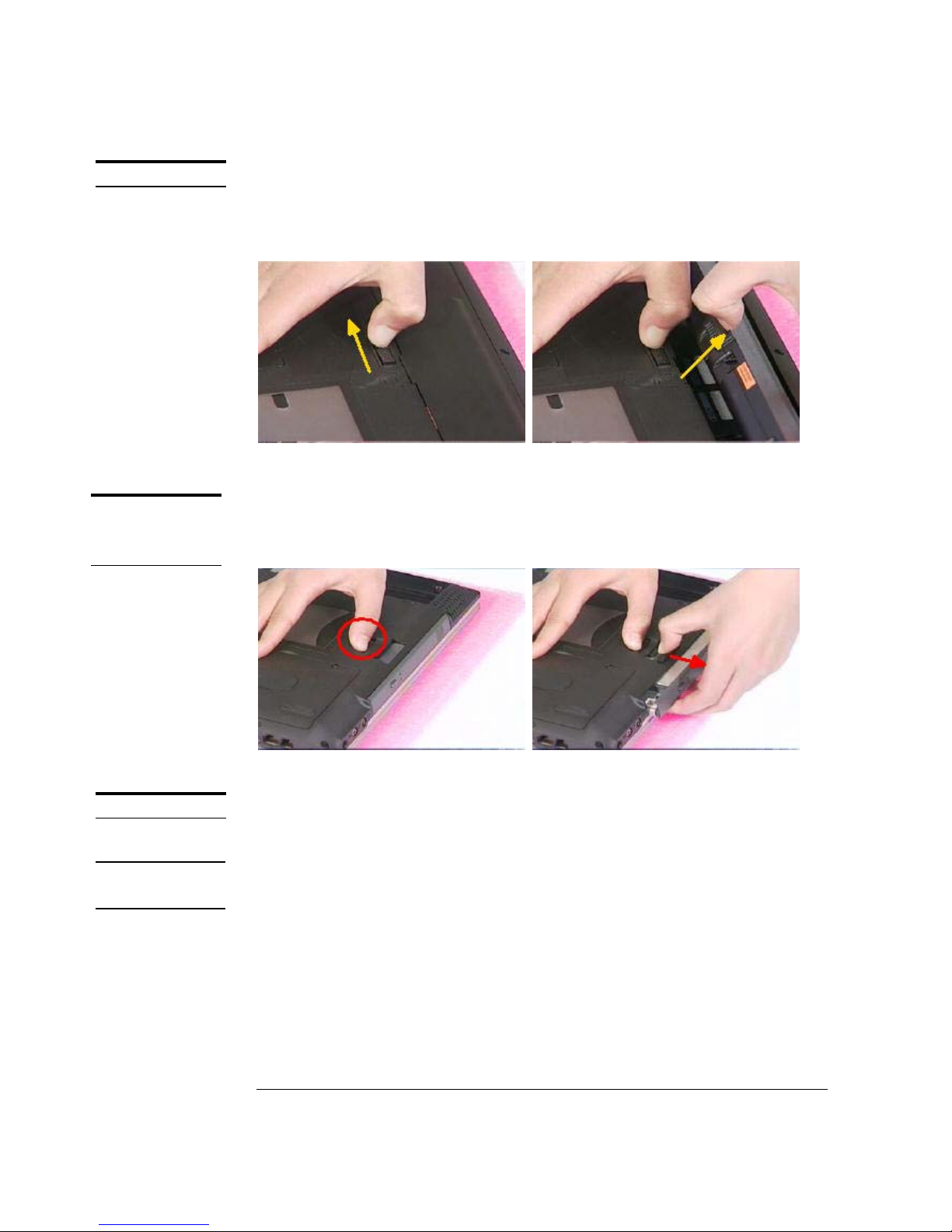

1. Slide the battery latch and lift the battery away from the system.
Optical Drive Module
1. Push the latch and pull the DVD-ROM module out.
HDD Module
The illustrations below show how to remove the HDD module from the notebook.
Removing HDD Module
(1) Remove the 2 screws (M2*5) from Hard-Disk cover.
(2) Take the cover away.
BATTERY
HDD MODULE
REMOVAL
HDD MODULE
OPTICAL
DRIVE
REMOVAL
DISASSEMBLY PROCEDURE
2 - 3
(3) Remove the 2 screws (M2*5).
(4) Pull the Hard Disk out of the system.
Please do not touch inside of the HDD module.
Memory Module
The illustrations below show how to remove the Memory module from the notebook.
The M2400 NE (ID1) Series Notebook comes standard with 256MB of RAM onboard.
There is one expansion SODIMM socket for you to upgrade the total memory up to
768MB with a 512 MB module
Removing Memory module
(1) Remove the 3 screws (M2*5) from DIMM cover.
(2) Take the cover away.
(3) Remove SO-DIMM by opening the two latches to pop up it.
(4) Pull the SO-DIMM out.
MEMORY
REMOVAL
MEMORY
MODULE
DISASSEMBLY PROCEDURE
2 - 4
CPU Module
The illustrations below show how to remove the CPU module from the notebook.
(1) Remove the 2 screws (M2*5) from FAN and gently lift the CPU fan.
(2) Disconnect the CPU FAN cable and remove the 4 screws (M2*5) from
Heat-Sink.
CPU MODULE
REMOVAL
DISASSEMBLY PROCEDURE
2 - 5
(3) Then lift the CPU heat-sink module and carefully remove the CPU
thermal pad.
(3) Turn the non-removable screw here 180 degrees counter-clockwise to
loose the CPU and squeeze the vacuum handling pump and use it to lift
the CPU away.
Keyboard Module
The illustration below shows how to remove the K/B plate.
K/B MODULE
DISASSEMBLY PROCEDURE
2 - 6
Removing K/B
(1) Press the delete key and lift the right side of keyboard cover.
(2) Slide the cover along right side.
(3) Disconnect the cable, and take the keyboard cover away.
(4) Disconnect the cable from keyboard cover.
(5) Remove 2 screws (M2*5).
(6) Slide forward the keyboard and pull the keyboard up.
K/B
REMOVAL
DISASSEMBLY PROCEDURE
2 - 7
Removing Keyboard Cable
1. Use a flexible connector tool to unlock the cable connector on both ends (no. 1).
2. Carefully pull out the keyboard cable (no. 2) with a pair or tweezers.
3. Lock the connector (no. 3) again to avoid possible breakage.
4. Finally the keyboard plate can be removed from the notebook.
Mini - PCI Module
The illustrations below show how to remove and disassemble the Mini-PCI module.
Removing Mini - PCI Module
(1) Remove it by opening the latches, which will pop the module up to a 45°
angles, and then pulling out the module in that angle
(2) Remove the Antenna cable from Mini-PCI module.
CABLE
REMOVAL
1. Unlock
2. Cable out
3.
1. Unlock
3.
MINI-PCI
MINI-PCI
REMOVAL
DISASSEMBLY PROCEDURE
2 - 8
LCD Module
The illustrations below show how to remove and disassemble the LCD module. The
module contains LCD panel, inverter board, LCD hinge bracket, hinge cover, antenna,
LCD front cover and LCD bottom case.
Disassembling LCD Module
(1) Remove the 2 screws (M2.5*6) of hinge from the bottom side.
(2) Remove the LCD hinge covers.
(3) Remove the LCD harness cover, be careful the Antenna.
(4) Remove the 2 screws (M2.5*6) from the hinge feet on both sides.
LCD
LCD
DISASSEMBLY
DISASSEMBLY PROCEDURE
2 - 9
(5) Disconnect the LCD coaxial cable and Inverter Board cable
(6) Disconnect the Microphone cable and lift straight up the LCD panel from
the system.
(7) Remove 5 rubber pads and 5 screws (M2.5*6)*3 and (M2*5)*2.
DISASSEMBLY PROCEDURE
2 - 10

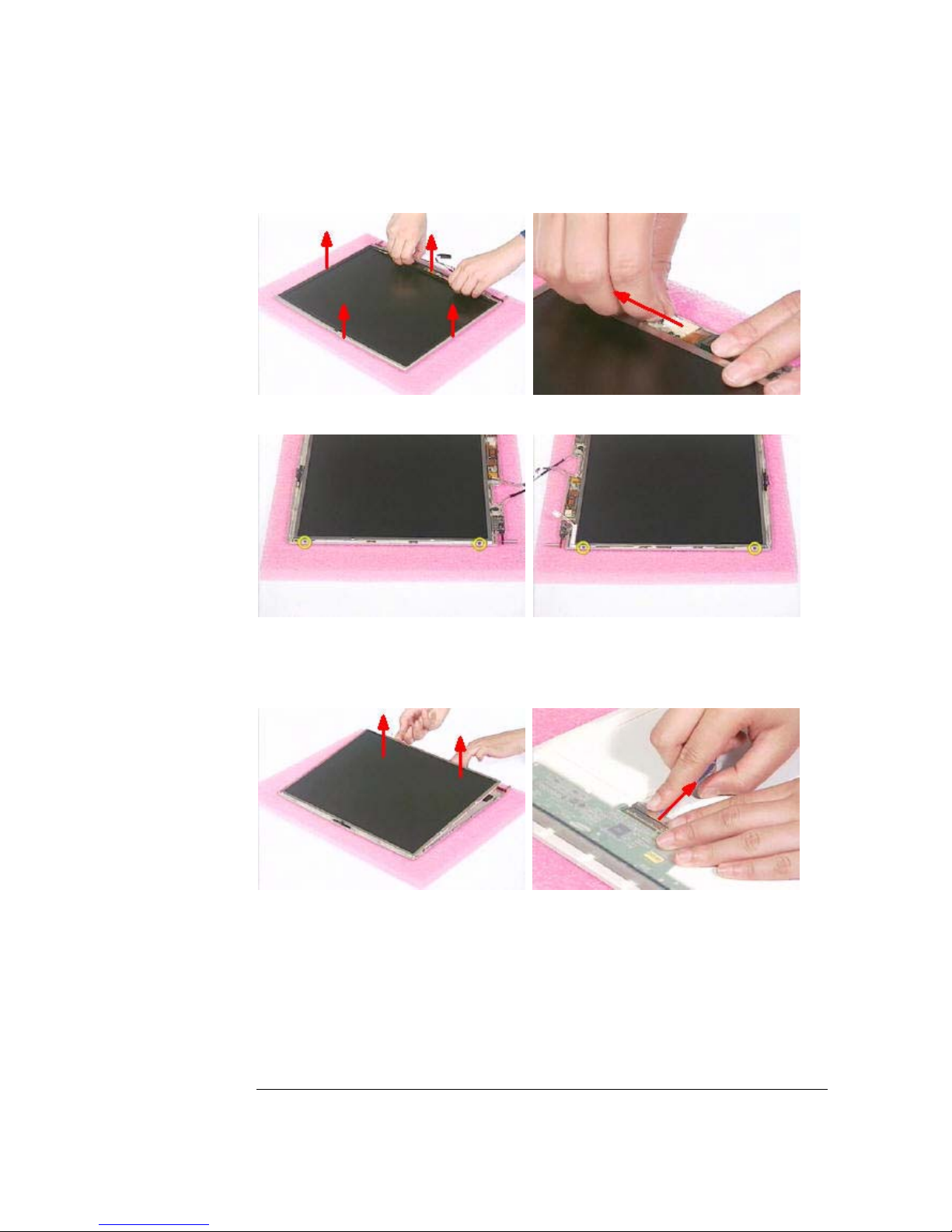

(8) Carefully pry the inside edges of LCD front cover and take it away.
(9) Remove LCD cable from inverter board.
(10) Remove 2 screws (M2*3) from both sides.
(11) Take the LCD panel away.
(12) Disconnect the LCD coaxial cable.
(13) Remove the microphone line.
(14) take the inverter board module away.
