Asus 90IG0401-BU9000 Bedienungsanleitung

User Guide

RT-AC86U

Wireless-AC 2900 Dual Band Gigabit Router

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modiﬁed or altered, unless such repair, modiﬁcation of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or

missing.

ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identiﬁcation or explanation and to the owners’beneﬁt, without intent

to infringe.

E13067

First Edition

June 2017

Table of contents

1 Getting to know your wireless router 7

1.1 Welcome! ........................................................................................7

1.2 Package contents.........................................................................7

1.3 Your wireless router.....................................................................8

1.4 Positioning your router........................................................... 10

1.5 Setup Requirements ................................................................ 11

1.6 Router Setup............................................................................... 12

1.6.1 Wired connection..................................................................12

1.6.2 Wireless connection.............................................................13

2 Getting started 15

2.1 Logging into the Web GUI ..................................................... 15

2.2 Quick Internet Setup (QIS) with Auto-detection ........... 16

2.3 Connecting to your wireless network................................ 19

3 Conﬁguring the General settings 20

3.1 Using the Network Map ......................................................... 20

3.1.1 Setting up the wireless security settings......................21

3.1.2 Managing your network clients.......................................23

3.1.3 Monitoring your USB device.............................................24

3.2 Creating a Guest Network...................................................... 27

3.3 AiProtection ................................................................................ 29

3.3.1 Network Protection..............................................................30

3.3.2 Setting up Parental Controls.............................................34

3.4 Adaptive QoS.............................................................................. 38

3.4.1 Bandwidth Monitor..............................................................38

3.4.2 QoS.............................................................................................39

3.4.3 Web History.............................................................................40

Table of contents

3.5 Traﬃc Analyzer........................................................................... 41

3.6 Using the USB Application..................................................... 42

3.6.1 Using AiDisk...............................................................................42

3.6.2 Using Servers Center............................................................44

3.6.3 3G/4G ........................................................................................49

3.7 Using AiCloud 2.0...................................................................... 50

3.7.1 Cloud Disk................................................................................51

3.7.2 Smart Access...........................................................................53

3.7.3 Smart Sync...............................................................................54

4 Conﬁguring the Advanced Settings 55

4.1 Wireless......................................................................................... 55

4.1.1 General......................................................................................55

4.1.2 WPS ............................................................................................57

4.1.3 Bridge........................................................................................59

4.1.4 Wireless MAC Filter ...............................................................61

4.1.5 RADIUS Setting ......................................................................62

4.1.6 Professional.............................................................................63

4.2 LAN................................................................................................. 66

4.2.1 LAN IP........................................................................................66

4.2.2 DHCP Server............................................................................67

4.2.3 Route .........................................................................................69

4.2.4 IPTV ............................................................................................70

4.3 WAN ............................................................................................... 71

4.3.1 Internet Connection.............................................................71

4.3.2 Dual WAN .................................................................................74

4.3.3 Port Trigger..............................................................................75

4.3.4 Virtual Server/Port Forwarding........................................77

Table of contents

4.3.5 DMZ............................................................................................80

4.3.6 DDNS .........................................................................................81

4.3.7 NAT Passthrough...................................................................82

4.4 IPv6................................................................................................. 83

4.5 VPN Server................................................................................... 84

4.6 Firewall.......................................................................................... 85

4.6.1 General......................................................................................85

4.6.2 URL Filter ..................................................................................85

4.6.3 Keyword ﬁlter .........................................................................86

4.6.4 Network Services Filter .......................................................87

4.6.5 IPv6 Firewall ............................................................................88

4.7 Administration ........................................................................... 89

4.7.1 Operation Mode....................................................................89

4.7.2 System.......................................................................................90

4.7.3 Firmware Upgrade................................................................91

4.7.4 Restore/Save/Upload Setting ...........................................92

4.8 System Log .................................................................................. 93

5 Utilities 94

5.1 Device Discovery....................................................................... 94

5.2 Firmware Restoration .............................................................. 95

5.3 Setting up your printer server.............................................. 96

5.3.1 ASUS EZ Printer Sharing .....................................................96

5.3.2 Using LPR to Share Printer.............................................. 100

5.4 Download Master....................................................................105

5.4.1 Conﬁguring Bit Torrent download settings.............. 106

5.4.2 NZB settings......................................................................... 107

6 Troubleshooting 108

6.1 Basic Troubleshooting...........................................................108

6.2 Frequently Asked Questions (FAQs) ................................110

Appendices 119

Notices .....................................................................................................119

ASUS Contact information..................................................................133

Networks Global Hotline Information.............................................134

Table of contents

1 Getting to know your wireless

router

1.1 Welcome!

Thank you for purchasing an ASUS RT-AC86U Wireless Router!

The stylish RT-AC86U features 2.4GHz and 5GHz dual bands for

an unmatched concurrent wireless HD streaming; SMB server,

UPnP AV server, and FTP server for 24/7 ﬁle sharing; a capability

to handle 300,000 sessions; and the ASUS Green Network

Technology, which provides up to 70% power-saving solution.

1.2 Package contents

NOTES:

• Ifanyoftheitemsisdamagedormissing,contactASUSfortechnical

inquiries and support, Refer to the ASUS Support Hotline list at the

back of this user manual.

• Keeptheoriginalpackagingmaterialincaseyouwouldneedfuture

warranty services such as repair or replacement.

RT-AC86U Wireless Router AC adapter

Network cable (RJ-45) Quick Start Guide

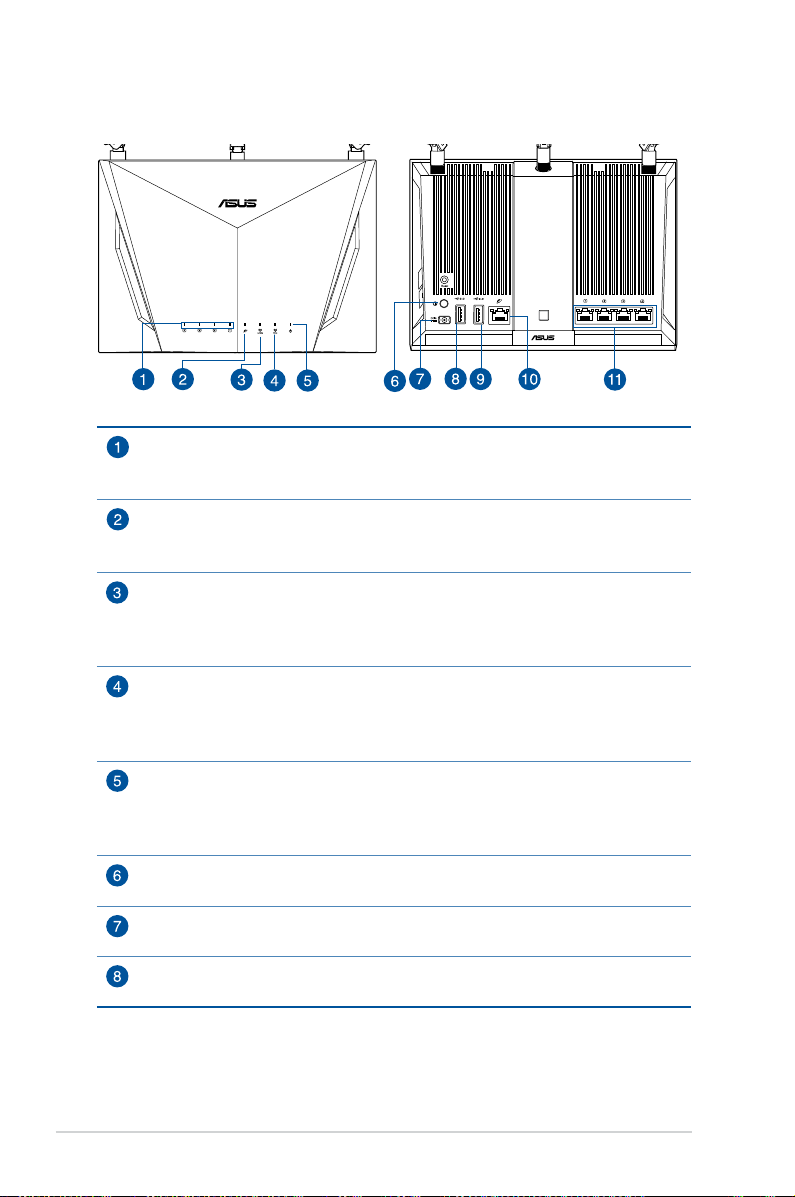

1.3 Your wireless router

LAN 1~4 LED

Oﬀ: No power or no physical connection.

On: Has physical connection to a local area network (LAN).

WAN (Internet) LED

Red: No IP or no physical connection.

On: Has physical connection to a wide area network (WAN).

2.4GHz LED

Oﬀ: No 2.4GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

5GHz LED

Oﬀ: No 5GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

Power LED

Oﬀ: No power.

On: Device is ready.

Flashing slow: Rescue mode

Power button

Press this button to power on or off the system.

Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a power source.

USB 2.0 port

Insert USB 2.0 devices such as USB hard disks or USB flash drives into this port.

NOTES:

• Useonlytheadapterthatcamewithyourpackage.Usingother

adapters may damage the device.

• Specifications:

DC Power adapter DC Output: +19V with max 1.75A current

Operating

Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

USB 3.0 port

Insert USB 3.0 devices such as USB hard disks or USB flash drives into this port.

WAN (Internet) port

Connect a network cable into this port to establish WAN connection.

LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

1.4 Positioning your router

For the best wireless signal transmission between the wireless

router and the network devices connected to it, ensure that you:

• Placethewirelessrouterinacentralizedareaforamaximum

wireless coverage for the network devices.

• Keepthedeviceawayfrommetalobstructionsandawayfrom

direct sunlight.

• Keepthedeviceawayfrom802.11gor20MHzonlyWi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordlessphones,transformers,heavy-dutymotors,fluorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Alwaysupdatetothelatestfirmware.VisittheASUSwebsiteat

http://www.asus.com to get the latest firmware updates.

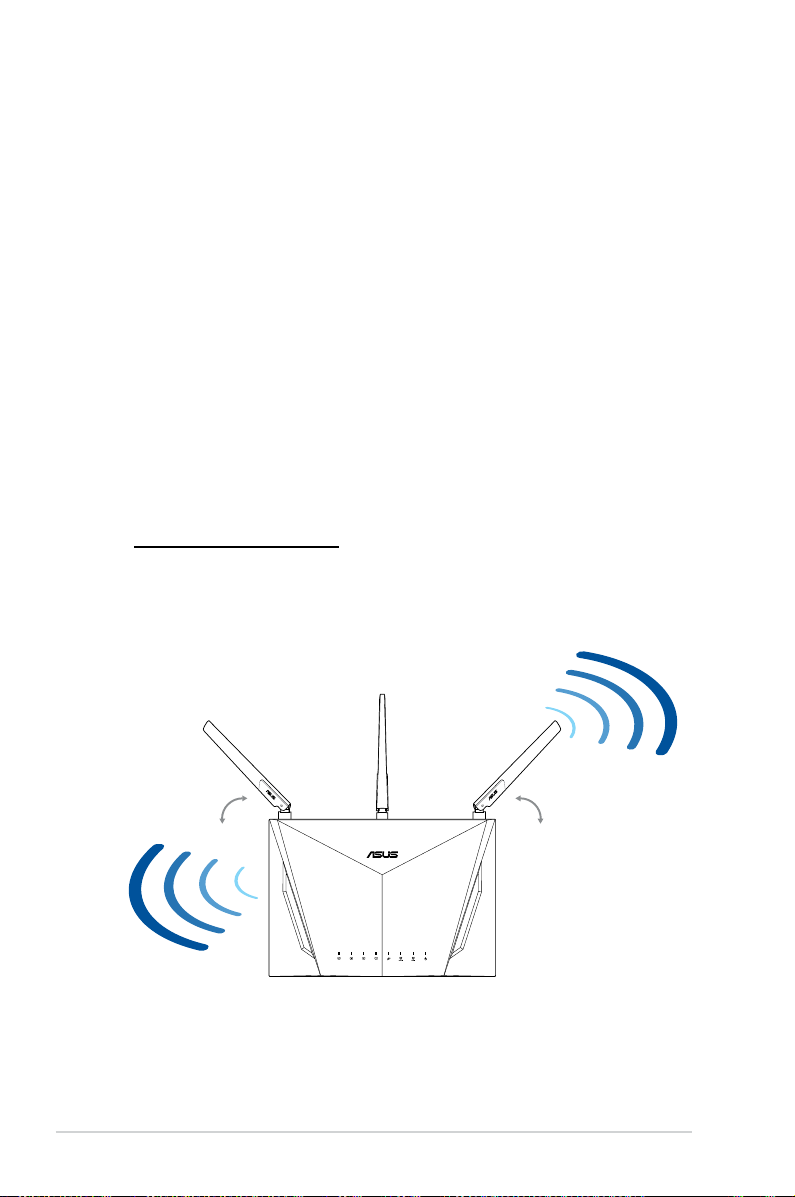

• Toensurethebestwirelesssignal,orientthefourdetachable

antennas as shown in the drawing below.

45° 90° 45°

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Asus Netzwerk-Router Handbücher

Asus

Asus RT-AC3100 Bedienungsanleitung

Asus

Asus RT-AC1300G PLUS Bedienungsanleitung

Asus

Asus RT-N600RU Bedienungsanleitung

Asus

Asus AiMesh-AC1900 Bedienungsanleitung

Asus

Asus RT-N11 Bedienungsanleitung

Asus

Asus Lyra mini Bedienungsanleitung

Asus

Asus ZenWiFi ET8 Bedienungsanleitung

Asus

Asus RT-AC1200HP Bedienungsanleitung

Asus

Asus WL-600g Bedienungsanleitung

Asus

Asus RT-AC58U Bedienungsanleitung

Asus

Asus AiMesh-AC1750 Bedienungsanleitung

Asus

Asus 4G-AC68U Bedienungsanleitung

Asus

Asus RT-N19 Bedienungsanleitung

Asus

Asus RT-AC86U Bedienungsanleitung

Asus

Asus ZenWiFi Pro ET12 Bedienungsanleitung

Asus

Asus RX3081 Bedienungsanleitung

Asus

Asus RT-AC57U V3 Bedienungsanleitung

Asus

Asus DSL-AC68VG Bedienungsanleitung

Asus

Asus RT-AC68U V4 Bedienungsanleitung

Asus

Asus DSL-N16 Bedienungsanleitung

Asus

Asus DSL-AC88U Bedienungsanleitung

Asus

Asus RT-AC2400 Bedienungsanleitung

Asus

Asus ROG Rapture GT-AX6000 Bedienungsanleitung

Asus

Asus 4G-AX56 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
