Asus 90IG04K0-BU9100 Bedienungsanleitung

Wireless AC1900 Dual Band

Gigabit Router

User Guide

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modied or altered, unless such repair, modication of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or

missing.

ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’benet, without intent

to infringe.

E15453

First Edition

April 2019

Table of contents

1 Getting to know your wireless router 6

1.1 Welcome! ........................................................................................6

1.2 Package contents.........................................................................6

1.3 Your wireless router.....................................................................7

1.4 Positioning your router..............................................................9

1.5 Setup Requirements ................................................................ 10

1.6 Router Setup............................................................................... 11

1.6.1 Wired connection..................................................................11

1.6.2 Wireless connection.............................................................12

2 Getting started 14

2.1 Logging into the Web GUI ..................................................... 14

2.2 Quick Internet Setup (QIS) with Auto-detection ........... 15

2.3 Connecting to your wireless network................................ 19

3 Conguring the General settings 20

3.1 Using the Network Map ......................................................... 20

3.1.1 Setting up the wireless security settings......................21

3.1.2 Managing your network clients.......................................22

3.1.3 Monitoring your USB device.............................................23

3.2 Creating a Guest Network...................................................... 26

3.3 Using the Trac Manager...................................................... 28

3.3.1 Managing QoS (Quality of Service) Bandwidth..........28

3.3.2 Monitoring Trac .................................................................31

3.4 Setting up Parental Control................................................... 32

3.5 Using the USB Application..................................................... 33

3.5.1 Using AiDisk...............................................................................33

3.5.2 Using Servers Center............................................................35

3.5.3 3G/4G ........................................................................................40

Table of contents

3.6 Using AiCloud 2.0...................................................................... 41

3.6.1 Cloud Disk................................................................................42

3.6.2 Smart Access...........................................................................44

3.6.3 AiCloud Sync...........................................................................45

4 Conguring the Advanced Settings 46

4.1 Wireless......................................................................................... 46

4.1.1 General......................................................................................46

4.1.2 WPS ............................................................................................49

4.1.3 Wireless MAC Filter...............................................................51

4.1.4 RADIUS Setting ......................................................................52

4.1.5 Professional.............................................................................53

4.2 LAN................................................................................................. 55

4.2.1 LAN IP........................................................................................55

4.2.2 DHCP Server............................................................................56

4.2.3 Route .........................................................................................58

4.2.4 IPTV...............................................................................................59

4.3 WAN ............................................................................................... 60

4.3.1 Internet Connection.............................................................60

4.3.2 Port Trigger..............................................................................63

4.3.3 Virtual Server/Port Forwarding........................................65

4.3.4 DMZ............................................................................................68

4.3.5 DDNS .........................................................................................69

4.3.6 NAT Passthrough...................................................................70

4.4 IPv6................................................................................................. 71

4.5 VPN Server................................................................................... 72

4.6 Firewall.......................................................................................... 73

4.6.1 General......................................................................................73

4.6.2 URL Filter ..................................................................................73

4.6.3 Keyword lter .........................................................................74

4.6.4 Network Services Filter .......................................................75

Table of contents

4.7 Administration ........................................................................... 77

4.7.1 Operation Mode....................................................................77

4.7.2 System.......................................................................................78

4.7.3 Firmware Upgrade................................................................79

4.7.4 Restore/Save/Upload Setting ...........................................79

4.8 System Log .................................................................................. 80

5 Utilities 81

5.1 Device Discovery....................................................................... 81

5.2 Firmware Restoration .............................................................. 82

5.3 Setting up your printer server.............................................. 83

5.3.1 ASUS EZ Printer Sharing .....................................................83

5.3.2 Using LPR to Share Printer.................................................87

5.4 Download Master...................................................................... 92

5.4.1 Conguring Bit Torrent download settings.................93

5.4.2 NZB settings............................................................................94

6 Troubleshooting 95

6.1 Basic Troubleshooting............................................................. 95

6.2 Frequently Asked Questions (FAQs) .................................. 98

Appendices 107

Notices .....................................................................................................107

ASUS Contact information..................................................................124

Networks Global Hotline Information.............................................125

1 Getting to know your wireless

router

NOTES:

• Ifanyoftheitemsaredamagedormissing,contactASUSfor

technical inquiries and support, Refer to the ASUS Support Hotline

list at the back of this user manual.

• Keeptheoriginalpackagingmaterialincaseyouwouldneedfuture

warranty services such as repair or replacement.

ASUS Wireless Router Network cable (RJ-45)

Power adapter Quick Start Guide

Warranty card

1.1 Welcome!

Thank you for purchasing an ASUS Wireless Router!

The ultra-thin and stylish ASUS Wireless Router features a 2.4GHz

and 5GHz dual bands for an unmatched concurrent wireless HD

streaming; SMB server, UPnP AV server, and FTP server for 24/7

le sharing; a capability to handle 300,000 sessions; and the ASUS

Green Network Technology, which provides up to 70% power-

saving solution.

1.2 Package contents

1.3 Your wireless router

USB 3.0 port

Insert a USB 3.0 device such as USB hard disks or USB ash drives into this

port.

LAN LED

O: No power or no physical connection.

On: Has physical connection to a local area network (LAN).

Flashing: Transmitting or receiving data via wireless connection.

WAN LED

O: No power or no physical connection.

On: Has physical connection to a wide area network (WAN).

Flashing: Transmitting or receiving data via wireless connection.

2.4GHz LED / 5GHz LED

O: No 2.4GHz or 5GHz signal.

On: Wireless system is ready.

Flashing: Transmitting or receiving data via wireless connection.

NOTES:

• Useonlytheadapterthatcamewithyourpackage.Usingother

adapters may damage the device.

• Specications:

DC Power adapter DC Output: +19V with max 1.75A current;

Operating

Temperature 0~40oC Storage 0~70oC

Operating Humidity 50~90% Storage 20~90%

Power LED

O: No power.

On: Device is ready.

Flashing slow: Rescue mode

Flashing quick: WPS is processing.

Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a

power source.

Power button

Press this button to power on or o the system.

USB 2.0 port

Insert a USB 2.0 device such as a USB hard disk or USB ash drive into this port.

Insert your iPad’s USB cable into one of these ports to charge your iPad.

Reset button

This button resets or restores the system to its factory default settings.

WAN (Internet) port

Connect a network cable into this port to establish WAN connection.

LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

WPS button

This button launches the WPS Wizard.

1.4 Positioning your router

For the best wireless signal transmission between the wireless

router and the network devices connected to it, ensure that you:

• Placethewirelessrouterinacentralizedareaforamaximum

wireless coverage for the network devices.

• Keepthedeviceawayfrommetalobstructionsandawayfrom

direct sunlight.

• Topreventsignalinterferenceorloss,keepthedeviceaway

from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer

peripherals, Bluetooth devices, cordless phones, transformers,

heavy-duty motors, uorescent lights, microwave ovens,

refrigerators, and other industrial equipment.

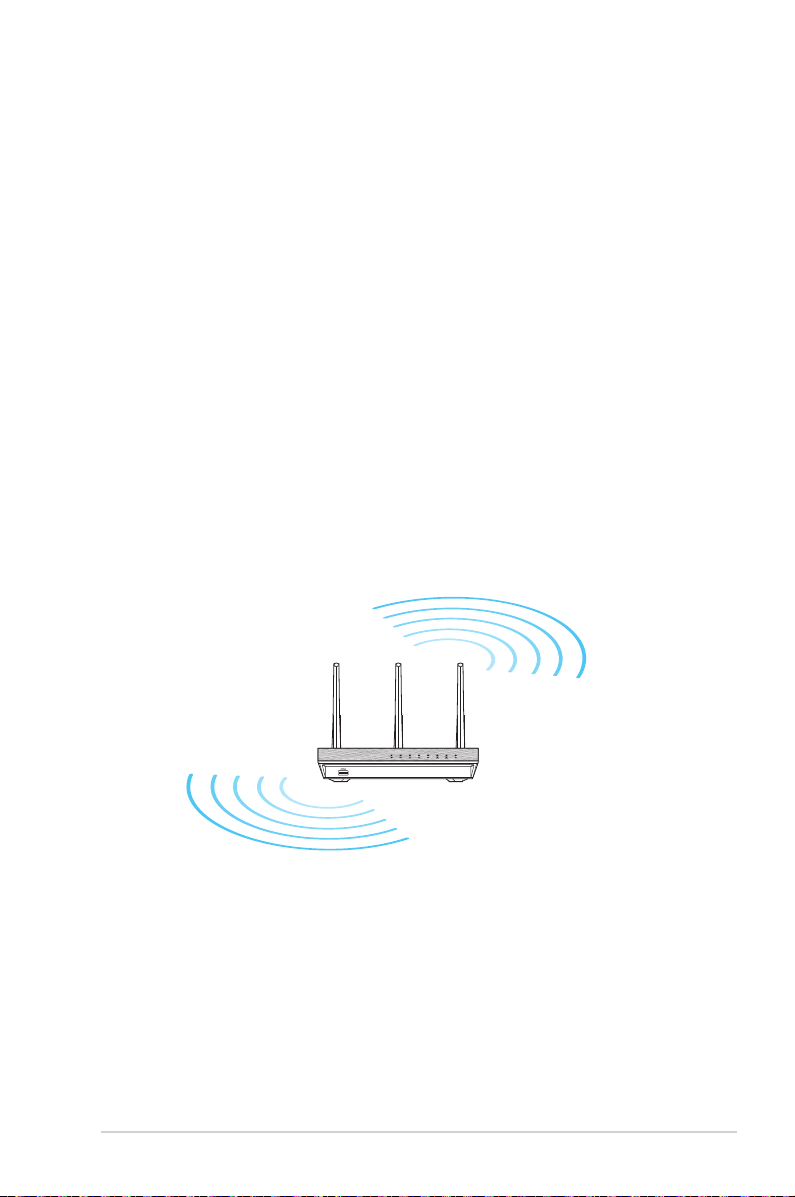

• Toensurethebestwirelesssignal,orientthethreedetachable

antennas as shown in the drawing below.

90°

1.5 Setup Requirements

To set up your wireless network, you need a computer that meets

the following system requirements:

• EthernetRJ-45(LAN)port(10Base-T/100Base-TX/

1000BaseTX)

• IEEE802.11a/b/g/n/acwirelesscapability

• AninstalledTCP/IPservice

• WebbrowsersuchasInternetExplorer,Firefox,Safari,or

Google Chrome

NOTES:

• Ifyourcomputerdoesnothavebuilt-inwirelesscapabilities,youmay

install an IEEE 802.11a/b/g/n/ac WLAN adapter to your computer to

connect to the network.

• Withitsdualbandtechnology,yourwirelessroutersupports2.4GHz

and 5GHz wireless signals simultaneously. This allows you to do

Internet-related activities such as Internet surng or reading/writing

e-mail messages using the 2.4GHz band while simultaneously

streaming high-denition audio/video les such as movies or music

using the 5GHz band.

• SomeIEEE802.11ndevicesthatyouwanttoconnecttoyournetwork

may or may not support 5GHz band. Refer to the device's manual for

specications.

• TheEthernetRJ-45cablesthatwillbeusedtoconnectthenetwork

devices should not exceed 100 meters.

Inhaltsverzeichnis

Andere Asus Netzwerk-Router Handbücher

Asus

Asus RT-AC1200G+ Bedienungsanleitung

Asus

Asus DSL-G31 Bedienungsanleitung

Asus

Asus Archer AX72 Pro V1 Bedienungsanleitung

Asus

Asus RT-AC66U Bedienungsanleitung

Asus

Asus ZenWiFi Pro ET12 Bedienungsanleitung

Asus

Asus ZenWiFi Pro ET12 Bedienungsanleitung

Asus

Asus RT-AX92U Bedienungsanleitung

Asus

Asus RT-AC1200HP Bedienungsanleitung

Asus

Asus RT-AC68U Bedienungsanleitung

Asus

Asus GX-D1051 Bedienungsanleitung

Asus

Asus BLUE CAVE Bedienungsanleitung

Asus

Asus RT-N13U - Wireless Router Bedienungsanleitung

Asus

Asus SL6000 Handbuch

Asus

Asus RTAXE5H00 Bedienungsanleitung

Asus

Asus RT-ACRH18 Bedienungsanleitung

Asus

Asus AX5400 Bedienungsanleitung

Asus

Asus SuperSpeed N RT-N13 Bedienungsanleitung

Asus

Asus WL-530G Bedienungsanleitung

Asus

Asus RT-AX6U Bedienungsanleitung

Asus

Asus RT-N10 LX Bedienungsanleitung

Asus

Asus DSL-AC68VG Bedienungsanleitung

Asus

Asus RT-N65U Bedienungsanleitung

Asus

Asus SL200 Bedienungsanleitung

Asus

Asus GX-D1051 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
