Asus AiMesh-AC1900 Bedienungsanleitung

AiMesh-AC1900

Wireless-AC1900

with AiMesh Wi-Fi System

(RT-AC67U 2-Pack)

Quick

Start Guide Ⅱ

U13939-2 / First Edition / March 2018

U13939-2_RT-AC1900U_AiMesh_QSG.indb 1 2018/3/29 14:24:18

Table of Contents

English...........................................................................................................3

Hrvatski.........................................................................................................15

Dansk.............................................................................................................27

Suomi.............................................................................................................39

Lietuvių .........................................................................................................51

Latviski ..........................................................................................................63

Norsk..............................................................................................................75

Polski..............................................................................................................87

Română.........................................................................................................99

Srpski .............................................................................................................111

Slovensky......................................................................................................123

Slovenščina..................................................................................................135

Svenska .........................................................................................................147

Українська...................................................................................................159

U13939-2_RT-AC1900U_AiMesh_QSG.indb 2 2018/3/29 14:24:18

English

Power

(DC-IN) port

Power

switch

USB

2.0 port

Reset

button

WAN

port

LAN

port 1-4

WPS

button

Plug the adapter into the DCIN port, and press the power button.

The Power, 2.4GHz/5GHz LEDs will light up when your hardware is ready.

Hardware Explanations

USB3.0 port LAN 1-4 WAN 5GHz 2.4GHz Power

Button Explanations

LED Explanations

RESET BUTTON

Reset the system to its factory defaults.

WAN PORT

Connect your modem to this port with a network cable.

LAN PORT 1-4

Connect your PC to a LAN port with a network cable.

U13939-2_RT-AC1900U_AiMesh_QSG.indb 3 2018/3/29 14:24:18

English

Preparing to setup a standalone router

BEFORE SETTING

Go to ONE ROUTER SETUP STEPS.

ONE ROUTER SETUP

Preparing to setup an AiMesh

Wi-Fi system

AiMesh node

AiMesh router

Two (2) ASUS routers (models supporting AiMesh https://www.asus.com/AiMesh/).

Assign one as AiMesh router, and another one as AiMesh node.

** If you have multiple AiMesh routers, we recommend using the router with the highest speciﬁcations as

your AiMesh router and the others as AiMesh nodes.

Go to AiMesh SETUP STEPS.

AiMesh SETUP STEPS

U13939-2_RT-AC1900U_AiMesh_QSG.indb 4 2018/3/29 14:24:19

English

ONE ROUTER SETUP STEPS

Modem back

Preparing your Modem

Unplug the power of cable / DSL modem. If it

has a battery backup, remove the battery.

Connect your modem to the router with the network cable provided.

Power on the modem. Plug modem to the power outlet and power on.

Modem back

WE SUGGEST...

U13939-2_RT-AC1900U_AiMesh_QSG.indb 5 2018/3/29 14:24:19

English

Check the modem LED lights to ensure the

connection is active.

Modem front

If you are using DSL for internet, you will need your

username / password from your Internet service

provider (ISP) to properly conﬁgure your router.

Connect your Device

Power on the router. Plug in and press the power button at the back of your router.

Check the WAN and 2.4GHz/5GHz LED lights to ensure the hardware connection is

ready.

U13939-2_RT-AC1900U_AiMesh_QSG.indb 6 2018/3/29 14:24:19

English

Connect your PC to the router using an additional network cable.

Open a web browser.

You will be redirected to the ASUS Setup Wizard. If not, navigate to http://router.asus.

com.

Connect to the network name (SSID) shown on the product label on the back side of the

router. For better network security, change to a unique SSID and assign a password.

ASUS router

2.4G WiFi Name (SSID): ASUS_XX_2G

5G WiFi Name (SSID): ASUS_XX_5G

* XX refers to the last two digits of 2.4GHz

MAC address. You can ﬁnd it on the

label on the back of your router.

U13939-2_RT-AC1900U_AiMesh_QSG.indb 7 2018/3/29 14:24:19

English

AiMesh SETUP STEPS

within

1-3 meter

AiMesh node AiMesh router

Prepare

Place your AiMesh router and node within 1-3 meters of each other during the setup

process.

Refer to ONE ROUTER SETUP STEPS to connect your AiMesh router to your PC and

modem, and then log in into the web GUI.

AiMesh node

Factory default status. Keep power on and standby for AiMesh system settings.

AiMesh router

Modem AiMesh router AiMesh node

U13939-2_RT-AC1900U_AiMesh_QSG.indb 8 2018/3/29 14:24:19

English

Go to Network Map page, click AiMesh icon and then Search for your extending AiMesh

node.

** If you cannot ﬁnd the AiMesh icon here, click on ﬁrmware version and update the

ﬁrmware.

Click Search, it will automatically search for your AiMesh node. When the AiMesh node

shows on this page, click it to add it into the AiMesh system.

** If you cannot ﬁnd any AiMesh node, please go to TROUBLE SHOOTING.

U13939-2_RT-AC1900U_AiMesh_QSG.indb 9 2018/3/29 14:24:20

English

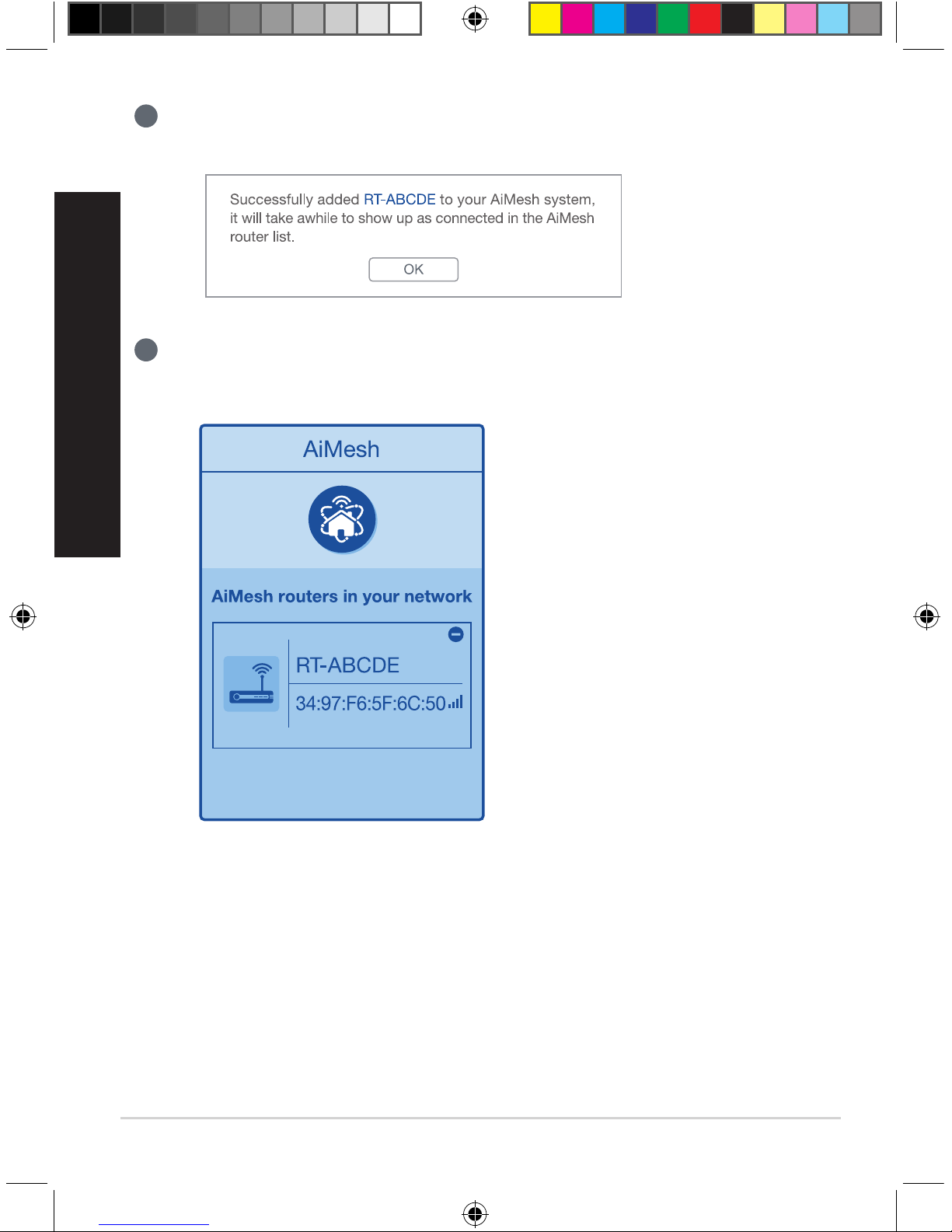

A message is displayed when synchronization is completed.

Congratulations! You will ﬁnd the pages below show up when an AiMesh node has been

successfully added to the AiMesh network.

U13939-2_RT-AC1900U_AiMesh_QSG.indb 10 2018/3/29 14:24:20
