Asus XONAR PHOEBUS Bedienungsanleitung

A7062

First Edition V1

Jan. 2012

Xonar Phoebus

PCI Express 7.1-Channel

Gaming Soundcard

Quick Start Guide

A7062_Xonar-Phoebus_QSG.indb 1 18.01.2012 16:01:36 Uhr

Table of content

English ............................................................................................... 1

繁體中文

.......................................................................................... 18

󰒫󰚸

.......................................................................................... 33

日本語

............................................................................................. 48

한국어

............................................................................................. 63

Bahasa Indonesia ............................................................................. 78

............................................................................................. 93

A7062_Xonar-Phoebus_QSG.indb 2 18.01.2012 16:01:37 Uhr

ASUS Xonar Phoebus Quick Start Guide

English

1. Introduction

1.1 System requirements

Before installing the Xonar Phoebus audio card, ensure that your computer must meet

the following requirements:

• One PCI Express 1.0 (or higher) compatible slot for the audio card

• 6-pin peripheral power cable connector from your computer’s power supply unit

(PSU)

• Microsoft® Windows® Vista / 7 (32/64bit) / XP (32/64bit) / MCE2005

• Intel®Pentium®4 1.4GHz or AMD Athlon 1400 CPU or faster CPU

• More than 256 MB system memory

• More than 60 MB available storage space for driver installation

• CD-ROM drive (or DVD-ROM drive) for software installation

• High-quality headphones, powered analog speakers, or a Dolby Digital decoder, to

enjoy the audio card’s high delity sound

1.2 Package contents

Check your ASUS Xonar Phoebus audio card package for the following items:

• ASUS XonarTM Phoebus 7.1 Channel PCI Express Audio Card

• Phoebus Control Box

• Driver CD

• S/PDIF TOSLINK optical adapter x 1

• ATX 4P-to- 6P power cable x 1

• Quick Start Guide

A7062_Xonar-Phoebus_QSG.indb 3 18.01.2012 16:01:37 Uhr

4ASUS Xonar Phoebus Quick Start Guide

English

2. Hardware

2.1 Xonar Phoebus Audio Processing Card

Mic in

HP out

Box link

Line in

Front

Ctr / Sbw

Rear

Side /

SPDIF out

910 11

A7062_Xonar-Phoebus_QSG.indb 4 18.01.2012 16:01:39 Uhr

ASUS Xonar Phoebus Quick Start Guide

English

No Item Description

1 Microphone In port

Connect your external PC microphone to this 3.5mm port

for voice input. Built-in high-quality Microphone pre-

amplier.

2Headphone Out

port

Connect your headphone to this port.

3 Box Link Connect the Xonar Phoebus Control Box to this 2.5mm

port.

4 Line In port

Connect analog devices like MP3 players, CD players, music

synthesizers, and other line-level sound sources to this

3.5mm port for audio recording or processing.

5 Front Out port For 2 channel speaker systems, connects to the front

left/right input on the powered speakers.

6Center/Subwoofer

Out port

Connect to the center/subwoofer input on 5.1/7.1 powered

analog speakers.

7 Rear Out port Connect to the back surround input on 7.1 powered analog

speakers.

8S/PDIF Out/Side

Out port

Digital output port. Connect to an external digital decoder

or digital speaker systems, Home Theater systems, AV

receivers for outputting digital audio including PCM,

Dolby Digital, DTS, WMA-Pro, etc. Connect to the surround

channel input on 5.1 powered analog speakers.

9 Aux Input Header

4-pin header. Usually connects to the Analog Audio output

of TV tuner card or other sound source inside your PC

system. (To monitor your TV tuner card’s audio from this

Aux-In, you must enable the“monitor” function for Aux-In

in the Xonar Audio Center software’s recording mixer.)

10 S/PDIF Out Header Connect to the graphics card with HDMI support.

11 Power Connector Connect to the 6-pin power cable of your power supply

unit.

12 PCI Express Bus

Golden Fingers

Insert into the PCI Express slot on your motherboard.

A7062_Xonar-Phoebus_QSG.indb 5 18.01.2012 16:01:40 Uhr

6ASUS Xonar Phoebus Quick Start Guide

English

2.1 Card Installation

Before you proceed with the following installation steps, it’s recommended that you

disable your onboard audio device in your BIOS settings, or uninstall any other sound

cards on your PC. (For BIOS setting or uninstallation of other sound cards, please refer

to the user manuals of your motherboard and sound card)

The PCI Express high-quality audio card requires additional power from your

computer. If the power cable is not connected properly, the audio card will not work

at all.

2.1.1 Installing the Xonar Phoebus Card

To install the Xonar Phoebus audio card:

1. Power OFF the computer, the monitor,

and all other peripheral devices

connected to your computer.

2. Unplug the computer power cord from

your computer and power outlet.

3. Touch the metal back or side panel of

the computer to avoid static electricity.

4. Remove the chassis cover.

5. Remove the metal bracket from

an available PCIE slot for the Xonar

Phoebus audio card.

6. Carefully insert the audio card into the PCIE slot. Ensure the audio card sits

properly in place.

Do not force the audio card into the slot. Make sure that the gold pins of the card’s

PCI Express connector are aligned with the motherboard’s PCI Express connector

before you insert the card into the PCI Express slot. If it does not t properly, gently

remove it and try again.

7. Secure the audio card with screws and the metal bracket.

8. Put back the chassis cover.

9. Reconnect all cables.

10. Plug the power cord to the computer and to a power outlet.

11. Power ON the computer.

A7062_Xonar-Phoebus_QSG.indb 6 18.01.2012 16:01:43 Uhr

ASUS Xonar Phoebus Quick Start Guide

English

2.1.2 Connecting the TV Tuner Card

If you have a traditional PCI or PCI Express TV tuner card on your computer, you may

need to connect it to the audio card to send the tuner card’s sound to your computer’s

speakers.

1. Secure the PCI/PCI Express TV tuner card and screw it into the back panel.

2. Connect the audio output header from the TV tuner card to the Aux-In header of

the audio card, as shown in the gure below.

For optimum TV audio quality, Xonar uses ADC recording to digitize the signal and

loops it back to DAC playback. Please select Aux-In as the recording source in the

Xonar Audio Center’s recording mixer and enable the monitoring button to pass this

signal to the audio output. Using this setup, you can even turn on sound eects such

as Pro-Logic IIx to expand the stereo TV audio to 5.1 or 7.1 channel surround sound.

TV audio on your PC will become even better than on your TV set!

A7062_Xonar-Phoebus_QSG.indb 7 18.01.2012 16:01:44 Uhr

8ASUS Xonar Phoebus Quick Start Guide

English

3. Driver Installation

3.1 Installing the Xonar Phoebus Card Driver

To install the Xonar Phoebus card driver:

1. After you have installed the Xonar Phoebus card, turn on your computer. Windows®

automatically detects the audio card and searches for device drivers. When

prompted for the audio drivers, click Cancel.

2. Insert the Support CD into the optical drive. If Windows®Autorun is enabled

in your system, the setup starts automatically. If not, run setup.exe from your

support CD.

3. Follow the onscreen instructions to nish the installation.

The version and content of the support CD are subject to change without notice.

3.2 Uninstalling or Reinstalling the Xonar Phoebus Card

Driver

3.2.1 Uninstalling the Xonar Phoebus Card Driver

To uninstall the Xonar Phoebus card driver:

1. Click Start -> Settings -> Control Panel.

2. Double-click the Add/Remove Programs icon.

3. Click the Change or Remove Programs button.

4. Select each program you would like to remove, and then click the Add/Remove

(or Change/Remove) button.

5. In the InstallShield Wizard dialog box, select the Remove option.

6. Restart your computer when prompted.

3.2.2 Reinstalling the Xonar Phoebus Card Driver

To reinstall the Xonar Phoebus card driver:

1. Before reinstalling any software, it’s recommended to uninstall the existing

software rst.

2. After nishing the uninstallation of the software, please follow the installation

process again to reinstall the same or updated software.

A7062_Xonar-Phoebus_QSG.indb 8 18.01.2012 16:01:45 Uhr

ASUS Xonar Phoebus Quick Start Guide

English

4. Connecting Speakers and Peripherals

4.1 Connecting Phoebus Box

4.1.1 Connecting Phoebus Box

4.1.2 Connecting Phoebus Control Box with external headphone and

microphone

No Item Description

1 Microphone In

Port

Connect the microphone’s 3.5mm plug from the Phoebus

Control Box into this Mic-In port for voice communication,

recording or karaoke.

2 Headphone Port The headphone port has a built-in high-quality amplier

to drive headphones. Connect the Phoebus Control box

directly to this port.

3 Box Link Port Connect Phoebus Control box directly to this port.

No Item Description

1 Headphone Port Connect the headphone to the headphone port on the

Phoebus Control box.

2 Microphone In

Port

Connect the microphone’s 3.5mm plug to the Mic-In port

on the Phoebus Control Box.

Mic in

HP out

Box link

Line in

Front

Ctr / Sbw

Rear

Side /

SPDIF out

Mic In

Headphone Out

A7062_Xonar-Phoebus_QSG.indb 9 18.01.2012 16:01:47 Uhr

10 ASUS Xonar Phoebus Quick Start Guide

English

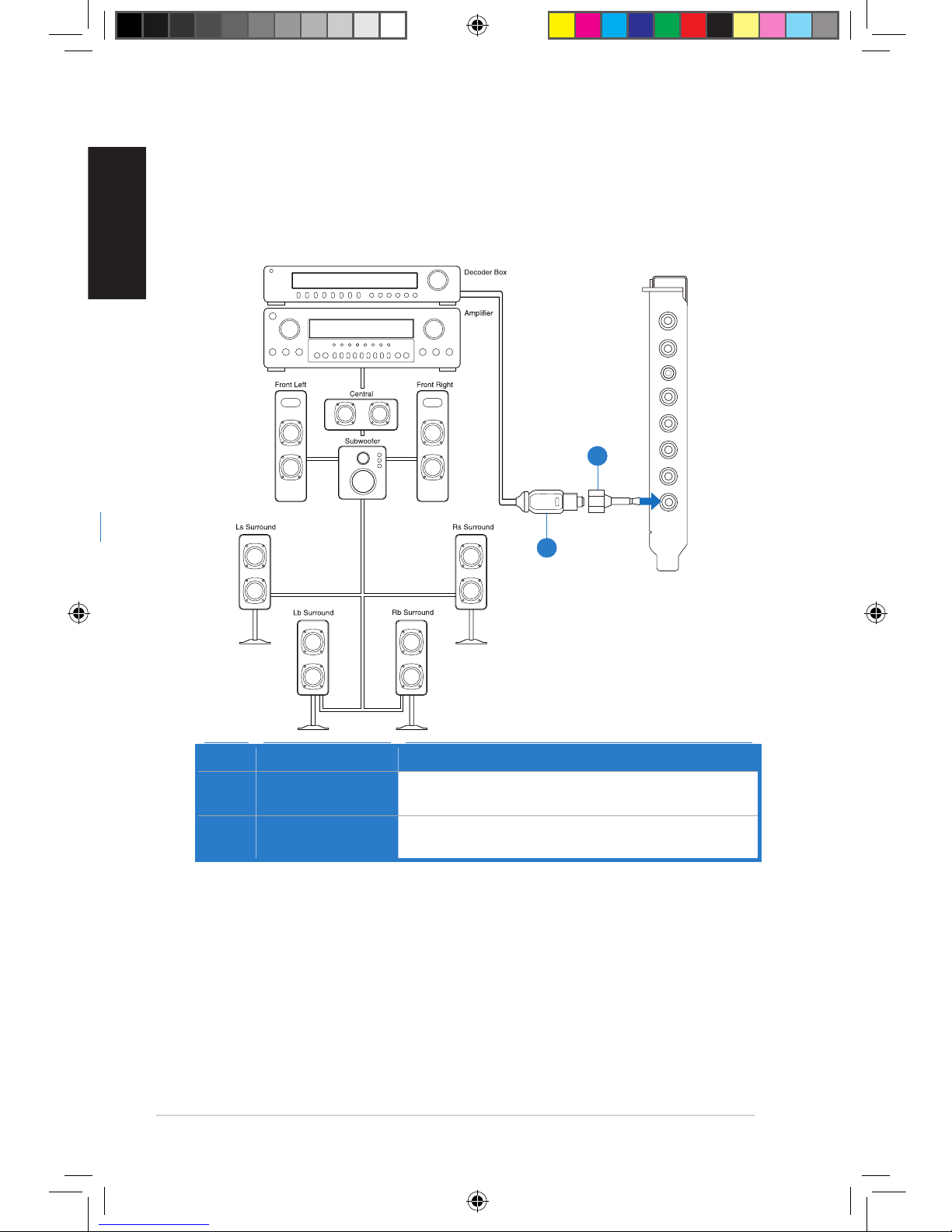

4.1.3 Connecting Digital Speaker Systems (Home Theater)

Xonar Phoebus makes playback through your home theater system possible, creating

an impressive surround sound experience. A single digital cable connection can carry

high-quality digital audio from any of your PC audio sources to any digital speakers or

AV Receivers.

No Item Description

1 Optical adapter Plug the optical TOSLINK adapter into the S/PDIF-Out

connector.

2 Optical cable Connect your decoder’s S/PDIF-In port to the optical adapter

with the TOSLINK optical cable

Mic in

HP out

Box link

Line in

Front

Ctr / Sbw

Rear

Side /

SPDIF out

A7062_Xonar-Phoebus_QSG.indb 10 18.01.2012 16:01:49 Uhr
