Asus 4G-N12 Bedienungsanleitung

User Guide

4G-N12

Wireless-N300 LTE Modem Router

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modied or altered, unless such repair, modication of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or

missing.

ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’benet, without intent

to infringe.

E9553

First Edition

November 2014

Contents

1 Getting to know your wireless router

1.1 Welcome! ........................................................................................5

1.2 Package contents.........................................................................5

1.3 Your wireless router.....................................................................6

1.4 Positioning your router..............................................................8

1.5 Setup requirements ....................................................................9

1.6 Router Setup............................................................................... 10

2 Getting started

2.1 Logging into the Web GUI ..................................................... 12

2.2 Quick Internet Setup (QIS) with Auto-detection ........... 13

3 Conguring the General settings

3.1 Using the Network Map ......................................................... 16

3.2 SMS................................................................................................. 16

3.2.1 New SMS ..................................................................................17

3.2.2 Inbox.........................................................................................18

3.2.3 Drafts ........................................................................................18

3.2.4 Phone Book............................................................................18

4 Conguring the Advanced Settings

4.1 Wireless......................................................................................... 19

4.1.1 General......................................................................................19

4.1.2 RADIUS Setting .....................................................................22

4.1.3 Wireless MAC Filter...............................................................23

4.1.4 WPS (Wi-Fi Protected Setup).............................................24

4.2 LAN................................................................................................. 26

4.2.1 LAN Settings ...........................................................................26

4.2.2 DHCP Client List.....................................................................28

4.3 WAN ............................................................................................... 28

4.3.1 Internet Connection.............................................................28

Contents

4.3.2 Mobile Connection Status .................................................32

4.3.3 Mobile Connection Scan ....................................................34

4.3.4 UPnP .........................................................................................35

4.3.5 Virtual Server / Port Forwarding......................................36

4.3.6 DMZ............................................................................................37

4.3.7 DDNS .........................................................................................39

4.4 Firewall.......................................................................................... 40

4.4.1 General......................................................................................40

4.4.2 MAC Filter.................................................................................41

4.4.3 Intrusion Detection ..............................................................42

4.4.4 Access Control........................................................................43

4.4.5 URL Filter ..................................................................................45

4.4.6 Schedule Rule ........................................................................46

4.5 Administration ........................................................................... 47

4.5.1 System.......................................................................................47

4.5.2 Firmware Upgrade................................................................48

4.5.3 Restore/Save/Upload Setting ...........................................48

4.6 System Log .................................................................................. 49

4.7 Network Tools............................................................................. 50

4.7.1 Ping ............................................................................................50

4.7.2 Traceroute................................................................................51

4.7.3 WAN Capture ..........................................................................52

5 Frequently Asked Questions (FAQs)

Appendices

Notices ....................................................................................................... 56

ASUS Contact information.................................................................... 69

Networks Global Hotline Information............................................... 70

1 Getting to know your wireless

router

NOTES:

• Ifanyoftheitemsaredamagedormissing,contactASUSfor

technical inquiries and support, Refer to the ASUS Support Hotline

list at the back of this user guide.

• Keeptheoriginalpackagingmaterialincaseyouwouldneedfuture

warranty services such as repair or replacement.

1.1 Welcome!

Thank you for buying an ASUS 4G-N12 Wireless LTE Router!

ASUS 4G-N12 Wireless LTE Router features a 4G network module,

letting you insert a SIM/USIM card to access and share your 4G LTE

or 3G network connection via a secure wireless network or any of

the four Ethernet ports. It oers a download speed of 100 Mbps

and upload speed of 50 Mbps for fast Internet access, seamless

media streaming, or easy data transfer.

1.2 Package contents

4G-N12 Wireless Router Network cable (RJ-45)

Power adapter Quick Start Guide

1.3 Your wireless router

LTE signal strength LED 1~4

1 lit LED: Very weak signal;

2 lit LEDs: Weak signal;

3 lit LEDs: Normal signal;

4 lit LEDs: Strong signal.

Power LED

O: No power.

On: Device is ready.

Internet LED

O: No LTE connection.

Flashing: Establishing a LTE/Ethernet WAN connection.

On: Has a proper LTE/Ethernet WAN connection.

Data LED (LTE/Ethernet WAN Trac)

O: No data activity.

On: Data connection is ready.

Wi-Fi LED

O: No 2.4GHz signal.

On:Wireless system is ready.

LAN LED

O: No power or no physical connection.

On: Ethernet connection is established.

WAN/LAN

NOTES:

• Useonlytheadapterthatcamewithyourpackage.Usingother

adapters may damage the device.

• EnsuretoinserttheSIMcardintothecardslotbeforepoweringon

the router.

• Specications:

DC Power adapter DC Output: +12V with max 1A current;

Operating

Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

USIM Card LED

O: No USIM card is installed.

On: A USIM card is installed properly.

USIM card slot

Install a USIM card into this slot to establish a WAN LTE connection.

Power button

Press this button to power on or off the stystem.

Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a power source.

Reset button

Press this button for 5 seconds or longer to reset or restore the system to its

factory default settings.

WAN/LAN port

Using an Ethernet cable, connect your modem to the WAN/LAN port of your wireless

router.

LAN ports

Connect network cables into these ports to establish LAN connection.

WPS button

This button launches the WPS Wizard.

Off

1.4 Positioning your router

For the best wireless signal transmission between the wireless

router and the devices connected to it, ensure that you:

• PlacetheWirelessLTERouternearawindowtoreceivethebest

LTE signal quality for maximum upstream performance with an

LTE base station.

• Keepthedeviceawayfrommetalobstructionsandawayfrom

direct sunlight.

• DonotplacetheWirelessLTERouterinadustyorwet

environment.

• Keepthedeviceawayfrom802.11gor20MHz-onlyWi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordlessphones,transformers,heavy-dutymotors,fluorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Alwaysupdatetothelatestfirmware.VisittheASUSwebsiteat

http://www.asus.com to get the latest firmware updates.

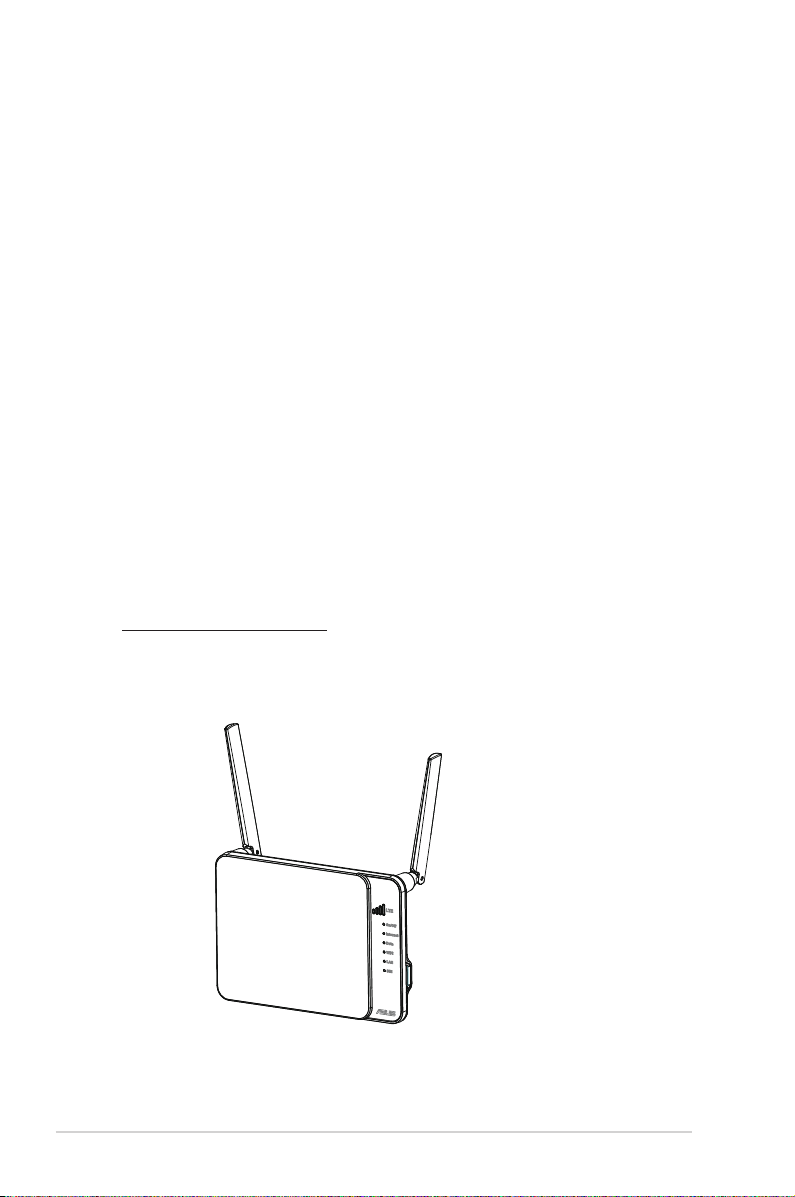

• Toensurethebestwirelesssignal,orientthetwoantennasas

shown in the drawing below.

1.5 Setup requirements

To set up your wireless network, you need to meet the following

requirements:

• AminiSIM/USIMcardwithWCDMAandLTEsubscription

• AnADSL/cablemodemwithInternetsubscription

• AcomputerwithEthernetRJ-45(LAN)port(10Base-

T/100Base-TX) or a Wi-Fi-enableddevicewitha2.4 GHz

802.11 b/g/n wireless interface

• WebbrowsersuchasInternetExplorer,Firefox,Safari,or

Google Chrome

NOTE: A standard SIM/USIM card is a standard mini SIM card.

IMPORTANT! Ensure that your SIM/USIM card is subscribed to WCDMA

and LTE services. Contact your mobile service provider about these

services.

CAUTION! Use only a standard SIM/USIM card on your router. Using a

dierent form of SIM card, such a micro or nano SIM card, may damage

your router.

Mini SIM card Micro SIM card Nano SIM card

1.6 Router Setup

WARNING!

• AvoidinstallingyourWirelessLTERouterduringanelectricalstorm.

There may be a remote risk of electrical shock caused by lightning.

• Donottrytodisassembleorreassemblethisdevice.Tamperingwith

your Wireless LTE Router might void its warranty.

• Whenmountingorcleaningthedevice,ensuretounplugthepower

cord from your Wireless LTE Router.

• KeepyourhandsdrywhenhandlingyourWirelessLTERouterto

avoid any possible electrical shock.

NOTES:

• Ifyourcomputerdoesnothavebuilt-inwirelesscapabilities,you

may install an IEEE 802.11 b/g/n WLAN adapter to your computer to

connect to the network.

• DonotplugaphonejackintoanRJ-45port.Thismaydamagethe

Wireless LTE Router.

• TheEthernetRJ-45cablesthatwillbeusedtoconnectthenetwork

devices should not exceed 100 meters.

Andere Handbücher für 4G-N12

Inhaltsverzeichnis

Andere Asus WLAN-Router Handbücher

Asus

Asus RT-G32 - Wireless Router Bedienungsanleitung

Asus

Asus DSL-N11 Bedienungsanleitung

Asus

Asus RT-AC1200G Bedienungsanleitung

Asus

Asus RT-AX89X Bedienungsanleitung

Asus

Asus ROG Rapture GT6 Bedienungsanleitung

Asus

Asus RT-AX89X Bedienungsanleitung

Asus

Asus ROG Rapture GT-AXE16000 Bedienungsanleitung

Asus

Asus RT-AC1900 Dual Band Bedienungsanleitung

Asus

Asus DSL-AC87CG Bedienungsanleitung

Asus

Asus RT-N300 B1 Bedienungsanleitung

Asus

Asus DSL-N16UP Series Bedienungsanleitung

Asus

Asus Lyra Voice Bedienungsanleitung

Asus

Asus ExpertWiFi EBM68 Bedienungsanleitung

Asus

Asus RT-N12 Series Bedienungsanleitung

Asus

Asus RT-N13U - Wireless Router Bedienungsanleitung

Asus

Asus ZenWiFi XD6 Bedienungsanleitung

Asus

Asus WL-500GP_V2 Bedienungsanleitung

Asus

Asus AX3000 Bedienungsanleitung

Asus

Asus RT-AC1900U Bedienungsanleitung

Asus

Asus ZenWiFi XT9 Bedienungsanleitung

Asus

Asus RT-N12E Bedienungsanleitung

Asus

Asus ExpertWiFi EBM68 Bedienungsanleitung

Asus

Asus RT-N10 B1 (RT-N10+ B1) Bedienungsanleitung

Asus

Asus DSL-N12E C1 Bedienungsanleitung

Beliebte WLAN-Router Handbücher anderer Marken

Milesight

Milesight UG67 Bedienungsanleitung

Airlogic

Airlogic AirSync Class 1 Betriebsanleitung

Samsung

Samsung WCH730B Bedienungsanleitung

TELEFONICA

TELEFONICA USB Adapter Bedienungsanleitung

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Bedienungsanleitung

Askey

Askey RAC2V1K Bedienungsanleitung

Alloy

Alloy WLF2454AP-S Bedienungsanleitung

TP-Link

TP-Link TL-WR542G Bedienungsanleitung

NETGEAR

NETGEAR WNR2000v4 Bedienungsanleitung

Hama

Hama 53120 Bedienungsanleitung

Intellinet

Intellinet 524582 Bedienungsanleitung

D-Link

D-Link DIR-506L Bedienungsanleitung

Sapido

Sapido GR297n Bedienungsanleitung

AMTC

AMTC WR7502 Bedienungsanleitung

Compaq

Compaq CP-2W - iPAQ Connection Point Bedienungsanleitung

SMC Networks

SMC Networks WBR14-N2 FICHE Bedienungsanleitung

Draytek

Draytek Vigor2120 Series Bedienungsanleitung

Sitecom

Sitecom WLR-4000 Bedienungsanleitung
