Asus RT-G32 - Wireless Router Bedienungsanleitung

RT-G32

Wireless Router

User Manual

No part of this manual, including the products and software described in it, may be

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language in any form or by any means, except documentation kept by the purchaser for

backup purposes, without the express written permission of ASUSTeK Computer Inc.

(“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or

altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)

the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OFANY KIND, EITHER

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES

OR CONDITIONS OF MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE.

IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES ORAGENTS BE

LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE

OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR

ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUALARE FURNISHED

FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGEATANY TIME

WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY

ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR

INACCURACIES THAT MAYAPPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS

AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identication or

explanation and to the owners’ benet, without intent to infringe.

E4264

First Edition

November 2008

Table of contents

About this guide .................................................................................... 4

How this guide is organized .............................................................. 4

Conventions used in this guide......................................................... 5

Knowing your wireless router 6

Package contents.................................................................................. 6

System requirements............................................................................ 6

Before you proceed............................................................................... 6

Hardware features ................................................................................. 7

Front panel........................................................................................ 7

Rear panel......................................................................................... 8

Back panel ........................................................................................ 9

Mounting options................................................................................. 10

Setting up the hardware 11

Setting up the wireless router.............................................................11

Setting up a wired connection..........................................................11

Setting up a wireless connection..................................................... 12

Conguring the wireless router ......................................................... 12

Using the web GUI.......................................................................... 12

Conguring the network clients 14

Accessing the wireless router............................................................ 14

Setting an IP address for wired or wireless client ........................... 14

Conguring via the web GUI 21

Conguring via the web GUI............................................................... 21

Conguring the Settings..................................................................... 22

Upgrading the rmware................................................................... 22

Restoring/Saving/Uploading settings.............................................. 23

Installing the utilities 24

Table of contents

About this guide

This user guide contains information that you need to install and congure the

ASUS Wireless Router.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Knowing your wireless router

This chapter provides information on the package contents, system

requirements, hardware features, and LED indicators of the ASUS Wireless

Router.

• Chapter 2: Setting up the hardware

This chapter provides instructions on setting up, accessing, and conguring the

ASUS Wireless Router.

• Chapter 3: Conguring the network clients

This chapter provides instructions on setting up the clients in your network to

work with your ASUS Wireless Router.

Installing the utilities........................................................................... 24

Firmware Restoration.......................................................................... 26

Device Discovery................................................................................. 26

EZSetup................................................................................................ 29

WPS Quick Button Setup................................................................ 32

Troubleshooting 33

Troubleshooting................................................................................... 33

Appendices 36

Notices.................................................................................................. 36

GNU General Public License.............................................................. 38

ASUS Contact information.................................................................. 44

• Chapter 4: Conguring via the web GUI

This chapter provides instructions on conguring the ASUS Wireless Router

using its web graphics user interface (web GUI).

• Chapter 5: Installing the utilities

This chapter provides information on the utilities that are available from the

support CD.

• Chapter 6: Troubleshooting

This chapter provides you with a troubleshooting guide for solving common

problems you may encounter when using the ASUS Wireless Router.

• Appendices

This chapter provides you with the regulatory Notices and Safety Statements.

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when

trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

6RT-G32 Chapter 1: Knowing your wireless router

Package contents

Check the following items in your ASUS Wireless Router package.

RT-G32 Wireless Router

Power adapter

Support CD (manual, utilities)

RJ45 cable

Quick Start Guide

Note: If any of the items is damaged or missing, contact your retailer.

System requirements

Before installing the ASUS Wireless Router, ensure that your system/network

meets the following requirements:

• An Ethernet RJ-45 port (10Base-T/100Base-TX)

• At least one IEEE 802.11b/g device with wireless capability

• An installed TCP/IP and Internet browser

• This utility supports Internet Explorer 6.0 or later version.

Before you proceed

Take note of the following guidelines before installing the ASUS Wireless Router:

• The length of the Ethernet cable that connects the device to the network (hub,

ADSL/cable modem, router, wall patch) must not exceed 100 meters.

• Place the device on a at, stable surface as far from the ground as possible.

• Keep the device clear from metal obstructions and away from direct sunlight.

• Keep the device away from transformers, heavy-duty motors, uorescent lights,

microwave ovens, refrigerators, and other industrial equipment to prevent

signal loss.

Knowing your

wireless router

Chapter 1: Knowing your wireless router RT-G32

• Install the device in a central area to provide ideal coverage for all wireless

mobile devices.

• Install the device at least 20cms from a person to insure that the product is

operated in accordance with the RF Guidelines for Human Exposure adopted

by the Federal Communications Commission.

Hardware features

Front panel

Status indicators

LED Status Indication

(Power) Off No power

On System ready

WLAN

(Wireless

LAN)

Off No power

On Wireless system ready

Flashing Transmitting or receiving data (wireless)

LAN 1-4

(Local Area

Network)

Off No power or no physical connection

On Has physical connection to an Ethernet

network

Flashing Transmitting or receiving data (through

Ethernet cable)

WAN

(Wide Area

Network)

Off No power or no physical connection

On Has physical connection to an Ethernet

network

Flashing Transmitting or receiving data (through

Ethernet cable)

8RT-G32 Chapter 1: Knowing your wireless router

Rear panel

Label Description

ANTENNA Adjust the antenna manually to get a better signal reception

WPS Press this button to launch the Wi-Fi Protected Setup (WPS).

Reset Press for three seconds to restore to the factory default

settings.

WAN Connect an RJ-45 Ethernet cable to this port to establish

WAN connection.

LAN1-LAN4 Connect RJ-45 Ethernet cables to these ports to establish

LAN connection.

DC 12V Insert the DC adapter into this port to connect your router to

a power source.

Chapter 1: Knowing your wireless router RT-G32

Back panel

Item Description

1Mounting hooks

Use the mounting hooks to mount your router on concrete or

wooden surfaces using two roundhead screws.

2Air vents

These vents provide ventilation to your router.

Note: For details on mounting your router on a wall or ceiling, refer to the section Mounting

options on the next page of this user manual.

10 RT-G32 Chapter 1: Knowing your wireless router

Mounting options

Out of the box, the ASUS Wireless Router is designed to sit on a raised at surface

like a le cabinet or book shelf. The unit may also be converted for mounting to a

wall or ceiling.

To mount the ASUS Wireless Router:

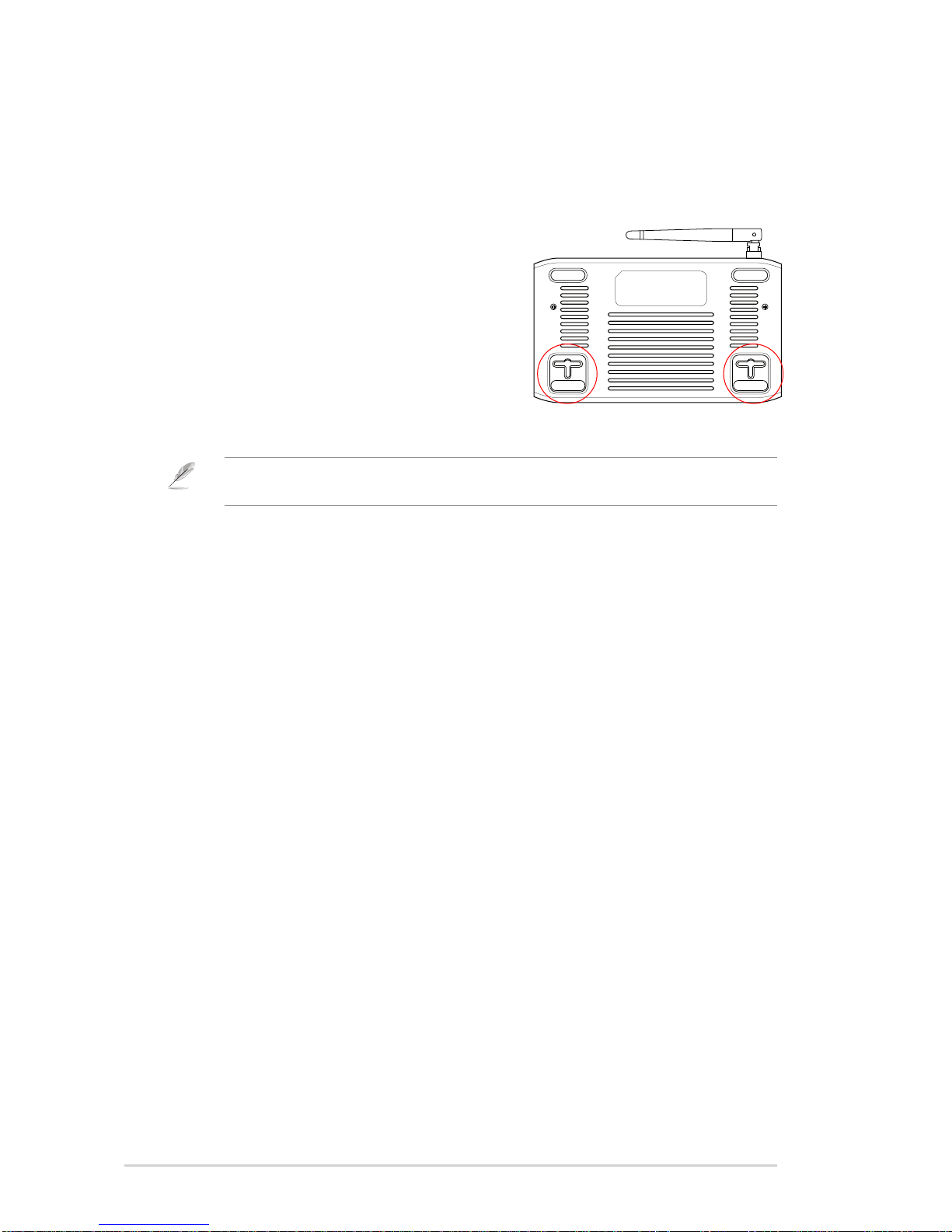

1. Look on the underside for the two mounting

hooks.

2. Mark two upper holes in a at surface.

3. Tighten two screws until only 1/4'' is showing.

4. Latch the hooks of the ASUS Wireless Router

onto the screws.

Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the screws or if

it is too loose.
