Asus WL-520G Bedienungsanleitung

ASUS WL-520g Wireless Router

(For 802.11g/b Wireless Clients)

User’s Manual

Jan 2005 / E1957

2 ASUS Wireless Router

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY

OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT

NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. IN NO EVENTSHALLASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF

BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT

OR ERROR IN THIS MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is

repaired, modified or altered, unless such repair, modification or alteration

is authorized in writing byASUS; or (2) the serial number of the product is

defaced or missing.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are

usedonly foridentification orexplanationand tothe owners’benefit,without

intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS

MANUALAREFURNISHED FORINFORMATIONALUSEONLY,AND

ARE SUBJECT TO CHANGEATANYTIME WITHOUT NOTICE,AND

SHOULDNOTBE CONSTRUEDASACOMMITMENTBYASUS.ASUS

ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS

OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

ASUS Wireless Router 3

Contact Information

ASUSTeK COMPUTER INC. (Asia-Pacific)

Company Address: 15 Li-Te Road, Peitou, Taipei 112

General Telephone: +886-2-2894-3447

General Fax: +886-2-2894-7798

Web Site Address: www.asus.com.tw

General Email: [email protected]

Technical Support

MB/Others (Tel): +886-2-2890-7121

Notebook (Tel): +886-2-2894-3447

Desktop/Server (Tel): +886-2-2890-7123

Networking (Tel): +886-2-2890-7902

Support Fax: +886-2-2890-7698

ASUS COMPUTER INTERNATIONAL (America)

Company Address: 44370 Nobel Drive, Fremont, CA 94538, USA

General Fax: +1-510-608-4555

Web Site Address: usa.asus.com

General Email: [email protected]

Technical Support

General Support: +1-502-995-0883

Notebook (Tel): +1-510-739-3777 x5110

Support Email: [email protected]

Support Fax: +1-502-933-8713

ASUS COMPUTER GmbH (Germany & Austria)

Company Address: Harkort Str. 25, D-40880 Ratingen, Germany

General Telephone: +49-2102-95990

General Fax: +49-2102-959911

Web Site Address: www.asuscom.de

Online Contact: www.asuscom.de/sales

Technical Support

Component Support: +49-2102-95990

Notebook Support: +49-2102-959910

Online Support: www.asuscom.de/support

Support Fax: +49-2102-959911

4 ASUS Wireless Router

Table of Contents

1. Introduction.......................................................................................... 5

Overview................................................................................................ 5

System Requirements ........................................................................... 5

The Product Package ....................................................................... 5

Features ................................................................................................ 6

The ASUS Wireless Family ............................................................... 7

Network Topology .................................................................................. 9

Network Backbone............................................................................ 9

Agent to an ISP............................................................................... 10

Agent to Another Network ............................................................... 11

LED Indicators ..................................................................................... 12

2. Installation Procedure ....................................................................... 13

Wall Mounting Option .......................................................................... 13

Connections......................................................................................... 14

3. Software Configuration..................................................................... 16

Configuring the ASUS Wireless Router ............................................... 16

Connecting to the ASUS Wireless Router ........................................... 16

Setting IP address for Wired or Wireless Connection..................... 17

Installing the ASUS Wireless Router Utilities....................................... 18

Using the Wireless Router for the First Time....................................... 19

Configuring the Wireless Router.......................................................... 21

Setting up a server in your LAN ...................................................... 21

Setting up as switching Hub and pure AP (no IP sharing NAT) ...... 22

Setting up net meeting, MSN, on-line gaming, and remote control

programs......................................................................................... 23

Setting up DDNS............................................................................. 25

Setting up WDS .............................................................................. 28

Troubleshooting ..................................................................................... 30

Common Problems and Solutions ....................................................... 30

Reset to Defaults ................................................................................. 31

1. Introduction

ASUS Wireless Router 5

Chapter 1 - Introduction

1. Introduction

Overview

Thank you for purchasing theASUS Wireless Router. TheASUS Wireless

Router, WL-520g, complies with IEEE 802.11g and 802.11b standards.The

802.11g is as extension to 802.11b (used in majority of wireless LANs

today) that broadens 802.11b’s data rates to 54 Mbps within the 2.4 GHz

bandusing OFDM (orthogonal frequency divisionmultiplexing) technology.

The 802.11g allows backward compatibility with 802.11b devices but only

at 11 Mbps or lower, depending on the range and presence of obstructions.

Wireless LANs are complementary extensions to existing wired LANs,

offering complete mobility while maintaining continuous network

connectivity to both corporate and home Intranets.They add a new level of

convenience for LAN users. PC users stay connected to the network

anywhere throughout a building without being bound by a LAN wires.

This is accomplished through the use ofAccess Point functionality ofASUS

Wireless Routers. ASUS Wireless Router with built-in Internet gateway

capability, allows your family to share a broadband Modem and one ISP

account simultaneously from different rooms without wires!ASUS Wireless

products can keep you connected anywhere, any time.

System Requirements

To begin using the ASUS WL-520g Wireless Router, you must have the

following minimum requirements:

• ADSL/Cable Modem and Broadband InternetAccount.

• An Ethernet (10Base-T or 10/100Base-TX) adapter for wired client

• At least one 802.11g (54Mbps) or one 802.11b (11Mbps) wireless adapter

for wireless mobile clients

• TCP/IP and an Internet browser installed

The Product Package

The Wireless Router comes with:

• Wireless Router • Quick Start Guide

• Power adapter (5 Volts DC) • Support CD (with User’s Manual)

• RJ-45 Ethernet cable (straight-through)

1. Introduction

Chapter 1 - Introduction

6 ASUS Wireless Router

Features

125 High Speed Mode

The WL-520g wireless router uses the 802.11g OFDM standard to allow

fast 54Mbps wireless data transfers while remaining fully compatible with

previous 802.11b devices. With “Afterburner” technology, WL-520g can

boost wireless transfer speeds by 35% compared with standard 802.11g

speeds. (Afterburner support is also required on client side.)

Wi-Fi Multimedia (WMM)

WMM enhances wireless transfers of multimedia contents, providing

wireless network users an improved experience for sharing audio and video

files. WMM is a profile of the upcoming IEEE 802.11e Quality of Service

(QoS) extensions for 802.11 networks. QoS and multimedia support are

critical to wireless home networks, which require video on demand, audio

on demand, voice over IP and high-speed Internet access. (WMM support

is also required on client side.)

Wi-Fi Protected Access 2 (WPA2™)

WPA2 is the next-generation Wi-Fi security standard, combining the most

powerful authentication and encryption techniques, such as the Advanced

Encryption Standard (AES) to provide government grade security to protect

wireless networks from unauthorized use. WPA2 is designed to be backward

compatible with the original WPA standard, and therefore, WPA2 also

supports TKIP, AES, WPA, WPA-PSK and 802.1x authenticated WPA

networks. WEP, ACL and SPI firewall are also included to make sure

information doesn’t fall into the wrong hands.

ASUS EZSetup Wizard

Adoptinga unique push button design,ASUS’Wireless RouterSeries greatly

streamlines the setup process for beginners. Just press the button located

on the back of the device and use the simpleASUS EZSetup Wizard utility.

The routers will automatically register various wireless-capable devices

onto the network and activate security standards.

Parental Control / Children Protection

With specific keywords in URL setting within a pre-defined time interval,

this home wireless router will do web based filtering parental control to

filter/block adult content from newsgroups or websites. It is a router-based

filter, not PC-based, so you just make settings one time to keep all household

internet devices protected.

1. Introduction

ASUS Wireless Router 7

Chapter 1 - Introduction

The ASUS WLAN 802.11g

AccessPoint(WL-300g)creates

a wireless network using the

IEEE 802.11g and 802.11b

wireless standards.

The ASUS Wireless Family

TheASUS Wireless family contains a several wireless network solutions for

802.11g & 802.11b wireless local area networks in the home or office.

The ASUS 802.11b Wireless

CFCard (WL-110) is a IEEE

802.11bwireless LAN adapter

that fits into a Compact Flash

Type II slot in a Portable

Digital Assistant (PDA).

The ASUS WLAN PC Card

(WL-107g) is a wireless LAN

adapter that fits into a PCMCIA

Type II slot in a Notebook PC and

creates a wireless network using

the IEEE 802.11g/b wireless

standards.

The ASUS WLAN Gateway (WL-500g) creates a

wireless network using the IEEE 802.11g/b wireless

standards and allows sharing a single Internet

connection.

The ASUS 3 in 1

Pocket Access Point

(WL-330g) creates a

wireless network

using the IEEE

802.11g/b wireless

standards.

(The illustrations are not to scale.)

Access Point or Client

Access Point & Router

PCMCIA Client Compact Flash (CF) Client

The ASUS WLAN 802.11g Pocket Router (WL-

530g) creates a wireless network using the IEEE

802.11g and 802.11b wireless standards and allows

sharing a single Internet connection.

1. Introduction

Chapter 1 - Introduction

8 ASUS Wireless Router

TheASUSUSBWirelessLANAdapter(WL-167g)

is thumb-sized and creates a wireless network using

the IEEE 802.11g/b wireless standards and connects

to any computer using USB2.0 connectivity.

The ASUS USB Wireless

LAN Adapter (WL-160g)

creates a wireless network

using the IEEE 802.11g/b

wireless standards and

connects to any computer

using USB2.0 connectivity.

The ASUS WLAN

PCI Card (WL-

138g) is a wireless

LAN adapter that fits

into a standard PCI

slot in a desktop PC

and creates a wireless

network using the

IEEE 802.11g/b

wireless standards.

(The illustrations are not to scale.)

USB Access Point or Client USB Client

PCI Client

802.11g 54Mbps

Access Point & File Server

The ASUS WLAN 802.11g Access Point (WL-

HDD) creates a wireless network using the IEEE

802.11g and 802.11b wireless standards.Also serves

as a file server (wireless network attached storage).

1. Introduction

ASUS Wireless Router 9

Chapter 1 - Introduction

Wireless Client

ASUS Wireless Router

LAN

Wireless

Wired Client

Network Topology

The settings that you need to perform will vary depending on the role that

your ASUS Wireless Router will play.

Network Backbone

No software setting is necessary in the ASUS Wireless Router.

Inthis topology, thewirelessrouter connects your wiredandwireless devices

together to form a local area network (LAN), as shown. To connect a

computer(orother device) to theASUSWireless Router, you need a network

cable (UTP-Cat5) with one end connected to one of the LAN ports on the

back of theASUS Wireless Router and the other in the 10/100 LAN port on

that device. For wireless connections, wireless mobile clients must comply

with the IEEE 802.11b standard.

1. Introduction

Chapter 1 - Introduction

10 ASUS Wireless Router

Wireles

ASUS Wireless Router

nternet Service Provider

Wired Client

Wireless Client

WAN

LAN

ADSL or Cable Modem

Internet

Agent to an ISP

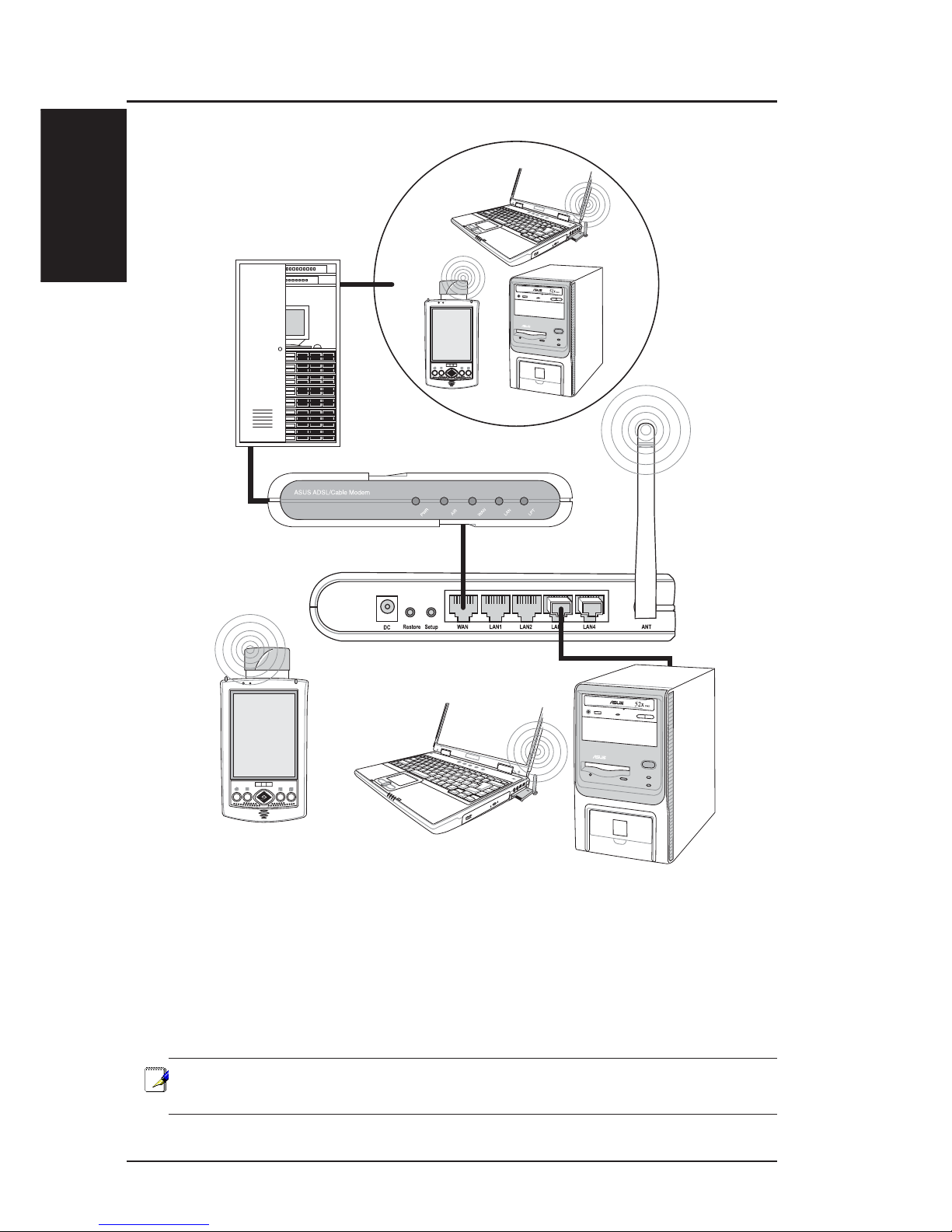

In this topology, the wireless router is not only a backbone of your LAN

but also an agent to your Internet Service Provider (ISP). You may use an

ADSL or Cable modem to communicate with your ISP. Connect the LAN

port on the modem with the WAN port at the back of the ASUS Wireless

Router using a network cable as shown above.

Note: You also need to make sure that other connections on the

ADSL or Cable modem are correct.

Andere Handbücher für WL-520G

Inhaltsverzeichnis

Andere Asus WLAN-Router Handbücher

Asus

Asus RX3041 Bedienungsanleitung

Asus

Asus ZenWiFi AX Mini Bedienungsanleitung

Asus

Asus AM604G - Wireless Router Bedienungsanleitung

Asus

Asus RT-AC56U Bedienungsanleitung

Asus

Asus RT-N13U - Wireless Router Bedienungsanleitung

Asus

Asus WL-320gP - Wireless Access Point Bedienungsanleitung

Asus

Asus ZenWiFi XP4 Bedienungsanleitung

Asus

Asus RT-AX58U Bedienungsanleitung

Asus

Asus RT-N56U Bedienungsanleitung

Asus

Asus RT-N10E EZ N Bedienungsanleitung

Asus

Asus RT-AX88U Gebrauchs- und Pflegehandbuch

Asus

Asus WL-330N3G Bedienungsanleitung

Asus

Asus RT-N53 Bedienungsanleitung

Asus

Asus RT-AX3000 Bedienungsanleitung

Asus

Asus RT-N66U Dark Knight Bedienungsanleitung

Asus

Asus RT-AX88U Bedienungsanleitung

Asus

Asus DSL-N55U-C1 Bedienungsanleitung

Asus

Asus RT-N10 - Wireless Router - 802.11b/g/n Bedienungsanleitung

Asus

Asus WL-530G Bedienungsanleitung

Asus

Asus RT-AX82U Bedienungsanleitung

Asus

Asus WL-500gP Bedienungsanleitung

Asus

Asus DSL-N10S Bedienungsanleitung

Asus

Asus RT-AX55 Bedienungsanleitung

Asus

Asus TM-AC1900 Bedienungsanleitung

Beliebte WLAN-Router Handbücher anderer Marken

Milesight

Milesight UG67 Bedienungsanleitung

Airlogic

Airlogic AirSync Class 1 Betriebsanleitung

Samsung

Samsung WCH730B Bedienungsanleitung

TELEFONICA

TELEFONICA USB Adapter Bedienungsanleitung

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Bedienungsanleitung

Askey

Askey RAC2V1K Bedienungsanleitung

Alloy

Alloy WLF2454AP-S Bedienungsanleitung

TP-Link

TP-Link TL-WR542G Bedienungsanleitung

NETGEAR

NETGEAR WNR2000v4 Bedienungsanleitung

Hama

Hama 53120 Bedienungsanleitung

Intellinet

Intellinet 524582 Bedienungsanleitung

D-Link

D-Link DIR-506L Bedienungsanleitung

Sapido

Sapido GR297n Bedienungsanleitung

AMTC

AMTC WR7502 Bedienungsanleitung

Compaq

Compaq CP-2W - iPAQ Connection Point Bedienungsanleitung

SMC Networks

SMC Networks WBR14-N2 FICHE Bedienungsanleitung

Draytek

Draytek Vigor2120 Series Bedienungsanleitung

Sitecom

Sitecom WLR-4000 Bedienungsanleitung
