WL-AM604g 11g WiFi ADSL Router Quick Start Guide

LINKAP ACT

xDSL LAN

4321!

English

Table of contents

Quick setup.....................................................................................2

Hardware Setup ............................................................................... 2

Connecting ADSL splitter to your phone outlet...............................................2

Connect the splitter to WL-AM604g ...............................................................2

Connect your computer to WL-AM604g via Ethernet.....................................2

Quick setup ...................................................................................... 3

Log into the WL-AM604g conguration page .................................................3

ADSL setup ....................................................................................................3

Wireless setup................................................................................................4

Manual Setup ................................................................................... 6

ADSL Setup....................................................................................................6

Wireless Setup ...............................................................................................8

Connecting to WL-AM604g from ASUS WLAN Card ....................... 9

Conguring ASUS WLAN Card with One Touch Wizard™.............................9

Conguring WLAN card with Windows®WZC service..................................10

WL-AM604g 11g WiFi ADSL Router Quick Start Guide

LINKAP ACT

xDSL LAN

4321!

English

Quick setup

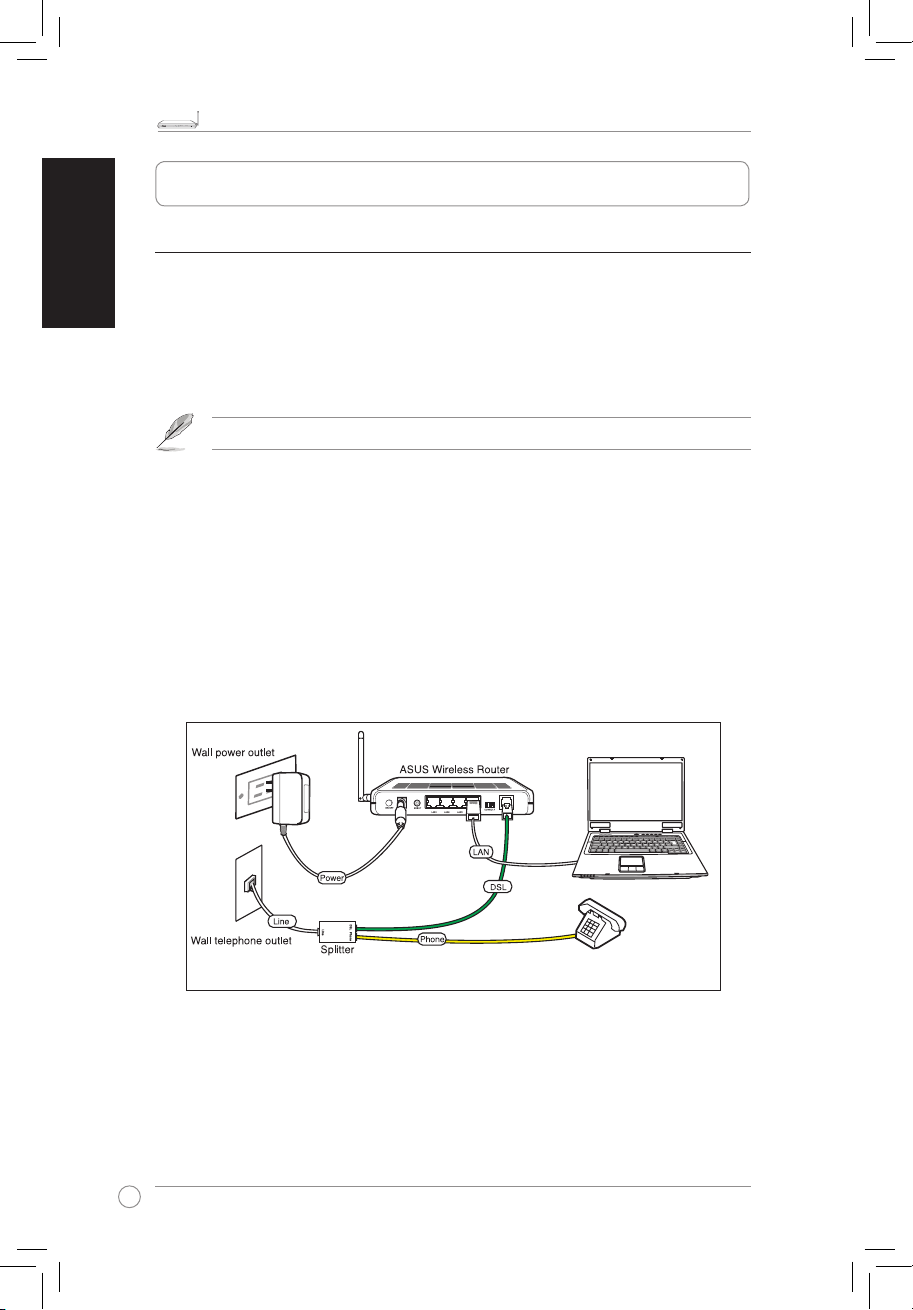

Hardware Setup

Connecting ADSL splitter to your phone outlet

Insert the Line connector of the splitter into the phone outlet and connect your telephone

set to the Phone port (A).

Connect the splitter to WL-AM604g

Incorrect splitter connection can block your ADSL service.

a. Turn off your computer.

b. Connect the ADSL port of WL-AM604g to the DSL port (B) of the splitter.

c. Connect the power adapter to the power port on WL-AM604g rear panel and to a

power outlet. Make sure the power LED indicator is ON after turning on the router. If

the ADSL link LED is solid green, it means ADSL link is established.

Connect your computer to WL-AM604g via Ethernet

Use the supplied Ethernet cable to connect your computer to a LAN port of

WL-AM604g.

(A)

(B)

WL-AM604g 11g WiFi ADSL Router Quick Start Guide

LINKAP ACT

xDSL LAN

4321!

English

If your actual connection is not PPPoE or PPPoA, click Manual Setting

to manually set up WL-AM604g. Refer to pages 5-7 for manual setting

instructions.

Quick setup

Log into the WL-AM604g conguration page

1. Key in 192.168.1.1 into the address box of your Web browser and press Enter.

2. A login window appears for the username and password. The default username

and password is admin (in lower case).

3. After logging in, you can see the WL-AM604g conguration page.

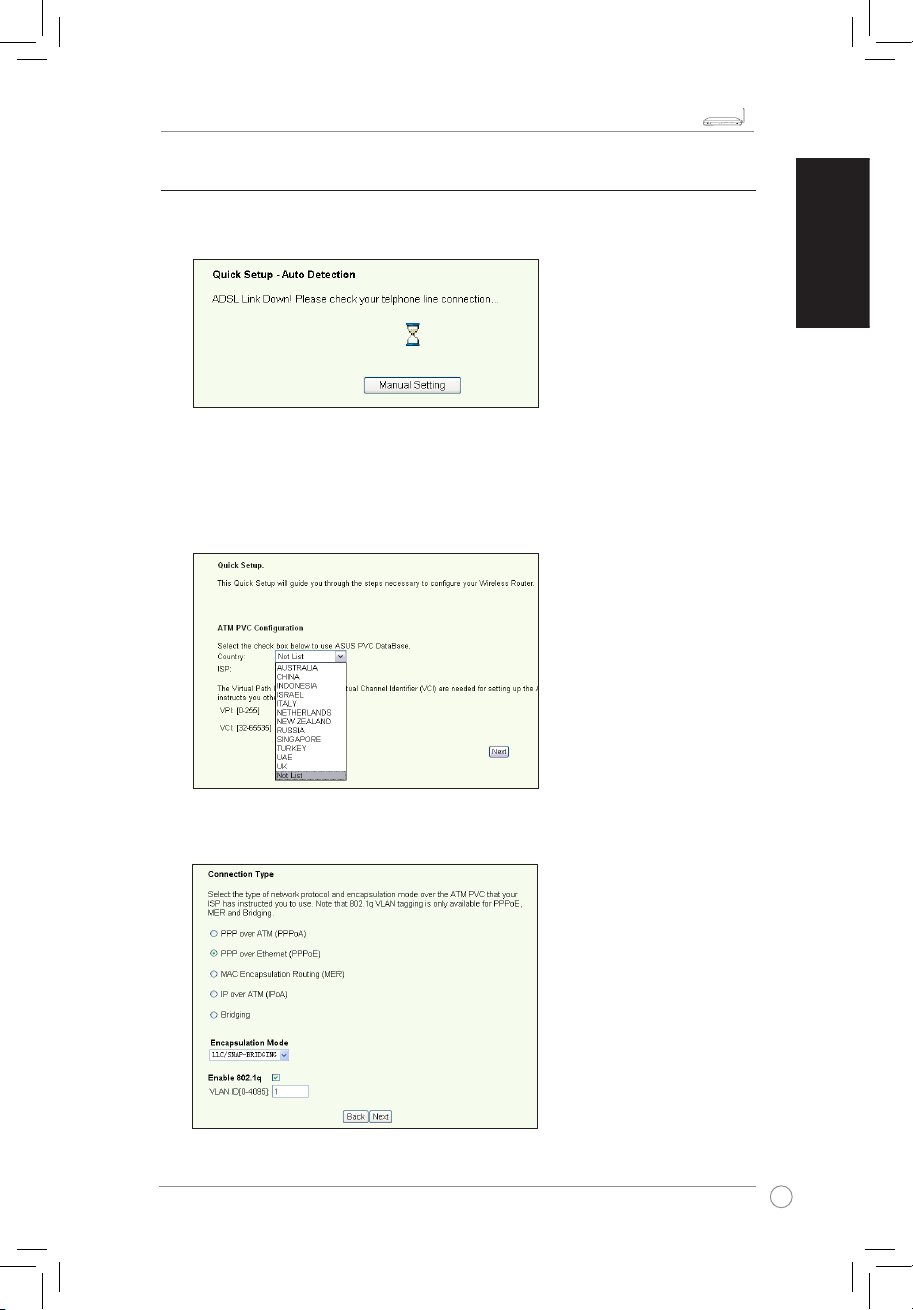

ADSL setup

1. By default, the Quick Setup page pops up. The Quick Setup Wizard automatically

detects your ADSL connection type.

2. If ADSL connection is detected, the next page shows your ADSL connection type.

If your ADSL connection is not detected, click Manual Setting to manually

set up WL-AM604g. Refer to pages 5-7 for manual setting instructions.

* If your connection type is PPPoE or PPPoA

For dynamic IP users

Key in your username and password then click Next.

For static IP users

check Use Static IP Address and key in your IP address, then click Next.

WL-AM604g 11g WiFi ADSL Router Quick Start Guide

LINKAP ACT

xDSL LAN

4321!

English

If your actual connection is not MER (DHCP), click Manual Setting to

manually set up WL-AM604g. Refer to pages 5-7 for manual setting

instructions.

* If your connection type is “MER”(DHCP)

Click Next if your connection type is DHCP.

Wireless setup

1. Choose a security level. For detailed security descriptions, refer to the security

level section on the user guide in your suppport CD.

2. Key in a key in the Key field. The number of digit for the key depends on the

security level you choose.

3. The summary page then shows up. If the information displayed is correct, click

Save/Reboot to nish the setup. Otherwise, click Back to modify the settings.

4. Setup complete! Wait for about 50 seconds to reboot. The Web page will refresh to

show device information after reboot.

WL-AM604g 11g WiFi ADSL Router Quick Start Guide

LINKAP ACT

xDSL LAN

4321!

English

Manual Setup

If you encounter difculty when conguring ADSL connection with Quick Setup, click

Manual Setting to manually set up the ADSL connection.

ADSL Setup

1. Select your Country and ISP, then click Next. If your country and ISP are not on

the list, select Not list and key in your VPI and VCI then click Next. You may ask

your ISP for VPI/VCI values.

3. Select your connection type and click Next. You can get your connection type from

your ISP. Refer to the next pages for the connection types.

WL-AM604g 11g WiFi ADSL Router Quick Start Guide

LINKAP ACT

xDSL LAN

4321!

English

* If your connection type is PPPoA or PPPoE

For dynamic IP users

Key in your PPP username, password, and service name then click Next.

For static IP users

Check Use Static IP Address then key in your IP address, then click Next.

* If your connection type is IPoA

Static IP user only

Key in the WAN IP address assigned by your ISP, then click Next.

WL-AM604g 11g WiFi ADSL Router Quick Start Guide

LINKAP ACT

xDSL LAN

4321!

English

* If your connection type is MER

For dynamic IP users

Check Obtain an IP address automatically, Obtain default gateway

automatically, and Obtain DNS server address automatically. Click Next.

For static IP users

Check Use the following IP Address, Use the following default gateway,

and Use the following DNS server address, then key in the addresses in

correspondent elds.

WL-AM604g 11g WiFi ADSL Router Quick Start Guide

LINKAP ACT

xDSL LAN

4321!

English

Wireless Setup

1. Designate an SSID (network name) for WL-AM604g. Choose the security level

then input a key. The number of digit of your key depends on the security level you

choose. Refer to the note on the web page. When nished, click Next.

2. This page provides a summary of WL-AM604g WAN and wireless conguration.

Click Save/Reboot to save and activate your conguration.

3. Setup complete! WL-AM604g reboots in about 50 seconds. The green bar shows

the current rebooting status. After reboot, the web page will automatically refresh to

display the settings.
