AT-320 H323 Phone User Manual (V1.39)

AT-320 H323 Phone User Manual

AT-320 H323 phone Appearance Introduction:.................................................................... 2

Function Keys of AT-320 H323 Phone Introduction ............................................................... 2

Features .................................................................................................................................. 3

Standard and Protocol ............................................................................................................ 3

Operating requirements ..........................................................................................................4

Electric requirements.............................................................................................................. 4

Size.......................................................................................................................................... 4

Installation.............................................................................................................................. 5

Configuration.......................................................................................................................... 5

Phone Keypad set ................................................................................................................... 5

Configured by WEB ................................................................................................................ 9

Configured by PalmTool ....................................................................................................... 22

Telnet Configuration ............................................................................................................. 22

Upgrade AT-320 H323 phone............................................................................................. 38

Usage of the phone ............................................................................................................... 39

AT-320 H323 Phone User Manual (V1.39)

¾AT-320 H323 phone Appearance Introduction:

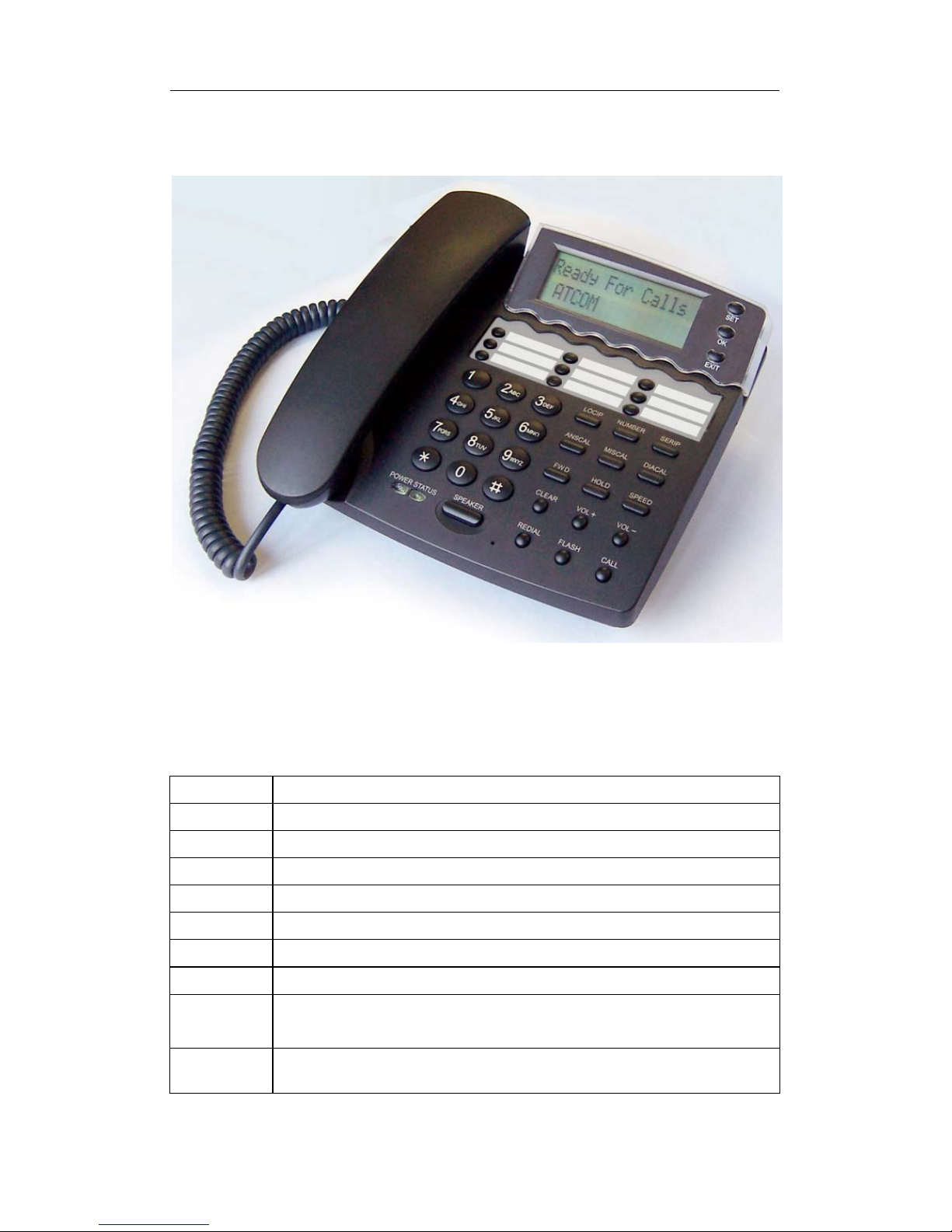

●AT-320 H323 Phone Front Illustration (Refer to Fig 1.1):

Fig 1.1 AT-320 H323 Phone Front Illustration

¾Function Keys of AT-320 H323 Phone Introduction:

Keys Function

LOCIP/SET With handset hung, press this key to get local IP address of the phone

MISCAL With handset hung, press this key to review missed number

ANSCAL With handset hung, press this key to review received number

SPEED Speed dial

NUMBER With handset hung, press this key to get phone number

DIACAL With handset hung, press this key to review dialed number

SERIP The gatekeeper ip

REDIAL/EXIT

While reviewing missed, received or dialed number, press this key to dial current

number

SPEAKER/OK Press this key to have a call without lifting the handset

AT-320 H323 Phone User Manual (V1.39)

VOL+ Increase the volumes of handset or speaker; turn over the record backward

VOL- Decrease the volumes of handset or speaker; turn over the record forward

¾Features

¾Hardware

●Main chip—PA1688 50MHz

●Data Memory—2MB SDRAM

●Program Memory—1or 2 MB Flash memory

●Ethernet Jack—1/2 10/100M jacks

●AC/DC adapter—Input AC100--- 230VOutput 9V DC, 1A

¾Software

●DHCP support for LAN or Cable modem

●PPPoE support for ADSL or Cable modem

●Set phone by HTTP web browser or Telnet

●Upgrade by FTP

●Support major G.7XX ;GSM610 audio codec

●VAD(Voice active detect)

●CNG (Comfort noise generation)

●Dynamic voice jitter buffer

●G.167/165 compliant 16ms echo cancellation

●Tone generation and Local DTMF re-generation according with ITU-T

●E.164 dial plan and customized dial rules

●100 entries for speed dial

●80 entries each for missed calls, answered calls and dialed calls

●Adjustable volume for both handset and speaker

●Voice prompt

●Hotline

●Support adjustable user password and super password

¾Standard and Protocol

AT-320 H323 Phone supports following standard and protocol:

AT-320 H323 Phone User Manual (V1.39)

●IEEE 802.3 /802.3 u 10 Base T / 100Base TX

●Major G.7XX; GSM610 audio codec

●H.323 V4

●TCP/IP: Internet transfer and control protocol

●RTP: Real-time Transport Protocol

●RTCPReal-time Control Protocol

●VAD/CNG save bandwidth

●DHCPDynamic Host Configuration Protocol

●PPPoEPPP Protocol over Ethernet

●DNSDomain Name Server

●TelnetInternet's remote login protocol

●FTPFile Transfer protocol

●TFTPFile Transfer protocol (optional)

●HTTPHyper Text Transfer protocol

●Build in H.323 proxy

¾Operating requirements:

●Operation temperature: 0 to 50° C (32° to 122° F)

●Storage temperature: -30° to 65° C (-22° to 149° F)

●Humidity: 10 to 90% no dew

¾Electric requirements:

●Voltage: 9V~24V

●Power adapter: output DC 12V/450mA

●Network interface:1/2X RJ-45 Ethernet Connectors

¾Size

200 x 195 x 87 mm (L x W x H)

AT-320 H323 Phone User Manual (V1.39)

¾Installation:

1 Connect handset to base: insert handset cord into handset cord jack at the left side

of the base.

2 Connect IP phone to Internet: plug the RJ-45 Ethernet cable into the Ethernet Jack.

Plug the other end of the cable into HUB. Refer to Fig 2.2 please.

Power on IP phone: plug the power cord adapter into the Power Jack. Then plug the

other end of the power cord adapter into the appropriate wall outlet.

¾Configuration

Four different ways can be used to configure AT-320 H323 phone: phone

keypad, web browser, Telnet commands and PalmTool configuration tool on

computer.

¾Phone Keypad setup

●Function Keys Introduction: When using keypad and LCD to configure the

settings of IP phone, following keys will be used:

Keys Function Keys Function

LOCIP/SET Enter setting mode SPEAKER/OK Enter submenu; confirm change

VOL Turn over menu

backward VOL - Turn over menu forward; move

cursor backward

NUMBERS Modify values REDIAL/EXIT Exit current menu; exit setting mode

●Enter into settingsPlease Inputting the phone password on the keypad (If the debug

isn’t 0,the original password is 1234; If the debug is O, please use super password

1234567878)  then press # for a while until there is Password stated on the

LCD , Please input the phone password again and press to

confirm. You successfully enter into settings.

Password

AT-320 H323 Phone User Manual (V1.39)

Refer to above operation; you can reach any menu to modify any value. Please refer

to following structure illustrations to learn the values of each menu item. As for the

meaning of each item and value, please refer to Web Browser Setting chapter.

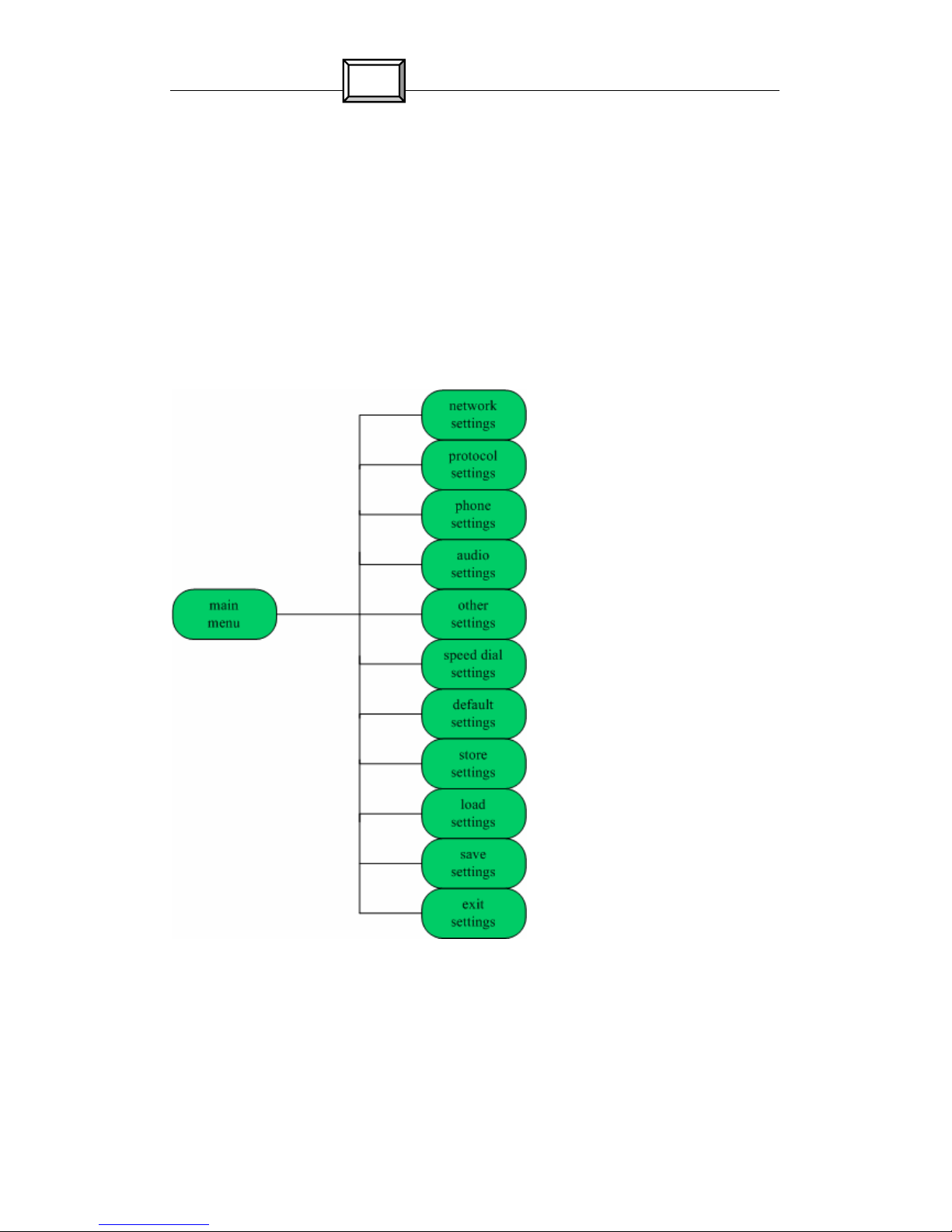

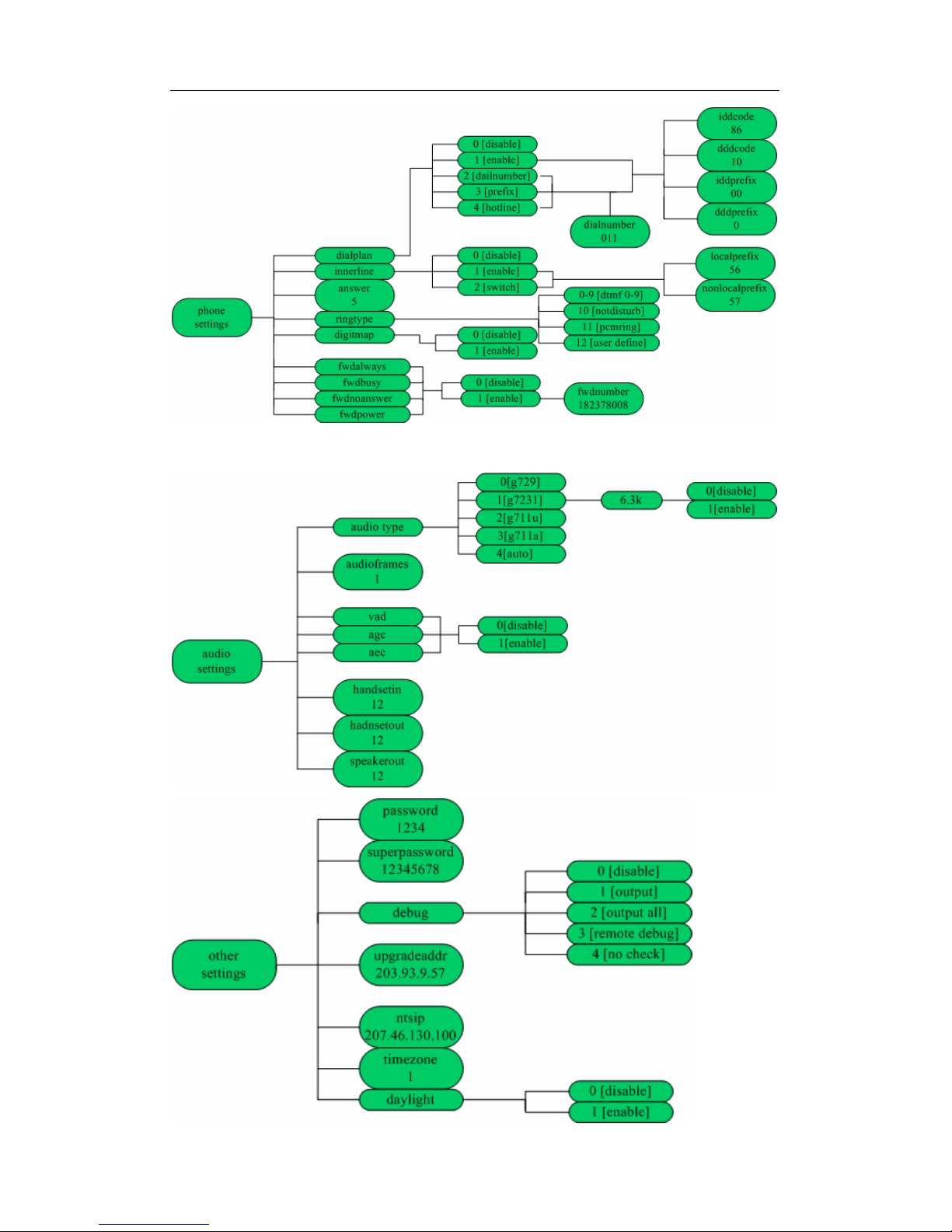

●Menu Structure:

AT-320 H323 Phone User Manual (V1.39)

¾Configured by WEB

Double click icon to open the IE browser. Input the IP address of the phone

into address bar ( ), and then input password of the

phone into the following page. Default password 1234 is ordinary password and

super password is 12345678. With Debug set 0[disable], please input super

password; while Debug is not set as 0[disable], please input ordinary password.

Then click button. The following configured page wills popup. Refer

to Fig 3.1 please.

Fig 3.1 Http Setting

Network Setting

AT-320 H323 Phone User Manual (V1.39)

Fig 3.2 Network Setting

●iptype: Set how IP phone gets relevant network parameters by selecting

corresponding item from drop down list.

static ip: Select this item to authorize users set IP address, subnet mask and

router IP address of IP phone manually.

dhcp: Select this item to enable DHCP mode. With this system, your LAN or

router automatically assigns all the required network parameters to any device

connected to it when the device log on. AT-320 IP phone is shipped from the

factory with DHCP on. So, if you’re LAN or router is configured to use DHCP

addressing, the IP phone’s LAN parameters will automatically be configured as

soon as it is connected to the LAN or router and powered up.

pppoeThose ADSL and Cable Modem users please select this item for it is a

protocol especially designed for them. With this system, ADSL ISP

automatically assigns all the required IP parameters to any device connected to

it when the device log on.

modemIf the IP phone used with modem, please select this item to get

relevant network parameters auto. Then please fill ID and pin into ppp id and

ppppin fields.

●ppp id: With pppoe or modem selected in iptype drop down list, please enter

the user name here.
