Rainbow4(s) Quick Start Guide

Version：1.0

2014-10-17

http://arttel.ru

http://arttel.ru/shop/ip-telefony/ip-telefon-atcom-rainbow-4s

Rainbow 4(s) Quick Start Guide

Content

1、Installation and access ...........................................................................................................................3

1.1 Connection .....................................................................................................................................3

1.2 Stand bracket installation instruction .............................................................................................3

1.3 Interface description.......................................................................................................................4

1.4 Check IP address ............................................................................................................................5

1.5 Enter the Setting of telephone ........................................................................................................5

2、Quick Configuration..............................................................................................................................6

2.1、Network Configuration................................................................................................................6

2.2、Account Configuration ................................................................................................................8

http://arttel.ru

http://arttel.ru/shop/ip-telefony/ip-telefon-atcom-rainbow-4s

Rainbow 4(s) Quick Start Guide

1. Installation and access

1.1 Connection

Set up Rainbow 4(s) as below:

1.2 Stand bracket installation instruction

A. Put the bottom side of the IP phone upside and press one-side joints of stand

bracket into the slot, please refer the picture as below:

B. Press the other side joints into the slot according to the direction of the arrow:

http://arttel.ru

http://arttel.ru/shop/ip-telefony/ip-telefon-atcom-rainbow-4s

Rainbow 4(s) Quick Start Guide

C. It is the right picture after fixing the stand bracket below:

D. Disassemble the stand bracket:

Push the spring joint of stand and pull the stand according to the direction of the

arrow. When the joints are pulled out of the slot, you can take off the stand

bracket：

http://arttel.ru

http://arttel.ru/shop/ip-telefony/ip-telefon-atcom-rainbow-4s

Rainbow 4(s) Quick Start Guide

1.3

Wiring instruction

After stand bracket fixed, please plug in all wires or cables as below:

1.4 Check IP

Rainbow4(s) uses DHCP mode by default, and you can review its current IP

address by pressing key when it is powered on and connected to the network.

http://arttel.ru

http://arttel.ru/shop/ip-telefony/ip-telefon-atcom-rainbow-4s

Rainbow 4(s) Quick Start Guide

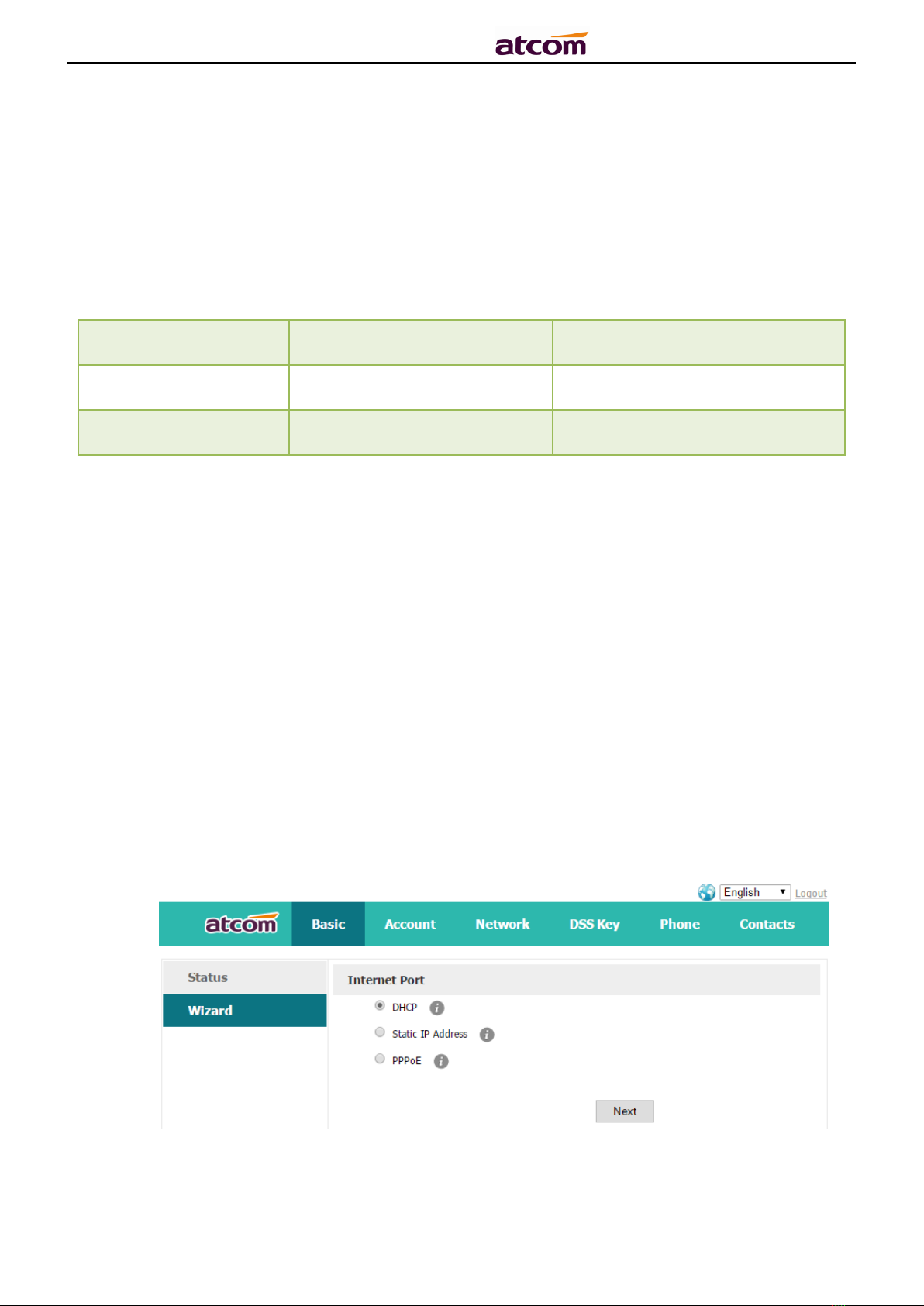

1.5 Enter the Setting of telephone

Connect the PC and telephone in one network, input the IP address of

telephone at a browser and press “Enter”, you will be required to input the

username and password to access the web page. The username/password as

below:

Username

Password

Description

admin

For Administrators

user

For General Users

2、Wizard

After log in the webpage, you’re able to set the telephone by quick configuration. Configure the

telephone quickly via Web：Basic→Wizard

User should set the below two parts in turn,

1. Network——LAN Port；

2. Account——SIP。

2.1

、

Network Configuration

There is 3 options for network access,

http://arttel.ru

http://arttel.ru/shop/ip-telefony/ip-telefon-atcom-rainbow-4s

Rainbow 4(s) Quick Start Guide

1. If chosen DHCP, the telephone will be assigned a IP address

automatically, click the button “Next” to enter the web page of “Account

Configuration”.

2. If chosen Static IP，user should input the IP address manually for the

telephone, click the button “Next” to enter the web page of “Static IP

Address”.

After IP address filled manually, click the button “Next” to enter the web

page of “Account Configuration”, or click the button “Back” to back to web page

of “Network Configuration”.

3. If chosen PPPoE, user should input the username/password (provide by

ISP) of PPPoE manually and then click the button “Next” to enter the web

page of “PPPoE”,

After the username/password of PPPoE filled manually, click the button

“Next” to enter the web page of “Account Configuration”, or click the button

“Back” to back to web page of “Network Configuration”.

Network Configuration can be completed in below webpage,

http://arttel.ru

http://arttel.ru/shop/ip-telefony/ip-telefon-atcom-rainbow-4s

Rainbow 4(s) Quick Start Guide

2.2

、

Account Configuration

The account configuration info will be saved to Line 1.

Click the buttom “Finish” to save network configuration and account

configuration, and click “Back” back to the previous web page.

http://arttel.ru

http://arttel.ru/shop/ip-telefony/ip-telefon-atcom-rainbow-4s

Rainbow 4(s) Quick Start Guide

Account Configuration can be completed in below webpage,
