ATI Technologies Radeon X600 Bedienungsanleitung

ATI

RADEON™ X600

User’s Guide

P/N 137-40384-10

ATI and ATI product and product feature names are trademarks and/or registered trademarks of ATI

Technologies Inc. All other company and/or product names are trademarks and/or registered

trademarksoftheir respectiveowners.Features,performanceandspecificationsaresubject tochange

without notice. Product may not be exactly as shown in diagrams.

Reproduction of this manual, or parts thereof, inany form, without the express written permission of

ATI Technologies Inc. is strictly prohibited.

Disclaimer

While every precaution has been taken in the preparation of this document, ATI Technologies Inc.

assumes no liability with respect to the operation or use of ATI hardware, software or other products

and documentation described herein, for any act or omission of ATI concerning such products or this

documentation, for any interruption of service, loss or interruption of business, loss ofanticipatory

profits, or for punitive, incidental or consequential damages in connection with the furnishing,

performance, or use of the ATI hardware, software, or other products and documentation provided

herein.

ATI Technologies Inc. reserves the right to make changes without further notice to a productor system

described herein to improve reliability, function or design. With respect to ATI products which this

document relates, ATI disclaims all express or implied warranties regarding such products, including

but not limited to, the implied warranties of merchantability, fitness for a particular purpose,and non-

infringement.

Product Notices

Dolby* Laboratories, Inc.

Manufactured under license from Dolby Laboratories. Confidential Unpublished Works.

Macrovision

Apparatus Claims of U.S. PatentNos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for

limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain

U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights

owners. Use of this copyright protection technology must be authorized by Macrovision Corporation,

and is intended for home and other limited viewing uses only unless otherwise authorized by

Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Documentation Updates

ATI is constantly improving its product and associated documentation. To maximize the value of your

ATI product, you should ensure that you have the latest documentation. ATI’s documentation contains

helpful installation/configuration tips and other valuable feature information.

iii

LIMPORTANT SAFETY INSTRUCTIONS

•Read Instructions - All the safety and operating instructions should

be read before the product is operated.

•Retain Instructions - The safety and operating instructions should

be retained for future reference.

•Heed Warnings - All warnings on the product and the operating

instructions should be adhered to.

•Compatibility - This option card is for use only with IBM AT or

compatible UL Listed personal computers that have Installation

Instructions detailing user installation of card cage accessories.

•Grounding - For continued protection against risk of electric shock

and fire, this accessory should be installed only in products equipped

with a three-wire grounding plug, a plug having a third (grounding)

pin. This plug will only fit into a grounding-type power outlet. This is a

safety feature. If you are unable to insert the plug into the outlet,

contact your electrician to replace the obsolete outlet. Do not defeat

the safety purpose of the grounding-type plug.

•Secure Attachment - All card securement pins shall be completely

tightened as to provide continuous bonding between the option card

and the PC chassis.

•Outdoor Antenna Grounding - Since an outdoor antenna or cable

system is connected to the product, be sure that the antenna or cable

system is grounded so as to provide some protection against voltage

surges and built-up static charges. Article 810 of the National

Electrical Code, ANSI/NFPA 70, provides information with regard to

proper grounding of the mast and supporting structure, grounding of

the lead-in wire to the antenna discharge unit, size of grounding

conductors, location of antenna-discharge unit, connection of

grounding electrodes, and requirements for the grounding electrode.

•Lightning - For added protection for this product during a lightning

storm, or when it is left unattended and unused for long periods of

time, unplug it from the wall outlet, and disconnect the antenna or

cable system. This will prevent damage to the product due to

lightning and power-line surges.

•Power Lines - An outside antenna system should not be located in

the vicinity of overhead power lines or other light or power circuits, or

where it can fall into such power lines or circuits.

•Antenna Installation - When installing an outside antenna system,

extreme care should be taken to keep from touching such power lines

or circuits, as contact with them may be fatal.

•Note to CATV System Installer - This reminder is provided to call

the CATV systems installer’s attention to Section 820-40 of the NEC,

which provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the grounding

system of the building, as close to the point of cable entry as

practical.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

RADEON™ X600 Features 1

Graphic Features 1

External Connections 1

Using Multiple Displays . . . . . . . . . . . . . . . . . . . . . 3

Connecting Your Monitors 3

Display Configurations 5

ATI’s CATALYST™ Software Suite . . . . . . . . . . . . 7

Introduction 7

Features 7

Multiple Displays and 3D Gaming 7

HYDRAVISION™ 7

Accessing the CATALYST™ Software Suite 7

ATI Displays Tab 8

ATI Color Tab 10

Hotkeys 14

Color Hotkeys Settings 15

ATI Options Tab 17

Options Details Tab 18

ATI Rotation Tab 19

Rotation HotKeys 21

ATI Overlay Tab 22

Video Overlay 22

Clone Mode Settings 23

ATI 3D Tab 25

Custom Properties Dialog 27

Direct 3D® Compatibility Settings 30

OpenGL® Compatibility Settings 31

ATI VPU Recover Tab 32

Using TV Display and Capture Features . . . . . . . 35

Using TV Out 35

View your PC’s display on a TV 35

Starting Windows® with TV Display Enabled 36

Using SCART Connectors for European TVs 37

How To Enable/Disable The TV Display 38

Using and Adjusting TV Display Features 38

How TV Display Cannot Be Used 38

Using a Monitor vs. Using TV Display 38

Adjusting Monitor Display 38

Viewing Text on a TV 39

Reducing Edge Distortion 39

Using TV Display Alone 40

Using Games and Applications 40

Select your TV broadcast format 40

Adjust your TV screen size 41

Adjust your TV screen position 42

Adjust the composite sharpness of your TV display 42

Adjust the S-Video sharpness of your TV display 43

Adjust the composite dot crawl on your TV Display 43

Adjust the chroma flicker removal setting on your TV Display (if

available) 44

Adjust the luma flicker removal setting on your TV Display 44

Reset the advanced settings on your TV Display(if available) 45

Connect to a TV, VCR, or Camcorder

for video capturing 46

Windows® Volume Control 46

Capturing video using Windows® Movie Maker 47

Compliance Information . . . . . . . . . . . . . . . . . . . . 49

FCC Compliance Information 49

Industry Canada Compliance Statement 49

CE Compliance Information 50

L’Information de conformité de la CE 50

CE-befolgungInformationen 50

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

RADEON™ X600 Features 1

CHAPTER 1:

Introduction

RADEON™ X600 Features

Graphic Features

• Four parallel rendering pipelines.

• SMARTSHADER™ 2.1

• Full hardware-based support for Microsoft® DirectX® 9.0/9.1

programmable vertex and pixel shaders in hardware.

• Shadow volume rendering acceleration.

• Complete feature-set support for OpenGL® 1.5 and 2.0

extensions.

• SMOOTHVISION™ 2.1

• Full-scene anti-aliasing method that smooths uneven edges and

improves blurred images.

• 2x/4x/6x Anti-aliasing modes with aloss-less compression up to a

ratio of 6:1 at all resolutions.

• 2x/4x//8x/16x Anisotropic Filtering modes with up to 128-tap

texture filtering.

• HYPER Z™ III

• Ensures optimal hardware performance by discarding irrelevant

object data that is not visible to the user.

• Conserves video memory bandwidth.

• Loss-less Z-buffer compression

• Z Cache optimized for real-time shadow rendering.

• VIDEOSHADER™

• Seamlessly integrates pixel shaders with video in real time.

• All format DTV/HDTV decoding.

• Adaptive Per-Pixel- De-interlacing and Frame Rate Conversion.

External Connections

• 15-pin D-shell (female) VGA output.

• DVI-I output.

2 RADEON™ X600 Features

• S-Video output or Video In/Video Out (VIVO) connection.

CHAPTER 2:

Using Multiple Displays

[Following content object needs to be changed (or added to) since the DVI-

I-VGA adapter is presumably not included - KSR]

Connecting Your Monitors

YourRADEON™ X600provideshardware supportfor oneDVI-I monitor

or two VGA monitors using the supplied DVI-I-to-VGA adapter. It also

provides TV output via a S-Video Out or Composite Out connector.

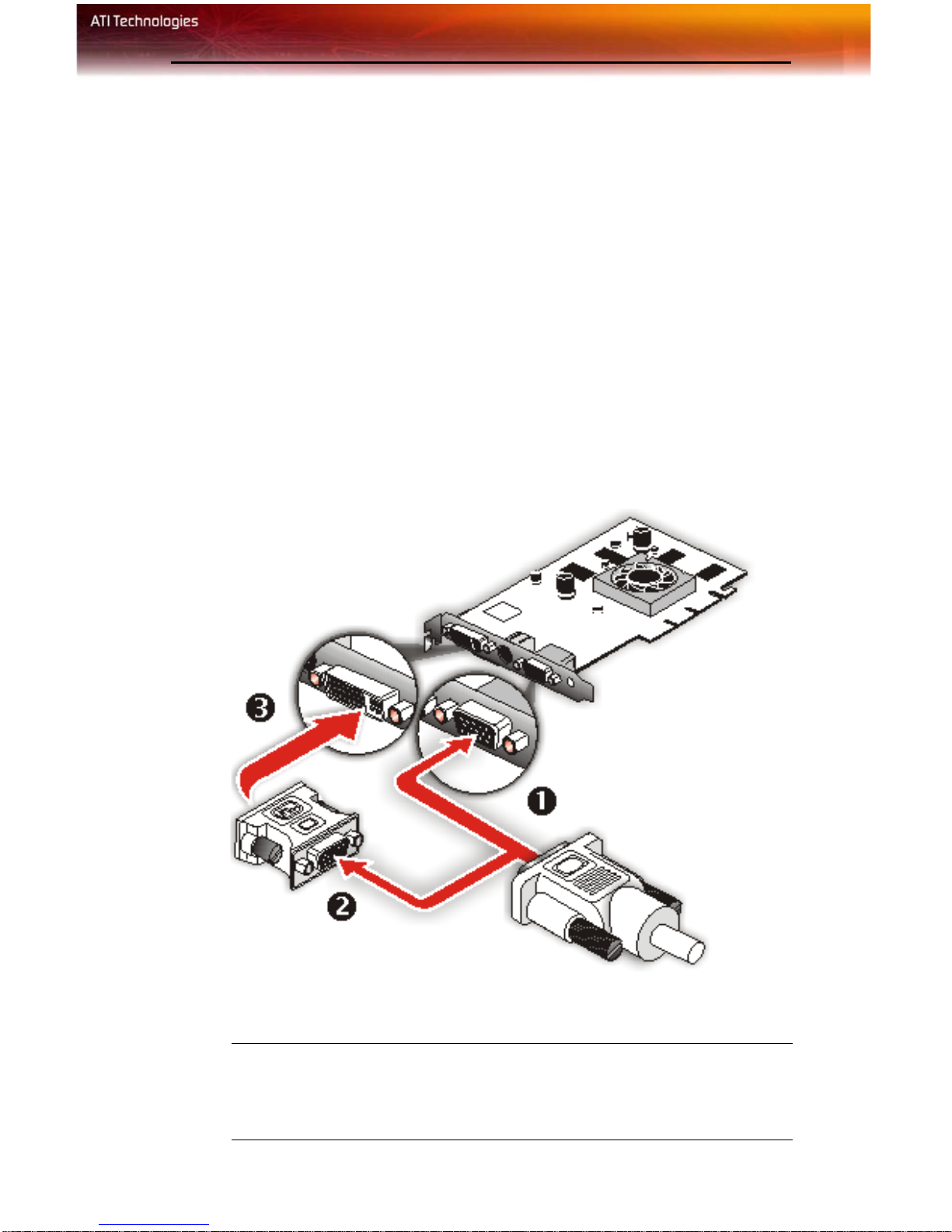

Connections and Adapters for the RADEON™ X600 Card

XStandard VGA Monitor Connector. To connect a VGA monitor

to the DVI-I connector, plug the supplied DVI-I-to-VGA adapter

into the DVI-I connector, then plug your monitor cable into the

adapter.

Note: If you use multiple monitors, the RADEON™ X600 card

must be the primary graphics card. Normally, the system BIOS

determines which graphics card will be the primary.

To connect your monitors

1Power off your computer and monitors.

2Plug the monitor cables into their appropriate connectors.

YDVI-I-to-VGA Adapter.

ZDVI-I Backplate Connection. To connect a flat panel, plug the

monitors DVI-I connector into the DVI-I connection.

XDVI-I Backplate Connection. To connect a flat panel, plug the

monitors DVI-I connector into the DVI-I connection.

YDVI-I Backplate Connection. To connect a flat panel, plug the

monitors DVI-I connector into the DVI-I connection.

Connections and Adapters for the RADEON™ X600 Card

Andere Handbücher für Radeon X600

Inhaltsverzeichnis

Andere ATI Technologies Grafikkarte Handbücher

ATI Technologies

ATI Technologies All-In-Wonder Radeon Bedienungsanleitung

ATI Technologies

ATI Technologies FireGL X1-256p Bedienungsanleitung

ATI Technologies

ATI Technologies Radeon X300 Series Bedienungsanleitung

ATI Technologies

ATI Technologies 100-505531 - Firepro 2450 PCIE16 512MB 4PORT Dvi... Bedienungsanleitung

ATI Technologies

ATI Technologies X800 - 100-435317 Radeon XT Mac Edition Bedienungsanleitung

ATI Technologies

ATI Technologies RADEON 8500 MAC EDITION Bedienungsanleitung

ATI Technologies

ATI Technologies X1900 - Radeon XTX 512 MB PCIE Video Card Bedienungsanleitung

ATI Technologies

ATI Technologies Radeon 9700 Series Bedienungsanleitung

ATI Technologies

ATI Technologies FIRE GL1 Bedienungsanleitung

ATI Technologies

ATI Technologies ALL-IN-WONDER 9200 Bedienungsanleitung

ATI Technologies

ATI Technologies V7350 - 100-505143 FireGL 1GB 512-bit GDDR3 PCI Express Video... Bedienungsanleitung

ATI Technologies

ATI Technologies TV WONDER ELITE Bedienungsanleitung

ATI Technologies

ATI Technologies X1800 - 100-435705 Radeon XT 512MB GDDR3 SDRAM PCI Express x16 Graphics... Bedienungsanleitung

ATI Technologies

ATI Technologies Radeon CrossFire Bedienungsanleitung

ATI Technologies

ATI Technologies RADEON 137-40225-20 Bedienungsanleitung

ATI Technologies

ATI Technologies Radeon 9800 Series Bedienungsanleitung

ATI Technologies

ATI Technologies X700 - Radeon Pro 256 MB PCIe Bedienungsanleitung

ATI Technologies

ATI Technologies 100 437807 - Radeon X1950 Pro HD PCI Express 256MB Video... Bedienungsanleitung

ATI Technologies

ATI Technologies 100-505103 - Firegl V5000 128MB Pcie 2PORT Dvi-i... Bedienungsanleitung

ATI Technologies

ATI Technologies RADEON 9200 MAC EDITION Bedienungsanleitung

ATI Technologies

ATI Technologies X1900 - Radeon XTX 512 MB PCIE Video Card Bedienungsanleitung

ATI Technologies

ATI Technologies X800XL - 100-435502 Radeon 256MB GDDR3 SDRAM PCI Express x16 Graphics... Bedienungsanleitung

ATI Technologies

ATI Technologies Radeon X1950 Pro Bedienungsanleitung

ATI Technologies

ATI Technologies All-In-Wonder X1800 Series Bedienungsanleitung

Beliebte Grafikkarte Handbücher anderer Marken

Gainward

Gainward GeForce GTX 690 4GB Bedienungsanleitung

MSI

MSI N220GT series Bedienungsanleitung

SIIG

SIIG aurora Bedienungsanleitung

ClearSpeed

ClearSpeed ClearSpeed Advance e720 Bedienungsanleitung

MSI

MSI R7850 series Bedienungsanleitung

DVS

DVS Atomix HDMI Bedienungsanleitung

Aztech

Aztech VGS3D-AGP Bedienungsanleitung

Advoli

Advoli TB4 Standard Bedienungsanleitung

ELSA

ELSA ERAZOR III LT Bedienungsanleitung

Gigabyte

Gigabyte GV-R7500L Bedienungsanleitung

Themis

Themis TGA-7000 PMC Bedienungsanleitung

EMS

EMS XtremeRGB-Ex1 Bedienungsanleitung

Nvidia

Nvidia Quadro Workstation Bedienungsanleitung

Pioneer

Pioneer PDA-5003 Bedienungsanleitung

QDI

QDI N2 Bedienungsanleitung

NEC

NEC N8116-48 Bedienungsanleitung

MSI

MSI R7770 PoweR Edition Bedienungsanleitung

Gigabyte

Gigabyte GV-N68T256D Bedienungsanleitung
