Atlas Learn AL2430-2PH Bedienungsanleitung



CLASSROOM TRAINING MANUAL

PREPARED FOR ST. MARYS

CITY SCHOOL DISTRICT

INCLUDES DVD, PROJECTOR,

CLASSROOM SOUND, INTERACTIVE

WHITEBOARD

PRESENTED BY

CRT TECHNOLOGIES

937-222-9840

WWW.CRTECHCORP.COM

– 5 – AtlasSound.com

Specifications are subject to change without notice.

Owner’s Manual AL2430-2PH Wireless Infrared Classroom

Sound Reinforcement System

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: 800.876.3333 • Fax: 800.765.3435

Introduction

Congratulations and thank you for purchasing the Atlas Sound Model AL2430-2PH Wireless Classroom Sound Reinforcement System.

This new and innovative professional grade audio system has been designed from the ground up to include unique features required

for delivering clear and concise audio to the classroom.

Features

• Works in Conjunction with Secondary Systems to Provide Enhanced Classroom Security

• Provides Excellent Infrared Wireless Sound Reinforcement

• Easily Integrates Into Any Classroom

• Keeps Teachers’ Voices Healthy and Sustainable

• 30 Watts Output at 8Ω, 25V, and 70.7V

• 6 Input Mixer with Priority Page Override

• Patent Pending Pole Mount Design

• Unique Handheld / Lanyard / Body Pack Transmitter Microphone

• System and Microphone Volume Controlled via Transmitter

Applications

The Atlas Learn AL2430 system is an in-classroom sound reinforcement solution designed for use in K-12 and higher education

facilities or where a room constrained public address system is required. This complete audio enrichment package consists of amplifier

/ receiver, wireless microphones, and docking station designed to allow the teacher and students to walk freely around the room with

the infrared microphones / system control units and project their voices through installed speakers.

AtlasSound.com – 6 –

Specifications are subject to change without notice.

Owner’s ManualAL2430-2PH Wireless Infrared Classroom

Sound Reinforcement System

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: 800.876.3333 • Fax: 800.765.3435

1. Power Switch

This toggle switch applies power to the AL2430.

2. Power LED

This LED will illuminate when the AL2430 is turned on.

3. Mute LED

This LED will illuminate when the AL2430 source inputs are

muted using MODE 2 of the AL-PH microphone.

(See page 9 for details)

4. IR A LED

This LED will illuminate when an active AL-PH microphone is

set to Channel A.

5. IR B LED

This LED will illuminate when an active AL-PH microphone is

set to Channel B.

6. Channel A

The gain for Mic Channel A is controlled by this rotary control.

7. Channel B

The gain for Mic Channel B is controlled by this rotary control.

8. Computer

The gain for the Computer input is controlled by this rotary

control.

9. TV / VCR

The gain for the TV / VCR input is controlled by this rotary

control.

10. CD / DVD

The gain for the CD / DVD input is controlled by this rotary

control.

11. AUX

The gain for the AUX Input is controlled by this rotary control.

12. AUX Input

This 3.5mm input jack provides unbalance stereo summing

inputs from iPods™/ MP3 players and overrides the input of

the rear panel AUX input.

3 6 7 8 9 10 11

2 4 5 12

AL2430 Front Panel Description

– 7 – AtlasSound.com

Specifications are subject to change without notice.

Owner’s Manual AL2430-2PH Wireless Infrared Classroom

Sound Reinforcement System

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: 800.876.3333 • Fax: 800.765.3435

13. Infrared Sensors

These three “F” type connectors are for input of the AL-IRDS

antennas.

14. Microphone EQ

These three rotary controls provide equalization of the wire-

less microphones. This 3 band EQ is centered at 100Hz,

3kHz, and 10KHz.

15. Audio Output

For loudspeaker connections, connect using the following

information or proceed to the setup section for typical wiring

diagrams.

COM - Speaker common or negative connection

8Ω- Connect to direct coupled loudspeakers

25V - Connect to transformer coupled, 25V loudspeakers with

a total load impedance of no less than 20.8Ω.

70V - Connect to transformer coupled, 70.7V loudspeakers

with a total load impedance of no less than 167Ω.

16. DC Input 24V

AL2430 power supply input.

(NOTE: Use only supplied power supply)

17. Panic Output

This SPDT relay output is controlled via the PANIC button on

the wireless microphones (See page 9 for details).

18. Priority Page Input

This input accepts line or speaker level input to allow an

external source to override the audio output of the AL2430.

19. Priority Page Sensitivity

This rotary control is used to set the input sensitivity of the

Priority Page Input.

20. Priority Page Gain

Sets audio gain for the Priority Page Input.

21. Line Output

This unbalanced output can be used to feed the AL2430 mix

bus to additional amplifiers or recording devises.

22. AUX Input

This dual RCA summing input is used for the input of auxiliary

audio sources like FM tuners.

23. CD / DVD

This dual RCA summing input is used for the audio input of

CD or DVD Players.

24. TV / VCR

This dual RCA summing input is used for the audio input of

TVs or VCRs.

25. Computer

This dual RCA summing input is for audio from a computer

sound card and is overridden by the front panel 3.5mm input.

15 16 17 18 19

13 14 20 21 22 23 24 25

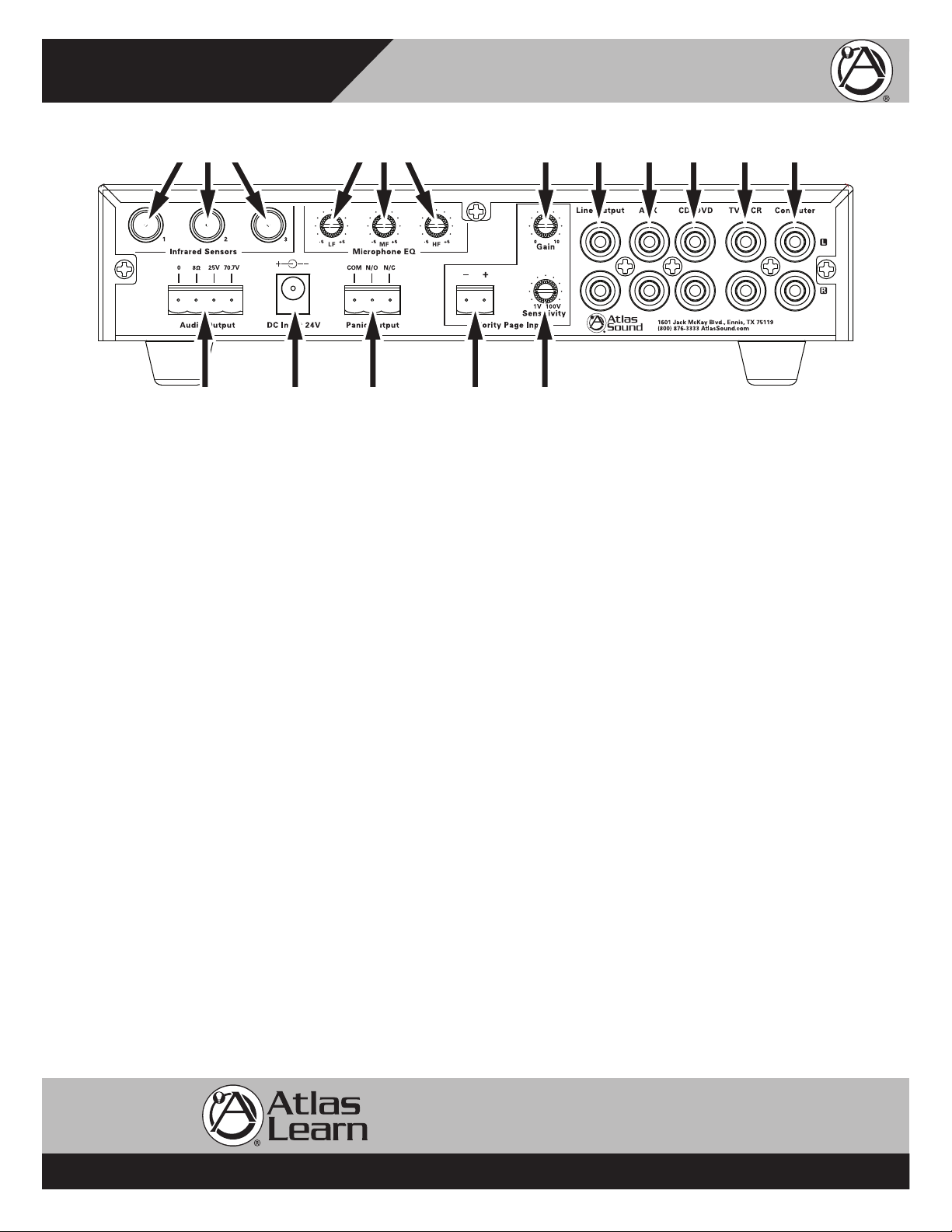

AL2430 Rear Panel Description

AtlasSound.com – 8 –

Specifications are subject to change without notice.

Owner’s ManualAL2430-2PH Wireless Infrared Classroom

Sound Reinforcement System

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: 800.876.3333 • Fax: 800.765.3435

26. Microphone

High quality internal microphone is used when the unit is in

the handheld or lapel configuration.

27. Mode LEDs

These two LEDs indicate the current mode of the AL-PH.

(See page 9 for details)

28. IR LEDs

These separate clusters of IR LEDs ensure quality

communications with an AL-IRDS regardless of which

configuration the AL-PH microphone is in.

29. Battery Cover

Conceals two “AA” rechargeable batteries, IR channel switch

and Lockout mode switch.

30. IR Channel Switch

This slide switch sets the microphone channel “A” or “B”.

31. Lockout Switch

When this switch is set to the Lockout mode the unit works

as a microphone only, no operation buttons function. Also

referred to as "Student Mode".

32. Panic Button

Used in conjunction with the Mode button. A signal is sent to

the AL2430 Receiver / Amplifier to close the "Panic" relay that

sends a message to an external source, like a school's paging

system.

33. Mute Button

Depressing this button in Mode 1 mutes the Microphone

output of the AL2430 Receiver / Amplifier.

Depressing this button in Mode 2 mutes the multimedia

output of the AL2430

34. Power LED

Displays the battery power of the AL-PH.

Green indicates good battery power.

Red indicates Low battery power.

Off indicates the Microphone is turned off.

35. Headset Microphone Input

3.5mm jack for connection of the optional AL-HSM headset

microphone. When connected the internal microphone is

disabled.

36. Belt Clip/Lanyard Clip

Used to attached AL-PH to belt for Headset configuration or

to the included Lanyard for a lapel configuration.

37. Mode Button

Used to switch the AL-PH from Mode 1 or Mode 2 (See page

9 for detailed operation of Modes).

38. Power Button

When the AL-PH is Off holding this button for 3 seconds will

turn the unit on. In the On mode holding this button for 3

seconds will turn the unit Off.

39. Volume Button

Depressing the UP or DOWN button in Mode 1 will raise or

lower the microphone volume, Depressing the UP or DOWN

button in Mode 2 will raise or lower the multimedia volume.

3130

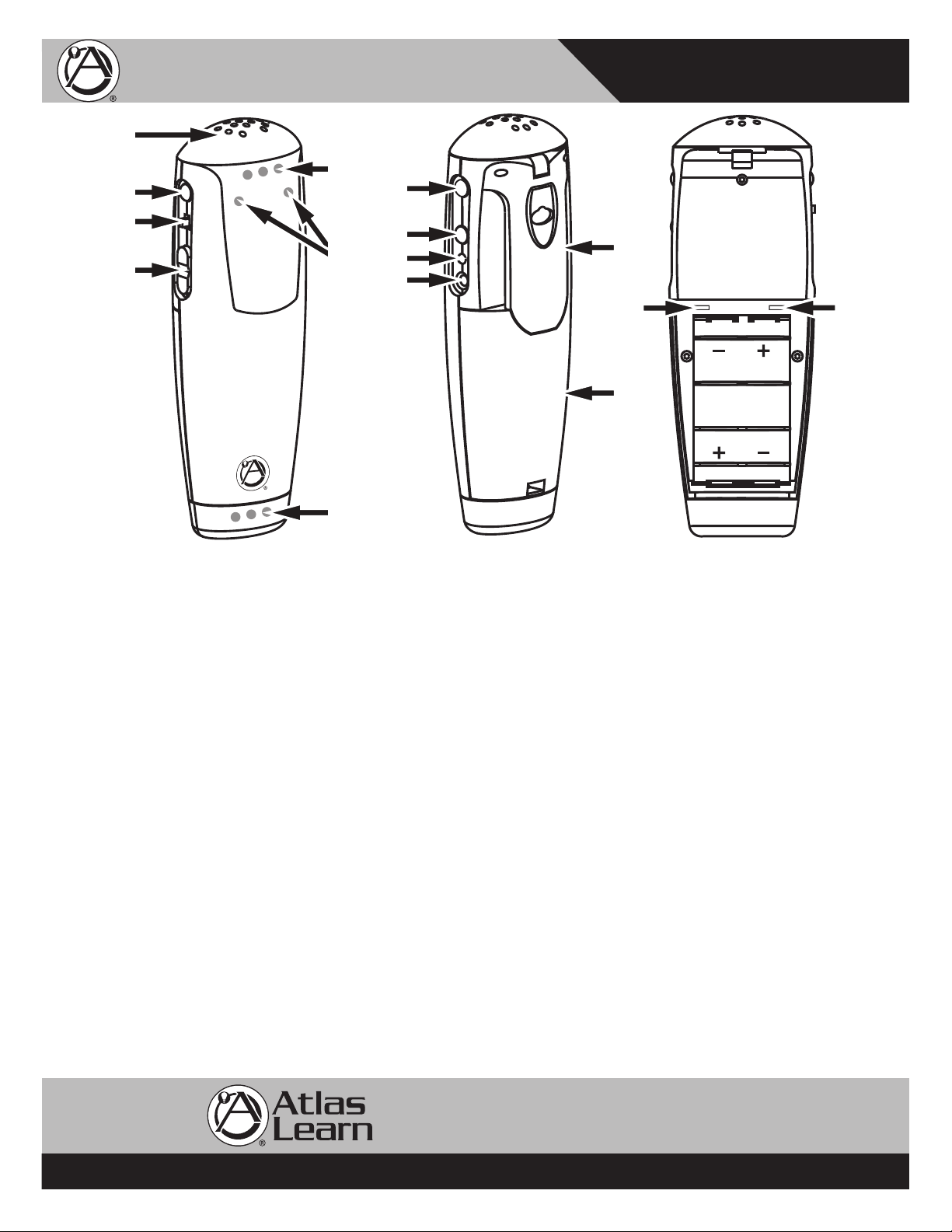

AL-PH Wireless Microphone Description

– 9 – AtlasSound.com

Specifications are subject to change without notice.

Owner’s Manual AL2430-2PH Wireless Infrared Classroom

Sound Reinforcement System

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: 800.876.3333 • Fax: 800.765.3435

AL-DOCK Description

40. Microphone Charging Receptacles

Holds the Microphones in place while charging.

The microphones can be placed in forwards or backwards.

41. Microphone Charging LEDs

These LEDs indicate the current charging status of each receptacle:

Red = Charging,

Green = Charged.

42. Battery Cover

This provides a charging location for four additional AA size batteries.

43. Additional Battery Charging LEDs

These two LEDs indicate the current charging status of the additional

battery charging locations:

RED = Charging

GREEN = Charged.

AL2430-2PH Function Description

The versatile AL-PH Microphone performs the functions of a wireless microphone and a system remote control. It can be used as

a Handheld Microphone, a Lapel Microhone with included Lanyard(AL-LANYARD), or a Belt Pack Microphone with optional AL-HSM

headset. Each AL-PH has a switch located under the battery door used to set its IR Channel to either A or B. One AL-PH must be set

to Channel A and the other AL-PH must be set to Channel B. The system will not function properly if there are two AL-PHs set to the

same IR channel.

Also located under the battery door is the LOCKOUT switch. When this is engaged all function buttons are disabled and the unit can be

used as a microphone only.

The AL-PH can be set in two different modes that effect the control it has over the AL2430 system.

Mode 1:

• The right side blue LED will be illuminated

• Volume UP / DOWN buttons will control the microphone volume

• The Mute button mutes the microphone

Mode 2:

• Both blue LEDs will be illuminated

• Volume UP / DOWN buttons will control the multimedia inputs on the AL2430 Receiver / Amplifier

• Mute button will mute the multimedia inputs on the AL2430 Receiver / Amplifier

Power and Panic buttons function as described below regardless of microphones mode setting.

The Power button needs to be pressed for three seconds to turn the unit on or off.

When the Panic button is pressed along with the Mode button, a signal is sent to the AL2430 Receiver / Amplifier. This closes its Panic

Output relay. The Panic Output relay can be connected to an external system. For example: the school's Paging / Intercom system to

alert someone of an event in the class room that requires immediate attention.

Using the Remote Control 51

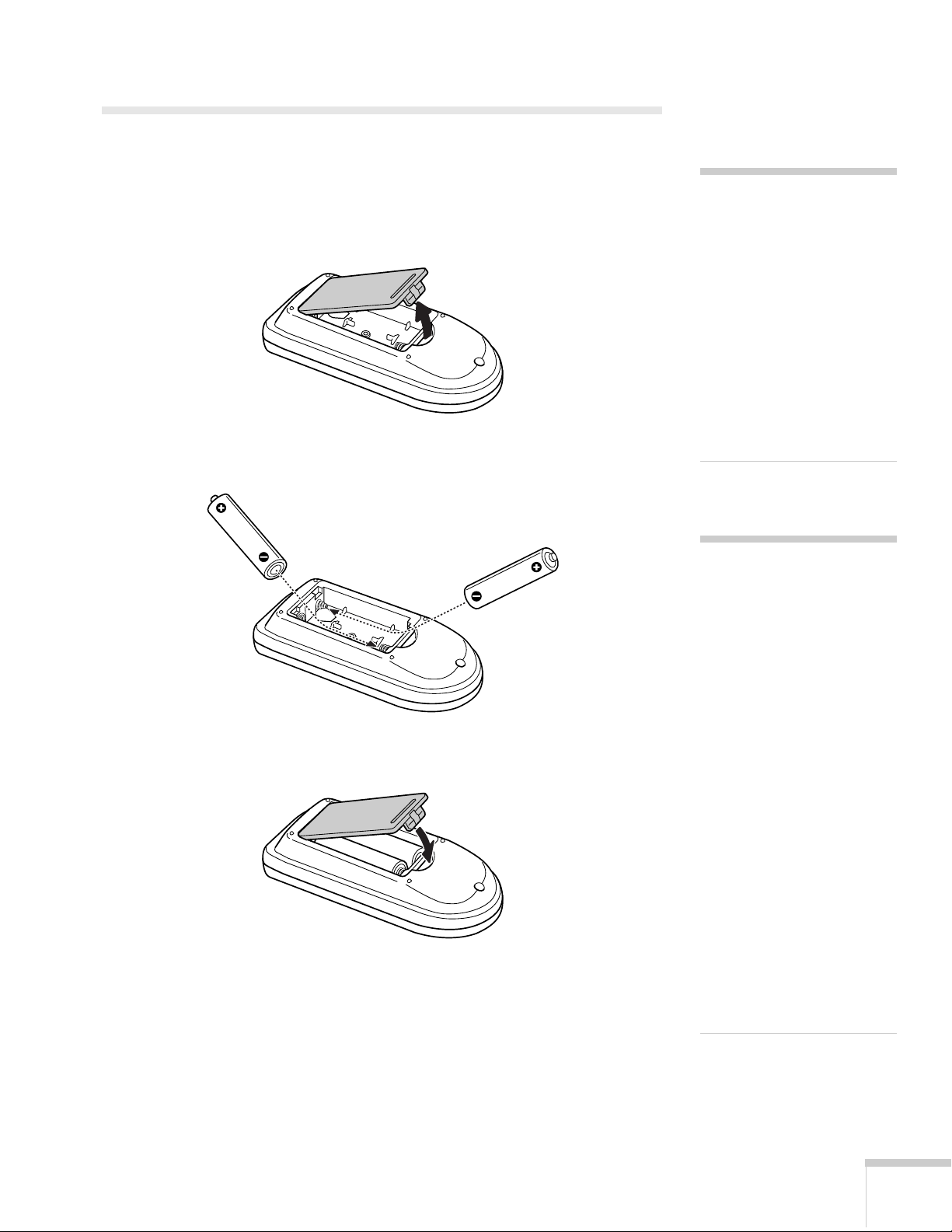

Replacing the Batteries

The remote control uses two AA alkaline batteries. Follow these steps

when you need to replace them:

1. Press in the tab to remove the battery cover.

2. Remove the old batteries, then insert the new ones as shown.

3. Replace the battery cover. (It should click into place.)

caution

When replacing batteries,

take the following

precautions:

■Replace the batteries as

soon as they run out. If a

battery leaks, wipe away

battery fluid with a soft

cloth. If fluid gets on your

hands, wash them

immediately.

■Do not expose batteries to

heat or flame.

■Dispose of used batteries

according to local

regulations.

■Remove the batteries if

you won’t be using the

remote control for a long

period of time.

note

The remote control

automatically shuts off when

it detects a button being

pressed more than

30 seconds. This conserves

battery life. It can be

helpful, for example, when

the remote is in a carrying

case and the PPower

button is accidentally

pushed.

50 Using the Remote Control

■Zoom

Displays images using the full width of the projection area and

maintains the aspect ratio of the image. 4:3 ratio images are cut

off on the top and bottom.

■Full

Displays images using the full width of the projection area, but

does not retain the aspect ratio. 4:3 ratio images are elongated

horizontally.

■Through

Displays images as is (aspect ratio and resolution are maintained).

Black bands appear if the resolution is 1280 × 800 or less; images

are cut off if the resolution is over 1280 × 800.

Press the Aspect button repeatedly to cycle through the available

options.

You can also change the aspect ratio using the projector’s Signal

menu. See page 58 for details.

Using the Remote Control 49

Zooming Your Image

Follow these steps to zoom in on a portion of the image:

1. Press the E-Zoom + button on the remote control.

You see a crosshair indicating the center of the zoom-in area.

2. Use the four “arrow” buttons on the remote control to position

the crosshair in the area you want to enlarge.

3. Continue pressing the E-Zoom + button to enlarge the selected

area up to 4 times.

4. While the image is enlarged, you can:

■Use the arrow buttons to pan about.

■Press the E-Zoom – button to zoom out.

5. When you’re done, press the ESC button to return to the original

size.

Changing the Image’s Aspect Ratio

You can use the Aspect button on the remote control to change the

aspect (width to height) ratio, depending on the input signal.

■Auto (video images only)

Automatically sets the aspect ratio according to the input signal.

4:3 ratio images display at 4:3, squeeze-recorded signals display at

16:9, and letterbox signals display at Zoom ratio (described

below).

■Normal

Displays images using the full projection area and maintains the

aspect ratio of the image. 4:3 ratio images project with black

bands on the sides, 16:9 images project with black bands on the

top and bottom, and 16:10 images use the entire projection area.

■16:9

Converts the aspect ratio of the image to 16:9. 4:3 ratio images

are elongated horizontally to fit.

E-Zoom

buttons

Arrow

buttons

Aspect

button

48 Using the Remote Control

Turning Off the Picture and Sound

Press the A/V Mute button on the remote control to turn off the

image and sound and darken your screen. This is useful if you want to

temporarily re-direct your audience’s attention without the distraction

of a bright screen.

To turn off the picture and sound, press the A/V Mute button. The

screen goes dark.

To turn the image and sound back on, press the button again.

You can create an image, such as a company logo or a picture, to

display on the screen whenever you press the A/V Mute button. See

page 67 for more information.

Stopping Action

Press the Freeze button to stop the action in your video or computer

image and keep the current image on the screen. The sound will

continue, however. Also, because the source continues to transmit

signals, you won’t resume the action from the point you paused it.

To restart the action, press the Freeze button again.

A/V Mute

button

Freeze

button

Inhaltsverzeichnis

Andere Atlas Learn Verstärker Handbücher

Atlas Learn

Atlas Learn AL2430 Bedienungsanleitung

Beliebte Verstärker Handbücher anderer Marken

ASTRO

ASTRO HVO V40 P Bedienungsanleitung

Marantz

Marantz SUPERSCOPE BLA-545 Montageanleitung

NAD

NAD CI980 Bedienungsanleitung

Technics

Technics SE-CH770 Bedienungsanleitung

Harman Kardon

Harman Kardon HK6300 Bedienungsanleitung

NAD

NAD T975 Bedienungsanleitung

McIntosh

McIntosh MA6850 Bedienungsanleitung

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Bedienungsanleitung

Viatron

Viatron Autrix Bedienungsanleitung

GME

GME GA9800 Bedienungsanleitung

Atlas

Atlas CP700 Bedienungsanleitung

Roland

Roland KC-1000 Bedienungsanleitung

Pyle

Pyle PFMRA350BW Bedienungsanleitung

Advantage

Advantage S-250 Bedienungsanleitung

IRT Electronics

IRT Electronics DVA-3007 Bedienungsanleitung

Dimavery

Dimavery BA-100 Series Bedienungsanleitung

Sony

Sony XM-S400D Bedienungsanleitung

Schertler

Schertler ROY X Bedienungsanleitung
