Atlona AT-UHD-EX-100CE-KIT Bedienungsanleitung

4K/UHD HDMI Over 100M

HDBaseT TX/RX with Ethernet,

Control, and PoE

AT-UHD-EX-100CE-KIT & AT-UHD-EX-100CE-RX

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

Please check http://www.atlona.com/

UHD-EX-100CE-KIT.html or http://

www.atlona.com/UHD-EX-100CE-RX

for the most recent firmware

update or manual.

1. Introduction ................................................................................... 3

2. Package Contents ................................................................................... 3

3. Features ................................................................................... 3

4. Before You Start ................................................................................... 3

5. Category Cable ................................................................................... 4

6. Panel Descriptions

a. Front Panel ................................................................................... 5

b. Rear Panel ................................................................................... 6

7. Captive Screw Connectors ................................................................................... 7

8. Connection Diagram ................................................................................... 8-9

9. Specifications ................................................................................... 10

10. Safety Information ................................................................................... 11

11. Warranty ................................................................................... 12-13

12. Atlona Product Registration ................................................................................... 13

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

Table of Contents

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

Introduction

Pass through support of 4K (UHD), 2560x2048, IR, RS-232, bi-directional Ethernet, and lossy/lossless

audio signals up to 328ft (100m). The 100CE extenders provide an affordable, high quality, solution

for your audio and video needs.

Package Contents

Kit

Features

• 1 x AT-UHD-EX-100CE-TX

• 1 x AT-UHD-EX-100CE-RX

• 1 x 48V DC power supply

• 5 x Female captive screw connector (2 pin (x1): power, 3 pin (x2): RS-232, and 5 pin (x2): IR)

• 2 x Pair of wall/table mount ears

• 2 x Pair of screws for wall/mount ears

• 1 x IR emitter (AT-IR-CS-TX)

• 1 x User manual

• 1 x AT-UHD-EX-100CE-RX

• 2 x Female captive screw connector (3 pin: RS-232 and 5 pin: IR)

• 1 x Pair of wall/table mount ears

• 1 x Pair of screws for wall/mount ears

• 1 x IR emitter (AT-IR-CS-TX)

• 1 x User manual

• Extends IR, RS-232, Ethernet, and audio/visual content up to 328ft over a single category cable

• Supports resolutions up to 4K (UHD) 60Hz @ chroma sub-sampling 4:2:0 8-bit

• IR ports for use with IR remote controls and 3rd party IR controllers

• Bi-directional Ethernet pass through

• Provides PoE (Power over Ethernet)

• Multichannel audio pass through up to Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos

• Full 3D pass through

• HDCP 2.2 compliant

• Field updatable firmware

Before You Start

• When installing the extenders DO NOT:

Cover the vents

Install into a sealed wall

Install into an area without adequate air ventilation

Do not

cover

venting!

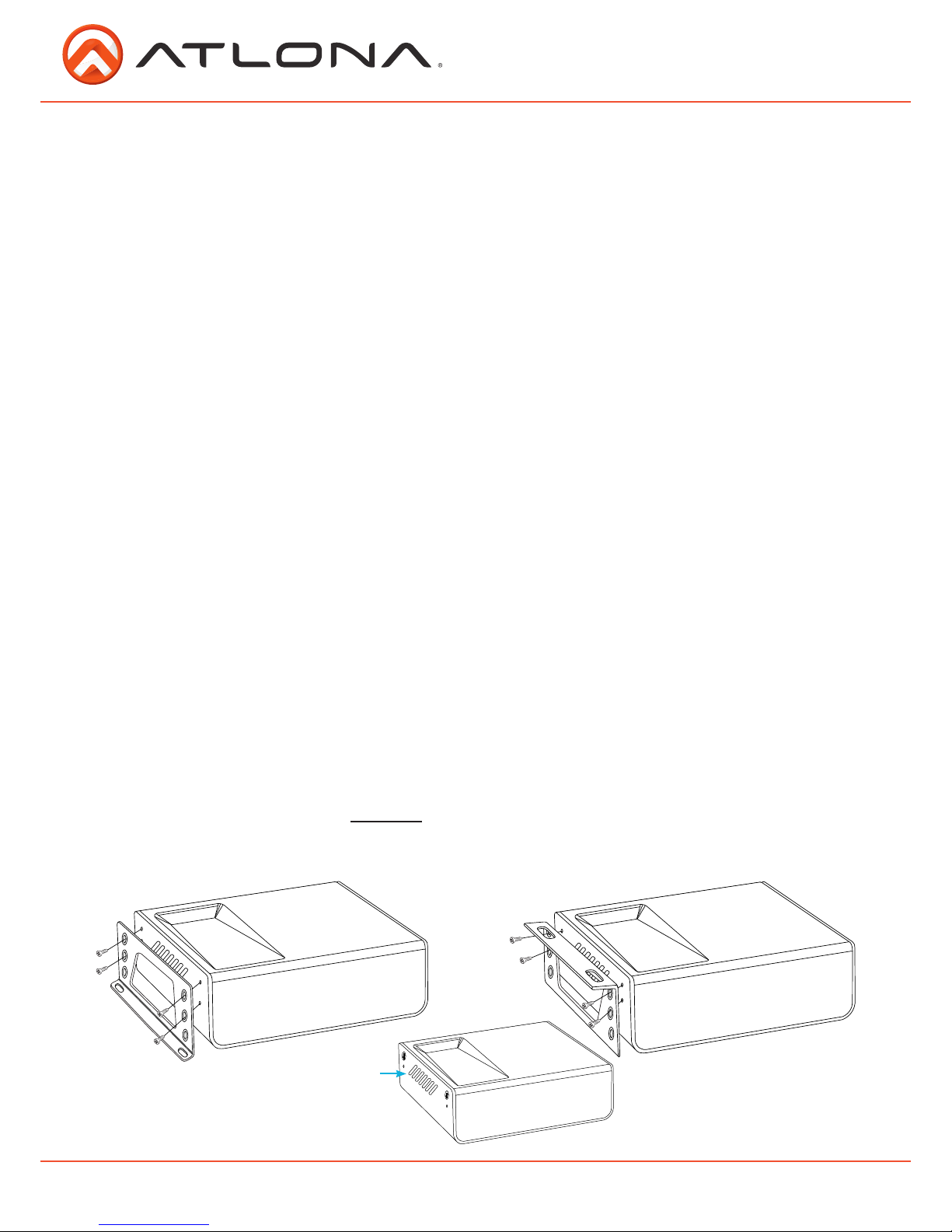

Connect the screws to these

four holes when mounting to

a wall.

*Remove the side screws from the case and use for bracket installation

Connect the screws to these

four holes when mounting to a

table.

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

Category Cable

For the category cables used in the installation of these products, please be sure to use a 568B

termination as pictured below:

Connector type and size is very important to ensure extenders work correctly. Please use the

matching cable type with the correct RJ45 connector.

CAT5e and CAT 6 cables should use only CAT5e RJ45 connectors

CAT6a cables should use only CAT6a connectors

CAT7 cables should use only CAT7 connectors

Using the wrong size of connectors may result in interference causing loss of signal.

Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in stray EMI/RFI

signals to be picked up and interfere with audio and video transmission.

Use the table below to verify the best category cable for the installation.

Important! 4K (UHD) signals are sensitive to cable quality and installation technique. It is recommended to

use CAT6a/7 solid core cables for best results.

Note: For cable distances see the specifications on page 10

Performance Rating Type of LAN cable

Wiring Shielding CAT5e/6 CAT6a/7

Solid Shielded (STP/FTP) *** ****

UnShielded (UTP) ** N/A

Stranded - Patch

cable

(Not recommended)

Unshielded (UTP) * N/A

Shielded (STP/FTP) * N/A

Termination Please use EIA/TIA-568-B termination

1. White - Orange

2. Orange

3. White - Green

4. Blue

5. White - Blue

6. Green

7. White - Brown

8. Brown

Connector

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

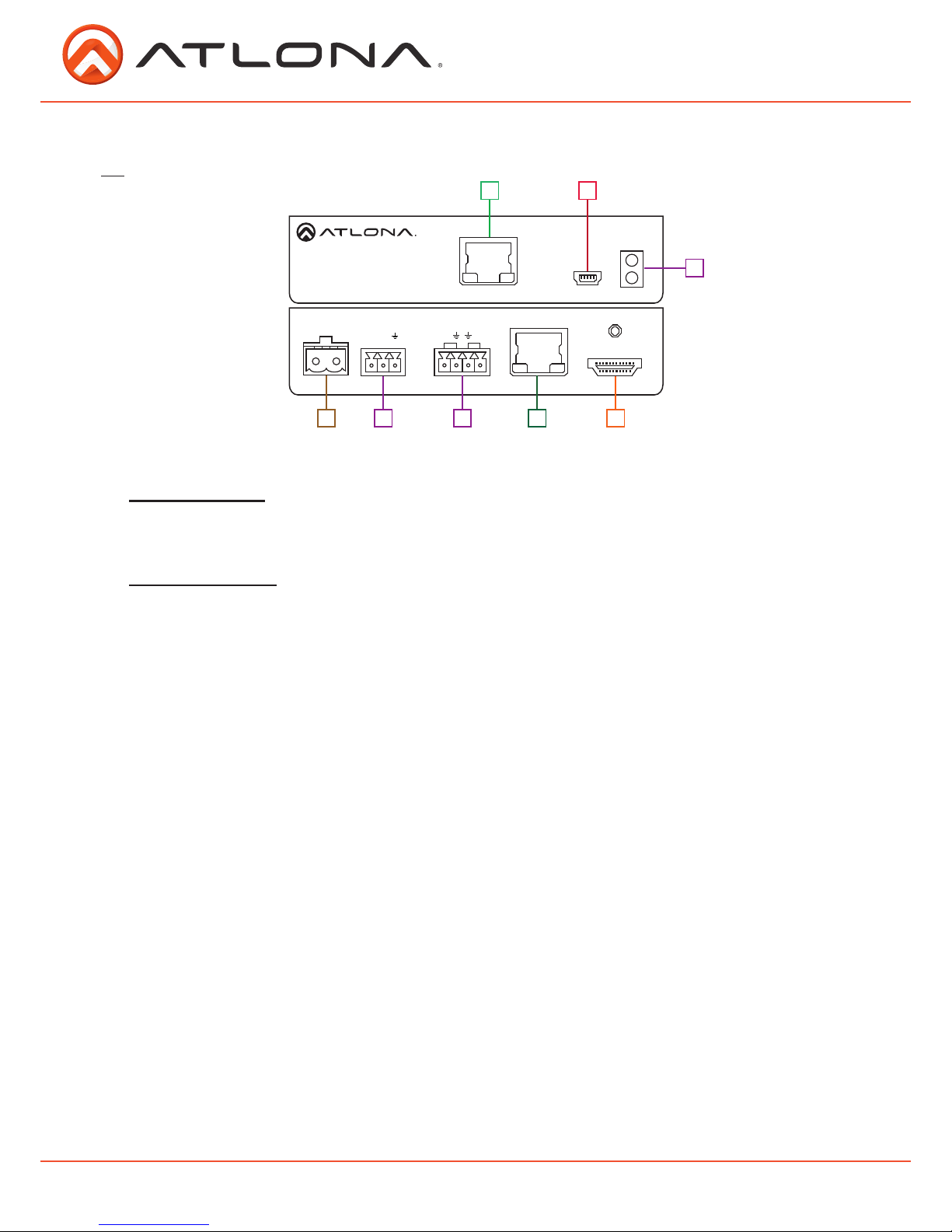

Panel Description

1. Ethernet - Connect to a router to send Ethernet signals

2. Firmware - Use a Mini-B USB to USB A cable to connect to a Windows computers for updating

3. Yellow Link LED: Signal indicator for the HDBaseT OUT port

Solid - Good signal from the CAT port

Blinking - Category cable is disconnected or not receiving signals

No Light - No signal is being received from the CAT port

Green Power LED: Power indicator

Solid - Plugged in and receiving power

Blinking - Power is intermittent or there is a problem with the cable

No Light - No power is passing from the wall outlet to the transmitter (check the cable or outlet)

4. DC 48V - Connect included captive screw power adapter here

5. RS-232 - Bidirectional RS-232, send signal to or from a control system, PC, source, or display

6. IR - Connect IR emitter (included) or 3rd party control box to this port

7. HDBaseT OUT - Connect a category cable from here to an AT-UHD-EX-100CE-RX (included in KIT)

8. HDMI IN - Connect HDMI or DVI (with adapter) source here

Ex. Blu-ray player, cable box, HDDA series, H2H series, etc

RS-232

RX TX

IR IN

IR OUT

HDBaseT OUT

ETHERNET

HDMI IN

DC 48V

LINK

POWER

AT-UHD-EX-100CE-TX

1 2

87654

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

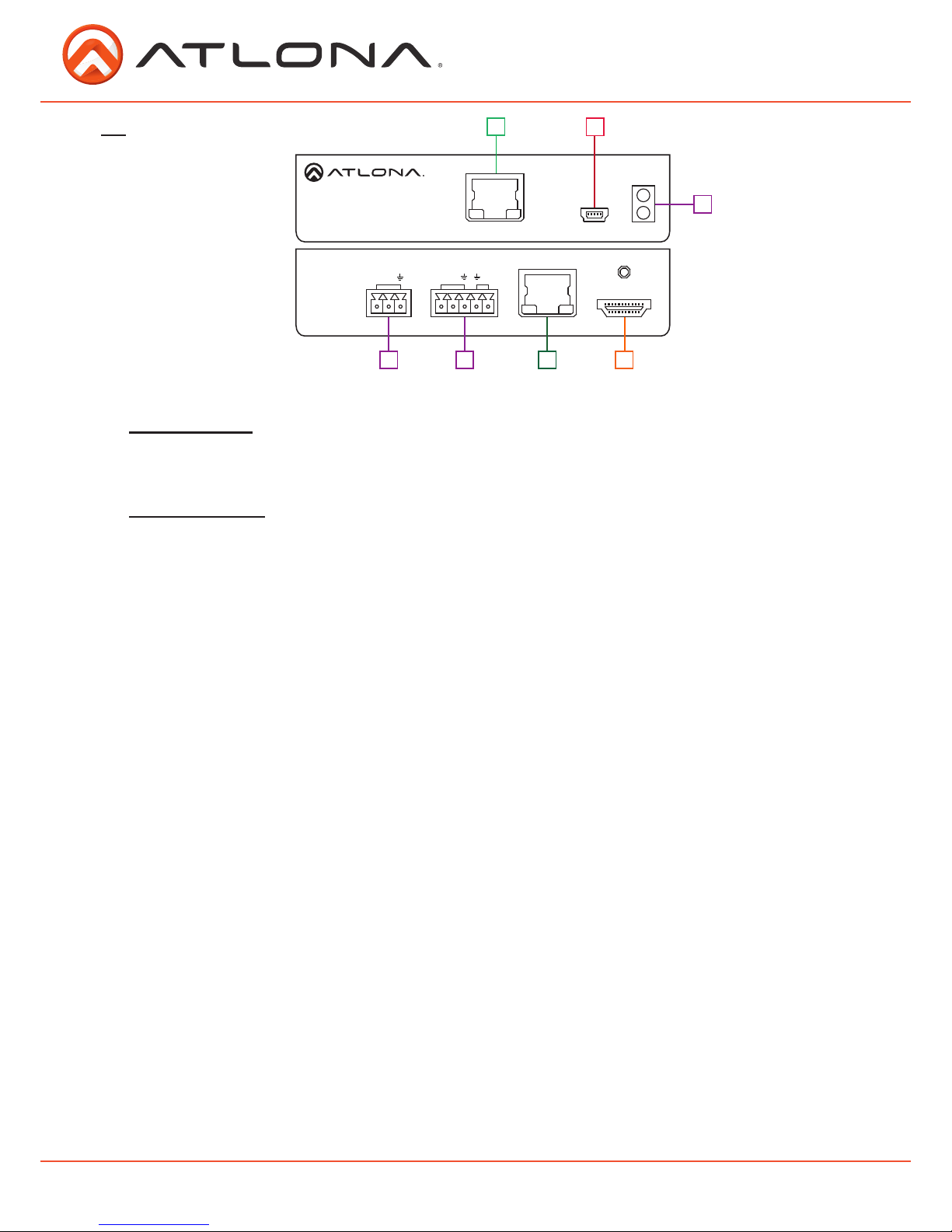

FW LINK

POWER

AT-UHD-EX-100CE-RX

RS-232

RXTX

IR IN

IR OUT

HDBaseT IN

ETHERNET

HDMI OUT

1. Ethernet - Connect to a display to send Ethernet signals

2. Firmware - Use a Mini-B USB to USB A cable to connect to a Windows computers for updating

3. Yellow Link LED: Signal indicator for the HDBaseT IN port

Solid - Good signal from the CAT port

Blinking - CAT port is disconnected or not receiving a signal

No Light - No signal is being received from the CAT port

Green Power LED: Power indicator

Solid - Plugged in and receiving power

Blinking - Power is intermittent or there is a problem with the cable

No Light - No power is passing from the transmitter to the receiver

Note: Check the category cable or the AC outlet for the transmitter

4. RS-232 - Bidirectional RS-232, send signal to or from a control system, PC, source, or display

5. IR - Connect IR emitter (included) or receiver (AT-IR-CS-RX sold separately) to this port

6. HDBaseT IN - Connect a category cable from here to an AT-UHD-EX-100CE-TX (included in KIT) or

HDBaseT matrix

7. HDMI OUT - Connect HDMI or DVI (with adapter) display here

7654

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

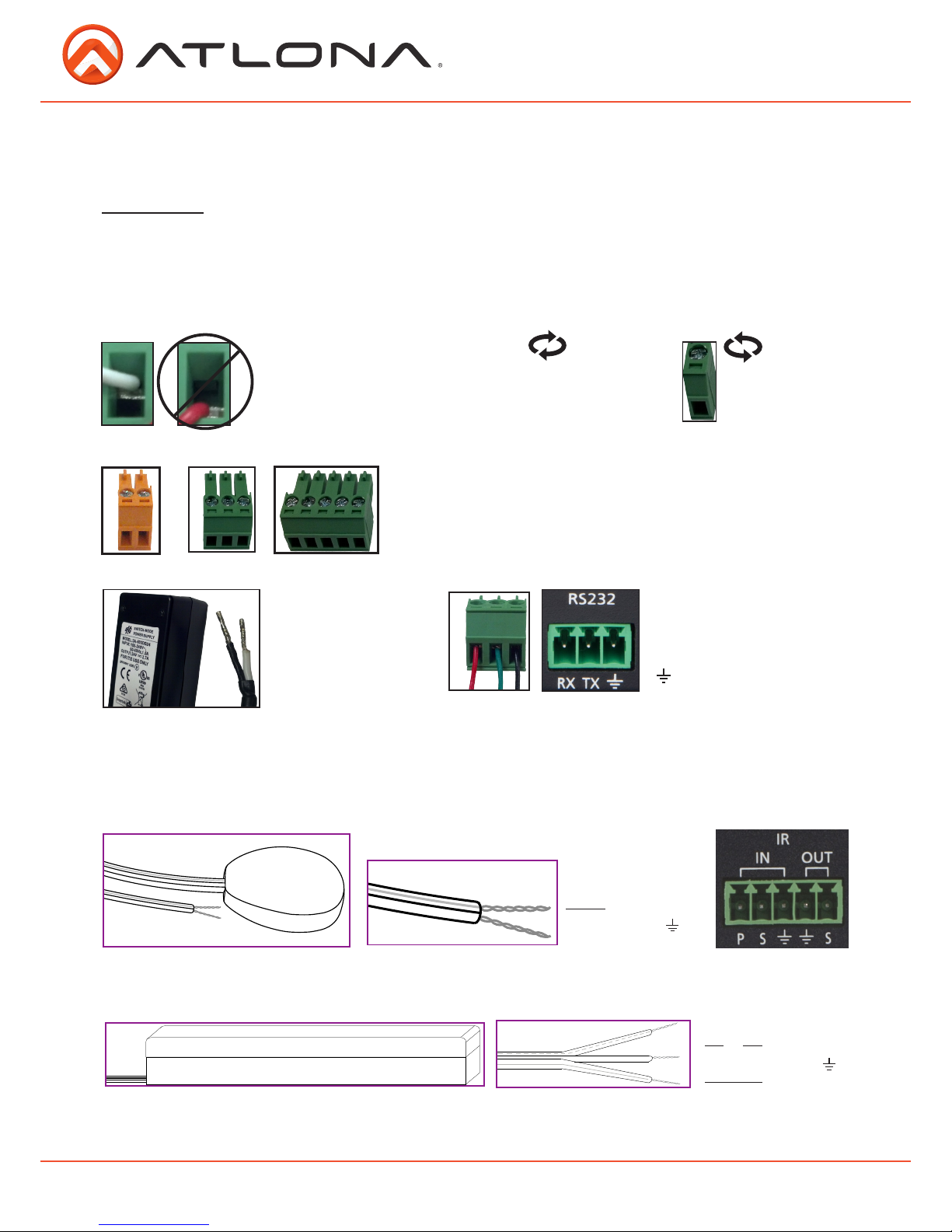

Captive Screw

Connecting

Captive screw connectors are an added feature on the UHD extender. The captive screw connectors allow you

to cut cables down to a suitable length, reduce cable clutter, while providing a more reliable connection.

The captive screw connectors have

a contact bar that is adjusted to

compress the wire against the top

contact plate. Use the screws at the

top of the connector to compress the

wire against the contact plate.

When connecting the cables to the female captive screw connector it is important that the wires be

terminated correctly. The female captive screw connector has a contact plate at the top and must have the

wires touching it for signal to pass. When wired correctly (see picture A) the signal will pass, incorrectly (see

picture B) no signal will pass.

Female captive screw connectors are included: Power (see picture 1),

RS-232 (see picture 2), and IR (see picture 3).

The power cable (picture

4) will have exposed

wires. Each wire is

encased in a different

colored cover.

Power RS-232

Clockwise Counter

Clockwise

Turn the screws clockwise to

raise the contact bar to the

upper contact plate and hold

the wires in place.

Turn the screws counter

clockwise to lower the

contact bar to release the

wires.

RS-232 pin out will be

determined by the RS-232

cable and will connect as Rx

(receiver), Tx (transmitter), and

(ground). (See picture 5)

Pin out color will differ

per RS-232 cable.

Black: - White: +

- +

Note: The IR receiver is optional for the UHD-EX-100CE-KIT and RX box. The compatible IR receiver (AT-IR-CS-RX) can

be purchased through atlona.com.

The wires of the emitter and receiver have been marked to differenciate the pin outs.

The included IR emitter has two wires: signal and ground. Signal will have a solid line and ground will be

blank. The IR emitter will plug into the IR OUT ports.

There are three wires on the IR receiver (AT-IR-CS-RX sold separately): signal, ground, and power. Signal has a

dotted line, ground will be blank, and power will have a solid line. The IR receiver will plug into the IR IN

ports.

Signal (S)

Ground ( )

Signal (S)

Ground ( )

Power (P)

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

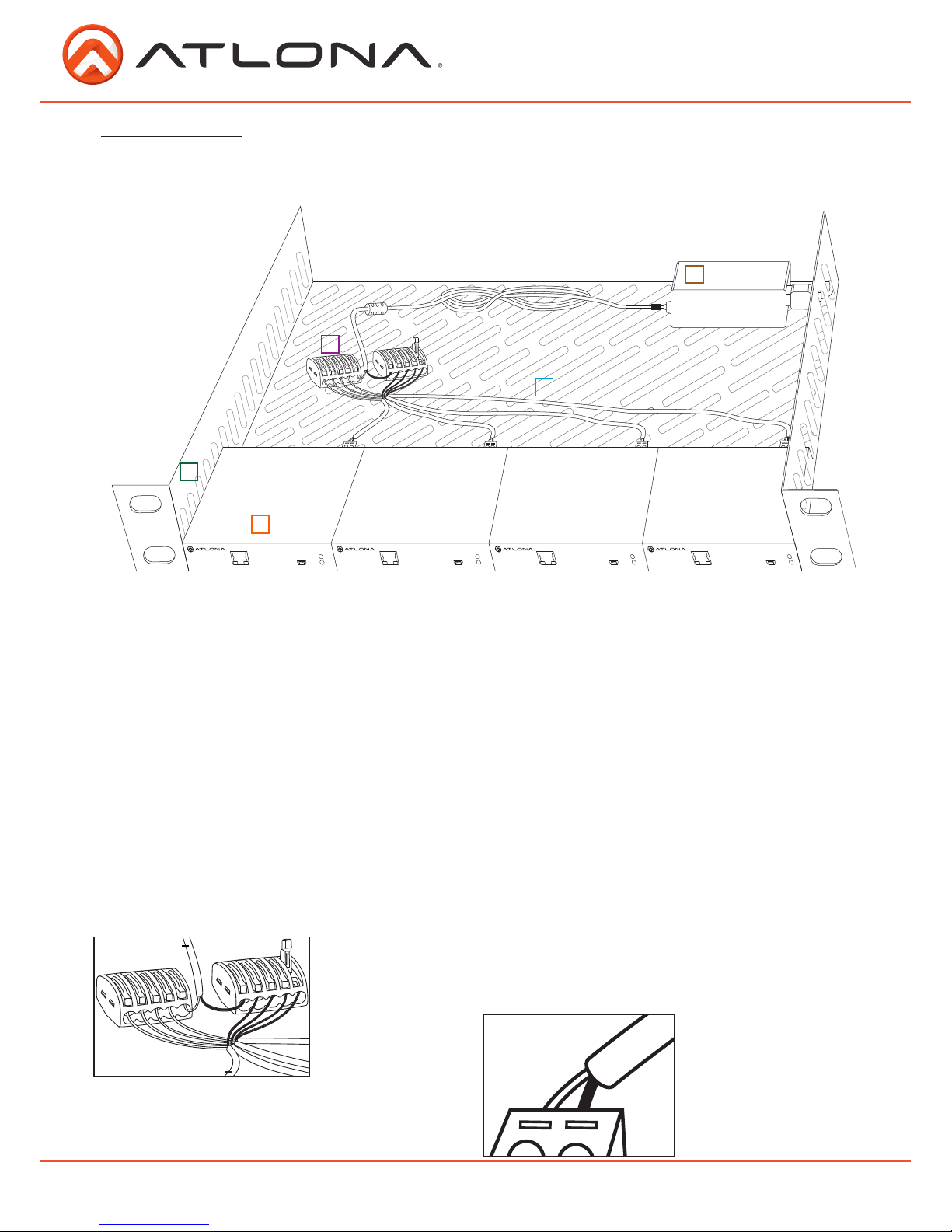

Power Chaining

Multiple kits can be powered by one power supply. The included power supply can support up to 3 kits. To

power four kits use the optional power supply AT-PSU-48V1.25A (purchase through atlona.com).

To chain one power supply to three transmitters (four when using AT-PSU-48V1.25A), use two wago splicing

connectors, 18/2 AWG stranded wire, a ventilated 1 RU rack shelf, zip ties, and high temperature hook and

loop (velcro) strips will be needed.

1. 1 RU rack shelf - Should be at least 10in / 254mm deep, fit in a standard 19” rack, and must be well

ventilated. Use the rack screws (included with 19” racks) to secure the rack shelf to the

back/front of the rack after power chaining set up is completed.

2. Transmitters - Place 3 or 4 units on the rack shelf. Use high temperature (up to 185°F / 85°C) hook and

loop (velcro) to secure the transmitters to the rack.

3. Power supply - Place the included power supply (or the AT-PSU-48V1.25A) on the rack with enough room

to connect the included IEC power cable. Use twist ties to secure the power supply and

cable to the rack.

4. Wago splicing connectors - Connect the wires from the power supply cable to the wago splicers. Connect

(model #: 222-415) the white wire (power/+) to one splicer and the black wire (ground/-) to the

second splicer.

Note: Only one wire per port.

5. 18/2 AWG stranded wire - Connect the individual wires to the wago splicers and the transmitter captive

screw connectors. There will be two colors of wires (black/red) which will need

to be designated - and +. Each color will need to be the same across all

connections to ensure no signals are crossed. Strip the ends of each wire and

place one end in the appropriate wago connector and the other to the

corresponding captive screw connector. Use the zip ties to keep all wires

in place and organized.

FW LINKLAN

POWER

AT-UHD-EX-100CE-RX

FW LINKLAN

POWER

AT-UHD-EX-100CE-RX

FW LINKLAN

POWER

AT-UHD-EX-100CE-RX

FW LINKLAN

POWER

AT-UHD-EX-100CE-RX

Power cable

18/2 AWG stranded wire

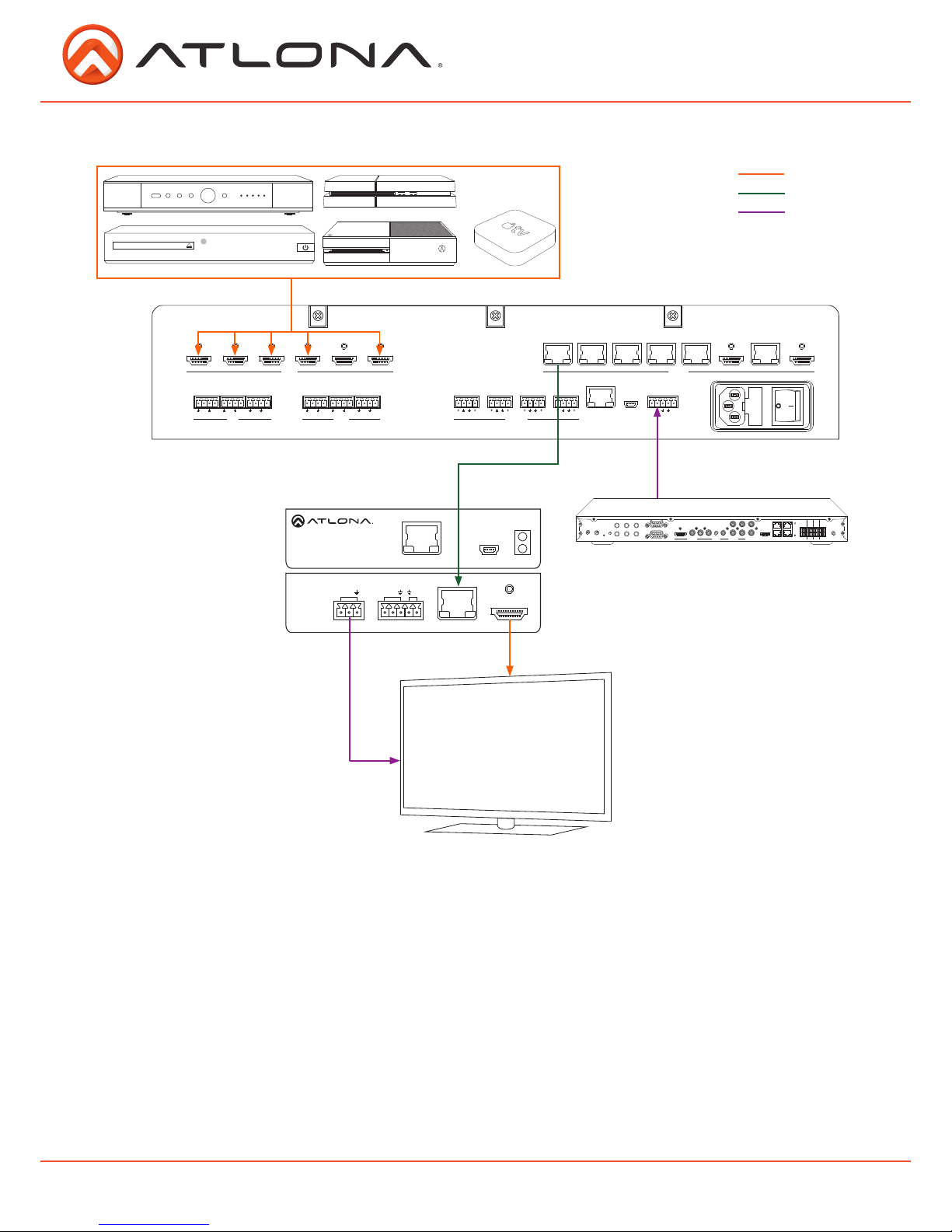

Connection Diagram (Kit connections)

RS-232

RX TX

IR IN

IR OUT

HDBaseT OUT

ETHERNET

HDMI IN

DC 48V

LINK

POWER

AT-UHD-EX-100CE-TX

RS-232

RX TX

IR IN

IR OUT

HDBaseT OUT

ETHERNET

HDMI IN

DC 48V

LINK

POWER

AT-UHD-EX-100CE-TX

Video

HDBaseT

Control

Ethernet

Video

HDBaseT

Control

FW LINK

POWER

AT-UHD-EX-100CE-RX

RS-232

RXTX

IR IN

IR OUT

HDBaseT IN

ETHERNET

HDMI OUT

FW LINK

POWER

AT-UHD-EX-100CE-RX

RS-232

RXTX

IR IN

IR OUT

HDBaseT IN

ETHERNET

HDMI OUT

ROUTER

2.4 5 1234

COM

GND

SIG

+12V

GND

SIG

+12V

GND

SIG

+12V

GND

SIG

+12V

1 2 3 4

RELAYS

WIFI2

ZIGBEE 12VDC

IROUT

IDFACTORY

RESTORE

SERIAL1

SERIAL2

HDMI COMPONENT

VIDEOOUT

ETHERNET

CONTACTS

AUDIOOUT

AUDIOIN

WIFI1 eSATA USB

DIGITAL

COAXOUT

COM

GND

SIG

+12V

GND

SIG

+12V

GND

SIG

+12V

GND

SIG

+12V

1 2 3 4

RELAYS

WIFI2

ZIGBEE 12VDC

IROUT

IDFACTORY

RESTORE

SERIAL1

SERIAL2

HDMI COMPONENT

VIDEOOUT

ETHERNET

CONTACTS

AUDIOOUT

AUDIOIN

WIFI1 eSATA USB

DIGITAL

COAXOUT

Set top box

Control System

AT-UHD-H2H-88M HDMI Matrix Switcher

Router

HDMI IN HDMI OUT

12 3 41 2 3 4

DC 12V

LAN

56 7 85 6 7 8

RS-232 IR IN

RX TX S

Game Console

Blu-ray player

Set top box Game console

Game console

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

AT-UHD-PRO3-66M

POWER ENTER

CANCEL INFO

EDID

FNC

567

IR OUTIR IN

2 3 4

1 2 3 4 5 7

5 6 1ED 2ED 3 4 5 7 8

LAN FW

AUDIO OUT

L RL

HDMI IN ZONE OUT

IR IN

RS-232

MAIN

S S S S SS

123457

SS S S SS

Use only with a 250V fuse

GB20213746.5 CN568462

TWM215052US7019612B2

PAT.

RX TX S

12 3

FUSE: T 4A / 250V PWR: 100-240VAC 50/60Hz

Game Console

COM

GND

SIG

+12V

GND

SIG

+12V

GND

SIG

+12V

GND

SIG

+12V

1 2 3 4

RELAYS

WIFI 2

ZIGBEE 12V DC

IR OUT

IDFACTORY

RESTORE

SERIAL1

SERIAL2

HDMI COMPONENT

VIDEO OUT ETHERNET CONTACTS

AUDIO OUT AUDIOIN

WIFI 1 eSATADIGITAL

COAX OUT

FW LINK

POWER

AT-UHD-EX-100CE-RX

RS-232

RXTX

IR IN

IR OUT

HDBaseT IN

ETHERNET

HDMI OUT

Connection Diagram (RX connection)

Blu-ray player

Set top box Game console

Game console Media player

Video

HDBaseT

Control

Control System

AT-UHD-PRO3-66M HDBaseT Matrix Switcher

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Atlona Extender Handbücher

Atlona

Atlona AT-2VGA300SL Bedienungsanleitung

Atlona

Atlona AT-HD4-V110SR Bedienungsanleitung

Atlona

Atlona AT-HDVS-150-TX-WP Bedienungsanleitung

Atlona

Atlona AT-HD4-SI40SR Bedienungsanleitung

Atlona

Atlona ATAEX702PSK Bedienungsanleitung

Atlona

Atlona AT-UHD-EX-100CE-RX-PSE Bedienungsanleitung

Atlona

Atlona AT-HD-IR40SR Bedienungsanleitung

Atlona

Atlona AT-HD50SS Bedienungsanleitung

Atlona

Atlona AT-PRO2HDREC Bedienungsanleitung

Atlona

Atlona AT-DVI40SRS Bedienungsanleitung

Atlona

Atlona AT-USB50-SR Bedienungsanleitung

Atlona

Atlona AT-UHD-EX-70-KIT Bedienungsanleitung

Atlona

Atlona AT-COMP150SR Bedienungsanleitung

Atlona

Atlona AT-COMP300SL Bedienungsanleitung

Atlona

Atlona AT-RS232SRS Bedienungsanleitung

Atlona

Atlona AT-HDF30SR Bedienungsanleitung

Atlona

Atlona AT-HDMI40SR Bedienungsanleitung

Atlona

Atlona AT-HD4-SI40SR Bedienungsanleitung

Atlona

Atlona AT-DVI4-100SR Bedienungsanleitung

Atlona

Atlona AT-UHD-EX-70-2PS Series Bedienungsanleitung

Atlona

Atlona AT-VGA-RS300SRS Bedienungsanleitung

Atlona

Atlona AT-VGA100-SR Bedienungsanleitung

Atlona

Atlona AT-UHD-EX-70C-KIT Bedienungsanleitung

Atlona

Atlona AT-DVIDF40SR Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung

SECO-LARM

SECO-LARM ENFORCER EVT-PB1-V1TGQ Bedienungsanleitung
