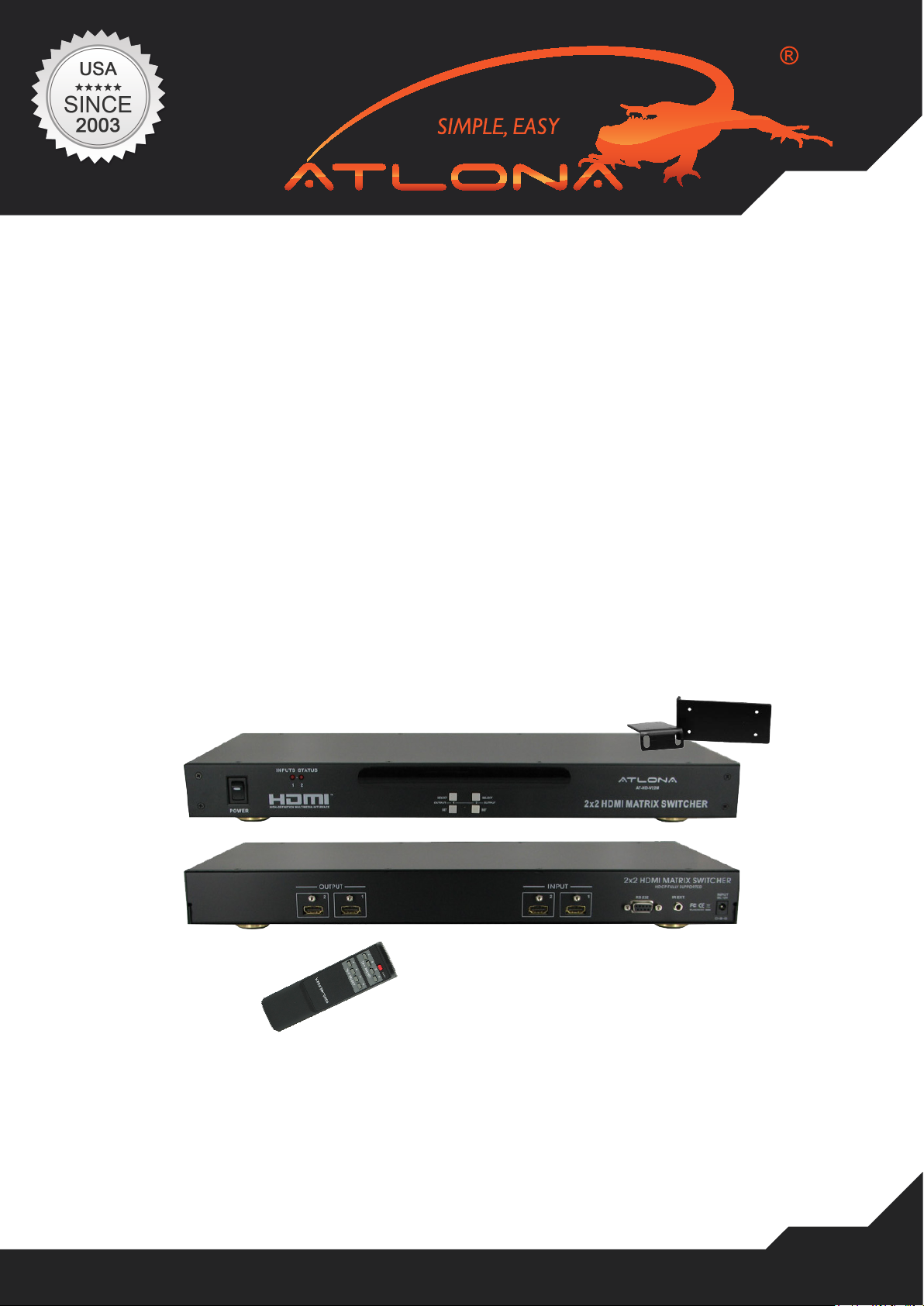

User Manual

AtlonA

2x2 HDMI Matrix Switcher

AT-HD-V22M

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 2

TABLE OF CONTENTS

1. Introduction .................................................. 3

2. Package Contents .................................................. 3

3. Features .................................................. 3

4. Specications .................................................. 4

5. Panel Descriptions .................................................. 4

5.1 Front Panel .................................................. 4

5.2 Rear Panel .................................................. 5

6. Remote Control .................................................. 5

7. IR Extender .................................................. 6

7.1 IR Extender Connection .................................................. 6

7.2 IR Extender Package .................................................. 6

8. RS-232 Serial Interface .................................................. 7

8.1 RS-232 Serial Interface .................................................. 7

8.2 RS-232 .................................................. 7

8.3 Commands .................................................. 7

9. RS-232 Serial Commands .................................................. 7

9.1 Power Off Mode .................................................. 8

9.2 Front Panel Lock .................................................. 8

9.3 Unit Reset .................................................. 8

10. Connection and Installation .................................................. 9

11. Safety Information .................................................. 10

12. Warranty .................................................. 11

13. Atlona Product Registration .................................................. 12

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 3

INTRODUCTION

PACKAGE CONTENTS:

FEATURES:

Atlona Technologies’ AT-HD-V22M is a 2x2 HDMI Matrix Switcher with audio designed to work as a

switcher for multiple Audio/Video sources and displays. This Atlona unit is capable of switching HDMI

signals between two sources and two displays. Because it is a matrix switch, any or all of the 2 inputs

can simultaneously be switched to any or all of the outputs. This devise will support high denition video

in multiple resolutions of up to 1080p or 1920x1200. This unit has quick and easy installation. With

manual, RS232, as well as IR Remote control options, Atlona’s AT-HD-V22M Matrix Switcher is HDCP

Compliant making it is perfect for all HDMI devices, PC monitors, Plasma TV displays and HDTVs.

• 2x2 HDMI Matrix Switcher (AT-HD-V22M)

• Instruction Manual

• IR Remote Control

• Universal AC/DC power adapter: 12VDC

• 19 inch Ear mount pair

• IR Extender receiver

• RS232 package (RS232 DVD Drive & RS232 Cable)

• Switches HDMI Video signal with Audio between 2 sources and 2 displays.

• Matrix Switch: each input can be directed to any or all outputs at the same time

• Quick and easy installation

• HDMI digital video/audio format, DVI format and HDCP compliant

• Supports link speeds of up to 2.25 Gbps (link clock rate of 225 MHZ)

• Supports wide range of PC resolutions from XGA to UXGA 1600x1200 and HDTV/DTV

resolutions 480i/480p, 576i/576p, 720p, 1080i, 1080p, and 1920x1200

• Compatible with all HDMI devices, PC monitors, Plasma TV display and HDTV

• Supports Digital Video TMDS formats in Deep Color 12bits

• Support IR Remote and IR Extender with distance 300M Maximum.

• Various User Interface control:

• IR remote control

• Manual controlled by Front Panel button

• Attached Window based control software for Desktop or NB control by RS232 port

• Automatically scanning input status by LED on front panel

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 4

PANEL DESCRIPTIONS:

• 2x2 HDMI Matrix Switcher: 2 HDMI Inputs To 2 HDMI Outputs,

• Input Signals: Video (TMDS) 0.5~1.0Vpp, DDC 5Vpp

• Signal Supports : HDMI Standard, DVI and HDCP Compliant

• Video Supported: HDMI formats up to 1080p or 1920x1200 and DVI UXGA 1600x1200 HD

resolutions.

• Audio Supported: DTS-HD Master Audio, Dolby True -HD & Dolby Digital Plus

• Supports digital video standards such as:

RGB/YCBCR: 24/30/36-bits

YCBCR: 8/10/12/16/20/24-bits

Double data rate interface for RGB/YCBCR: 12/15/18-bits

• Controls: IR, IR EXT, RS232, and Select buttons on the front panel

• Data Rates: 250Mbps to 2.25Gbps.

• IR Extender Distance: 300 meters maximum.

• IR frequency: 38KHz.

• Safety Approvals: CE, FCC, RoHS(2002/95/EC).

• Power Supply: 12V DC

• Use Universal Switch Type 50/60Hz,100~230 VAC

SPECIFICATIONS:

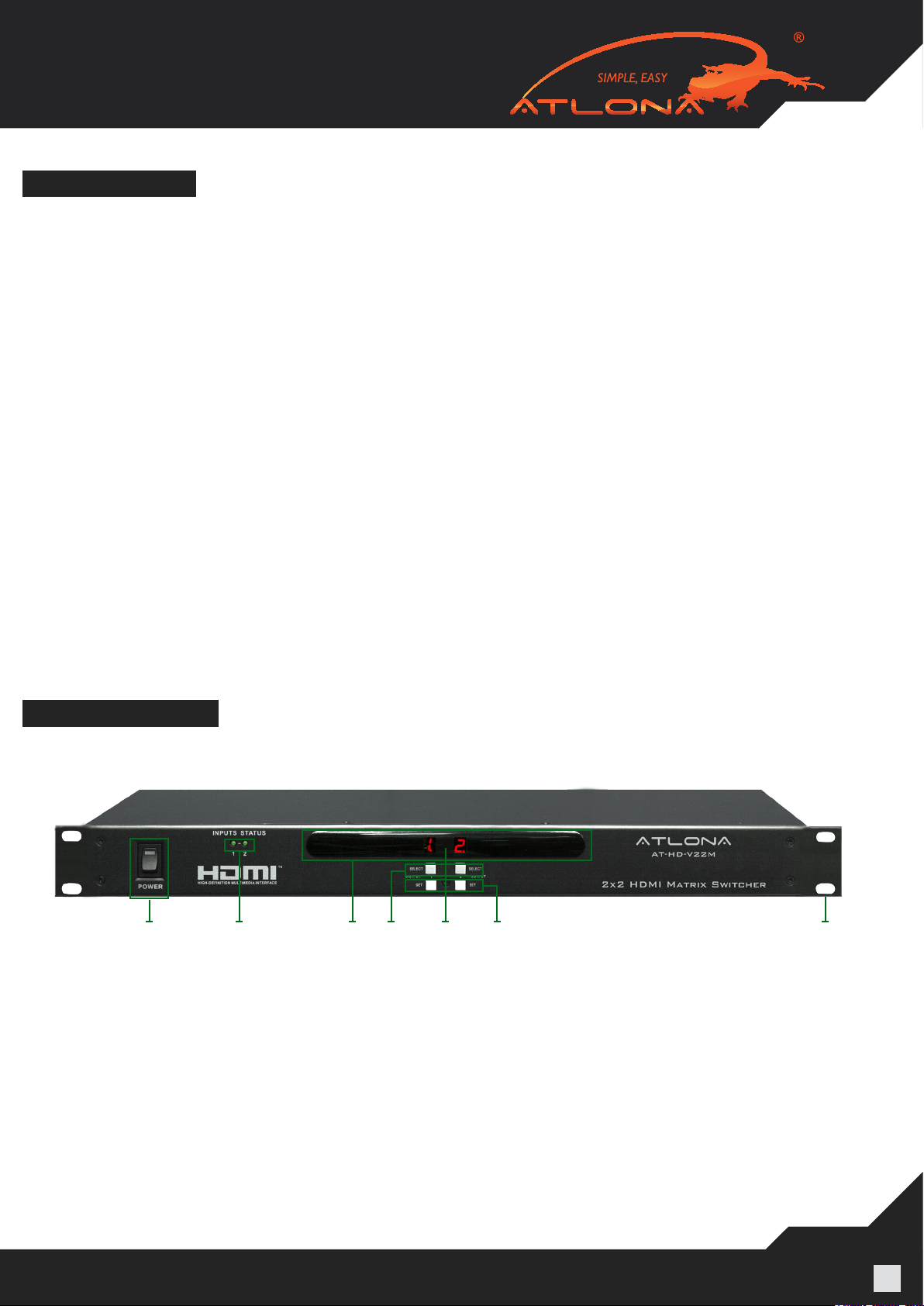

1. POWER SWITCH. The power switch turns the unit on and off. The LED will illuminate red to indicate that the

switcher is ON

2. INPUT SOURCES STATUS DISPLAY. Input sources 1 to 2 LEDs illuminate blue to indicate desired video

source is present on that input.

3. OUTPUT SOURCES STATUS DISPLAY. Output Status shows by LED display.

4. SOURCES SELECT BUTTONS. Separate outputs 1 ~ 2 source select buttons are provided. Select sources

are 1-HDMI, 2-HDMI.

5. IR SENSOR. The IR sensor receives IR commands from the supplied remote control.

6. SOURCE SETUP BUTTONS. Setup the inputs 1 ~ 2

7. 19 INCH EAR MOUNT PAIR. 19 inch case Ear Mount pair

1. Front Panel

1 2 3 54 6 7

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 5

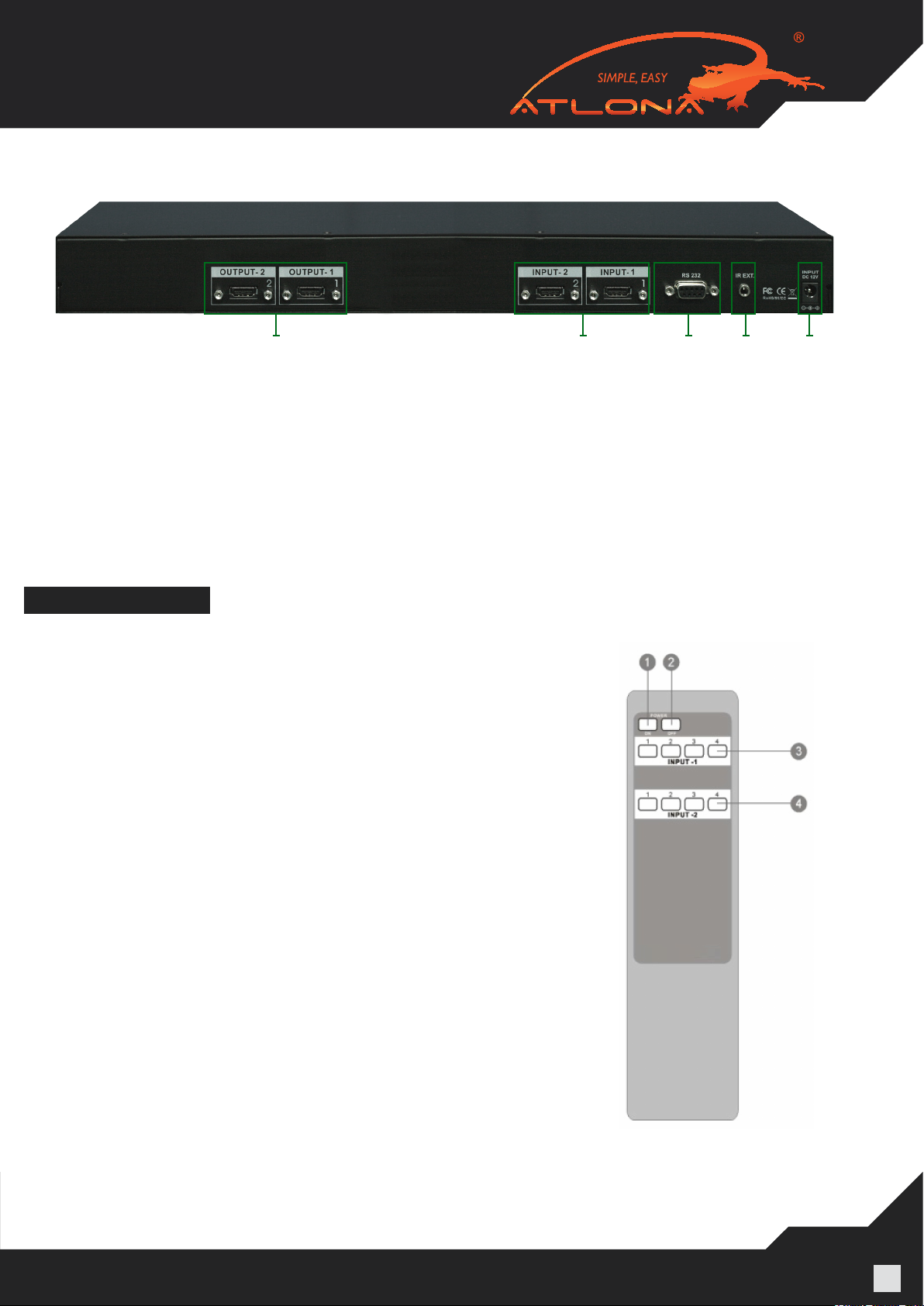

2. Rear Panel

1. DC POWER INLET. Power Input: 12VDC

2. IR EXTENDER CONTROL. Support one of IR Extender’ extend distance maximum 300 Meters.

3. RS 232 CONNECTION. DB-9pin Female connector for serial RS-232 control.

4. VIDEO INPUTS: HDMI Inputs 1, 2. HDMI Female connector. (Unit can be used with HDCP compliant DVI

digital video signals with appropriate)

5. VIDEO OUTPUTS: HDMI Outputs 1, 2. HDMI Female connector. (Unit can be used with HDCP compliant

DVI digital video signals with appropriate)

5 4 3 2 1

Ensure the mains voltage supply matches the label on the sup-

plied plug-Pack (+/- 10%)

Ensure that the power switch is OFF

Connect all audio video sources and destination equipment

Power up all HD Source and Displays

For each desired output select the appropriate input by using the

front panel select buttons, IR remote control, or the RS232 serial

communications port.

When powering up the AT-HD-V22M will return to its last used set-

ting before Powered down.

1,2. SWITCH POWER ON or OFF

3. INPUT 1 SOURCES SELECTION

(Select sources with selection button)

4. INPUT 2 SOURCES SELECTION

(Select sources with selection button)

REMOTE CONTROL

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 6

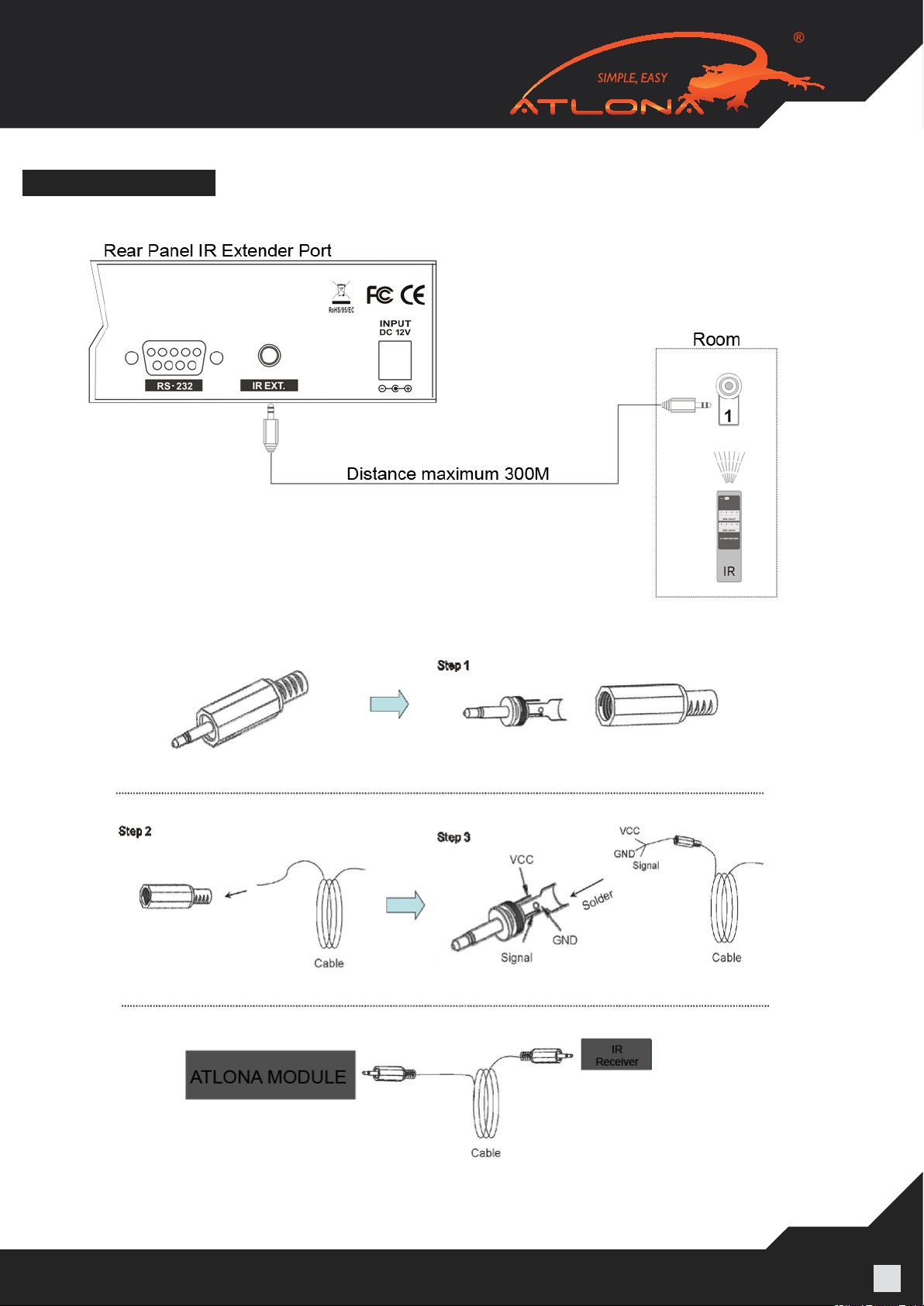

IR EXTENDER

1. IR Extender Connection

2. IR Extender Package

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 7

RS 232

RS 232 SERIAL COMMANDS

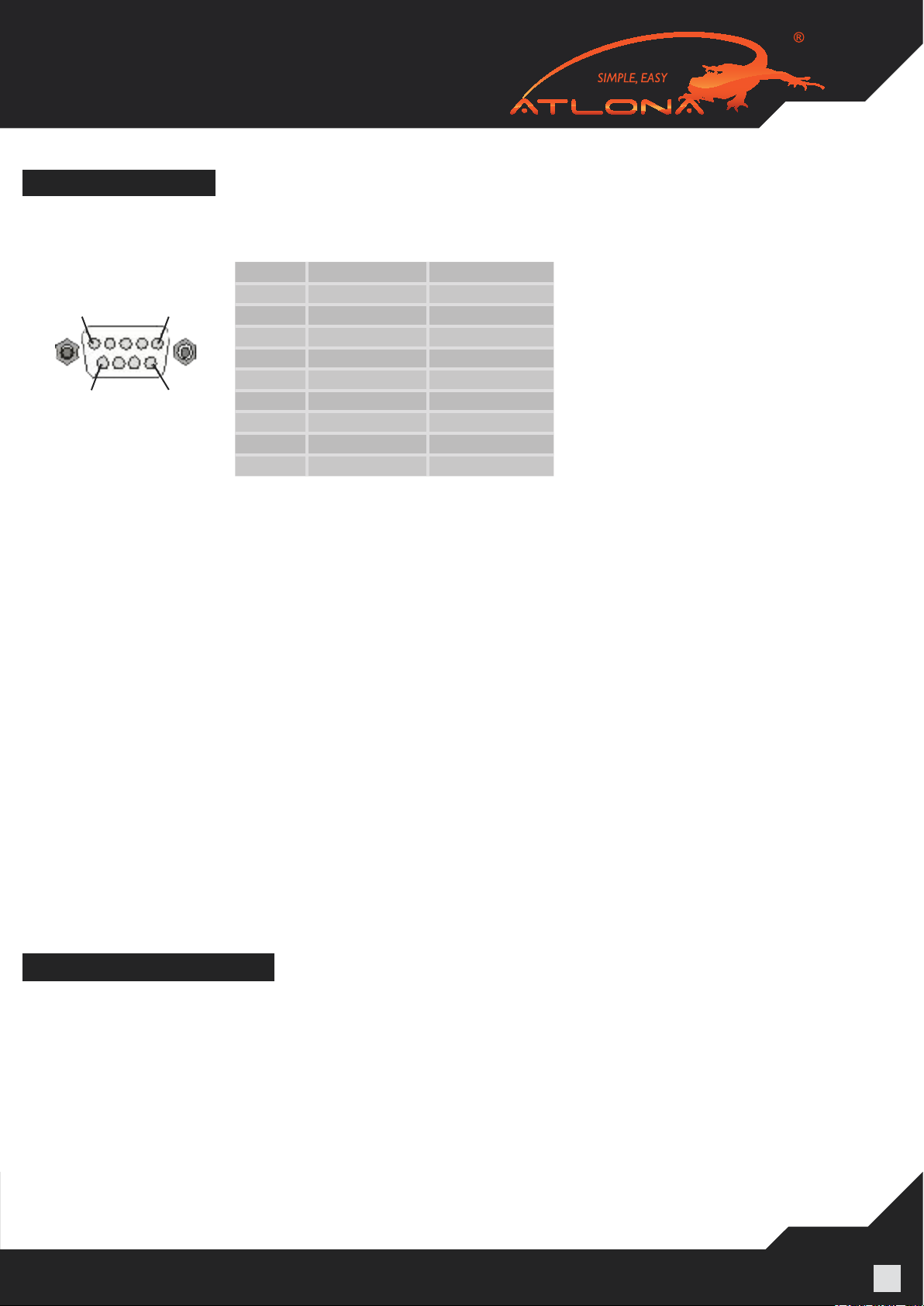

1. RS-232 Serial Interface

RS-232 serial interface connect a PC or Control System

Pin RS-232 Denition

1 - Not used

2 Tx Transmitter

3 Rx Receiver

4 - Not used

5 GND Ground

6 - Not used

7 - Not used

8 - Not used

9 - Not used

2. RS-232

Atlona Technologies’ switcher can be controlled via the RS-232 serial control port to allow for interfacing to a

PC, The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred

to as 9600 8N1.

When the unit recognizes a complete command it will perform the requested action - there is no delimiter

character required. The unit does not send out a message when a value is changed from the front panel or

by IR control. If the unit needs to be controlled via the front panel in addition to the RS232 control, you should

regularly poll the unit status to ensure the control system accurately reects the current settings or similar third

party control system.

3. Commands

To Switch Inputs to Outputs

SBI0XO0Y- Where X is Output Number (1-2) and Y is Input Number (1-2)

Unit will respond with

SBUD0XOY- Where X is Output Number (1-2) and Y is Input Number (1-2)

Example : Send Input 2 to Output 2

SBI02O02-Send

SBUD02O2-Rcvd

1 5

6 9

Note: Turning the unit System Power Off over RS232 will distinguish the LED display leaving only the Power

Switch LED on. The Video and Audio outputs will also mute. While the unit is turned off by RS232 it will con-

tinue to accept and act upon switching commands. For example, if the unit is in the off mode (via RS232) and

you send a command to switch an input to an output, that route will complete and the video and audio will now

appear on that channel only. The front panel LED for that particular output will also show the input selected

(for that single output channel only). The remaining LED’s will remain off and video and audio outputs muted.

The unit will still return status and change messages in response to commands sent while in Power Off state. A

hard reset command (SBALLRST) will return the unit to normal operation and also unlock the front panel.

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 8

1. Power Off Mode

SBSYSMOF- Put system into Standby (Soft Power Off)

SBSYSMON- Bring unit out of Standby (Soft Power On)

Unit will respond with

SBALOFAK- Unit is in Standby

SBALONAK- Unit is no longer in Standby

Example : Put Unit in Standby (Soft Power)

SBSYSMOF-Send

SBALOFAK-Rcvd

2. Front Panel Lock

Note : Hard resetting the unit will unlock the Front Panel controls.

SBSYSMLK- When front panel is locked, changes can only be made by RS-232

SBSYSMUK- Front Panel Unlock

Unit will respond with

SBSYSLOK- Front Panel has been Locked

SBSYSULK- Front Panel has been Unlocked

Example : Lock Front Panel Buttons

SBSYSMLK-Send

SBSYSLOK-Rcvd

3. Unit Reset

SBALLRST - Reset every output to Input 1

Unit will respond with

SBRSTACK- Unit has reset each Output to Input 1

Example : Reset all outputs to Input 1

SBALLRST-Send

SBRSTACK-Rcvd

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 9

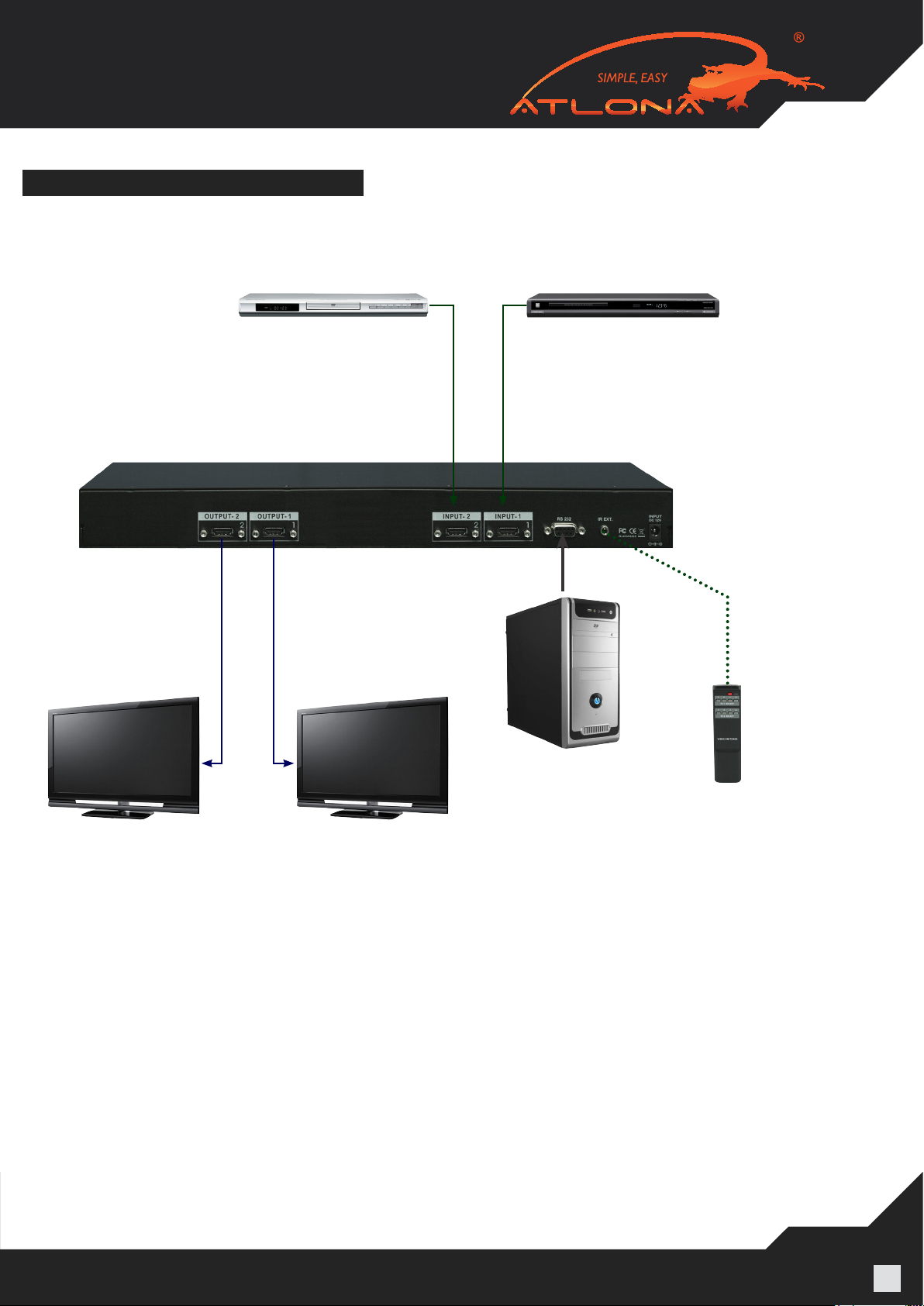

CONNECTION AND INSTALLATION

PC RS232 Control

AT-HD-V22M

HDMI Player 1HDMI Player 2

HDMI Display 2 HDMI Display 1

IR ext.

Note: If connecting the outputs to both displays and AV receivers, the audio output will only be stereo due

to the display are only able to handle PCM or Stereo Audio through HDMI inputs. If all devices are AV re-

ceivers then multi-channel audio such as Dolby TrueHD and DTS-HD can be output. Likewise, the switch-

er will also look at the resolution of all at panels connected and output the resolution of the lowest display.

For example: If three TV’s are 1080p and one is 720p, the output to all TV’s will be 720p

To achieve 1080p across all displays, no matter what their resolution is, take a look at the AT-HD560 and

AT-HD550 both are up/down scalers which can take any resolution and turn it to whatever the displays native

resolution is.

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 10

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not

expose this product to rain or moisture.

If the wall plug does not t into your local

power socket, hire an electrician to replace

your obsolete socket.

Do not modify the wall plug.

Doing so will void the warranty and safety

features.

This equipment should be installed near

the socket outlet and the device should

be easily accessible in case it requires

disconnection.

Precautions

FCC Regulations state that any

unauthorized changes or modications to

this equipment not expressly approved by

the manufacturer could void the

user’s authority to operate this

equipment.

Operate this product using only the

included external power supply. Use of

other power supplies could impair

performance, damage the product or cause

res.

In the event of an electrostatic discharge,

this device may automatically turn off. If this

occurs, unplug the device, and plug it back

in.

Protect and route power cords so they will

not be stepped on or pinched by anything

placed on or against them. Be especially

careful of plug-ins, or cord exit points from

this product.

Avoid excessive humidity, sudden

temperature changes or temperature

extremes.

Keep this product away from wet locations

such as bathtubs, sinks, laundries, wet

basements and swimming pools.

Use only accessories recommended by

ATLONA to avoid re, shock or other

hazards.

Unplug the product before cleaning. Use

a damp cloth for cleaning. Do not use

cleaning uid or aerosols, which could

enter the unit and cause damage, re or

electrical shock. Some substances may

also mar the nish of the product.

Never open or remove unit panels or make

any adjustments not described in this

manual. Attempting to do so could expose

you to dangerous electrical shock or other

hazards. It may also cause damage to your

AT-HD-V22M. Opening the product will void

the warranty.

Do not attempt to service the unit. Instead

disconnect it and contact your Authorized

ATLONA reseller or contact ATLONA

directly.

Andere Handbücher für AT-HD-V22M

Inhaltsverzeichnis

Andere Atlona Matrix-Umschalter Handbücher

Atlona

Atlona AT-HDR-H2H-44M Bedienungsanleitung

Atlona

Atlona AT-COMP-42M Bedienungsanleitung

Atlona

Atlona AT-UHD-PRO3-44M Bedienungsanleitung

Atlona

Atlona AT-PROHD88M-SR Bedienungsanleitung

Atlona

Atlona AT-UHD-PRO3-88M Bedienungsanleitung

Atlona

Atlona AT-UHD-PRO3-88M Bedienungsanleitung

Atlona

Atlona AT-PRO3HD66M Bedienungsanleitung

Atlona

Atlona AT-PROHD88M-SR Bedienungsanleitung

Atlona

Atlona AT-HD-V44M Bedienungsanleitung

Atlona

Atlona AT-HDMI-44M Bedienungsanleitung

Atlona

Atlona AT-VGA88M-SR Bedienungsanleitung

Atlona

Atlona AT-AV0808N Bedienungsanleitung

Atlona

Atlona AT-SDI82M Bedienungsanleitung

Atlona

Atlona AT-OME-SW32 Bedienungsanleitung

Atlona

Atlona AT-HDR-H2H-88MA Bedienungsanleitung

Atlona

Atlona AT-AV0808N Bedienungsanleitung

Atlona

Atlona AT-UHD-CLSO-824 Bedienungsanleitung

Atlona

Atlona AT-HD-V24M Bedienungsanleitung

Atlona

Atlona AT-DVI0808 Bedienungsanleitung

Atlona

Atlona AT-HD-V1616M Bedienungsanleitung

Atlona

Atlona Opus AT-OPUS-810M Bedienungsanleitung

Atlona

Atlona AT-PRO3HD44M Bedienungsanleitung

Atlona

Atlona AT-AV0808N Bedienungsanleitung

Atlona

Atlona AT-UHD-CLSO-840 Bedienungsanleitung

Beliebte Matrix-Umschalter Handbücher anderer Marken

Broadcast Tools

Broadcast Tools SS 8.2 Bedienungsanleitung

Altimium

Altimium MATF32 Bedienungsanleitung

ALFAtron

ALFAtron ALF-MUK44N Bedienungsanleitung

Monoprice

Monoprice Blackbird 15377 Bedienungsanleitung

Kramer

Kramer XL 3216VS Bedienungsanleitung

PTN

PTN FMX12 Bedienungsanleitung

CYP

CYP nT15GX01 Bedienungsanleitung

Kramer

Kramer VP-2x2 Bedienungsanleitung

Kramer

Kramer Sierra Video 6432V5xl Bedienungsanleitung

TESmart

TESmart HMA0402A40 Bedienungsanleitung

Octava

Octava HD4XSTPMX Bedienungsanleitung

Intelix

Intelix FLX-88 Betriebsanleitung

Kramer

Kramer LASSEN XL 3232S Bedienungsanleitung

Roland

Roland XS-1HD Bedienungsanleitung

Kramer

Kramer VS-66HDCPxl Bedienungsanleitung

Link

Link HD8X8 Bedienungsanleitung

AMX

AMX AVS-OP-2020-117 Anleitungen und Rezepte

Lindy

Lindy 38042 Bedienungsanleitung
