Atlona AT-PC-AVSCOMP Bedienungsanleitung
www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515

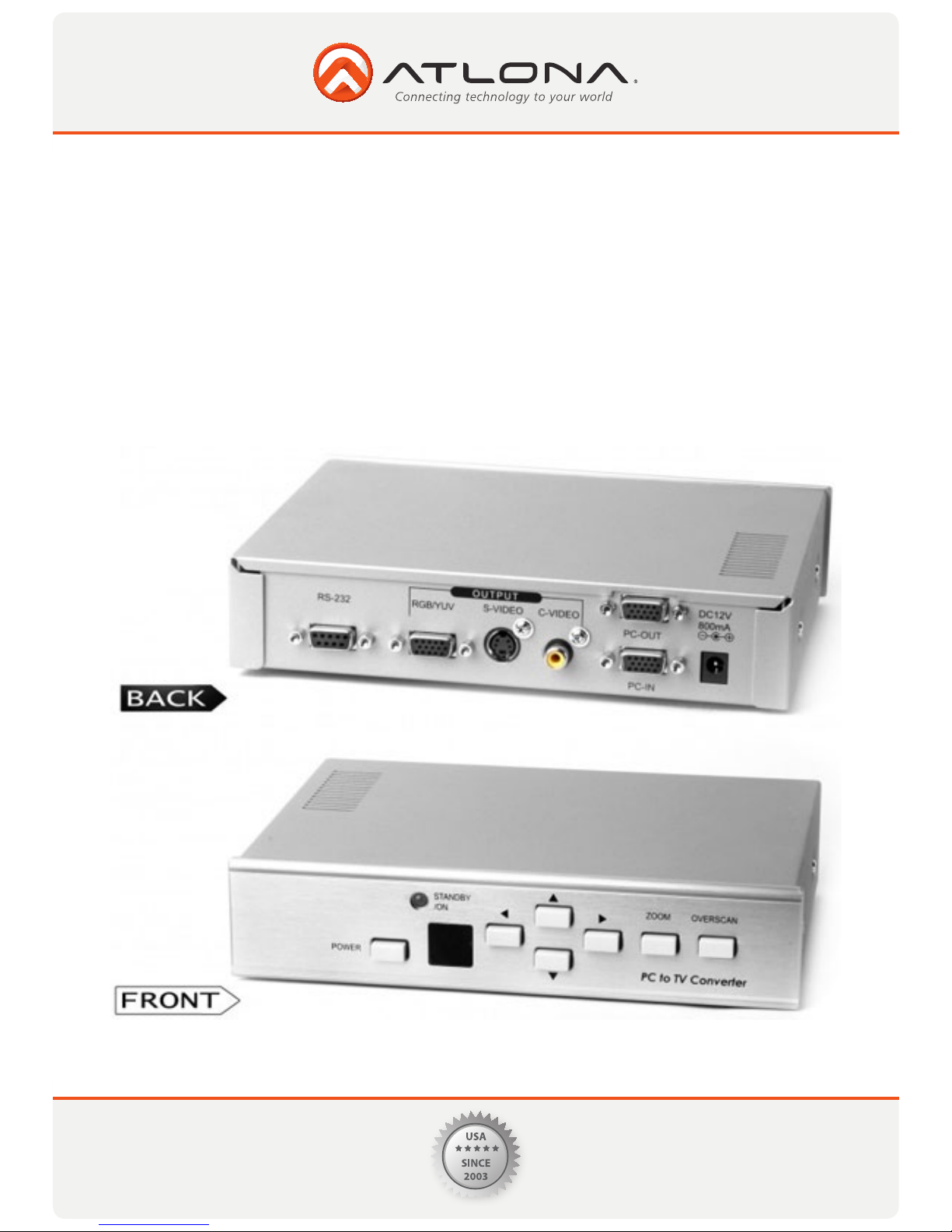

User Manual
VGA ( PC ) TO COMPONENT / COMPOSITE / S-VIDEO
CONVERTER
AT-PC-AVSCOMP
1www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction .................................................. 2
2. Features .................................................. 2
3. Operation Controls and Functions .................................................. 3
3.1 Front Panel. .................................................. 3
3.2 Rear Panel .................................................. 4
3.3 Remote Control .................................................. 5
4. RS-232 Software Operation .................................................. 6
6. Connection and Installation .................................................. 9
7. Specifications .................................................. 10
8. RS-232 Remote Control Protocol .................................................. 11
8. Safety Information .................................................. 14
9. Warranty .................................................. 15
10. Atlona Product Registration .................................................. 16
TABLE OF CONTENTS
2www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
The AT-PC-AVSCOMP PC to Video scan converter is designed to convert a variety of computer images,from
640x480 up to 1600x1200, to interlaced NTSC or PAL video. It offers a variety of output formats including com-
posite, S-Video, YUV and RGBS. It is ideal for use in applications like video conference, home theater,business
presentation,lecturing room or viewing PC image on TV.
• Automatically detects and down converts the incoming PC images to NTSC, PAL, RGB or YUV.
• Support high resolution PC input up to UXGA(1600x1200@60Hz).
• Output video format is selectable between composite/S-Video,YUV,and RGBS through a control button
on the remote.
• Support high input refresh rate up to 140Hz(VGA).
• Adjustable image scaling.
• Pan, Position and Zoom.
• Advance 2-D flicker filter ensures flicker-free picture.
• Adjustable contrast, brightness, color, sharpness.
• Last memory.
• Adjustment and control through RS-232 interface.
• Useful functions, overscan, freeze, test pattern, magnifier.
• Remote control.
• OSD operation display.
• Wide/Standard screen.
INTRODUCTION
FEATURES
3www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Standby/On indicator: The indicator illuminates in red when it is in Standby mode, illuminates in green
when it is in ON mode.
2. Power button: Push the button to turn power ON or Standby.
3. Remote control sensor.
4. Button : Under zoom mode push the button to adjust the picture leftward.
5. Button : Under zoom mode push the button to adjust the picture rightward.
6. Button : Under zoom mode push the button to adjust the picture downward.
7. Button : Under zoom mode push the button to adjust the picture upward.
8. Zoom button: Push the button to zoom in or zoom out of a picture.
9. Overscan button: Push the button to overscan/underscan the picture.
Front Panel
OPERATION CONTROLS AND FUNCTION
2 3 4 6 5 8 9
71
4www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515

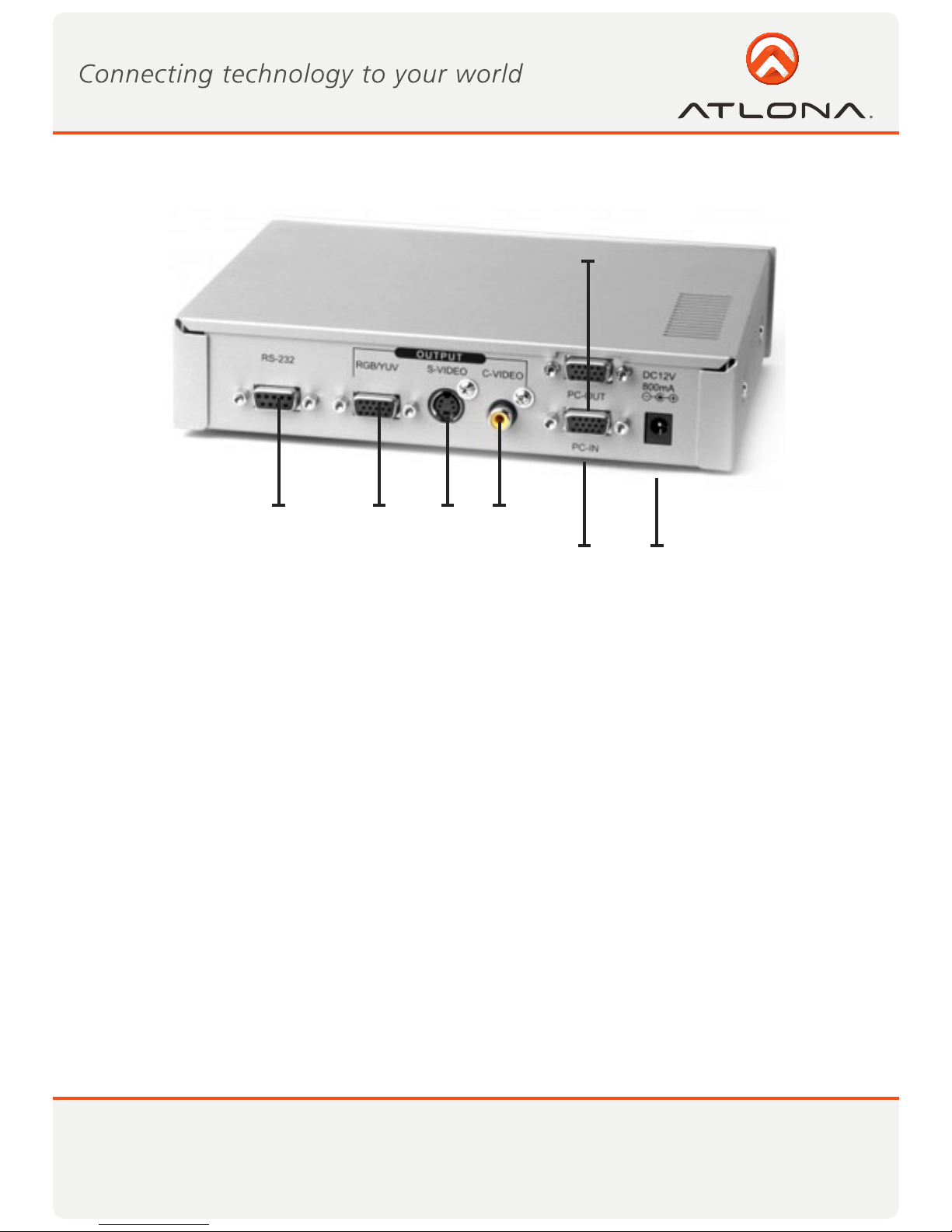

Rear Panel
1. DC power supply 12V 800mA.
2. PC input VGA connector.
3. PC loop-through output connector.
4. Composite video out RCA connector.
5. S-video out connector.
6. RS-232 DB-9 connector.
7. RGB or YUV out connector.
6 7 5 4
2 1
3
5www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515

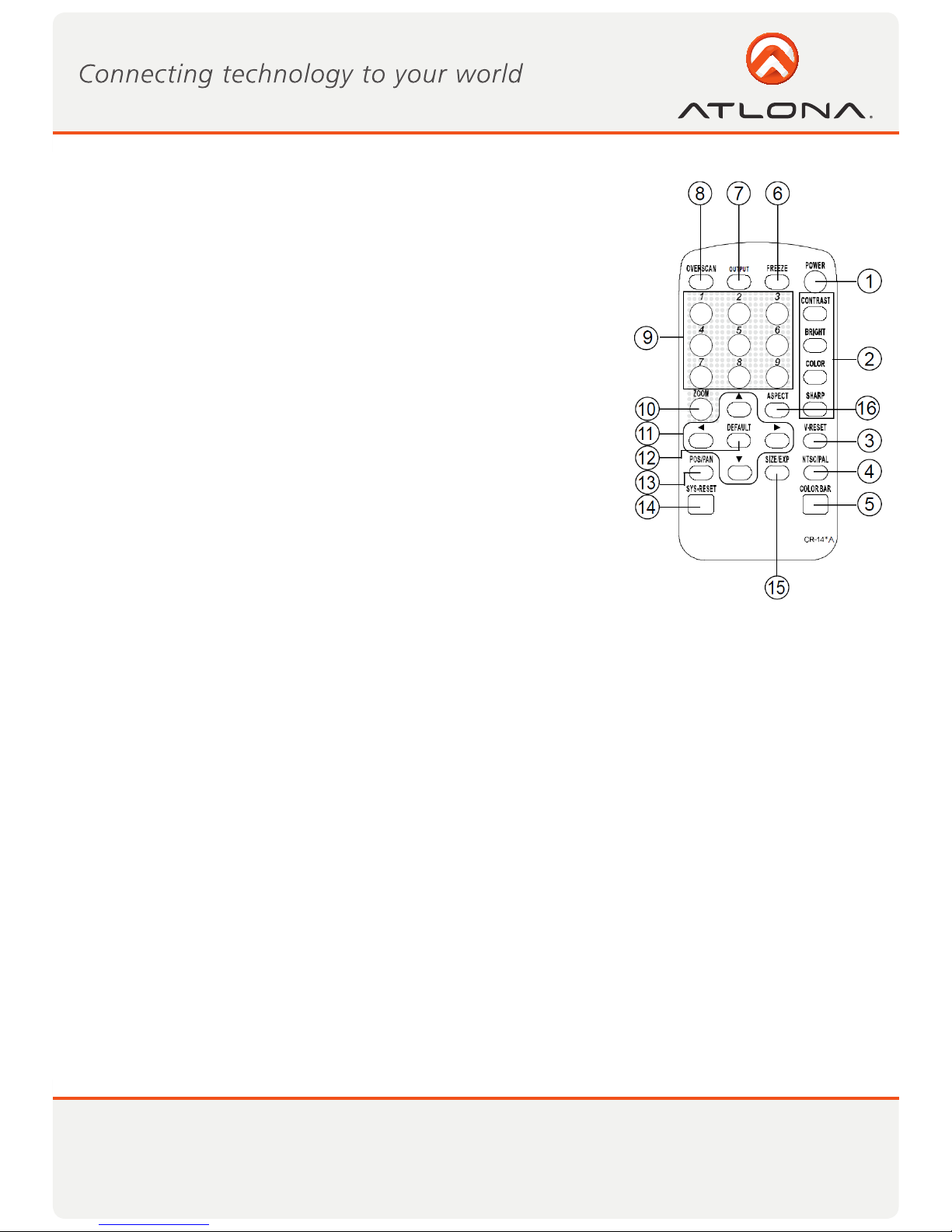

Remote Control
1. Power: Power ON/Off.
2. Video setting adjustments for picture,contrast, bright,color and
sharpness.
3. V-Reset: Press the button to reset picture adjustment 2 to factory
default vaule.
4. NTSC/PAL: Press the button to select NTSC or PAL as video output.
5. Color bar pattern ON/Off: Press the button to show color bar pat-
tern on the screen. Press again to close color bar.
6. Image freeze ON/Off: Press the button to freeze/unfreeze an im-
age.
7. Output format: Press the button to select your desired output for-
mat.
Press repeatedly to toggle through CV/SV RGB YUV
8. Under/Over Scan: Press the button to choose a underscan image or
overscan image.
9. 9-blocks selection(Zoom): Under zoom mode press one of the but-
tons to select its corresponding sub-area which is 1/9 of of the full
screen.
10.Zoom ON/Off: Press the button to zoom in an picture, press again
to zoom out.
11.Horizontal/Vertical adjust knob:
- Adjust the size or position of a image when it is under Zoom, Pan/Position, or Size/EXP mode.
- Adjust setting value of picture adjustment in 2 .
12.Default: Press the button to revert the following parameters to factory preset value:
- Zoom
- Position
- Size
- Picture adjust
13.Pos/Pan: When a picture is in underscan mode, press the button to do position adjustment. When a pic-
ture is in overscan mode,press the button to do pan adjustment.
14.System reset: Press the button to revert all system parameters back to factory preset value.
The system parameters are default as follows:
- Overscan
- NTSC output
- 4:3 aspect
- Normal brightness
- Video settings reset, position/ pan/size /expand reset.
15.Size/EXP: When a picture is in underscan mode, press the button to do size adjustment. When a picture is
in overscan mode, press the button to do expand adjustment.
16.Aspect: Press the button to switch between standard 4:3 and widescreen 16:9 aspect ratio.
6www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
PC OS: Windows 98/ME/2000/XP
Software installation:
1. Place installation CD on CD-ROM drive.
2. Execute setup.exe on installation CD.
3. OS maybe requires to update some files.Please re-start PC. After starting PC ready, execute setup. exe again.
4. Click taskbar menu (START)->(Programs)->(AT-PC-AVSCOMP) to execute software.
If RS-232 is not ready then software enters virtual mode.
After RS-232 connection being ready, start the software again and enters real mode.

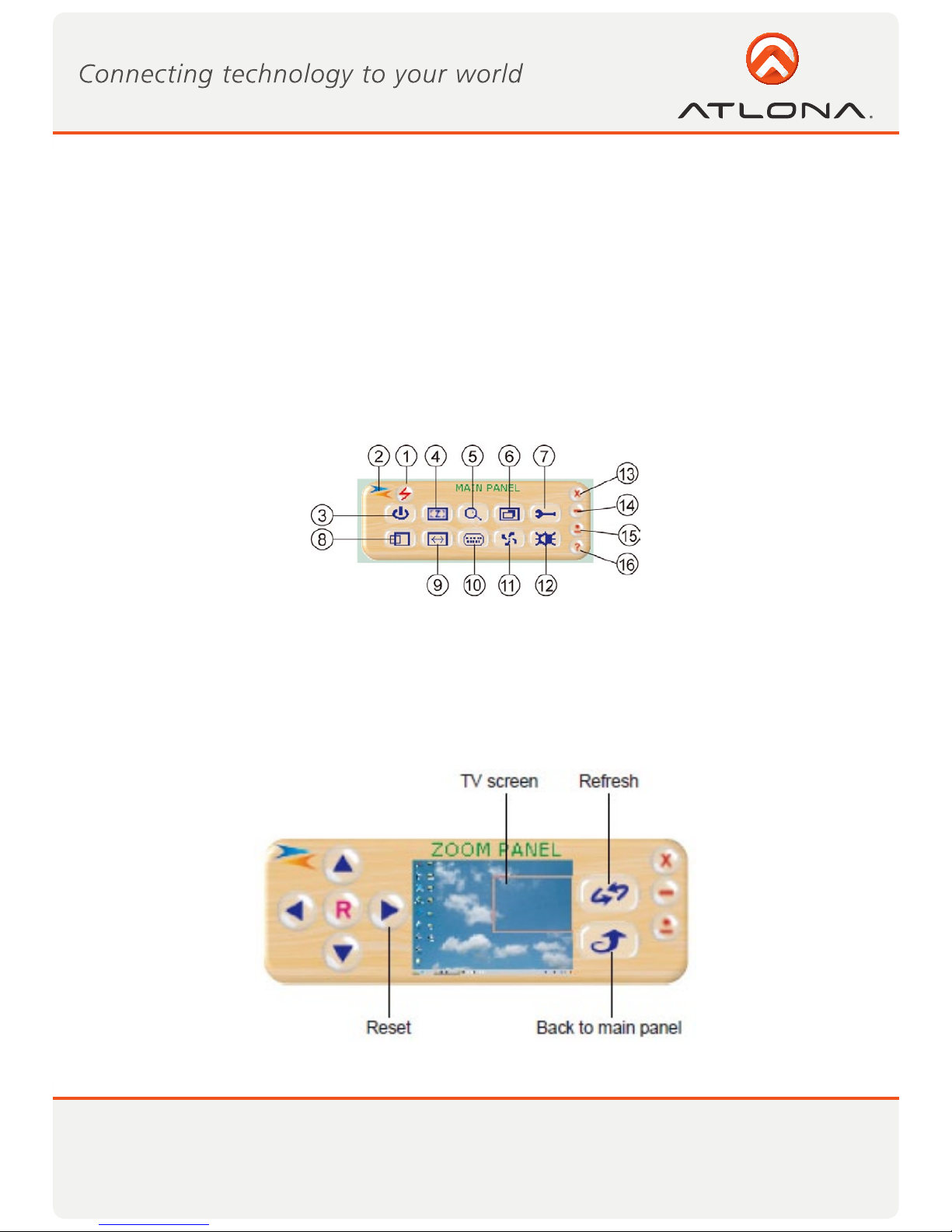

Main Panel
1. Power: Power ON/Off.
2. Mode indicator:
Grey icon:Virtual mode operation.
Colored icon: Real mode operation.
3. System reset: Reset AT-PC-AVSCOMP unit.
4. Zoom: Drag and move (TV-screen) to the place where you want to see. If the PC screen image is changed,
then click(refresh).
RS-232 SOFTWARE OPERATION
7www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515

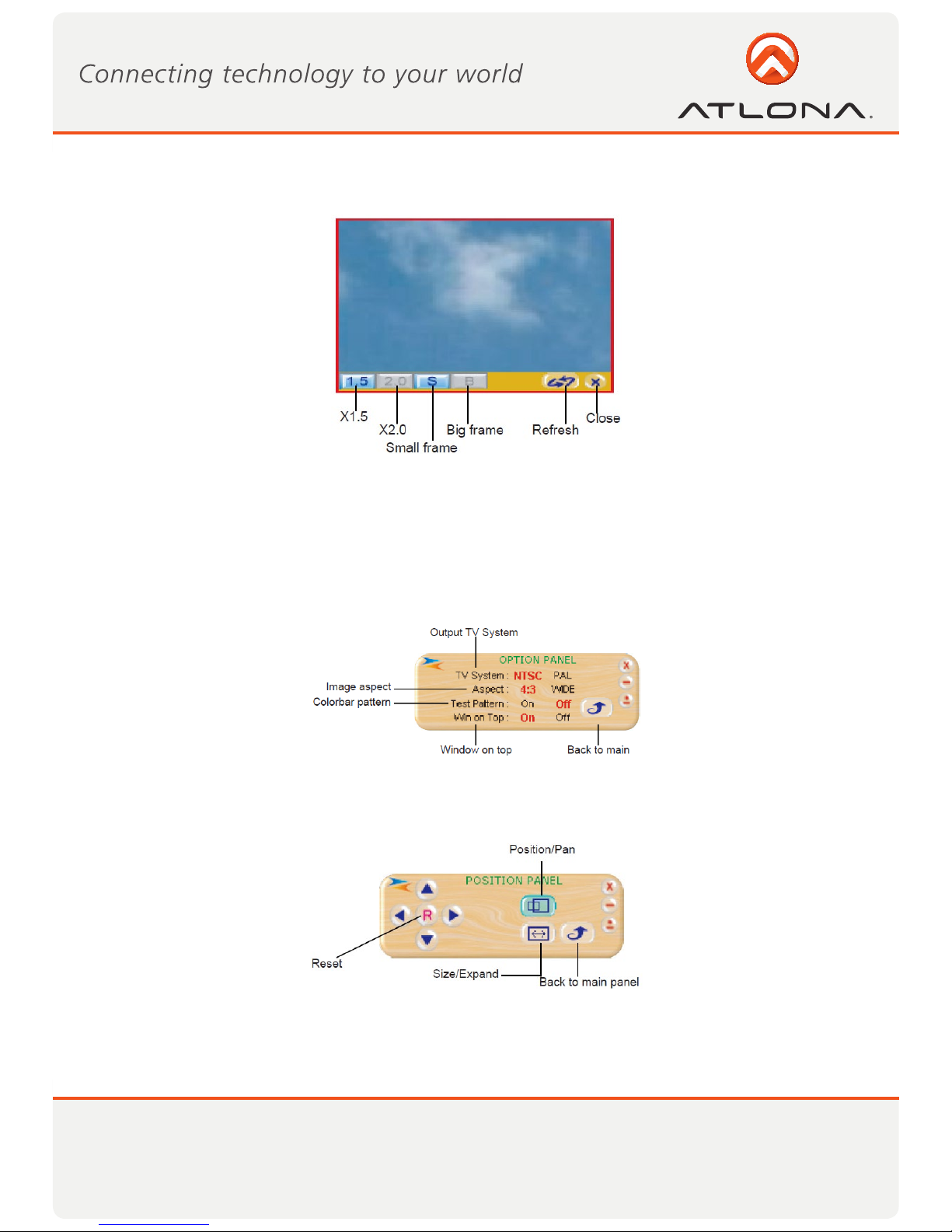

5. Magnifier: Drag and move magnifier to the place where you want to see. If the screen image is changed,
then click (refresh).
6. Over/Under scan:
TV overscan adjustments are “pan“ and “expand“; underscan adjustments are “position“ and “size“.
7. Option:
TV system: NTSC or PAL output.
Aspect pattern: 4:3 or widescreen.
Test pattern: colorbar test pattern ON/OFF.
Window ON Top: Application software window always on top ON/OFF.
8/9. Position/Pan and Size/Expand adjustments
Position/Size for underscan
Pan/Expand for overscan
8www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515

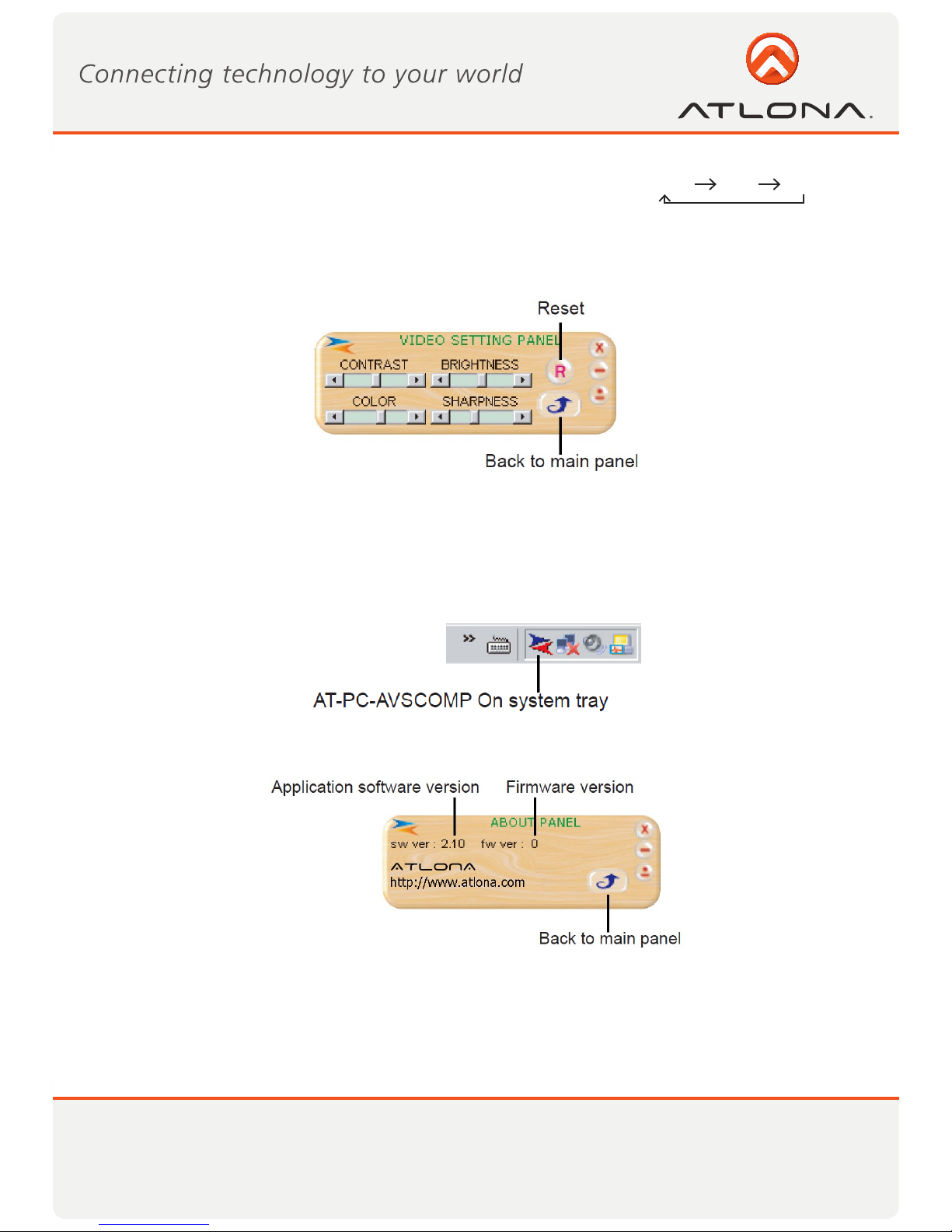

10. Output Format: Select output format-Press repeatedly to circle through CV/SV RGB YUV
11. Screen freeze: Still screen.
12. Video settings: Contrast, Brightness, Color, Sharpness adjustment.
13. Close: Terminate application software.
14. Minimize: Shrink application software to window taskbar.
15. System tray: Shrink application software to system tray click the icon and return to normal window.
16. About: Display application software version and firmware version.
9www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515

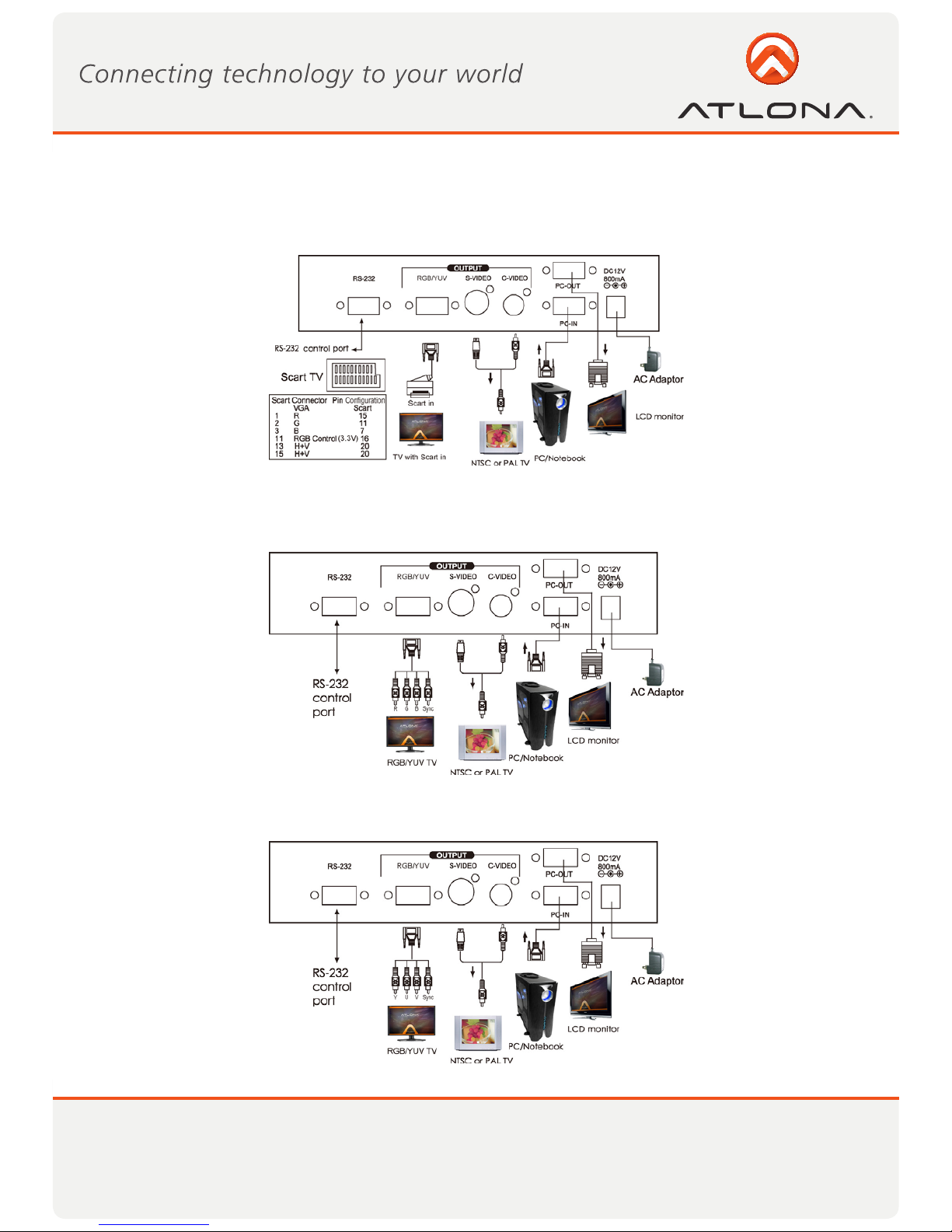

A. Connecting the RGB output to the scart input of the TV using enclosed VGA to SCART cable.
Select RGB as output mode:
B. Connecting the RGB out to the TV through enclosed VGA to 4 BNC cable.
Select RGB as output mode:
C. Connecting the YUV out to the TV through enclosed VGA to 4 BNC cable.
Select YUV as output mode:
CONNECTION AND INSTALLATION
