Atlona AT-HDKVM-V21 Bedienungsanleitung

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515

User Manual

AtlonA

2x1 and 4x1 HDMI KVM

(Keyboard and Mouse)Switch

AT-HDKVM-V21 and AT-HDKVM-V41

AT-HDKVM-V21

AT-HDKVM-V41

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 2

TABLE OF CONTENTS

1. Introduction .................................................. 3

2. Package Contents .................................................. 3

3. Application .................................................. 3

4. Features .................................................. 3

.................................................. 4

6. Connection and Operation .................................................. 4

7. Hot Key Instructions .................................................. 4

.................................................. 5

9. Atlona Product Registration .................................................. 5

10. Connection Diagram .................................................. 5

11. Safety Information .................................................. 6

12. Warranty .................................................. 7

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 3

INTRODUCTION

PACKAGE CONTENTS

FEATURES

APPLICATIONS

The Atlona HDKVM-V21 and HDKVM-V41 are the HDMI KVM 2 x 1 and 4x1 switchers. These designed to allow

user to have 2 or 4 computers and one display while utilizing the same keyboard and mouse across all of the

computers. The switch between channels could either be done though push-buttons on the front panel of the

switch or though Hot Key selection.

The HDKVM series of switchers is based on the latest HDMI IC and therefore capable of fully displaying uncom-

pressed digital video with resolutions up to 1920x1200 or 1080p along with High Resolution Audio up to Dolby

True HD and DTS master.

• 1 x AT-HDKVM-V21 or AT-HDKVM-V41

• 2 or 4 USB Cables Depending on the model chosen

• 1 x 5v Power supplies (Universal 110/240V)

• 1 x Instructions manual

• Supports Extremely high resolutions up to 1920x1200 or 1080p

• Supports Latest Digital Audio Formats up to Dolby True HD and DTS master

• Allows users of multiple computers to be able to have a single keyboard, single mouse and one monitor while

switching in between computers with a push of a button.

• Auto Scan Mode, allows to switch to a specic input when the computer turns on or off

• Allows a use o either USB or PS2 keyboard and mouse

• OS support - Windows, Linux, and Mac

• Plug and Play

• 3D Capable

• Supports 30/36/48 bit color depth display.

• Auto Signal Enhancement feature can improve signal quality after long distance transmission.

Ofce use: Most of the jobs that involve Graphics design, Video Editing, Programming very often require 2

or more computers; however usually it is impossible to use more than one monitor and multiple keyboards or

mouse’s. The HDKVM solution is perfect for such an application.

QA: For those who test systems on different platforms such as Windows, Mac OS, Linux or any other, will de-

nitely require multiple computers at their station. The HDKVM is a great solution which will allow QA person to

switch between operating systems which still using one keyboard, mouse and display.

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 4

CONNECTION AND OPERATION

SPECIFICATIONS:

AT-HDKVM-V21 AT-HDKVM-V41

Inputs 2 x HDMI, 2 x USB (type B) 4 x HDMI, 4 x USB (type B)

Outputs 1 x HDMI, 2 x USB (type A), 2 x PS2 1 x HDMI, 2 x USB (type A), 2 x PS2

Frequency bandwidth 6.75Gbps

Resolutions up to 1080p

Color Depth up to 48bit

HDCP Compliant Yes

Power Supply 5v DC (universal 110/220v)

Dimensions (W x D x H) 5.11”x2.9”x1.65” / 130x75x42(mm) 7.87”x2.9”x1.65” / 200x75x42mm

Weight 1.1LB / 0.5kg 1.4LB / 0.65kg

Operating Temperature Range -5 to +35°C (-41 to +95 °F)

Storage Temperature Range -20 to +60°C

Operating Humidity Range 0 to 80 % RH (no condensation)

1. Connect HDMI Cable from your computers to inputs on the Atlona HD KVM Switch

2. Connect the one USB cable to each one of the computers. Make sure that HDMI input numbers correspond

with USB input numbers. The USB connections for the computers are located at the back side of the switcher.

3. Connect HDMI cable from the output of the switch to the HDMI input on the display.

4. Connect Keyboard and Mouse to the outputs of the switch. User can choose to use either USB or PS2, mix

and match is acceptable.

5. Connect the switch to the included power supply and enjoy

6. User can choose to use manual front button input selection or Hot Key selection.

HOT KEY INSTRUCTIONS

Hot Key allows user conveniently access connected computers directly from the keyboard, instead of selecting

push-buttons manually.

Press [Scroll Lock ] twice, you will hear beep sound, then click number key “1/2/3/4” to select the comput-

ers. The number is referring to the input number computer is connected to.

[Scroll Lock ]+ [Scroll Lock ]+“S” get into automatically scan mode, at this moment, the mouse and

keyboard do not work. (Scan duration 8 seconds). If you want to get out of scan mode, press any key. Auto

Scan mode will enable switch to nd the rst operational computer.

[Scroll Lock ]+ [Scroll Lock ]+↑ Select last input

[Scroll Lock ]+ [Scroll Lock ]+↓ Select next input

[Scroll Lock ]+ [Scroll Lock ]+“F Turn OFF the beeping sound

[Scroll Lock ]+ [Scroll Lock ]+“O”Turn on the beeping sound

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 5

ATLONA PRODUCT REGISTRATION

Thank you for purchasing this Atlona product — we hope you’ll enjoy it.

We also hope that you’ll take a few moments to register your new purchase. Registration creates an ownership

updates.

At Atlona, we respect and protect your privacy and assure you that your registration information is completely

secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war-

ranty rights.

To register go to www.atlona.com/registration

The LEDs are located on the input buttons. The upper LEDs are the computers which are connected and turned

on; the lower buttons are Selected input LEDs.

ORANGE LEDs indicate that the computer attached to the corresponding port is up and running.

GREEN LEDs indicate the current input is selected.

LED IDENTIFICATION

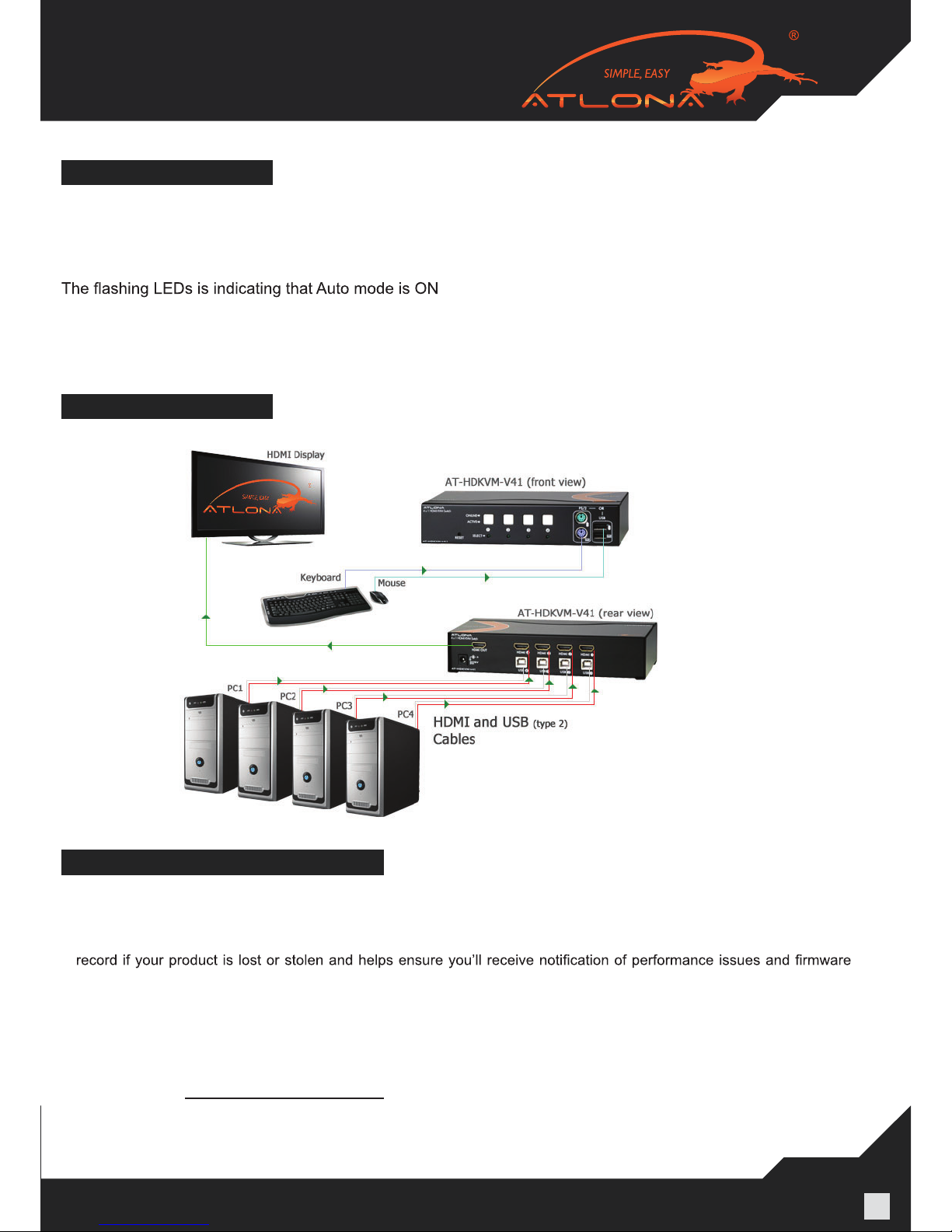

CONNECTION DIAGRAM

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 6

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not

expose this product to rain or moisture.

If the wall plug does not t into your local

power socket, hire an electrician to replace

your obsolete socket.

Do not modify the wall plug.

Doing so will void the warranty and safety

features.

This equipment should be installed near

the socket outlet and the device should

be easily accessible in case it requires

disconnection.

Precautions

FCC Regulations state that any

unauthorized changes or modications to

this equipment not expressly approved by

the manufacturer could void the

user’s authority to operate this

equipment.

Operate this product using only the

included external power supply. Use of

other power supplies could impair

performance, damage the product or cause

res.

In the event of an electrostatic discharge,

this device may automatically turn off. If this

occurs, unplug the device, and plug it back

in.

Protect and route power cords so they will

not be stepped on or pinched by anything

placed on or against them. Be especially

careful of plug-ins, or cord exit points from

this product.

Avoid excessive humidity, sudden

temperature changes or temperature

extremes.

Keep this product away from wet locations

such as bathtubs, sinks, laundries, wet

basements and swimming pools.

Use only accessories recommended by

ATLONA to avoid re, shock or other

hazards.

Unplug the product before cleaning. Use

a damp cloth for cleaning. Do not use

cleaning uid or aerosols, which could

enter the unit and cause damage, re or

electrical shock. Some substances may

also mar the nish of the product.

Never open or remove unit panels or make

any adjustments not described in this

manual. Attempting to do so could expose

you to dangerous electrical shock or other

hazards. It may also cause damage to your

AT-HDKVM-V21 and AT-HDKVM-V41.

Opening the product will void the warranty.

Do not attempt to service the unit. Instead

disconnect it and contact your Authorized

ATLONA reseller or contact ATLONA

directly.

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 7

1. LIMITED WARRANTY

Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the ac-

companying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be free from

defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law

imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdic-

tions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to Customer.

2. CUSTOMER REMEDIES

Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’

option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this

Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty

is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Product will be war-

ranted for the remainder of the original warranty period or 3 year, whichever is longer.

3. NO OTHER WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLIERS

DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IM-

PLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO

THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPE-

CIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.

4. NO LIABILITY FOR DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLOGIES OR

ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, IN-

CIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING

OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA TECHNOLOGIES HAS BEEN AD-

VISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES’ AND ITS SUPPLIERS’

ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT ACTU-

ALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT

APPLY TO YOU.
