Atlona AT-HDMI-31 Bedienungsanleitung

Atlona

3-in 1-out

HDMI Switcher

AT-HDMI-31

Operation Manual

Introduction

Atlona AT-HDMI-31 is a high performance HDMI switcher

with remote control. It allows your various HDMI sources to

share one HDTV display.

Simply pressing one button to select your desired HDMI source

for display on the HDTV.

Features

* HDMI 1.1, HDCP 1.1 and DVI 1.0 compliant.

* Signal Enhancement feature allows you to improve signal quality

after long distance transmission.

* LED indicators.

* Ideal for home theater integration.

* Supports high resolution input:

PC: VGA, SVGA, XGA, SXGA, and UXGA (1600 x 1200)&

HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p

* Remote control.

* Easy to install and simple to operate.

Operation Controls and Functions

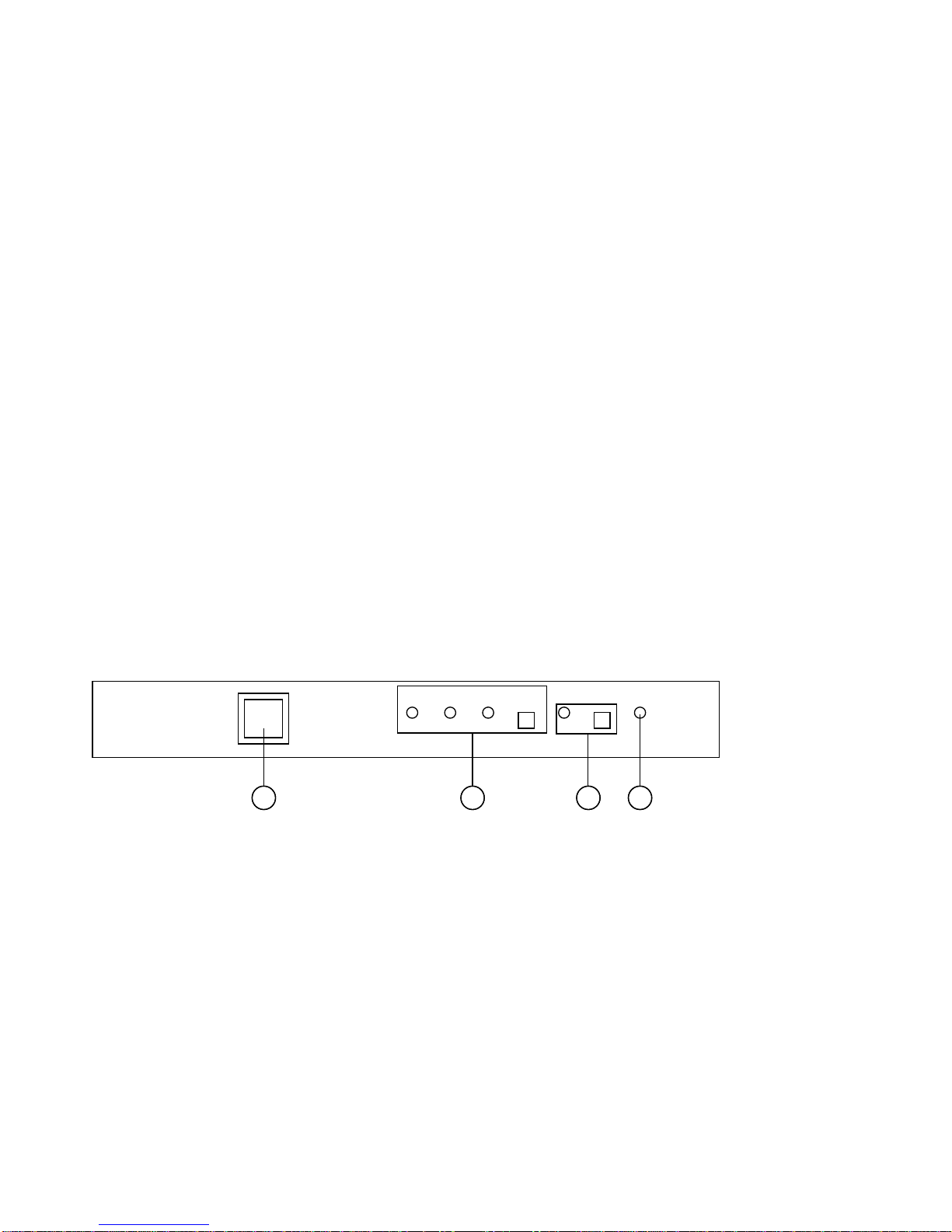

Front Panel

INPUT

1 2 3 POWER

SIGNAL ENHANCE

Switcher

HDMI-31

3x1

HDMI

123 4

1. Remote control sensor.

2. Input select/Indicators: Press the " INPUT" button sequentially to switch to your

desired input source and the LED will illuminate to indicate which

input source is selected.

3. Signal Enhancement/Indicator: Press the " Signal Enhance" button to turn

on this feature to improve signal quality after long distance transmission.

Press again to turn off. The LED will illuminate when the signal is enhanced.

4. Power LED Indicator: The LED will illuminate when the power is connected.

DC 5V

HDMI 1HDMI 2HDMI 3HDMI OUT

Operation Controls and Functions

Rear Panel

12 3

1. HDMI output: Connect the HDMI out of the unit to the HDMI input of

your display of using HDMI cable.

2. HDMI inputs: Connect your various HDMI sources to the

3 HDMI inputs of unit using HDMI cables.

3. Power: Plug the supplied 5VDC power supply into the unit.

Remote Control

CR-22

1. Power:

Press the button to turn on/off the unit.

2. Direct input selector:

Press 1, 2, or 3 to select the desired input source.

3. Void buttons (No function).

Specifications

* Frequency bandwidth: 1.65Gbps(single link)

* Inputs: 3 x HDMI female ports (Type A connector)

* Output: 1 x HDMI female port (single link)

* 5VDC universal power supply

* Weight: 0.57kgs

* Dimension: 105(W) x20(L) x 25(H)mm

* Max Resolution: 1080p ( 1920 x 1200 )

LCD TV

Trouble Shooting Guide

When there is no picture present, please check:

1. Whether all connectors connect well or not?

2. Whether the connecting cable is damaged?

Technical Support:

Telephone (408) 954-8782

Fax (408) 954-8792

Technical Support Hours: 9:00 AM to 6:00 PM Monday thru Friday.

Write To:Atlona Technologies

2151 O'Toole Ave Unit I;

San Jose, CA 95131 USA

DVD 1 DVD 2 STB

Connection and Installation
