Atlona AT-O-451 Bedienungsanleitung

4K HDR Four-Input HDMI Switcher

with Auto-Switching and Return

Optical Audio

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

User Manual

AT-JUNO-451

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

Table of Contents

1. Introduction ................................................................................................... 3

2. Package Contents ................................................................................................... 3

3. Features ................................................................................................... 3

4. Mounting ................................................................................................... 3

5. Panel Descriptions ................................................................................................... 4

6. ARC ................................................................................................... 4

7. Captive Screw ................................................................................................... 5

8. Remote Control ................................................................................................... 5

9. WebGUI ................................................................................................... 6-9

10. RS-232 & TCP/IP

a. Terminal ................................................................................................... 10

b. Connection ................................................................................................... 10

c. Commands ................................................................................................... 11

d. IP Commands ................................................................................................... 12

11. Connection Diagram ................................................................................................... 13

12. Specifications ................................................................................................... 14

13. Safety ................................................................................................... 15

14. Warranty ................................................................................................... 16-17

15. Registration ................................................................................................... 17

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

AT-UHD-HDVS-300-TX

• 1 x Unit

• 1 x Female captive screw connector

5 pin: RS-232 and IR IN

• 2 x Mounting plates

• 4 x Rubber feet

• 4 x Screws

• 1 x IR remote control

• 1 x Installation guide

• 4 input, 1 output HDMI switcher

• Passes resolutions up to 4K@60Hz 4:4:4, including HDR

• ARC capable from compatible displays

• Auto switching using both Hot Plug Detect and video detecting technology

• Flexible control options using IR, front panel, RS-232, TCP/IP, webGUI, or AMS

• Easy firmware updating using USB, webGUI, or AMS

• Multiple EDID options using internal, pass through, or learned EDIDs

• HDCP 2.2 compliant

Introduction

Features

Package Content

The Atlona JunoX™ 451 (AT-JUNO-451) is a 4x1 HDMI switcher for high dynamic range (HDR)

formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma

sampling, as well as HDMI data rates up to 18 Gbps. The JunoX 451 is ideal for residential

applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is

compatible with all video resolutions, audio formats, and color space formats supported in the

HDMI 2.0a specification, plus the ability to pass metadata for HDR content. The JunoX 451 includes

EDID management features and automatic input switching. It also supports the HDMI Audio Return

Channel for receiving digital audio from a television, and includes a TOSLINK digital audio output

for sending this audio to an AV receiver or soundbar. This JunoX Series HDMI switcher can be

controlled via Ethernet, RS-232, and IR. A handheld IR remote control is included.

Mounting

Mounting bracket x 2

The JunoX comes with mounting brackets that can be used to affix the unit to a table, desk, etc.

To affix the mounting brackets to the unit, use the four included screws. The bracket can be

affixed with the oval holes pointing to the bottom (for against the wall - picture A) or the oval holes

facing the top (for under tables - picture B).

Larger oval

hole will be

attached to

the wall/table.

Circular holes

will always be

attached to the

unit.

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

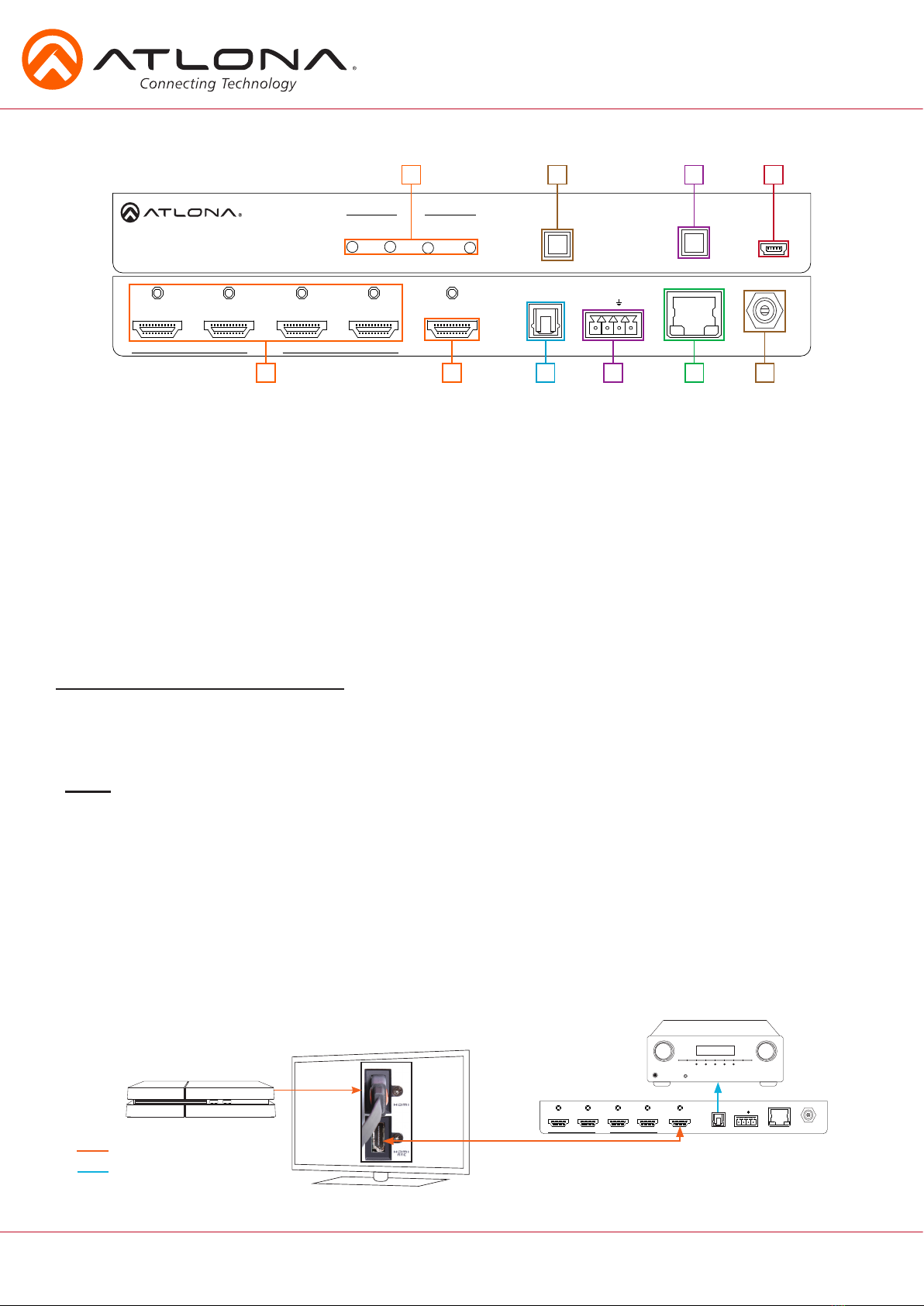

Panel Descriptions

INPUT POWER INPUT FW

1 2 3 4

AT-JUNO-451

HDMI IN HDMI OUT OPTICAL RS-232 IR IN LAN DC 5V

RX TX S

321 4

JUNOXTM

5 76 8 9

3 42

1. INPUT LEDs - LED will illuminate to display the currently selected input

2. POWER button - Turns switcher on or places the unit in standby mode

3. INPUT button - Use to switch between inputs

4. FW port:Firmware update port, connect a mini USB to USB A cable to a computer

Firmware is downloadable through http://www.atlona.com/product/AT-JUNO-451/

5. HDMI IN - Connect HDMI sources to these ports

6. HDMI OUT - Connect HDMI display to this port

7. OPTICAL port - Connect audio cable here for output to an AVR

8. RS-232 / IR IN - Connect to 3rd party control system for control

9. LAN port - Connect network switch or router here for Ethernet, TCP/IP, or webGUI control

10. DC 5V port - Connect included 5V power supply

ARC enables a source connected to a display to route audio back to the

switcher and send the de-embedded audio out the S/PDIF output.

1. Check to be sure the display supports ARC

2. Enable ARC on the HDMI output of the switcher through RS-232

(command ARC on), TCP/IP, or webGUI

3. Connect the HDMI output port of the switcher to the ARC labeled

input port on the display

Note: The switcher must be connected to the display’s HDMI ARC input

Note: Works well with audio from ARC enabled smart televisions

4. Connect the source to a non ARC HDMI input port on the display

5. Connect the S/PDIF port to an AVR or Zone Amp

Audio Return Channel (ARC)

Steps

INPUT POWER INPUT FW

1 2 3 4

AT-JUNO-451

HDMI IN HDMI OUT OPTICAL RS-232 IR IN LAN DC 5V

RX TX S

321 4

JUNOXTM

HDMI

Audio loop-out

S/PDIF audio loop-out

Bidirectional HDMI ARC signal

HDMI

Game Console

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

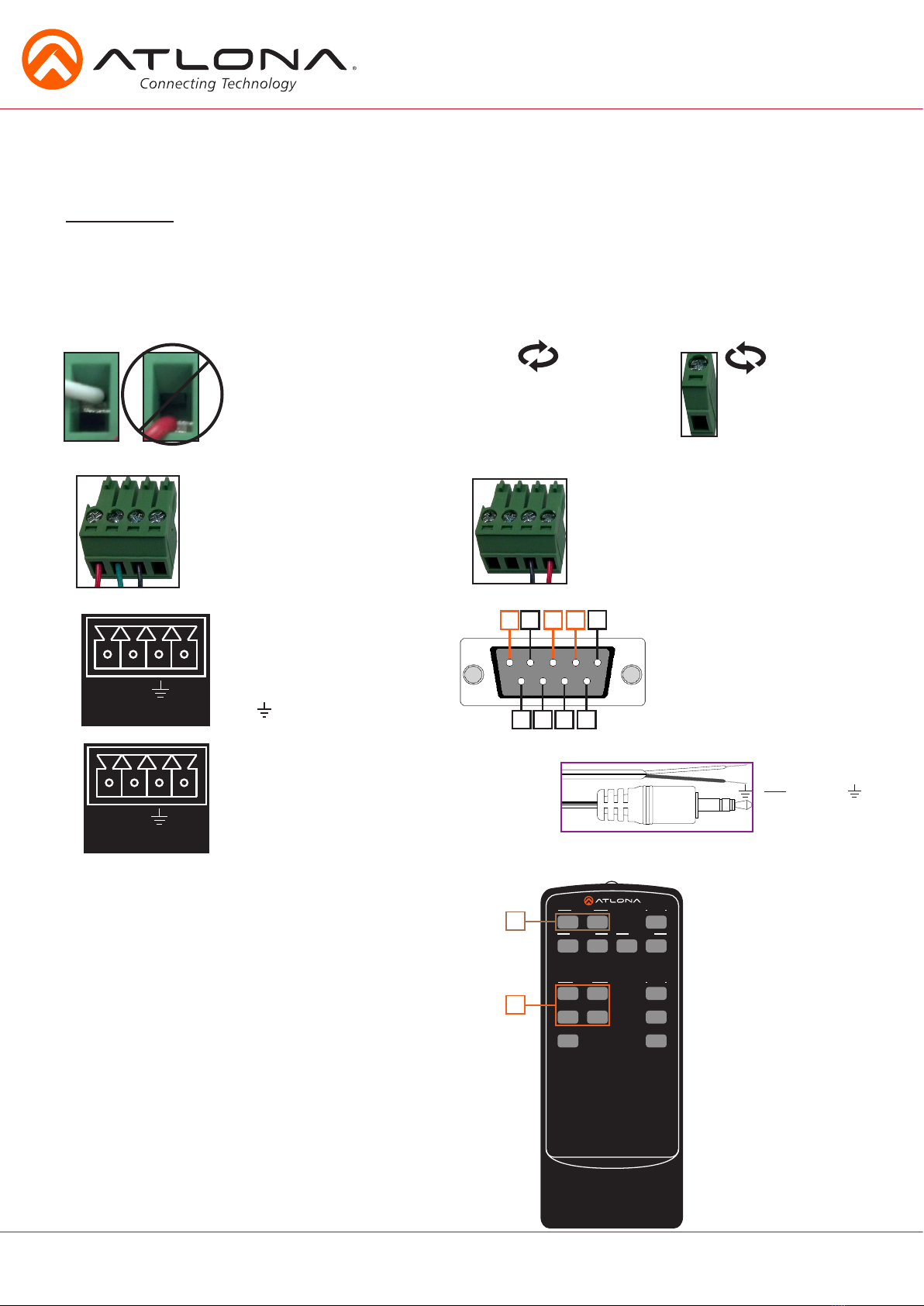

Captive Screw

The captive screw connectors allow you to cut cables to a suitable length, reducing cable clutter

while providing a more reliable connection.

Connecting

The captive screw connectors have

a contact bar that is adjusted to

compress the wire against the top

contact plate. Use the screws at the

top of the connector to compress

the wire against the contact plate.

When connecting the cables to the female captive screw connector it is important that the wires be

terminated correctly. The female captive screw connector has a contact plate at the top and must

have the wires touching it for signal to pass. When wired correctly (see picture A) the signal will pass,

incorrectly (see picture B) no signal will pass.

A female captive screw connector

is included: RS-232/IR (see picture 1

& 2).

RS-232 IR

Clockwise Counter

Clockwise

Turn the screws clockwise to

raise the contact bar to the

upper contact plate and hold

the wires in place.

Turn the screws counter

clockwise to lower the

contact bar to release the

wires.

RS-232 pin out will be

determined by the RS-232

cable and will connect as

Rx (receiver), Tx (transmitter),

and (ground). (See picture 2)

The IR IN is connected by a ground and

a signal cable. The recommended use of

this port is with a 3rd part control system.

Atlona recommends using a AT-LC-CS-IR-

2M (sold separately) for easy connection.

Typical pin out:

2 - TX - Transmitter

3 - RX - Receiver

5 - GND - Ground

Pin out color will differ per RS-232

cable.

54 3 2

9876

Signal (S)

Ground ( )

IR IN

RS-232

RX TX

Remote Control

1. Power On/Off: Turn switcher power on and off

2. Input selection: Selects source

Note: On/off video, audio, and setup buttons are not

functional for the JUNO-451 switcher

SW-R1

Video 1

Video

Video 2

All On

Power

Vol +

Vol

Mute

Input Audio

On Off

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

AMS & webGUI

Atlona provides two simple solutions for setup and control: a built in webGUI and the free software

AMS (AMS functionality coming soon).

To download AMS, go to http://atlona.com/product/at-sw-ams/

To get to the log in screen of AMS: type localhost:8080 into the web browser on the computer AMS is

running on. It will go straight to the log in for AMS.

GUI IP Address: may be found using an IP scanner software (e.g. Advanced IP Scanner)

*Atlona does not assume responsibility for damage caused by other programs installed into a computer, verify programs before installing*

A login screen will appear (this is the same log in for admin and general users). For the first login to AMS,

the username is “admin” and password is “admin123”. The login for the webGUI will be username

“root” and password “Atlona”.

Ethernet

Note: Press and hold the input button on the front panel to switch between static and DHCP IP address.

Two button flashes means the unit is in static mode and four button flashes means the unit is DHCP.

Static IP configuration will be: 192.168.1.254 - 255.255.255.0

For convenience, the JunoX comes with DHCP on. This enables the switcher to be

connected to a network without knowing available IP addresses. If your network does not allow

dynamic IP addresses or if you are using the switcher with a TCP/IP control system, this feature may

be turned off and the IP address set using front panel.

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

Once login is complete, the webGUI will display the JUNO-451 status information

Once logged in, select each page from the bar across the top

Video

Input Selection

Displays current input and allows the input to be selected manually

Auto Switch

Auto Switch: Toggles auto switching on/off

Audio

Output 1

Turns output audio on/off

ARC

Turns audio return channel on/off

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

RS-232 parameters

Set the baud rate, databit, parity, and stop bit of the system

The EDID tab enables the EDID settings to be changed or output EDIDs to be saved to memory.

Note: To ensure compatibility, it is best to set the EDID to match the native resolution of the connected display and the

audio format of the connected sound system

Note: STD passes the display’s EDID to the source

EDID Saved

Saves any connected display’s EDID to one of the four EDID memories of the JUNO-451

-Select the memory number to save the current output’s EDID to and press the save button

at the bottom of the page.

41080p 3D 2CH 51080p 3D MCH 61080p 3D DD 7720p 2CH

8720p DD 9 1280x800 2CH 10 1366x768 2CH 11 1080p DVI

12 1280x800 DVI 13 1920x1200 2CH 14 3840x2160@60 4:2:0 2CH

15 3840x2160@60 4:2:0 MCH 16 3840x2160@30 4:4:4 2CH 17 3840x2160@30 4:4:4 MCH

18 4096x2160@60 4:2:0 2CH 19 4096x2160@60 4:2:0 MCH 20 3840x2160@60 4:4:4 2CH

21 3840x2160@60 4:4:4 MCH

0STD 11080p 2CH 2 1080p MCH 3 1080p DD

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

The Users tab/page will allow users and passwords to be added/changed.

Network: IP address, netmask, gateway, and telnet port can be set to any settings compatible

with your network. The Netmask and Gateway must match your existing network

settings

IP Mode -

Static: Set a fixed IP address

Note: For a stable connection when using a control system, it is best to set up a static IP. As you select

an IP address, make certain no other devices on your network are using that IP address

DHCP: Dynamic Host Configuration Protocol will automatically select an IP address

on the network that is not already in use

Telnet Login Mode - Turn on/off - requires a password to adjust settings

Telnet Timeout - Set the auto log-off time between 1 and 3600 seconds

Broadcast - Turn on and off the feedback through all control ports

System:

Power - Turn the switcher on and off

Lock - Locks/unlocks the front panel buttons

Reset to Default - Reset the device to factory settings

Firmware Update - Use this feature to find and load the MCU firmware to the switcher

Note: Firmware can be found and downloaded from http://www.atlona.com/product/AT-JUNO-451/

page under the firmware tab

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

RS-232 & TCP/IP

To set up the RS-232 terminal the first thing needed is to find the RS-232 communications port

under the computer’s device manager. Once there, right click the port and select “Properties”.

Under the properties menu select the port settings tab and set the menu to the switcher default:

Bits per second: 115200, Data bits: 8, Parity: None, Stop bits: 1 and Flow control: None.

Terminal

Connection

RS-232 is connected through a 9-pin female D connector. Three pins will have specific functions

associated with them, some are unassigned.

No. Pin Function

1 ---- Not used

2 Tx Transmit

3 Rx Receive

4 ---- Not used

5 Gnd Ground

6 ---- Not used

7 ---- Not used

8 ---- Not used

9 ---- Not used

54 3 2

9 8 7 6

Inhaltsverzeichnis

Andere Atlona Schalten Handbücher

Atlona

Atlona AT-HDVS-150-TX-PSK Bedienungsanleitung

Atlona

Atlona AT-HD4-V41 Bedienungsanleitung

Atlona

Atlona AT-PROHD48M-SR Bedienungsanleitung

Atlona

Atlona AT-HD-V216 Bedienungsanleitung

Atlona

Atlona AT-HDVS-200-TX Bedienungsanleitung

Atlona

Atlona AT-HDVS-210U-TX-WP Bedienungsanleitung

Atlona

Atlona AT-VGA0801 TO AT-VGA9601 Bedienungsanleitung

Atlona

Atlona AT-HDVS-150-TX-WP Bedienungsanleitung

Atlona

Atlona AT-HDMI-V42 Bedienungsanleitung

Atlona

Atlona AT-DVI-41A Bedienungsanleitung

Atlona

Atlona AT-UHD-SW-5000ED Bedienungsanleitung

Atlona

Atlona AT-HDVS-210U-TX-WP Bedienungsanleitung

Atlona

Atlona AT-HDVS-150-TX Bedienungsanleitung

Atlona

Atlona 846352004415 Bedienungsanleitung

Atlona

Atlona AT-APC21A Bedienungsanleitung

Atlona

Atlona AT-UHD-SW-52ED Bedienungsanleitung

Atlona

Atlona AT-HDVS-150-TX Bedienungsanleitung

Atlona

Atlona AT-HDVS-150-TX Bedienungsanleitung

Atlona

Atlona AT-UHD-SW-51 Bedienungsanleitung

Atlona

Atlona AT-LINE-PRO5-GEN2 Bedienungsanleitung

Atlona

Atlona AT-UHD-SW-510W Bedienungsanleitung

Atlona

Atlona AT-VGA0801 TO AT-VGA9601 Bedienungsanleitung

Atlona

Atlona AT-UHD-SW-510W Kurzanleitung

Atlona

Atlona AT-HD4-V42 Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
