Atmel AT88CK109STK3 Installationshandbuch

AT88CK109STK3

Hardware User Guide

8557B—CRYPTO—04/09

AT88CK109STK User Guide i

8699A—CRYPTO—10/09

Table of Contents

Section 1

Introduction....................................................................................................... 1-1

1.1 Overview.............................................................................................. 1-1

1.2 AT88CK109STK3 Starter Kit Features ................................................ 1-1

Section 2

Getting Started ................................................................................................. 2-4

2.1 Unpacking the System......................................................................... 2-4

2.2 System Requirements ......................................................................... 2-4

2.3 Software Installation ............................................................................ 2-4

Section 3

Using the AT88CK109STK3 ............................................................................. 3-5

3.1 Overview.............................................................................................. 3-5

3.2 Power Supply ...................................................................................... 3-6

3.3 RESET................................................................................................. 3-7

3.4 AT90USB1287 AVR Microcontroller .................................................... 3-8

3.5 Serial Links .......................................................................................... 3-8

3.6 On-board Resources ........................................................................... 3-9

3.7 AT88CK109BK3 CryptoAuthentication Daughter Board .................... 3-12

3.8 AT88CK109BK3 HOST and CLIENT Sockets Compatibility .............. 3-12

3.9 HOST and CLIENT Power Configuration........................................... 3-13

3.10 Devices Interconnect Header............................................................. 3-14

3.11 Mapping AT88CK109BK3 to AT88Microbase, STK500 and STK600 3-14

3.12 Interfacing a USART with CryptoAuthentication................................. 3-16

3.13 In-System Programming .................................................................... 3-16

3.14 Debugging ......................................................................................... 3-17

3.15 Test Points......................................................................................... 3-18

Section 4

Troubleshooting Guide ..................................................................................... 4-1

Section 5

Technical Specifications ................................................................................... 5-1

Section 6

Technical Support............................................................................................. 6-1

Section 7

Complete Schematic ........................................................................................ 7-1

Section 1

Introduction

Congratulations on acquiring the AVR®-based AT88CK109BSTK3 CryptoAuthentication Starter

Kit. This kit is designed to give designers a quick start to develop code for the CryptoAuthentication

product family. All the necessary hardware is provided in the package. The AT88Microbase has

been pre-programmed for your convenience. Please be sure to visit WWW.Atmel.com/Javan for

the latest firmware image.

1.1 Overview

This document describes the AT88CK109STK3, which is a development kit for the AT88SA100,

AT88SA102, and ATSA8810HS CryptoAuthentication devices. This kit uses a modular approach.

The development kit includes the AT88Microbase board and the AT88CK109BK3

CryptoAuthentication daughter board. The AT88Microbase uses a convenient Type-A USB

interface allowing users to interface with a personal computer and experiment with

CryptoAuthentication. The small USB form factor of the AT88Microbase allows the board to

function as a demo as well as a development platform.

The AT88CK109BK3 daughter board has two SOT23-3 sockets for either client-host or multiple

client development. Together, these boards allow an easy evaluation of the CryptoAuthentication

products using demonstration software. This user guide acts as a general, getting started guide as

well as a complete technical reference for advanced users.

1.2 AT88CK109STK3 Starter Kit Features

AT88Microbase provides the following features:

AT90USB1287 (AVR) 64 QFN device (2.7V < VCC < 5.5V)

– 128K Bytes of In-System Self-Programmable Flash

– 4K Bytes EEPROM

– 8K Bytes Internal SRAM

AT88SC018 CryptoCompanion IC

USB software interface for Device Firmware Upgrade (DFU boot loader)(2)

Power supply LED

– from the USB interface (USB device bus powered application)

– from an external power supply

JTAG Connector:

– for on-chip ISP

– for on-chip debugging using JTAG ICE

AT88SCK109STK3

1-2 AT88CK109STK3 User Guide

8699A—CRYPTO—10/09

Serial interfaces:

– 1 USB full / low speed device interface

– USART

On-board resources:

– 3 User defined LEDS

– 10 Pins I/O header (2x5, 0.1” pitch)

Supports SPI, TWI, and UART

– 1 Buzzer

On-board RESET button

On-board HWB button to force AVR into DFU mode at reset

16 MHz crystal for system clock

The AT88SC19BK3 provided the following features:

2 SOT23-3 CryptoAuthentication Sockets

– HOST and CLIENT

– Software PWR control

AVR Studio®software interface(1)

Notes: 1. AT88Microbase is supported by AVR Studio®, version 4.17 (build 666) or

higher. For up-to-date information on this and other AVR tool products, please

consult our web site. The newest version of AVR Studio®, AVR tools and this

User Guide can be found in the AVR section of the Atmel web site,

http://www.atmel.com.

2. ATMEL Flip®, In System Programming Version 3.2.2 or higher shall be used for

Device Firmware Upgrade. Please consult Atmel web site to retrieve the latest

version of Flip and the DFU bootloader Hex file if needed

Figure 1. AT88CK109STK3 Kit

1.2.1 Device Support

AT88CK109BK3 (daughter board) currently supports the following CryptoAuthentication devices:

ATSA88100

ATSA88102

ATSA8810HS

Locate the latest information about Crypto Authentication at www.atmel.com/Javan .

AT88SCK109STK3

2-4 AT88CK109STK3 User Guide

8699A—CRYPTO—10/09

Section 2

Getting Started

2.1 Unpacking the System

Package content:

AT88Microbase Controller

AT88CK109BK3, CryptoAuthentication daughter board

Atmel CryptoAuthentication product assortment

1 USB cable, 6 inches

2.2 System Requirements

The minimum hardware and software requirements are:

200 MB free hard disk space (AVR Studio, FLIP and ATMEL’s Crypto Evaluation Studio)

Windows®XP, X86 processor

Available USB Port

2.3 Software Installation

Install CryptoAuthentication Demonstration Utility available from WWW.Atmel.com/Javan

Launch software and follow the online help.

Note: The CryptoAuthentication IC’s that are included with your kit have Development Secrets,

not Production secrets. See the .xml file that is included with the CryptoAuthentication

utility. Please be aware of this during your development.

Section 3

Using the AT88CK109STK3

This chapter describes the features of the AT88Microbase and the AT88CK109BK3 boards.

3.1 Overview

Figure 2. AT88Microbase Components (front side)

USB T

PWR

LED

Hardware

Boot

(

HWB

)

JTAG

LED

Bank

Buzzer Reset TWI / SPI

Selector

switch

10-Pin

Interface

Header

(J1)

AT88SCK109STK3

3-6 AT88CK109STK3 User Guide

8699A—CRYPTO—10/09

Figure 3. AT88Microbase Components (back side)

3.2 Power Supply

3.2.1 USB powered

The on-board power supply circuitry allows two possible configurations for the main supply voltage.

Mounted Resistor Main Board

Supply Voltage Comments

R1 3.3V

R2 5.0V ( USB ) Default Setting

The CryptoCompanion supply voltage is always 3.3V, regardless of R1and R2 configuration.

5.0 ( USB ) 3.3V

Regulator

CryptoCompanion

0VCC

Main board

Supply Voltage

* Default

3.3V

16MHz

stal

AT88SC108

CryptoCompanion

AT90USB1287

AVR Main board

Supply Voltage

*see section 3.2.1

Note 1: For the AT88SA100, AT88SA102, and the AT88SA10HS devices, 5.0V is

required to burn the fuses.

Note 2: The AT88Microbase is shipped with a 16MHz crystal, which allows the

AT90USB1287 on-chip USART to obtain the 230.4K baud rate (-3.5%

error) required to communicate with a CryptoAuthentication device. The

16MHz crystal requires that 5.5VCC5.4



. To operate the

AT88Microbase below 4.5V, the 16MHz crystal must be replaced with an

8MHz crystal. The ABM3B-8.000MHZ-B2-T 8MHz crystal is a drop-in

replacement.

3.2.2 Power LED, “LEDP”

The blue LED (LEDP) is always lit when power is applied to the AT88Microbase regardless of the

voltage supply.

Figure 4. Power on LED “LEDP”

3.3 RESET

Although the AT90USB1287 has its on-chip RESET circuitry, (c.f. AT90USB1287 Datasheet,

section “System Control and Reset”), the AT88Microbase provides two additional means to reset

the AT90USB1287.

3.3.1 Power-on Reset

The on-board RC network acts as power-on RESET.

3.3.2 RESET Push Button

By pressing the RESET push button on the AT88Microbase, a warm RESET of the AT90USB1287

AVR is performed.

Figure 5. RESET Push Button (AVR RESET) Implementation

AT88SCK109STK3

3-8 AT88CK109STK3 User Guide

8699A—CRYPTO—10/09

3.4 AT90USB1287 AVR Microcontroller

To use the USB interface of the AT90USB1287, the clock source should always be a crystal or an

external clock oscillator (the internal 8MHz RC oscillator cannot be used to operate the USB

interface). Only the following crystal frequencies allow proper USB operations: 2MHz, 4MHz,

6MHz, 8MHz, 12MHz, and 16MHz. The AT88Microbase comes with a default 16MHz crystal

oscillator, which is required to obtain the 230.4K USART baud rate needed for

CryptoAuthentication communication.

3.5 Serial Links

3.5.1 USB

The AT88Microbase is supplied with a standard USB Type-A receptacle. The AT88Microbase only

operates as an “USB device”.

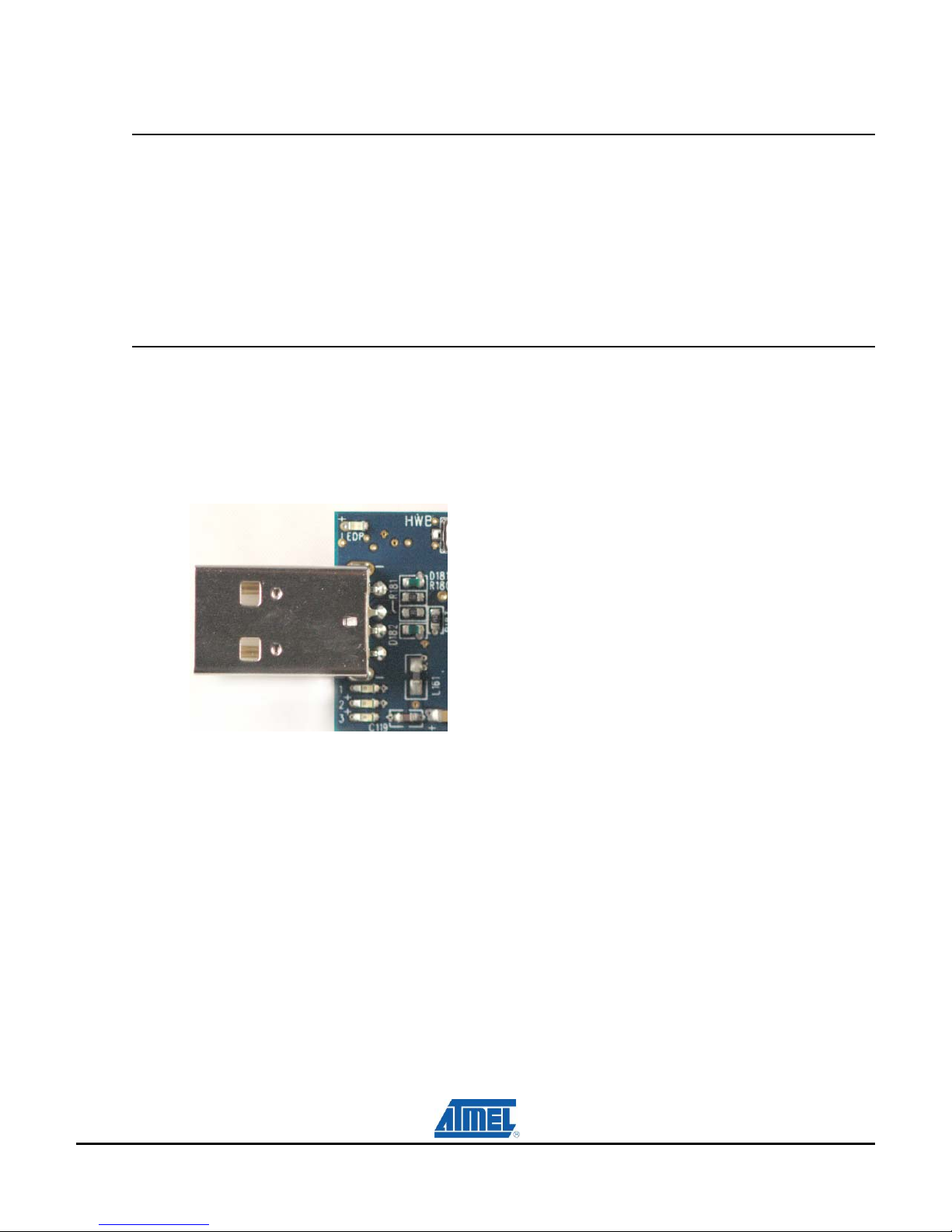

Figure 6. USB Type-A Receptacle

3.5.2 USART

The AT90USB1287 AVR comes with an on-chip USART peripheral (USART1). Only the

asynchronous mode is supported. See section 3.6.3 for pinout details.

3.5.3 SPI / TWI Selector Switch

The SPI – TWI selector switch (K1) allows either the SPI pins (MOSI and SCLK) or the TWI pins

(SDA and SCL) to be routed to the 10 pin Interface header, J1. See section 3.6.3 for pinout details.

Figure 7. TWI – SPI Selector Switch
