ATV BSS7212 Bedienungsanleitung

1.0

BSS7212 / BSS7550

IR Bullet Cameras

All manuals and user guides at all-guides.com

all-guides.com

All manuals and user guides at all-guides.com

480K(NTSC) pixels.

Main Body

Camera Lens

IR LED

4Hex Tool

Bracket

1.0

High resolution SONY Super HAD CCD II camera with 700TVL

module.

External adjust varifocal Lens.

BSS7212 / BSS7550

IR Bullet Cameras

All manuals and user guides at all-guides.com

*Wall

Installation

*Ceiling

Installation

1). If cable is preferred to go through walls, loosen the bracket base

screws, take away the bracket plate, the cable through the center

hole of the bracket plate, and drill a hole on wall and make sure it is

big enough for the BNC connector and power jack to pass through.

All manuals and user guides at all-guides.com

DVR

Video

Power

Adaptor

extension cable

(not included)

2). If cable is does not need to go through walls, the cable can be fixed

directly to the wall surface.

3). Connect the BNC end of the camera to the extension cable and the

other end of the extension cable connect to your DVR.

Installer connects either 12VDC or 24VAC to the screw terminals.

(polarity is not important with either voltage).

All manuals and user guides at all-guides.com

200

360

ZOOM

FOCUS

360

4). Power up the camera and video should appear on screen.

5). You may now adjust the camera viewing angles by adjusting the

camera bracket position.

6).

Loosen the screws of the camera bracket,

adjust the Pan，Tilt and

rotate mechanism by hand, once the desired viewing position is

achieved, tighten up the

camera bracket

screws to fix the position

"as shown in below photos".

7). The camera is equipped with a Vari-Focal Lens for zoom in / out

feature. To Zoom, you must rotate the handle on the camera body

and adjust the focusing to get the best image.

All manuals and user guides at all-guides.com

all-guides.com

SETUP MENU

LENS AUTO

SHUTTER/AGC AUTO

WHITE BAL ATW

BACKLIGHT OFF

PICT ADJUST

D-WDR OFF

MOTION DET ON

EXIT SAVE ALL

←

SETUP MENU

PRIVACY OFF

DAY/NIGHT EXT1

2DNR

CAMERA ID OFF

SYNC INT

LANGUAGE ENGLISH

CAMERA RESET

BACK

EXIT SAVE ALL

←

ZOOM UP

SET

LEFT RIGHT

DOWN FOCUS

OSD button cover

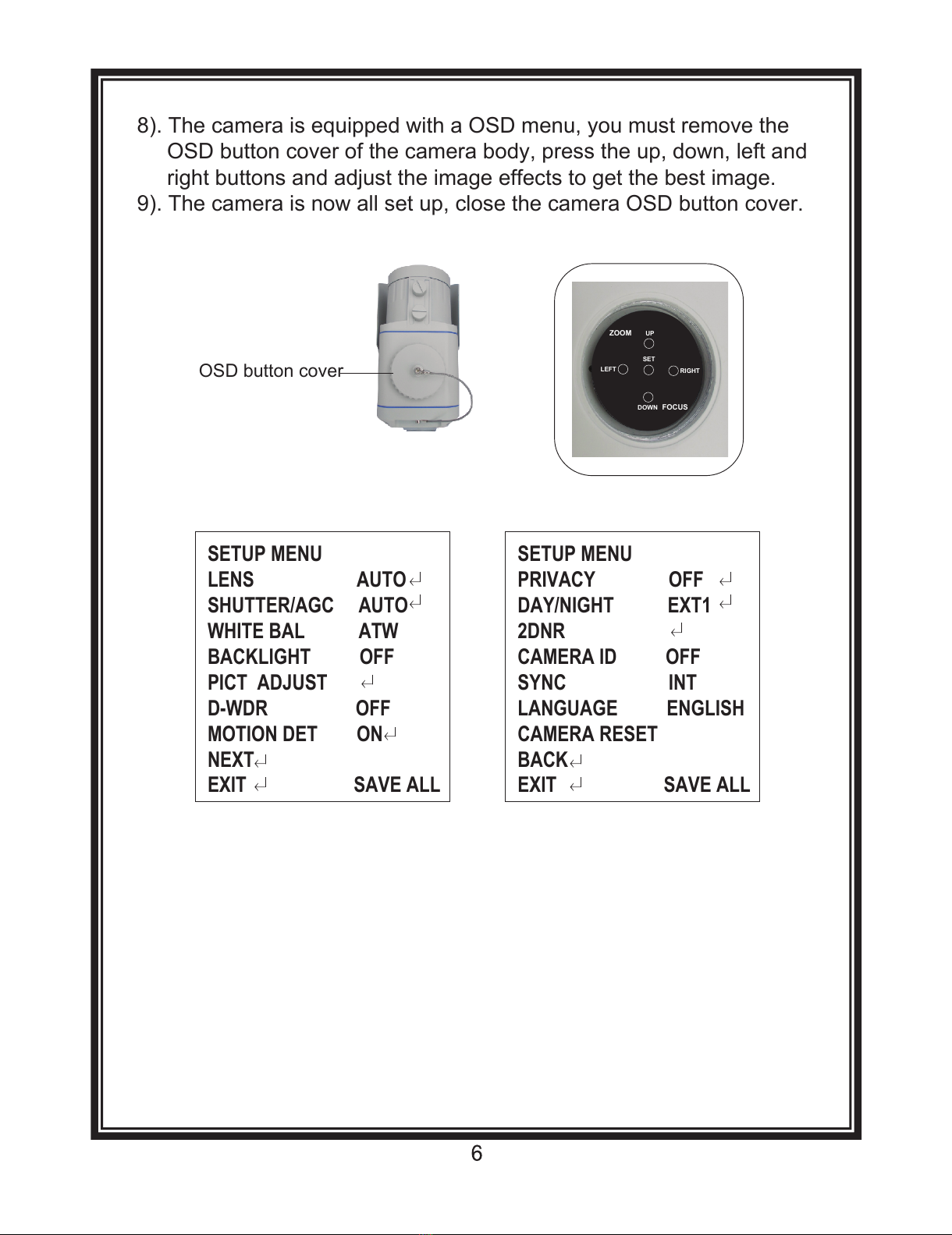

8). The camera is equipped with a OSD menu, you must remove the

OSD button cover of the camera body, press the up, down, left and

right buttons and adjust the image effects to get the best image.

9). The camera is now all set up, close the camera OSD button cover.

All manuals and user guides at all-guides.com

NTSC:976(H) × 494(V)

OSD Key control

OSD

BSS7212 / BSS7550

97(W)x 81 (H) x 168(L)mm (Body only)

2:1 Interlace

700

0.1Lux Color; 0.01Lux B/W (IR LED's On)

Automatic Tracking

2.8-12mm or 5-50mm Varifocal

or AC 24V

1/3” Color SONY Super HAD CCD II

Image Sensor

650

140

LED OFF

LED ON

Scanning System

, BNC

NR-MODE / Y Level / C Level

OSD Key control

2DNR

OFF / HLC / BLC

ON / OFF

Backlight

D-WDR

Motion Detection

Privacy

EXT1 / B&W / Color / Auto / EXT2

Day / Night

Pict Adjust

More than 30m(100ft)

IR Range

IR LEDS
