Audio Authority 1714 Bedienungsanleitung

User Manual

Model 1714

Headphone Demonstration

Ampliﬁer with Volume Control

701-16700

ROTARY CONTROLS

HEADPHONE OUTPUTS

AUDIO

BUS OUTAUDIO INPUT

HEADPHONE DEMONSTRATOR

SYSTEM BUS

Model 1714

POWER

BUS OUT

POWER

INPUT

DOWN

VOLUME

TIMEOUT MINIMUM MAXIMUM

VOLUME

DEFAULT

VOLUMEVOLUME

OUTPUT 3

VOLUME

OUTPUT 4

DOWN

UP POWER

VOLUME

OUTPUT 1

VOLUME

OUTPUT 2

DOWN

2/2

POWER

INPUT

POWER

OUTPUT

MINIMUM

VOLUME

DIAL

MAXIMUM

VOLUME

DIAL

DEFAULT

VOLUME

DIAL

DEMO

TIMEOUT

DIAL

MUSIC PLAYER

HEADPHONE

POSITION 1

HEADPHONE

POSITION 2

HEADPHONE

POSITION 3

HEADPHONE

POSITION 4

VOLUME CONTROL BUTTONS

VOLUME

CONTROL

ENCODER

KNOBS

AUDIO BUS OUT

Introduction

The 1714 is designed to provide high delity headphone amplication and

volume control for self service retail demonstration. All outputs are active all the

time, volume is adjusted individually for all outputs.

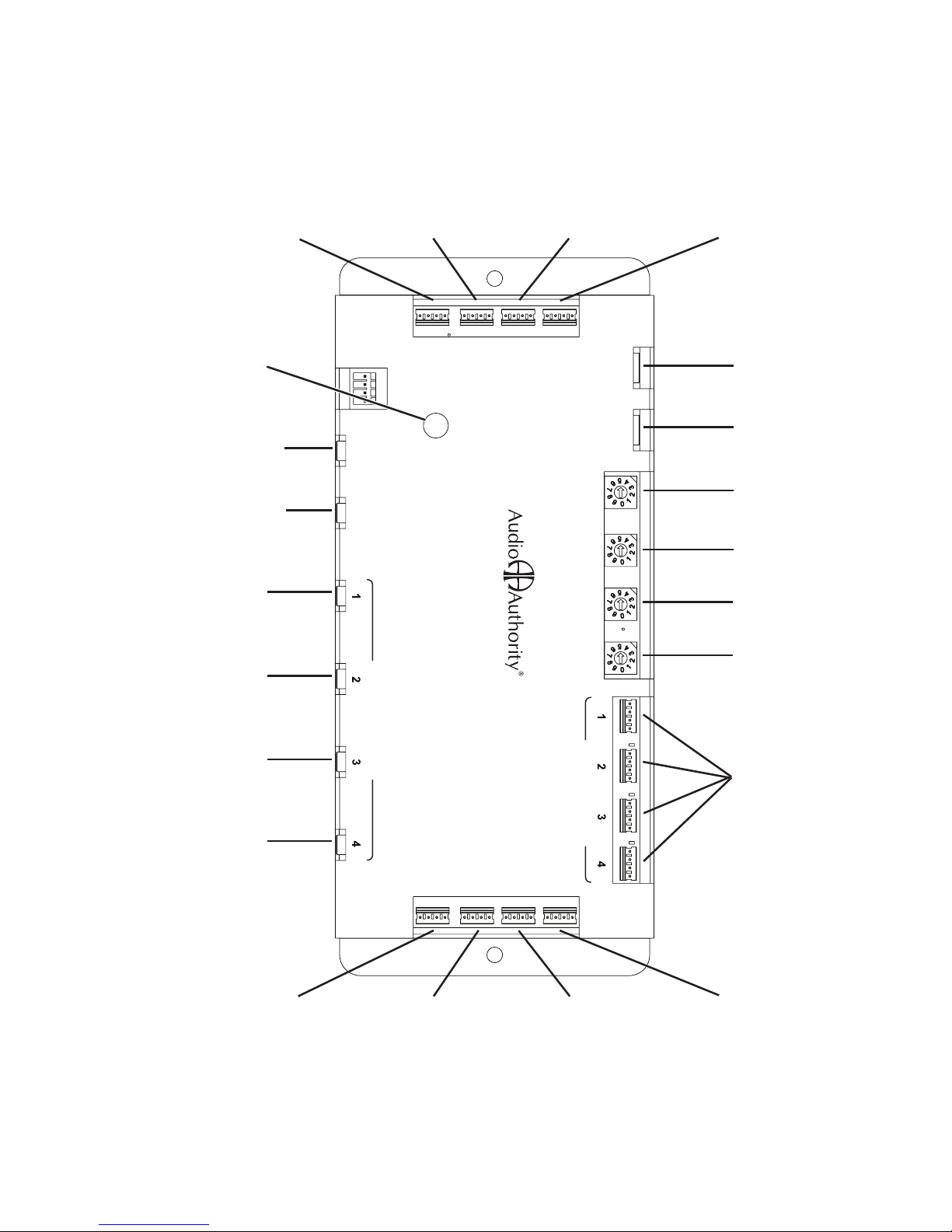

MODEL 1714

VOLUME CONTROL BUTTONS

•

POWER LED

VOLUME DOWN 4 VOLUME UP 4 VOLUME DOWN 3 VOLUME UP 3

VOLUME UP 2 VOLUME DOWN 2 VOLUME UP 1 VOLUME DOWN 1

Package Contents

Before installing this product, please check the packaging and make certain the

following items are contained in the shipping carton:

• 1714 Headphone Demonstrator

• DC Power Adapter

• User Manual

Features

• High quality headphone amplication

• Volume control via buttons or rotary encoders (sold separately)

• Volume limits

• Adjustable volume timeout

Audio Source

Connect a music player to the AUDIO INPUT jack.

Note: Make sure the volume on the player is turned all the way up, and not accessible to customers.

Volume Control (Encoder Knob)

To control volume using a volume knob, connect a four-conductor encoder such as

Audio Authority’s Model 1793 or 1794 to the four-pin encoder port at each position.

Push the knob to mute audio. These controls allow mute by pressing the knob.

Volume Control (Up and Down Buttons)

To control volume using push-buttons, connect four-conductor momentary switches

to each position’s up and down port. Compatible push-buttons are available from

Audio Authority. Mute is not available when using push-buttons.

Note: Please retain the original packing

material in case the unit must be

returned. If you nd any items are

missing, contact Audio Authority

immediately. Have the Model Number

and Invoice available for reference

when you call.

Product Select

push-button

1794 Encoder, 1793 is similar

with brushed aluminum nish.

2048 Mercer Road, Lexington, KY 40511-1071 USA

800-322-8346 • 859-233-4599 • Fax: 859-233-4510

support@audioauthority.com • www.audioauthority.com

752-672 Rev. 20140520

Timeout Interval

All outputs return to default volume after a period of

inactivity (the timeout interval). The timeout interval is

set by the TIMEOUT dial, in increments of 15 seconds.

If the timeout switch is set to 0, the demonstration does

not time out. Each time a customer adjusts volume the

timeout resets. Default volume may be adjusted from

low (0) to high (9) volume level.

Audio Bus Out

The audio BUS OUTPUT feeds the currently selected audio input (MUSIC

PLAYER) to more 1714 modules in the system. Do not connect headphones to

this output. Connect a 3.5mm patch cord from the rst 1714 bus output to the

second 1714 player input, etc.

Power

Connect included 12V power supply to Power Input. Connect jumper to other

1714 units if desired.

Operation

On power up, the POWER light comes on to show normal operation. VOLUME

DOWN/UP buttons (if installed) light up when pressed and released. Press

VOLUME DOWN/UP to control volume. Rotary VOLUME knob increases volume

with clockwise rotation, push in function selects mute/un-mute. Rotating the knob

also un-mutes the audio.

Timeout Interval

115 seconds

230 seconds

345 seconds

460 seconds

5 75 seconds

6 90 seconds

7105 seconds

8120 seconds

9 135 seconds

0 Never
